Boss RC-500 Loop Station Compact Phrase Recorder Pedal

Boss RC-500 Loop Station Compact Phrase Recorder Pedal

Brand New in Original Packaging
BossRC-500
Features
  • Advanced two-track looper
  • Loop station with onboard mixing and deep control options
  • Sound quality with 32-bit AD and DA
  • Stereo looper engine with 13 hours of recording time
  • LCD with multi-color backlight for viewing loop status
  • Mono and stereo inputs for easy pedalboard integration
  • Reverse function and Loop FX
  • 16 different drum kits and 57 preset rhythms
  • Full MIDI I and O provided with space-saving mini TRS jacks
  • Onboard storage for 99 phrase memories
What's in the Box
  • BOSS RC-500 Two-Track Loop Station Phrase Recorder Pedal with Onboard Mixing Options (Red)
  • Owner's Manual
  • Leaflet
  • 4 x Alkaline Battery (AA, LR6)
  • 4 x Rubber Foot
  • Limited 5-Year Warranty
Item Description
The BOSS RC-500 Two-Track Loop Station Phrase Recorder Pedal in Red is an essential partner for guitarists, singer and songwriters, multi-instrumentalists, and anyone who wants to take their looping to the next level. You can craft real-time compositions with two loop tracks, mic and stereo instrument inputs, rhythms, and inspiring Loop FX, all backed by premium 32-bit audio quality. Store loops in onboard memories, and explore expanded operation with external controls and MIDI. Filled with next-generation Loop Station features, the RC-500 gives serious creators the tools they need to develop new ideas and deliver impactful performances that will leave audiences wanting more.
Super Sound Quality
Featuring best-in-class 32-bit AD and DA and 32-bit floating-point processing, the RC-500 captures your personal sound with full fidelity and keeps loops crystal clear, even with multiple overdubs. And with 13 hours of stereo recording time, there is a plenty of space for extended creative journeys.
Connect, Loop, and Mix
With its versatile I and O and free-flowing interface, the RC-500 is ready to support all your musical visions. Connect mono and stereo instruments and pedal effects, plus a mic to the dedicated XLR input - complete with phantom power if needed. Use the two tracks independently for song-style composition, or together for rich multi-track textures. The LCD backlight changes color to clearly show the current operation mode, while hands-on track faders and a mic level knob provide direct access to volume control as you loop.
Flexible Creative Control

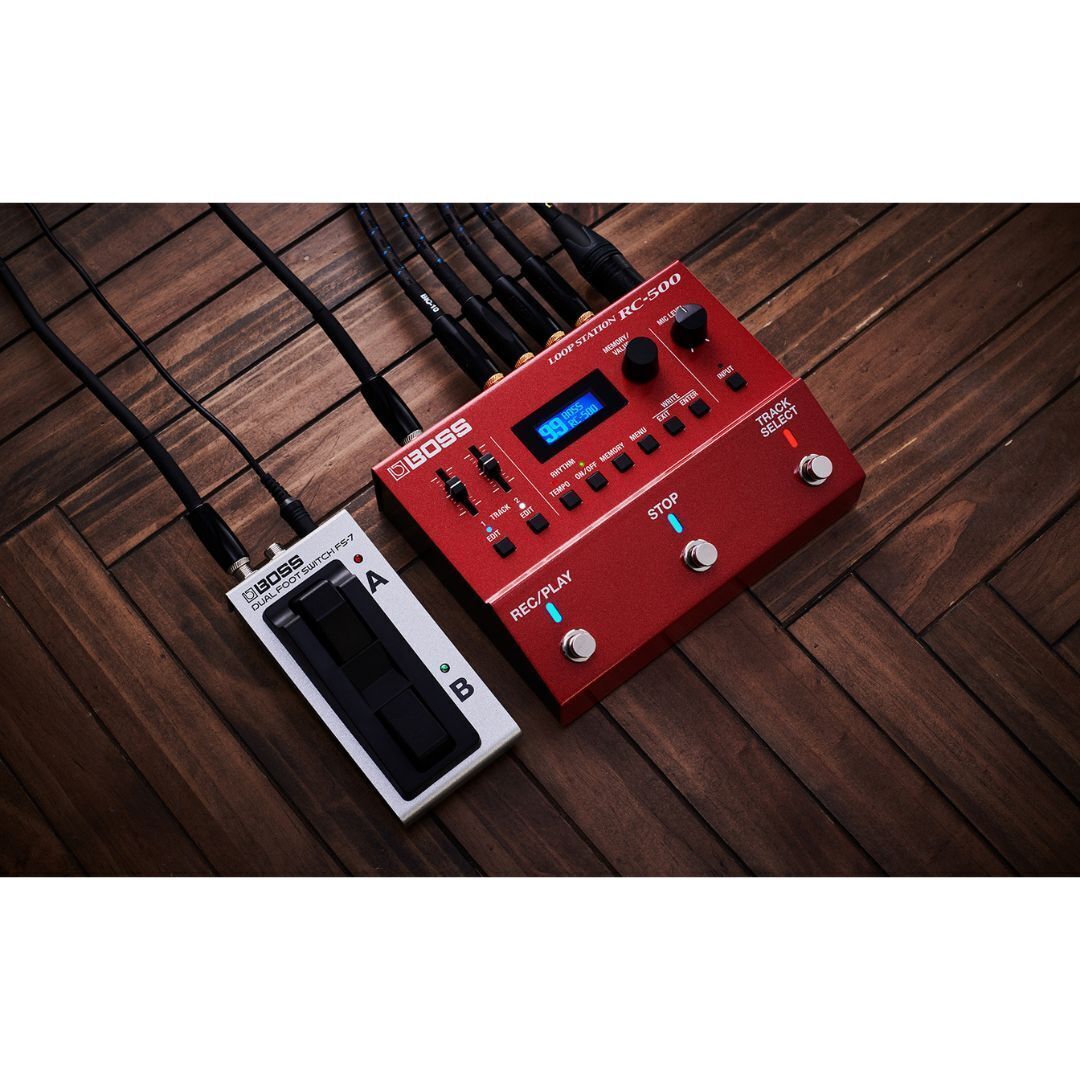

Three onboard footswitches make it simple to control recording and playback, track switching, and more. For expanded operation, you can connect up to two external footswitches for direct control of many assignable functions, or an expression pedal for continuous adjustments. And for advanced rigs, the space-saving TRS MIDI I and O enables remote operation from MIDI switchers and foot controllers, plus MIDI sync with drum machines and DAWs.
Personalize Your Setup
The RC-500’s I and O and footswitches are configured for basic operations by default, but they can be reassigned in a variety of ways to meet your custom needs. Route left and right input sources to separate tracks, or send guitar and vocals to independent outputs.
Energize Performances with Rhythms and Loop FX
Loaded with inspiring rhythms and evocative loop processing, the RC-500 is primed to bring groove and color to all your looping adventures. Each of the 57 preset rhythms include A and B variations, while 16 different drum kits provide sounds to match any style. Designed for live performance, Loop FX like repeat, scatter, and more infuse your loops with instant sonic energy. There’s a cool reverse function too, perfect for creating unique sonic flavors on demand.
Capture, Practice, and Perform
The RC-500’s 99 phrase memories let you store loops as fast as you create them, complete with rhythm and kit selections, audio settings, and control assignments. Loop audio can be backed up to a computer via USB. And with WAV import via BOSS Tone Studio, the RC-500 becomes a central playback hub for lesson material, jam tracks, or backing music for your next gig.
Specifications

General

  • Sampling Frequency: 44.1 kHz
  • AD/DA Conversion: 32 bits
  • Processing: 32-bit floating point
  • Recording/Playback Number of Track: 2
  • Recording/Playback Data Format: WAV (44.1 kHz, 32-bit float, stereo)
  • Recording/Playback Maximum Recording Time: Approx. 1.5 hours (1 track), Approx.13 hours (total of All memories)
  • Rhythm Type: 57 Patterns x 2 Variations
  • Rhythm Kit: 16 types
  • Effect: Loop FX (only for loop tracks) / Type: Beat Repeat, Beat Shift, Beat Scatter, Vinyl Flick / Reverb (only for rhythm part)
  • Memory: 99
  • Nominal Input Level: MIC IN: -40 dBu (variable), INST IN A/MONO B: -10 dBu
  • Maximum Input Level: MIC IN:+8 dBu, INST IN A/MONO, B: +8 dBu
  • Input Impedance: MIC IN: 4 k ohms, INST IN A/MONO, B: 1 M ohm
  • Nominal Output Level: OUTPUT A/MONO, B: -10 dBu
  • Maximum Output Level: OUTPUT A/MONO, B: +8 dBu
  • Output Impedance: OUTPUT A/MONO, B: 1 k ohm
  • Recommended Load Impedance: OUTPUT A/MONO, B: 10 k ohms or greater
  • Bypass: Buffered bypass

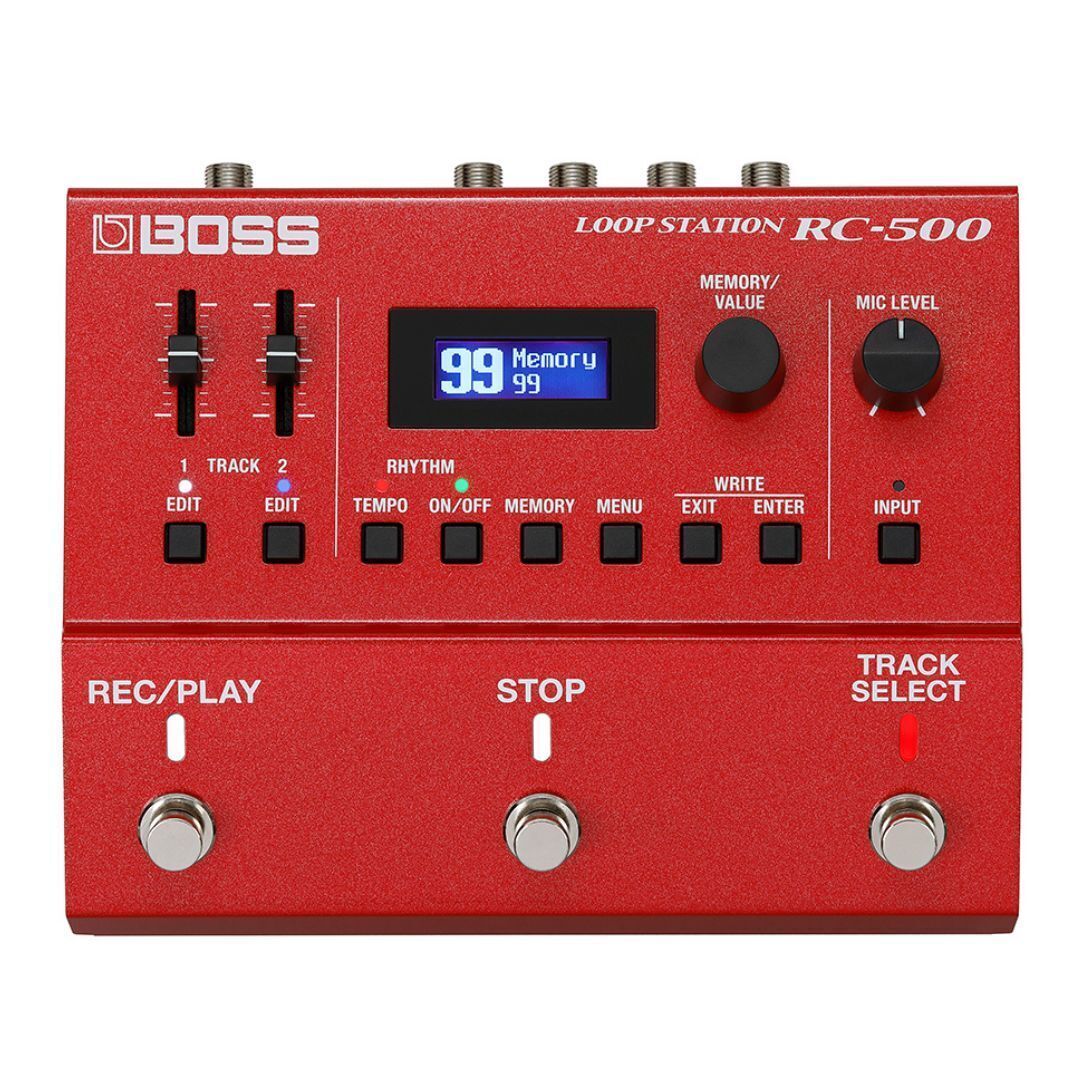

  • Controls: Rec/Play switch, Stop switch, Track Select switch, Memory/Value knob, MIC Level knob, Track 1 slider, Track 2 slider, Track 1 Edit button, Track 2 Edit button, Rhythm Tempo button, Rhythm On/Off button, Memory button, Menu button, Exit button, Enter button, Input button.
  • Display: Graphic LCD (96 x 32 dots, RGB backlit LCD)

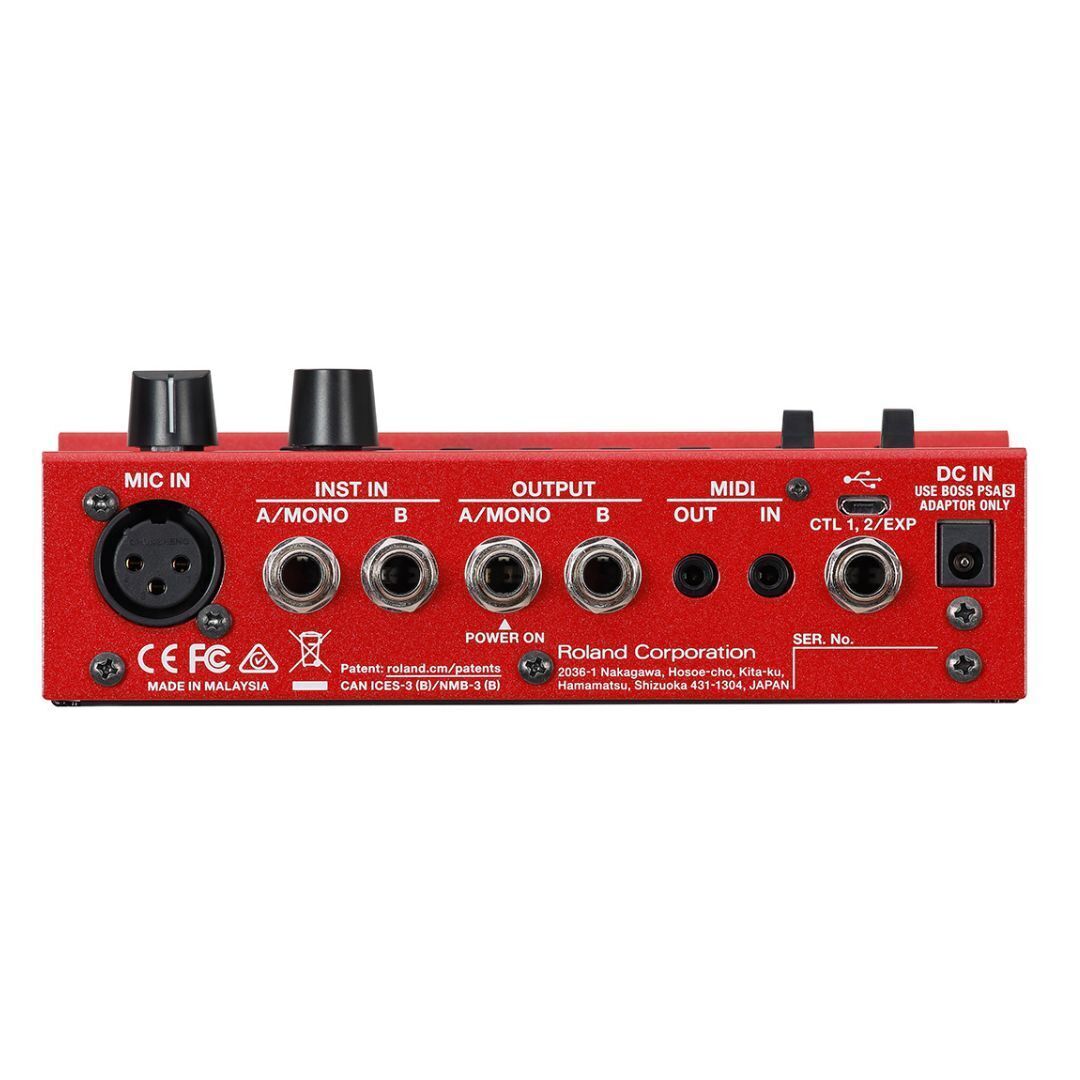

  • Connectors: INST IN A/MONO, B jacks: 1/4-inch phone type, MIC IN jack: XLR type (balanced, phantom power): DC 48 V, 10 mA Max, OUTPUT A/MONO, B jacks: 1/4-inch phone type, CTL 1,2/EXP jack: 1/4-inch TRS phone type, USB port: USB micro B type, MIDI (IN, OUT) jacks: stereo miniature type, DC IN jack.
  • Power Supply: 4 x Alkaline battery (AA, LR6), AC adaptor (PSA-S series: sold separately)
  • Current Draw: 330 mA (with phantom power), 240 mA (without phantom power)
  • Expected Battery Life under Continuous Use: Alkaline: Approx. 3.5 hours (without phantom power), Approx. 2 hours (with phantom power)
  • Accessories: 4 x Alkaline battery (AA, LR6), 4 x Rubber foot

Dimensions and Weight

  • Width: 170 mm
  • Depth: 138 mm
  • Height: 62 mm
  • Weight: 950 g (2.1 lbs.) (including battery)
