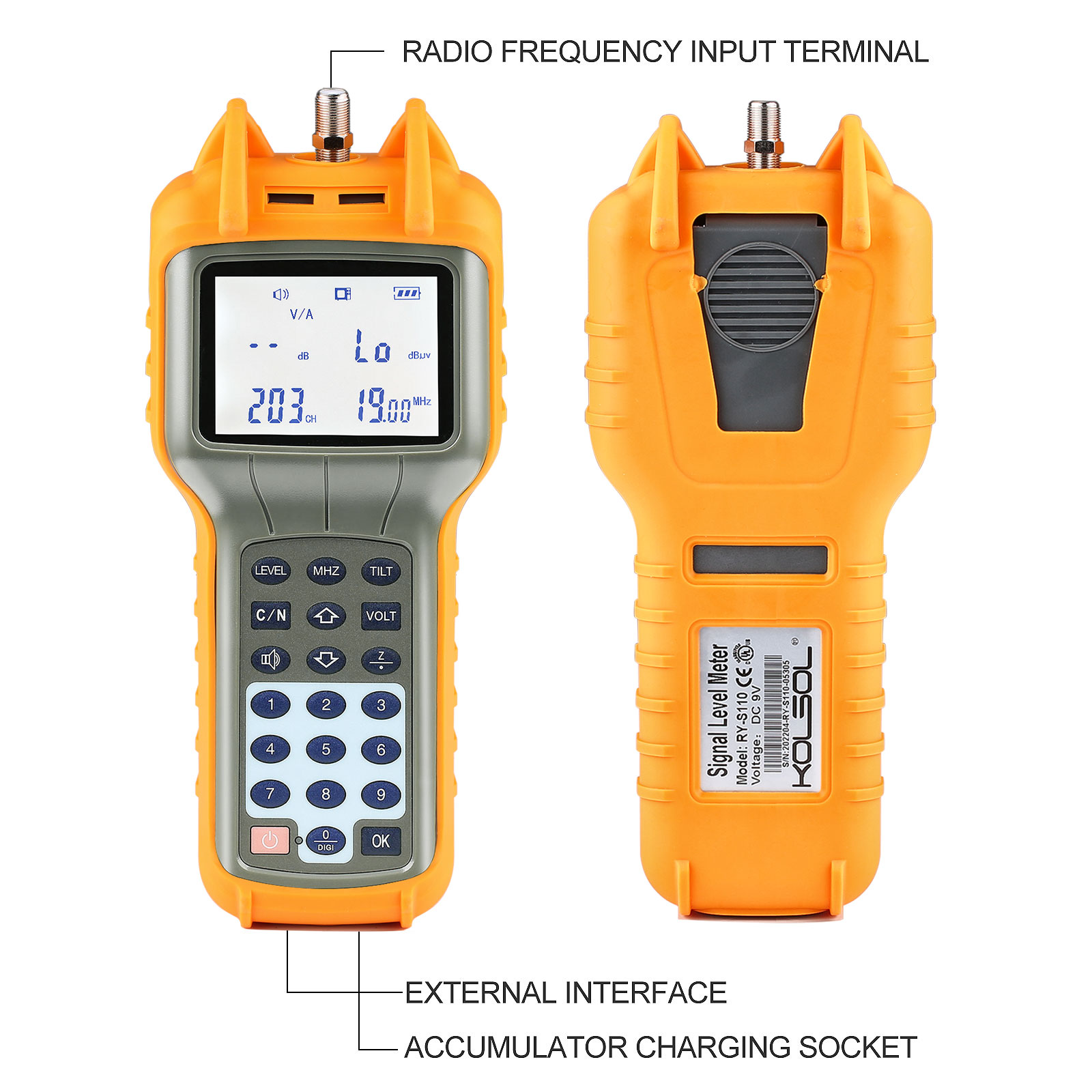

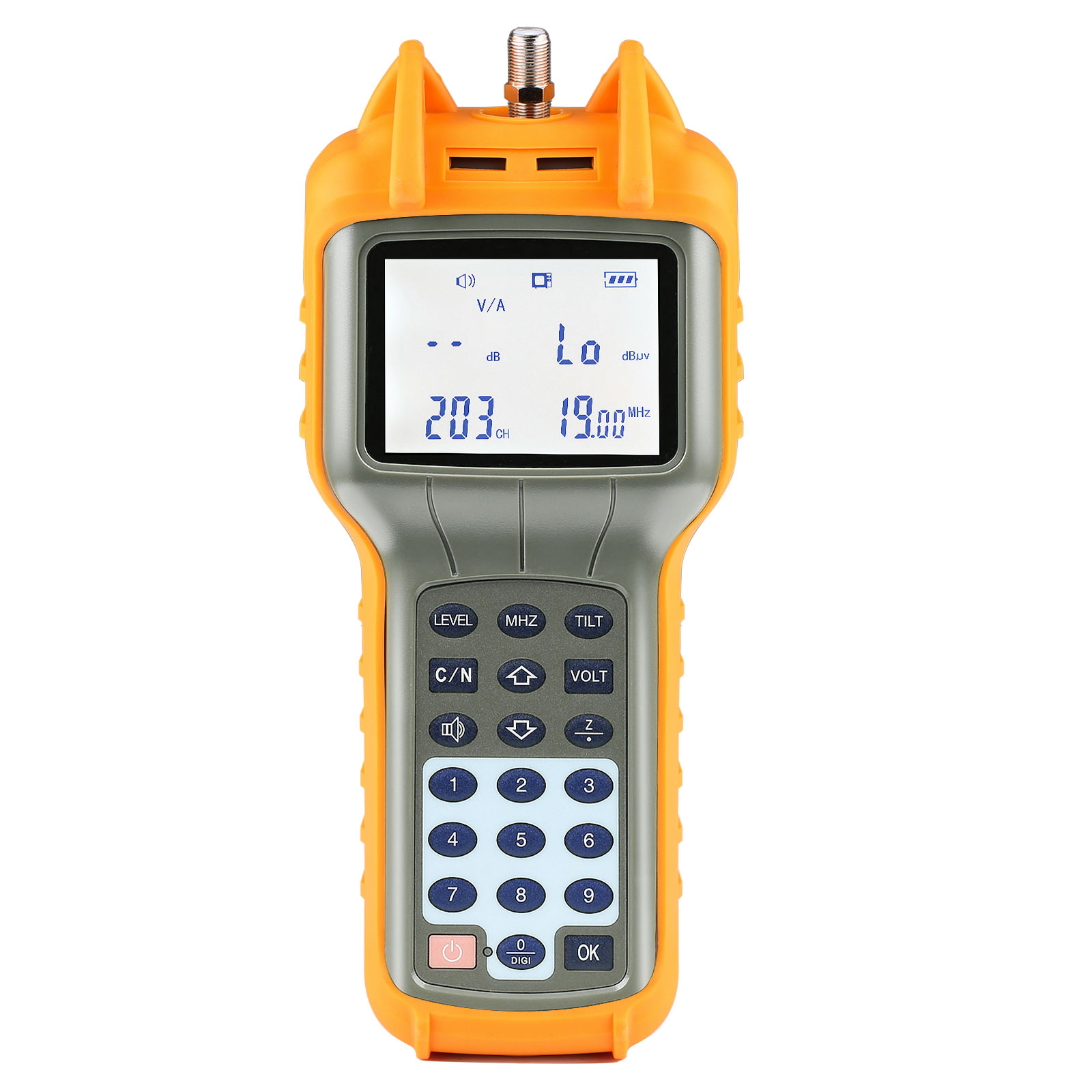

RY S110 CATV Cable TV Handle Digital Signal Level Meter DB Tester Brand New

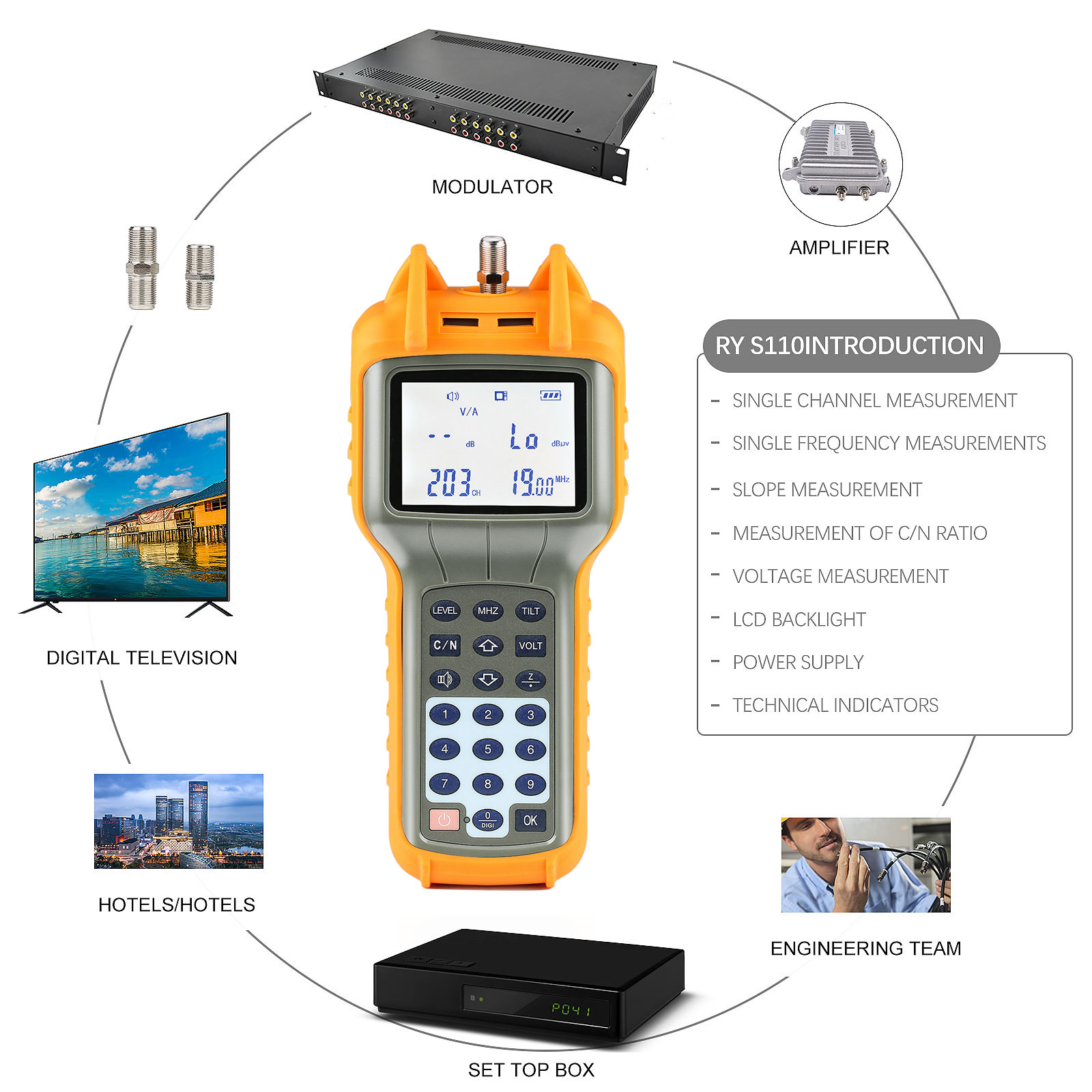

NEW RY S110 CATV Cable TV Handle Signal Level Meter is an instrument used for the construction and maintenance of analog TV / digital TV, and the measurement of TV signal level and power level. It is widely applied in the routine maintenance of the CATV system; Range of frequency: S110 47MHz ~ 870MHz

It is the high-performance surveying instrument specially designed for the cable television technical personnel

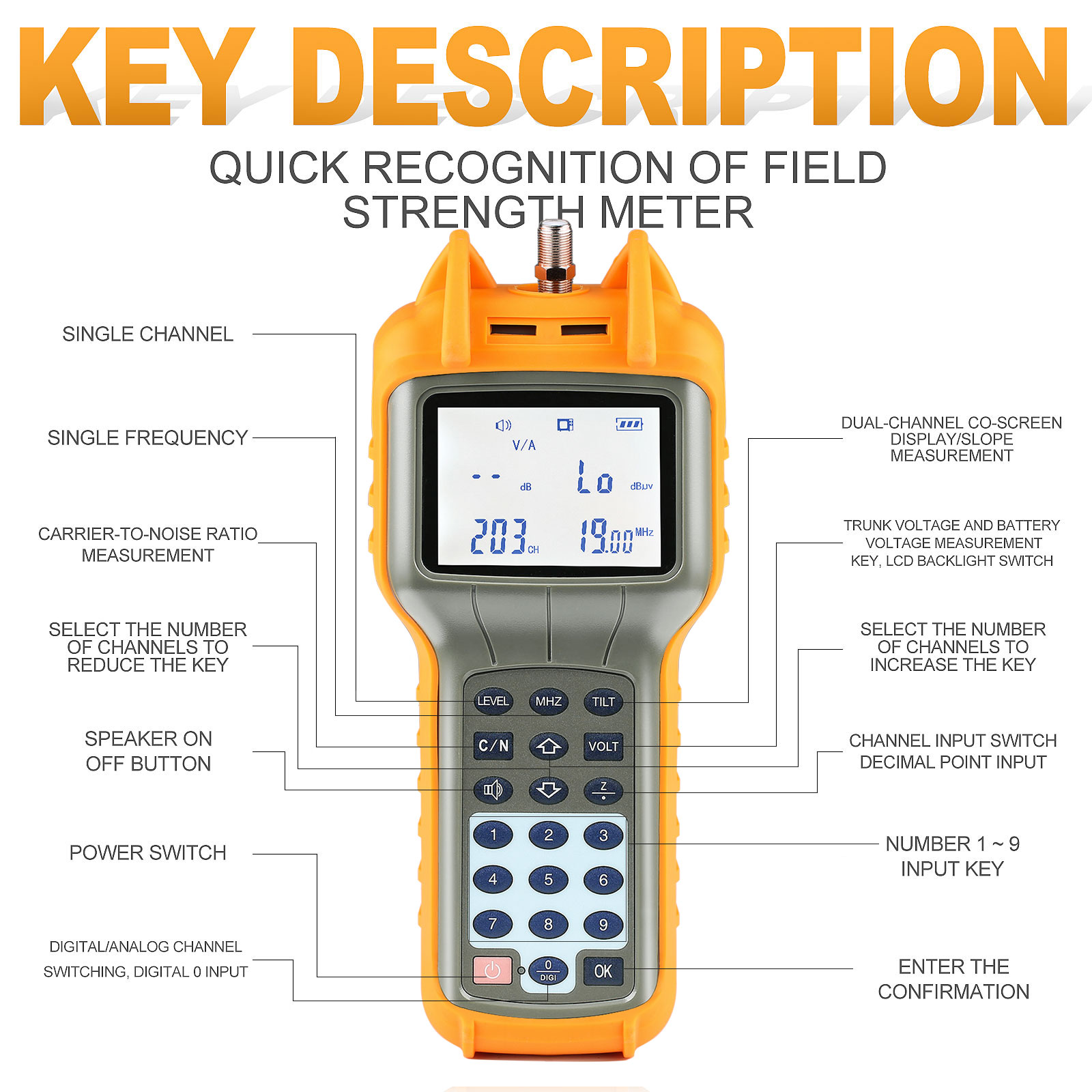

【Multi-Function TV Signal Meter】RY S110 CATV Cable TV Handle Signal Level Meter is an instrument used for the construction and maintenance of analog TV / digital TV, and the measurement of TV signal level and power level. It is widely applied in the routine maintenance of the CATV system; slope measurement,voltage measurement,measurement of C/N rati【How to switch the meters Channel to US Channel?】Enter VOLT and then press ./Z button, and the right corner please switch to 2ch, then you entered US channel.

【Customized Barrel】We have received customer's feebdack before that the barrel come with original package is not compatible, so we have customize the barrel. And now purchase our S110 TV Signal Meter can get the customized barrel for free.

【Wide Test Range】U.S. Standard Channel USA STD-CATV/U.S. digital standard channels USA STD-CATV ,Range of frequency: S110 47MHz ~ 870MHz .

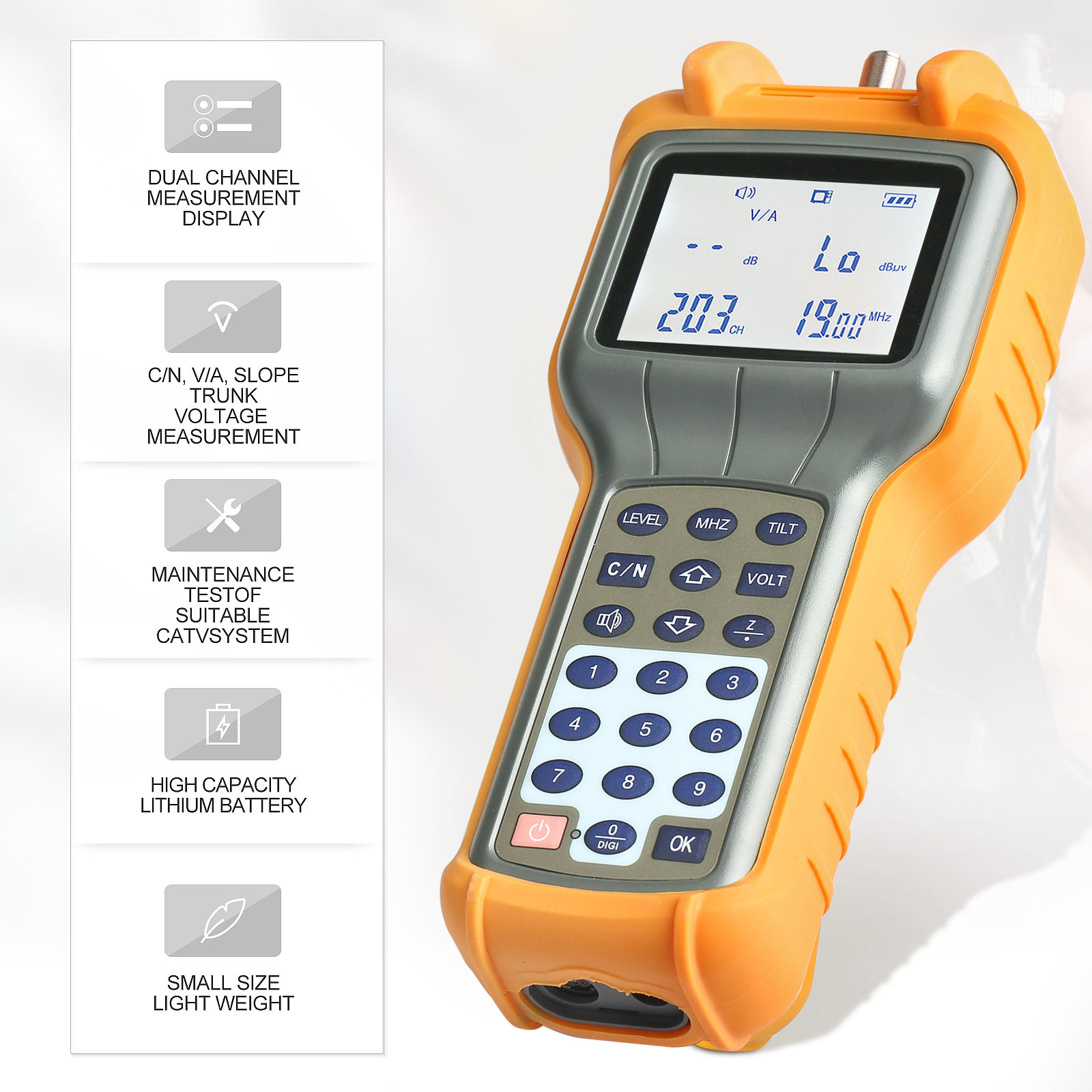

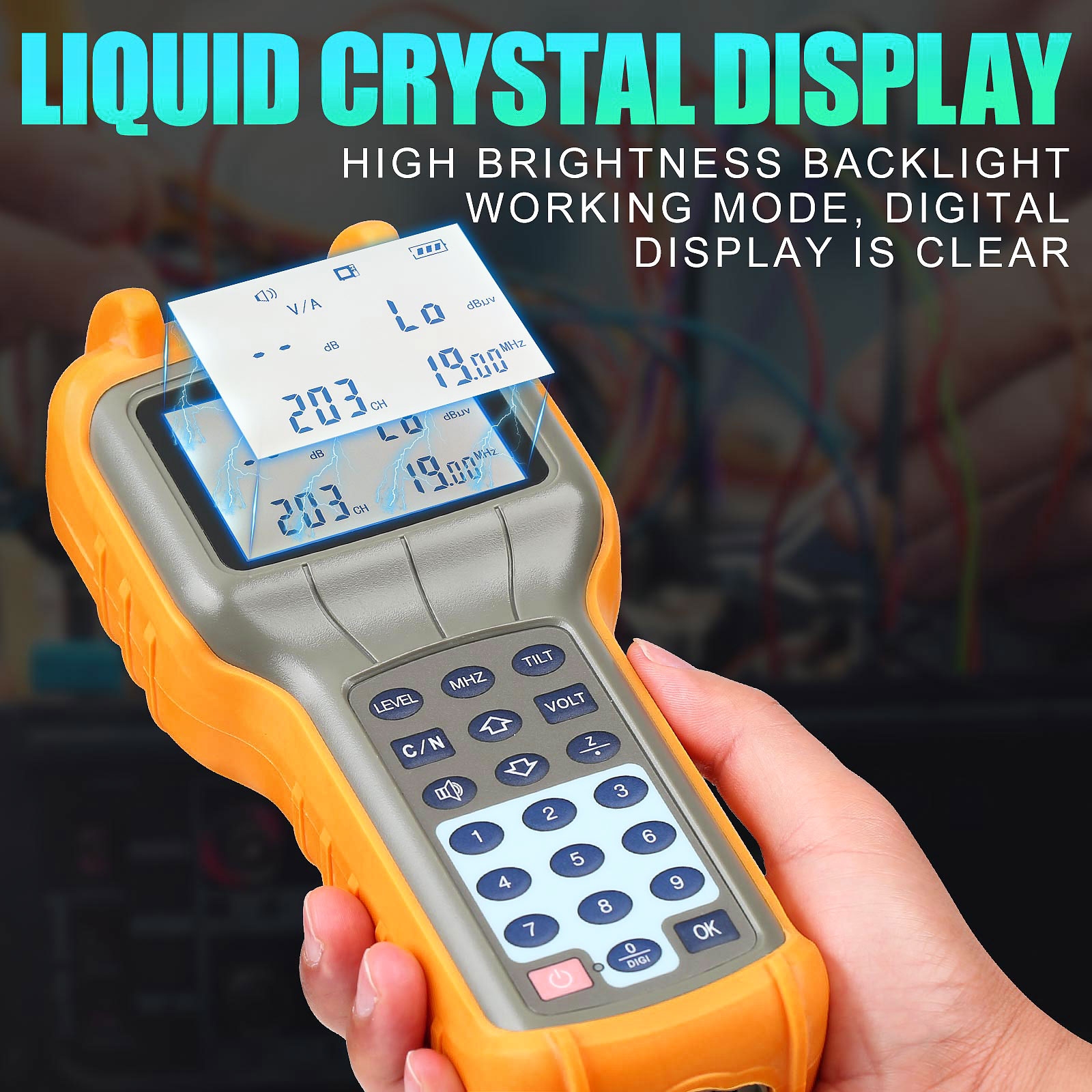

【Worth to Own】S110 employs high brightness back-light operating modes, with clear LCD screens, dual-channel measurement display, so it is convenient and pragmatic; besides, numeric keypad input allows it easy to operate.

【switch dBmv to dBuv】Set the unit, enter the volt interface, press the horn button, a number appears in the lower left corner, continue to press the horn button, and the number becomes 0, which is dBuV

Frequency / channel

Range of frequency: S110 47MHz ~ 870MHz

                              S110D 5MHz ~ 870MHz

Channel:     U.S. Standard Channel USA STD-CATV

                    U.S. digital standard channels USA STD-CATV

Frequency accuracy: ± 50 * 10E-6 (20 ℃ ± 5 ℃)

Resolution: 50KHz

Measurement bandwidth: 280KHz ± 50KHz

Level measurement

Measuring range: 30dBuV ~ 120 dBuV

Measurement accuracy: ± 2dB (20 ℃ ± 5 ℃)

Resolution: 0.5dB

Detection method: peak detection

Input Impedance: 75ω (unbalanced, F-type connector)

Carrier-to-noise ratio measurement

Measuring range: 20dB ~ 50 dB

Measurement accuracy: ± 3dB (20 ℃ ± 5 ℃)

Resolution: 0.5dB

Voltage measurement

Input range: 1 ~ 100V (AC / DC)

Measurement accuracy: ± 2V

Resolution: 1V

Operating temperature: 0 ℃ to 40 ℃

Power supply

Battery: 7.4V / 800mAH lithium battery

Working time:> 6 hours (audio / LCD backlight off)

Charging time: ≤ 3 hours

External power supply: INPUT: 100 ~ 240V ~ 800mA 50 ~ 60Hz

OUTPUT: 9V ~ 2000mA

Others

Dimensions: 210mm * 90mm * 48mm

Total Weight: 650g

Audio output: built-in speaker (single-frequency mode manual start)

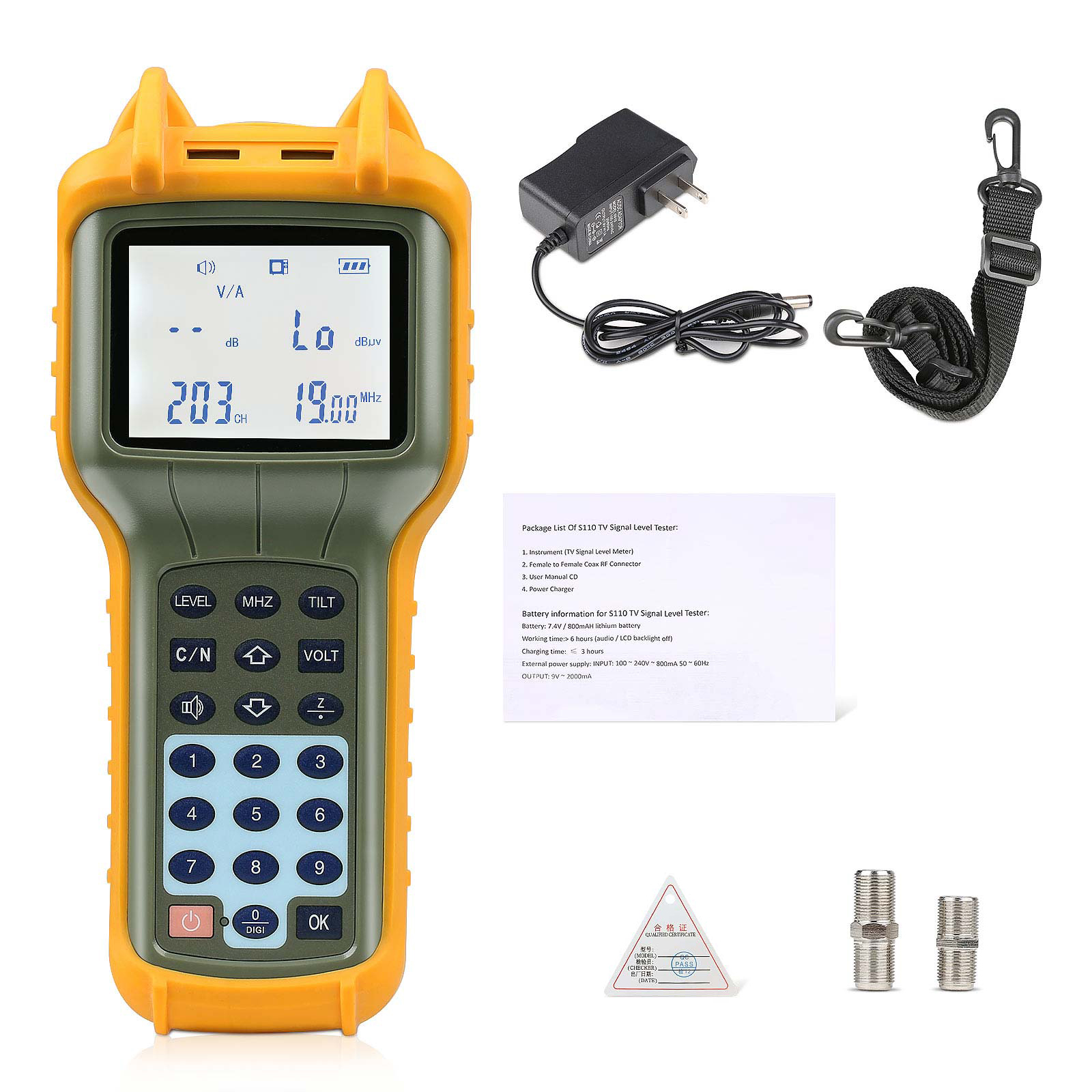

Package Including

1pc x Main unit

2pc x RF input connector

1pc x Power charger

1pc x Manual
