Product overview:

The UK solar power specialist Photonic Universe Ltd is proud to offer this powerful waterproof 10A 12V MPPT solar charge controller with Bluetooth connectivity for use with a 12V battery bank and solar panels up to 130W - ideal for boats, yachts, marine applications and areas with high humidity
   Our promise:
  • No-quibble 30 days return period
  • UK repair or replacement warranty
  • Free lifetime technical product support
  • Deep industry expertise and knowledge
    •


15A 12V/24V Waterproof MPPT Controller for Lithium batteries

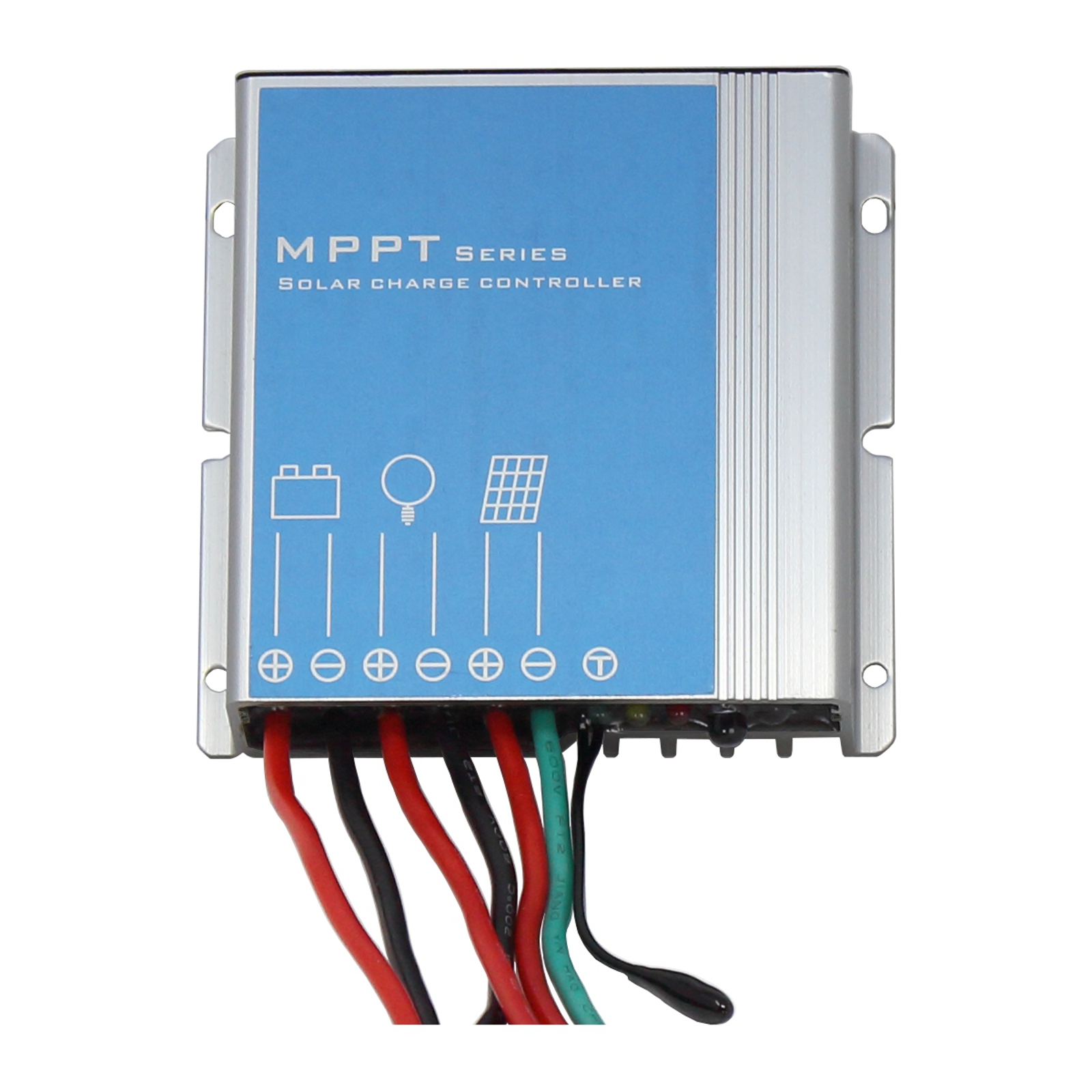

This high quality waterproof 10A 12V solar charge controller is designed to protect batteries whilst charging them, with a full range of automatic protection features. The controller uses high efficiency MPPT charging technology to get the most possible power out of your solar panels.

This controller stops reverse current (from the battery back to the solar panel) so your battery won't lose any charge at night and can be left permanently connected. It has many other protection functions such as over charge / discharge shut-off, over load and short circuit protection for the load terminals, overheating protection for the battery and more.

This controller can work with a 12V battery bank only. With a wide range of solar input voltages (up to 45V) this controller can work not only with standard off-grid solar modules, but also with on-grid panels which have higher voltage. The controller can accept up to 130W of solar panels which makes it a perfect choice for small solar PV systems with a battery and load such as in a camper van or boat.

In addition, the solar charge controller is completely sealed with a very high degree of water protection. It is absolutely safe to use this solar controller in all weather conditions.

This controller has Bluetooth communication function, the Bluetooth module of the controller can be connected to a mobile phone after installing the App. The App can view the real-time working status of the controller and set parameters, including device and battery parameters.



Controller specifications:

  • Protection rating: IP67
  • Current rating: 10A
  • Max solar input power: 130W
  • Max solar input voltage: 45V
  • Self-consumption: 10mA
  • Ambient conditions: -35 – +60°C, 0 – 100% RH humidity, <4000m altitude
  • Dimensions: 85.8 x 81 x 23.1 mm
  • Weight: 260g
  • Mounting holes for ease of installation
The controller comes with a detailed user manual.

If you have any questions about this product or you need our free advice please contact us via eBay messaging (tick the box "This is not about an item" if you don't know this item number).

Payment:

  • We accept Pay Pal, cheques, credit and debit cards, and bank transfer payments. If you choose a cheque payment, please note it might take up to 2-3 weeks to get processed and cleared. Other payment methods are normally much faster, and they should be used for urgent orders. Buy it now listings will require an immediate payment via eBay.

Delivery:

  • Please note that import duties, taxes, and charges are not included in the item price or shipping cost. If the courier requires payment of these local charges to complete the delivery, they will be your responsibility as a buyer.
  • Upon receipt of the item, please examine it carefully. In the unlikely event of any damage in transit, please report it to us immediately by email or phone, but in any case no later than 7 days after receipt of the item. To enable us to deal with the courier efficiently, we may ask for some additional details, e.g. photographs of the damage and packaging.

Returns:

  • If you change your mind within the first 30 days of receipt of the item, we will be happy to accept it back and refund your payment. You will need to notify us via email / phone within 30 days of receipt that you intend to return the item, request the return address and send the item back within a further 14 days at your cost. To be eligible for a full refund, the item must be new, unused, undamaged and correctly packaged. Please ensure that we receive the item in its brand new, original condition, i.e. take reasonable care to wrap and protect it on the way back to us.

Warranty:

  • This product is covered by a 1 year warranty.

About us

Photonic Universe Ltd is a company based in London, United Kingdom. We design and supply solar and wind renewable energy products and complete off-grid power systems for various applications, to both trade and retail customers. Tens of thousands of clients all over the world rely on our products to generate clean energy for their households, vehicles, boats and remote places with no access to mains electricity.

We strongly believe that solar and wind energy can provide significant benefits and we are doing our best to allow you to buy these quality solar products at fair prices. We've had a lot of positive feedback from our customers who have been impressed by the high quality of our products and excellent service.

We are VAT registered in the UK and can provide VAT receipts upon request. Photonic Universe is a registered trademark in the UK.
