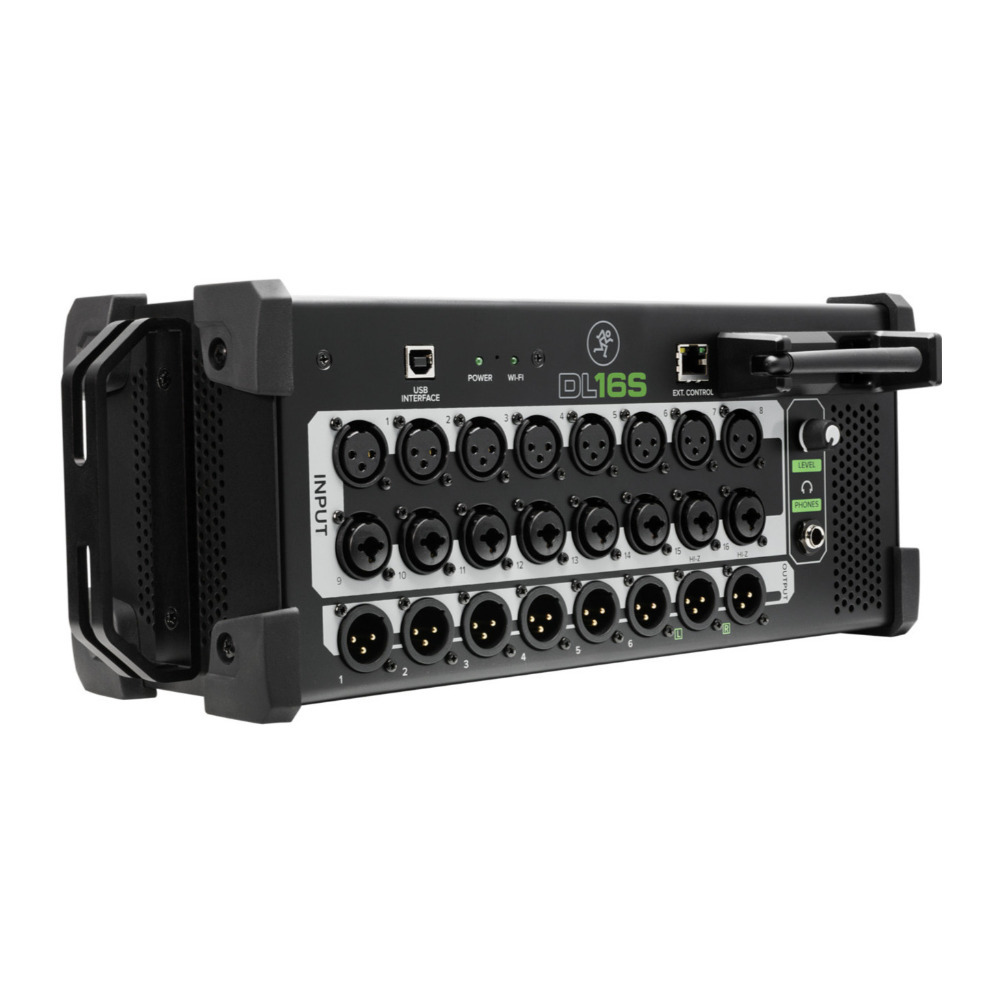

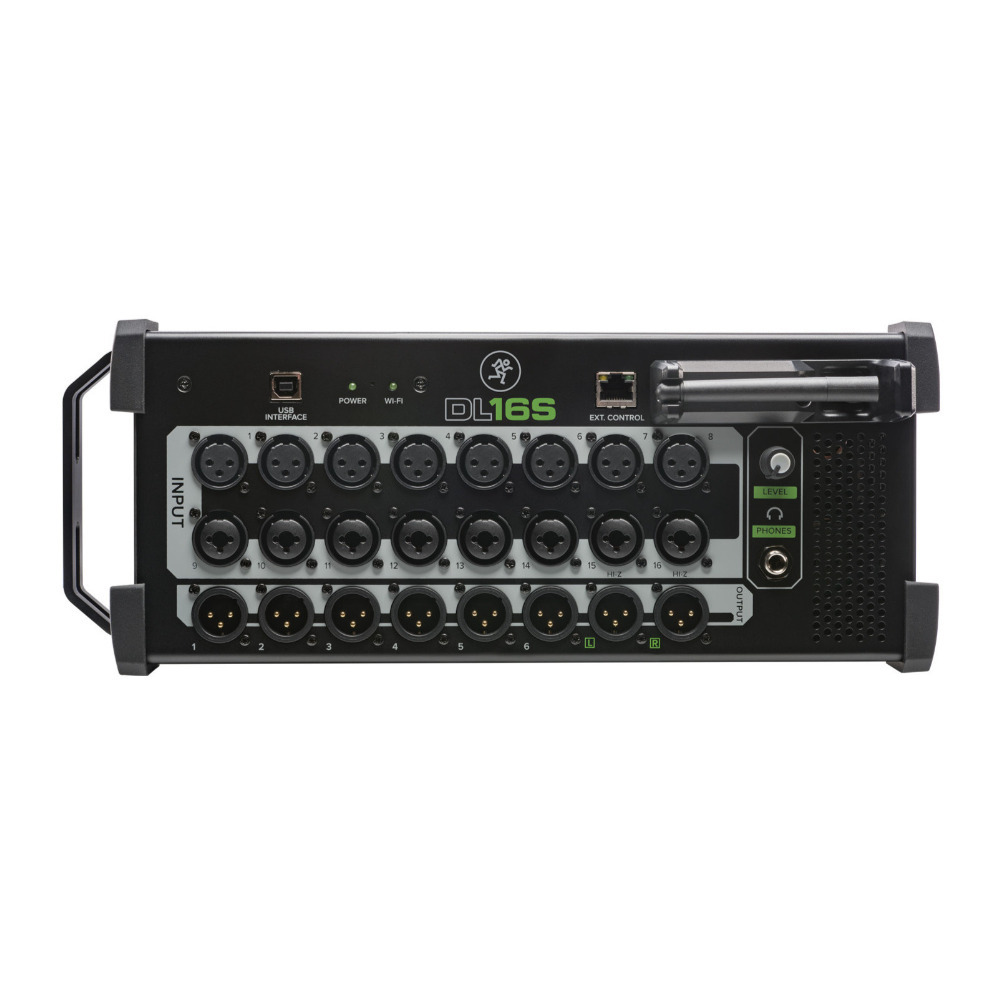

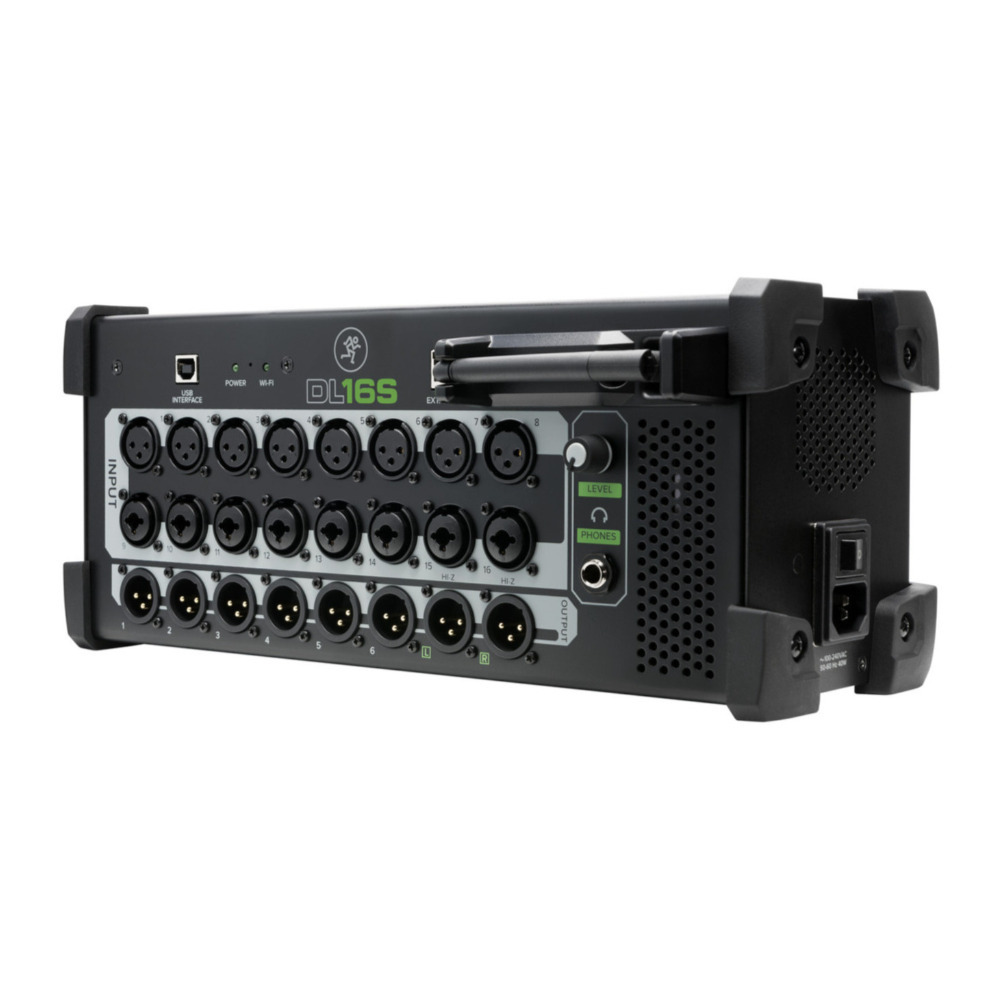

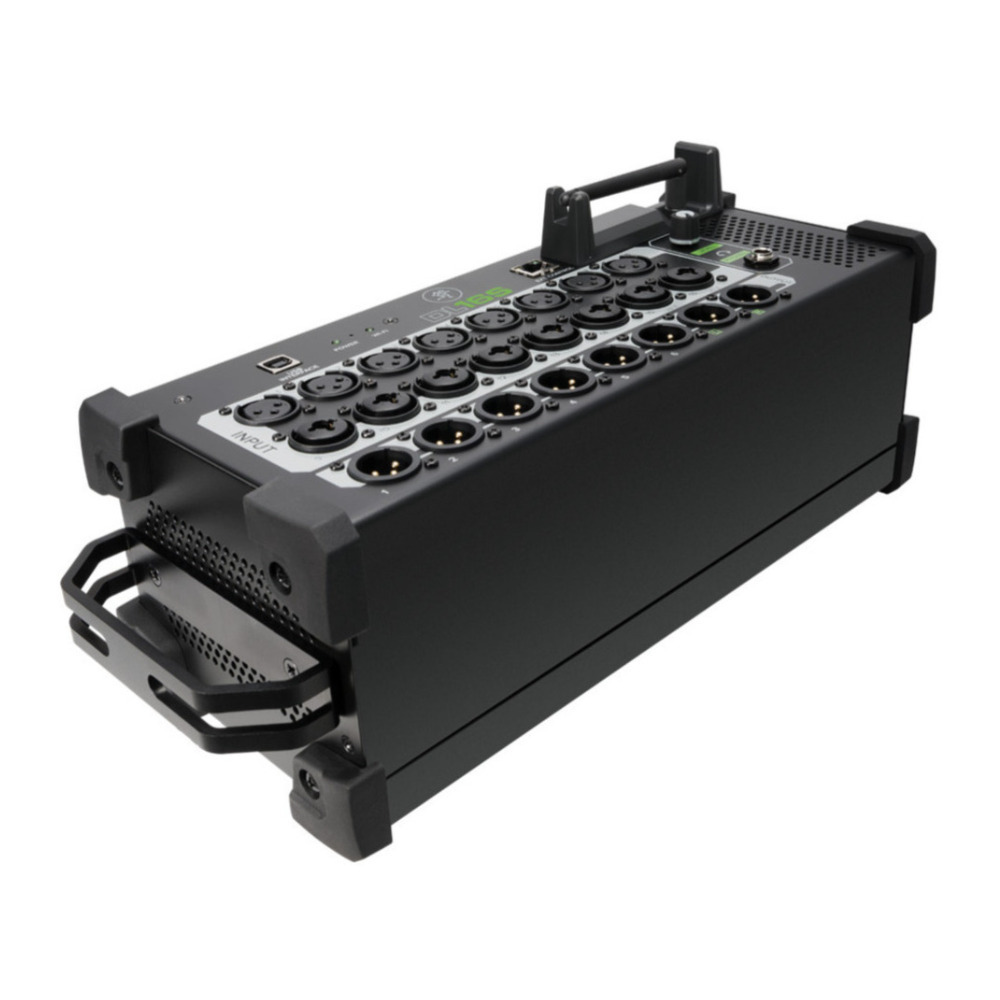

Mackie DL Series Digital Wireless 16-Channel Live Sound Mixer with Built-In WiFi

Mackie DL Series Digital Wireless 16-Channel Live Sound Mixer with Built-In WiFi

Brand New in Original Packaging
2048990-00
Features
  • 16 stereo-linkable input channels
  • 8 fully-assignable XLR outputs plus a headphone output

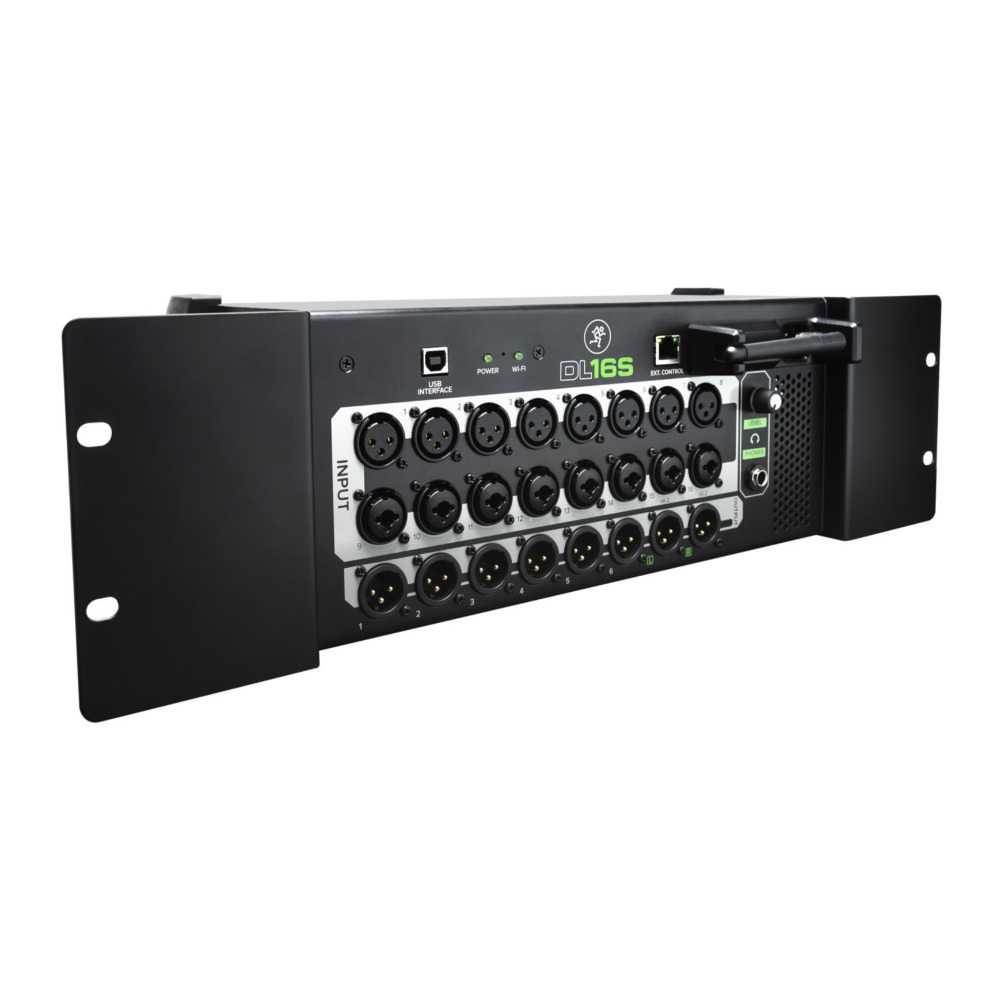

  • Mount it in a rack, set it on a desk, or put it right on the stage
  • Features include steel construction, big rubber corners, and a handle
  • Built-in WiFi to connect to your control device
  • Complete wireless control via iOS, Android, macOS, and Windows devices
What's in the Box
  • Mackie DL Series, Digital Wireless Live Sound Mixer 16-Channel with Built-In WiFi
  • Mackie 1 Year Limited Warranty
Item Description

The Mackie DL16S brings all the powerful DSP, renowned Onyx Plus mic preamps, and Built-Like-A-Tank reliability that the DL Series is known for, in an all-new stage box form factor with built-in WiFi. Mount it in a rack, set it on a desk, or put it right on the stage. Mix your way.

Command Your Mix

The DL16S wireless digital mixer delivers proven mixing power with legendary Onyx Plus mic preamps in an all-new Built-Like-A-Tank, stage-friendly design made to withstand real-world abuse. Get mixing quickly with built-in Wi-Fi and the industry-leading, multi-platform Master Fader app. Create stunning multi-track recordings and get playback for a virtual soundcheck via USB I/O. Loaded with channel/output DSP plus 4 FX processors, DL16S gives you the capability and flexibility you need for your best mix ever.

Master Fader

Master Fader is the main user interface for your DL Series mixer. Rather than knobs, faders, and buttons on a large piece of hardware, you get powerful mixing tools on your tablet, Mac, or PC and up to 20 different devices simultaneously. The intuitive design of the Master Fader app makes managing your mix, large or small, easy and efficient. Organize your channels with view and mute groups, utilize subgroups with full bus processing, control levels of channel groups simply with VCAs, and even lockout devices from specific capabilities within the app. And when you get a mix you like, you can save it all into a snapshot.

Powerful Processing

From EQ to compression, every bit of signal processing is implemented with the highest quality possible maintaining the fidelity of each source. Every channel and output bus gets its dedicated processing.

The 4-band parametric EQ on each channel and output features a dedicated high-pass filter, modern and vintage modes, and built-in RTA for maximum versatility and detailed analysis of each source. The clear UI makes it easy to make adjustments, view settings, and choose presets.

Each FX processor features tons of studio-quality reverbs and delays plus effects like chorus, tremolo, flanger, and sweep filter. Fine-tune each effect with advanced parameters and EQ.

Total Freedom

Complete wireless control via iOS, Android, macOS, and Windows devices means you can mix from anywhere in the venue on up to 20 devices. Wireless control also means you can put the mixer itself where it makes the most sense for the application.
Specifications

Mackie DL Series, Digital Wireless Live Sound Mixer 16-channel with Built-In WiFi


  • Analog Inputs: 16
  • Analog Outputs: 8
  • Matrix Mixes: No
  • Direct to Drive Recording: No
  • DANTE I/O Available: No
  • FX Processors: 4
  • USB I/O: 16x16

General Digital

  • Sample Rate: 48 kHz
  • A/D/A Bit Depth: 24-bit

System Latency

  • Analog Input > Main Bus > Analog Output: 1.5 ms
  • 0 dBFS Reference: +22 dBu

Frequency Response

  • XLR inputs and outputs: ±0, -1 dB, 20 Hz to 20 kHz
  • 1/4-inch inputs: ±0, -3 dB, 20 Hz to 20 kHz

Distortion

  • THD+N, XLR mic input to XLR output, unity gain (1 kHz, +21 dBu signal; 30 kHz bandwidth): <0.005%

Noise / Dynamic Range / Signal-to-Noise Ratio

  • EIN (150 terminations): -127 dBu, A-Weighted

Crosstalk

  •  Analog XLR adjacent inputs: <–105 dB @ 1 kHz (unity gain)
  • <–65 dB @ 1 kHz (max gain) Analog XLR adjacent outputs: <-95 dB @ 1 kHz
  • Signal-to-Noise Ratio (ref +4 dBu, 1 kHz. Mic Input > Main Bus > XLR Output, unity gain): >92 dB, un-weighted
  • Output Noise, XLR output (DSP muted): <-90 dBu RMS

Dynamic Range

  •  Mic Input > Main Bus > XLR Output, unity gain: >110 dB, A-Weighted
  •  XLR Mic Input to USB Output: >113 dB, A-Weighted
  •  XLR Output from DSP (Oscillator): >113 dB, A-Weighted
  • CMRR – XLR Mic Input (ref +20 dBu, +45 dB Gain): >75 dB @1 kHz

Analog Inputs

  • Connectors: 1-8: XLR Balanced, 9-16: Combo XLR / TRS Bal-Unbal (plus Hi-Z via unbalanced instrument cable on inputs 15-16) [DL16S]
  • XLR Mic Pre: Onyx+

Input Impedance

  • DL16S: XLR, channels 1-16: 3 k, balanced 1/4-inch Line, channels 9-14: 30 k, balanced 1/4-inch Hi-Z, channels 15-16: 1 M, unbalanced
  • Max Input Level: XLR: +22 dBu 1/4-inch: +30 dBu

Dimensions

  • Height: 5.6-inch / 142 mm
  • Width: 14.1-inch / 358 mm
  • Depth: 5.8-inch / 147 mm
  • Weight: 6.2 lbs / 2.8 kg
  • Rack: 3U Rack Spaces
