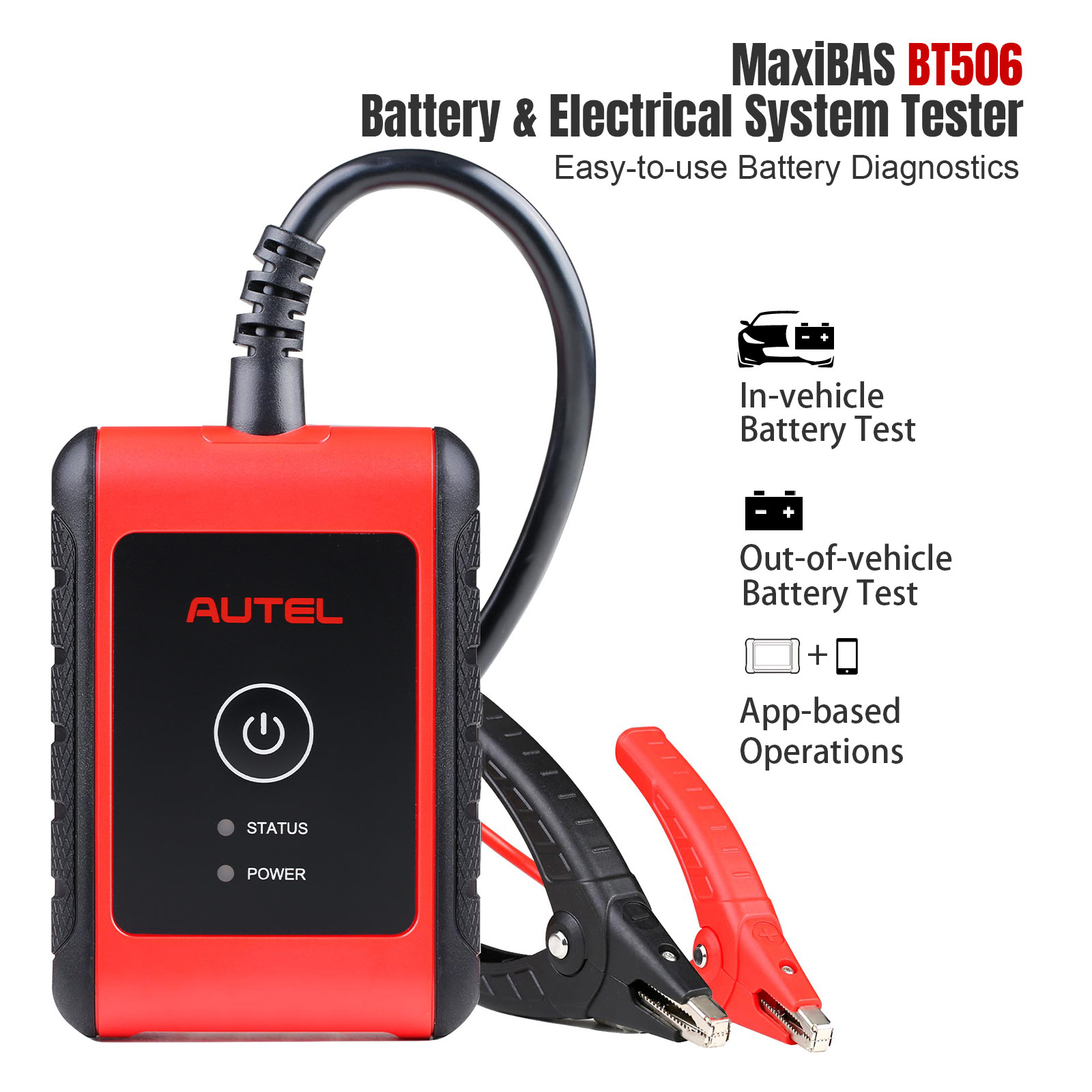

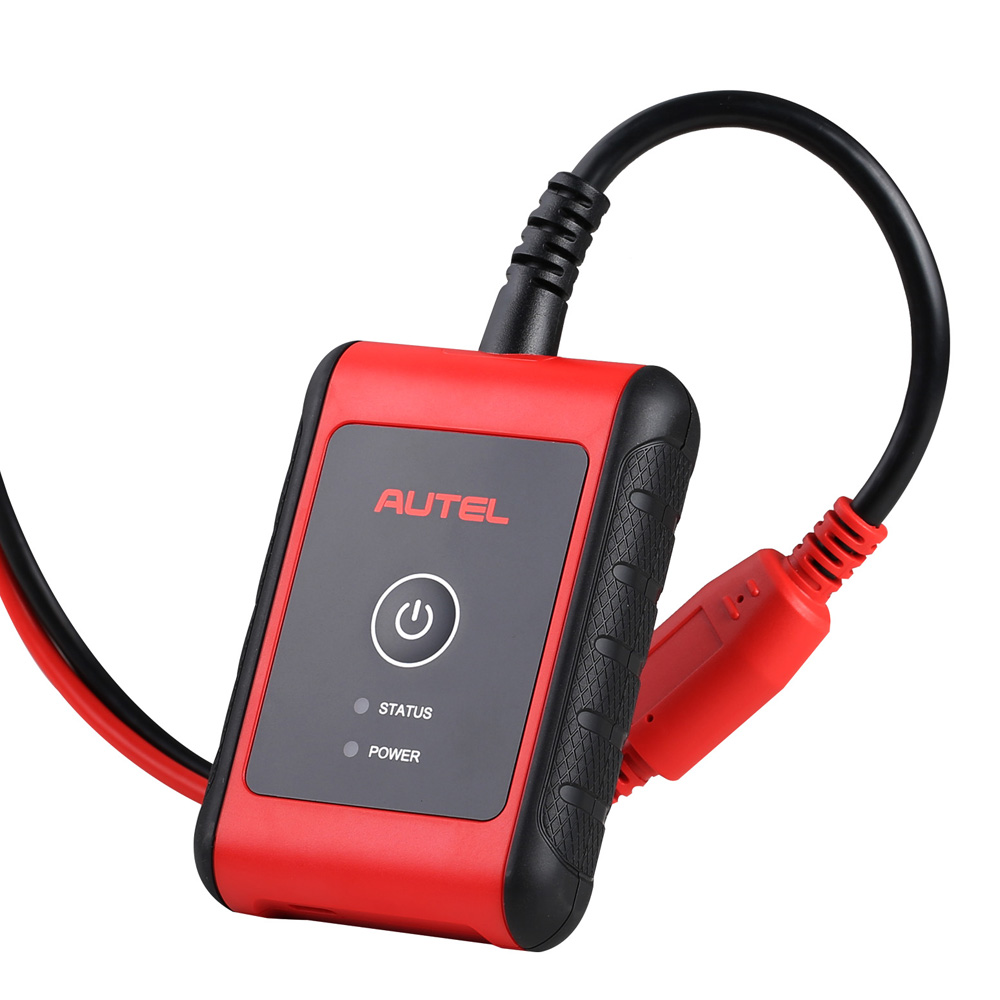

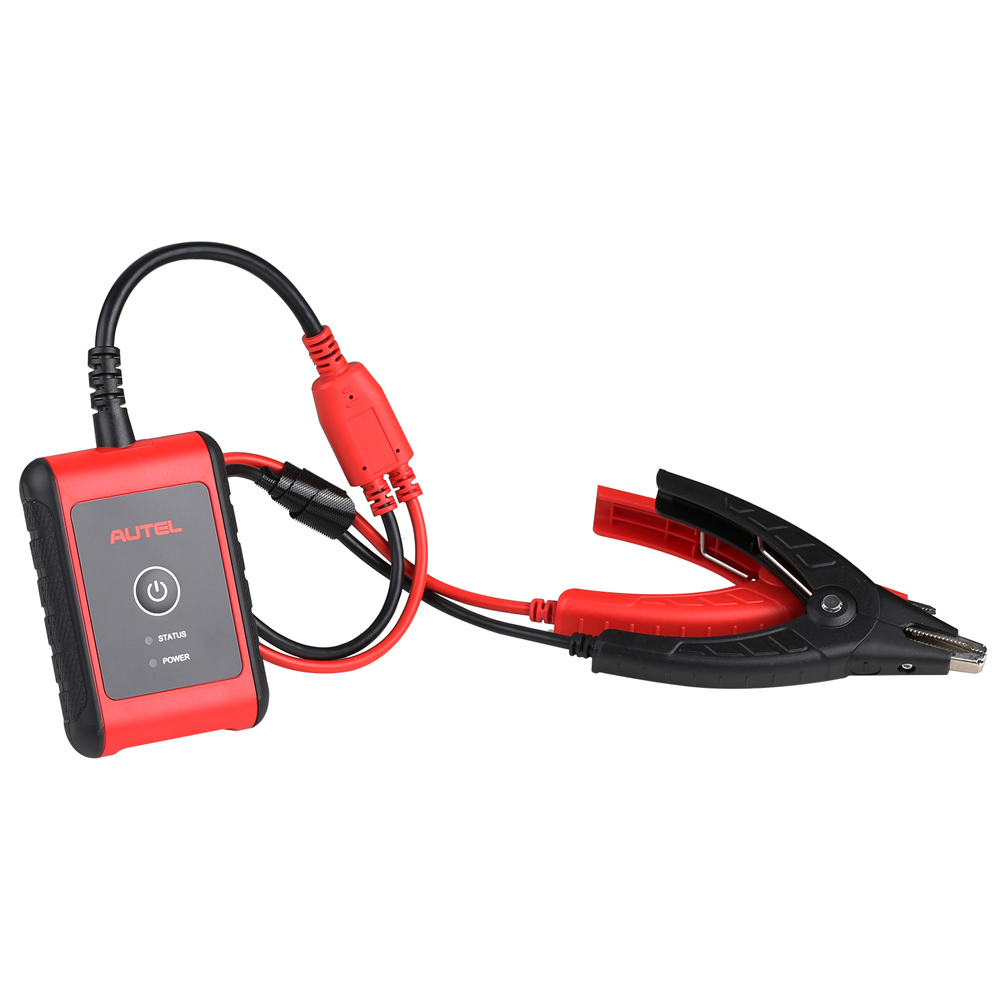

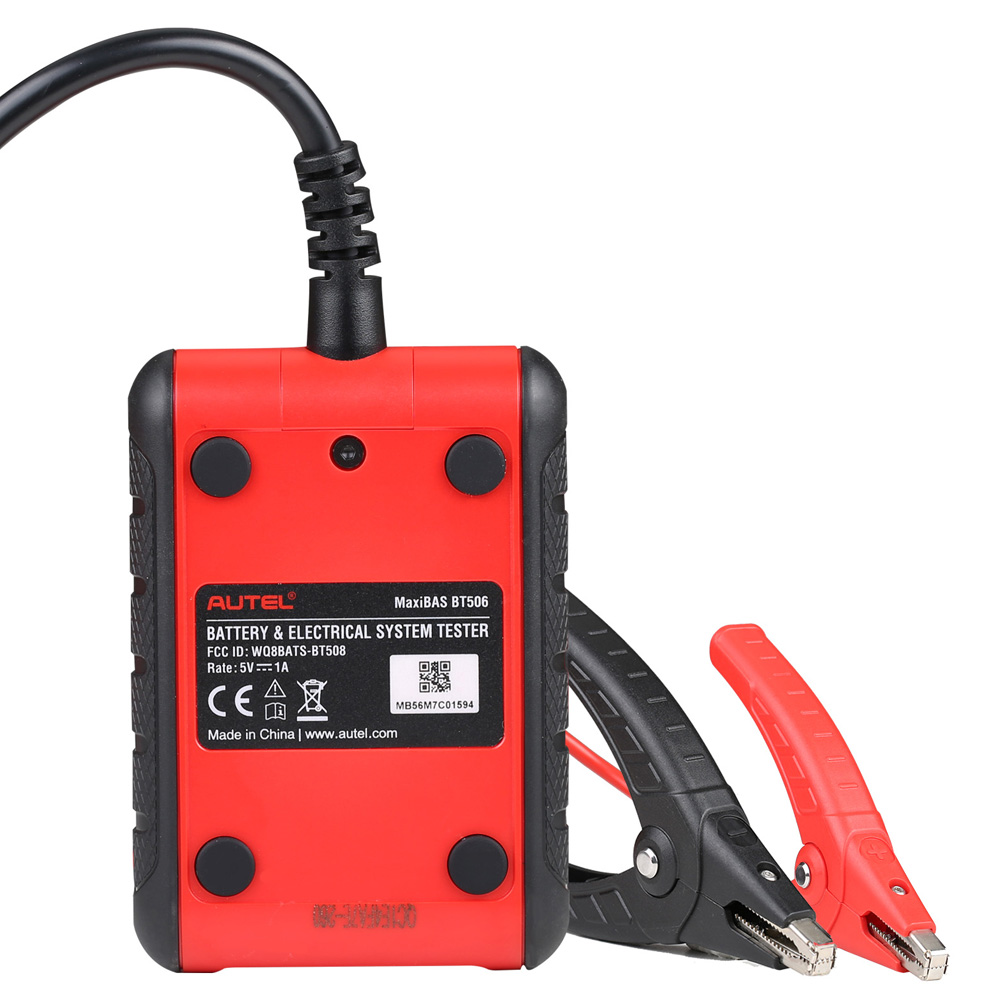

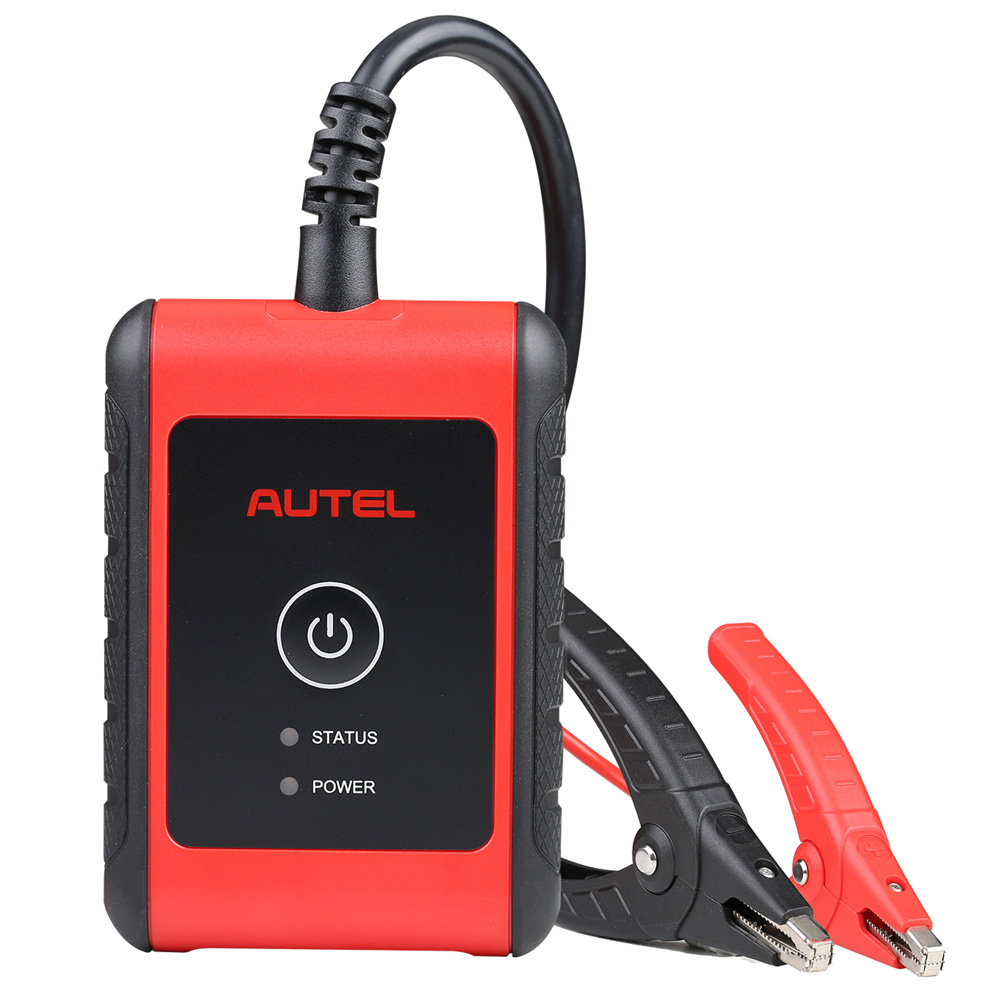

AUTEL MaxiBAS BT506 is a battery and electrical system analysis tool which enables technicians to view the health status of vehicle's battery and electrical system. It is not an average battery tester because it measures not only the state of charge but also the battery state of health including its capacity, its ability to maintain and store the energy. Using adaptive conductance (an advanced battery analysis method), AUTEL MaxiBAS BT506 can produce a more accurate examination of the battery’s cold cranking ability and reserve capacity, which is vital to determine a battery’s true health.

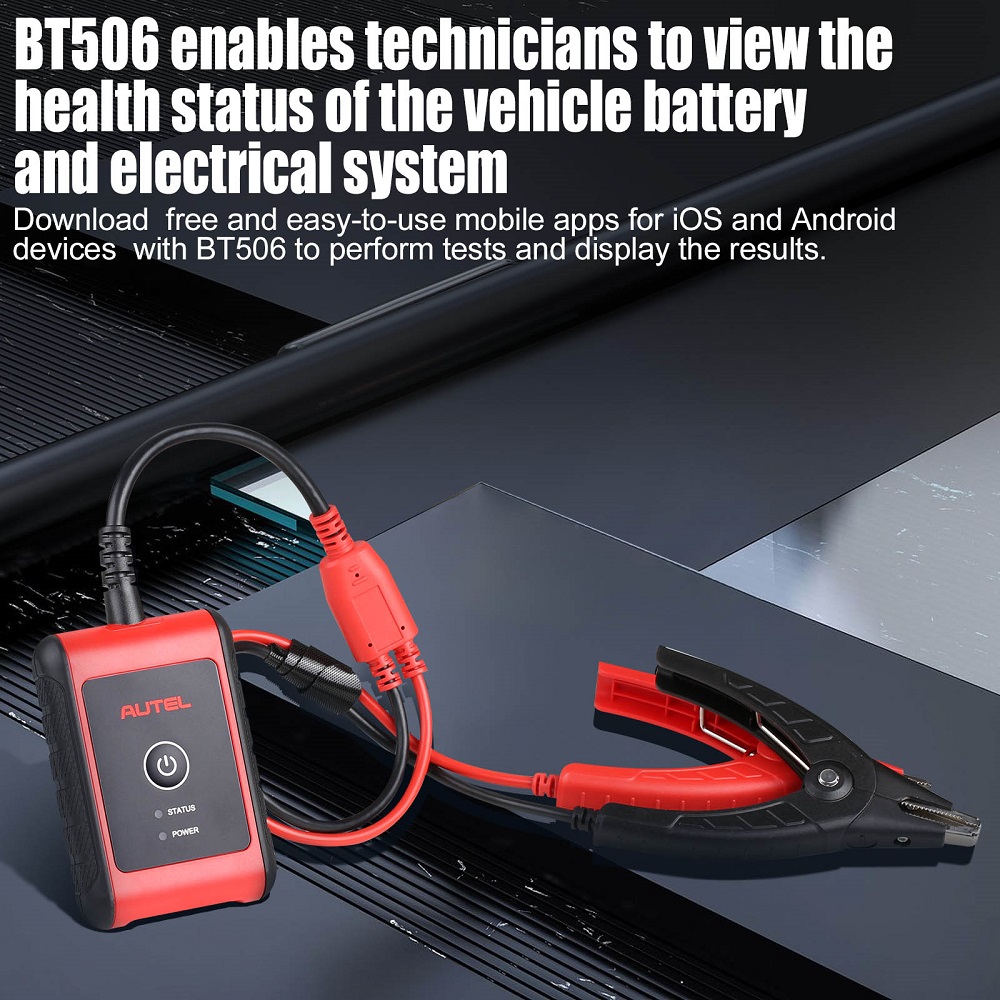

The Autel MaxiBAS BT506 is a battery and electrical system analysis tool that use as Adaptive Conductance an advanced battery analysis method, to produce a more accurate examination of the battery’s cold cranking ability and reserve capacity. BT506 enables technicians to view the health status of vehicle's battery and electrical system. Download the free and easy-to-use mobile app, available for iOS and Android devices, to use with the BT506 to perform testing and display test results.

The BT506 Does Not Have a Screen! To Perform Testing and Display Test Results the BT506 Must be Used with Autel MaxiSys MS906 and Higher Level Tablet Tools

Highlights:

* In-vehicle testing of Battery, Starter, Charging system voltage (not amps)

Note: To perform testing and display test results the BT506 must be used with an Autel Tablet or Other Smart Device (Free iOS or Android Apps Available).

Autel MaxiBAS BT506 can works with 95% Autel diagnostic tablet for detailed vehicle battery, cranking, startor and generator tests, such as: Autel MK808BT, MP808BT, MS906BT, MK906BT, MS906TS, MS906 Pro, MS906 Pro-TS, MK906 Pro-TS, MK908, MK908P, MS908S Pro, Elite, Elite 2, MS909, MS919, Ultra Lite, Ultra.

What is Adaptive Conductance?

Autel MaxiBAS BT506 applies Adaptive Conductance to gauge a battery's conductance health. Compared with ordinary load testers, this technology allows multiple tests without draining the battery and to test batteries that are low or nearly completely discharged. This Autel car battery tool BT506 similarly uses Adaptive Conductance to test the battery's partnering components, the alternator and starter to see if they can take and store a charge.Creative Adaptive Conductance for 95% accuracy.

Following is the benefits of adaptive conductance technology:

✔️Test Accuracy Rate by 95%;
✔️Bad Battery Detection Rate by 62.55%;
✔️Reduce Charge & Retest Rate by 30.01%;
✔️Detection rate of bad batteries 100%;
✔️Diagnose Low Capacity or Completely Discharged Batteries;
✔️Reduce Battery Misdiagnosis and retest;
✔️With the Adaptive Conductance Technology, BT506 realizes faster diagnosis and higher efficiency.

In Vehicle Test:

1.Battery Test:

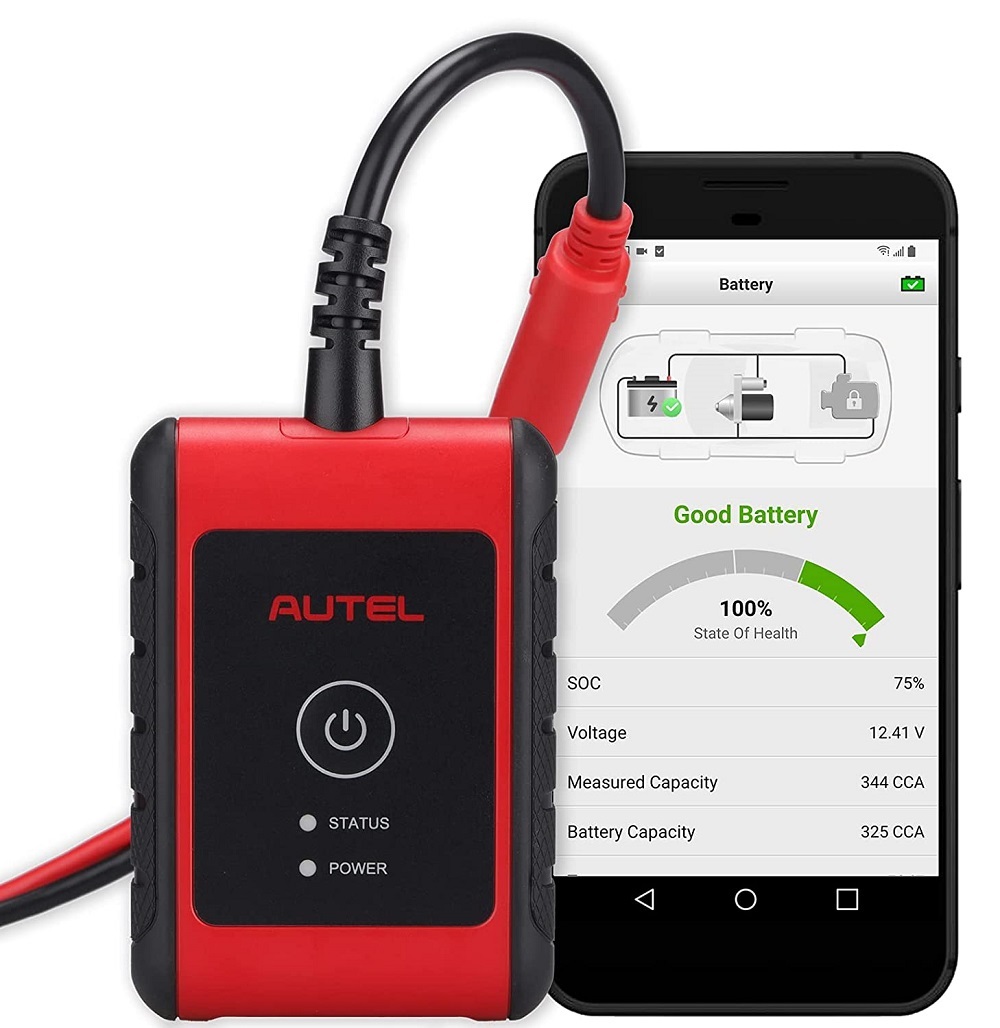

Autel MaxiBAS BT506 digital battery load test tool supports in-vehicle and out-of vehicle testing of 6- and 12-volt, 100 -2000 CCA, Flooded, AGM, AGM Spiral, EFB and GEL batteries, and compatible with major battery test standards CCA, CA, SAE, EN, IEC, DIN, JIS and MCA. It can test almost all the transportation tools batteries such as car, boat, motorcycle or any other. The battery test results include a color-coded results summary, a list of test data, and repair tips.

2.Starter Test:

Follow the on-screen instructions, start the engine and let it idle. Then the test results of the cranking system will display on the screen which include starting voltage, starting current and starting time.

3.Generator Test:

Through the alternator test, technicians are able to check the load voltage/current, no load voltage/current, and ripple. The direct test result on the screen will tell you whether the charging is normal, and whether there is an issue with the output or ripple, which helps avoid damaging the battery and shortening its life due to overcharging or incomplete charging.

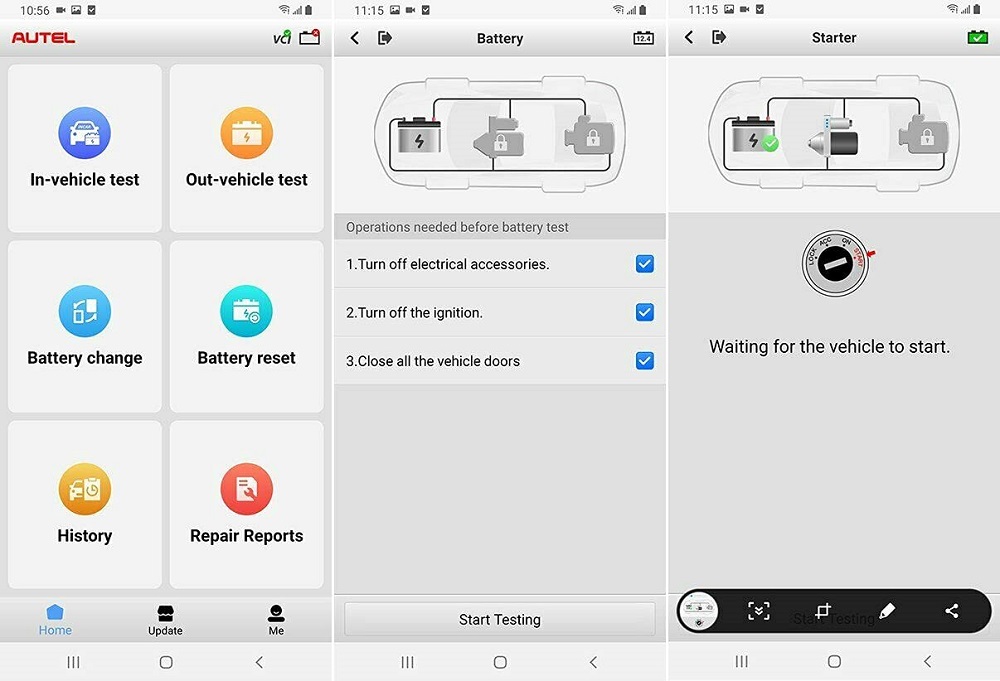

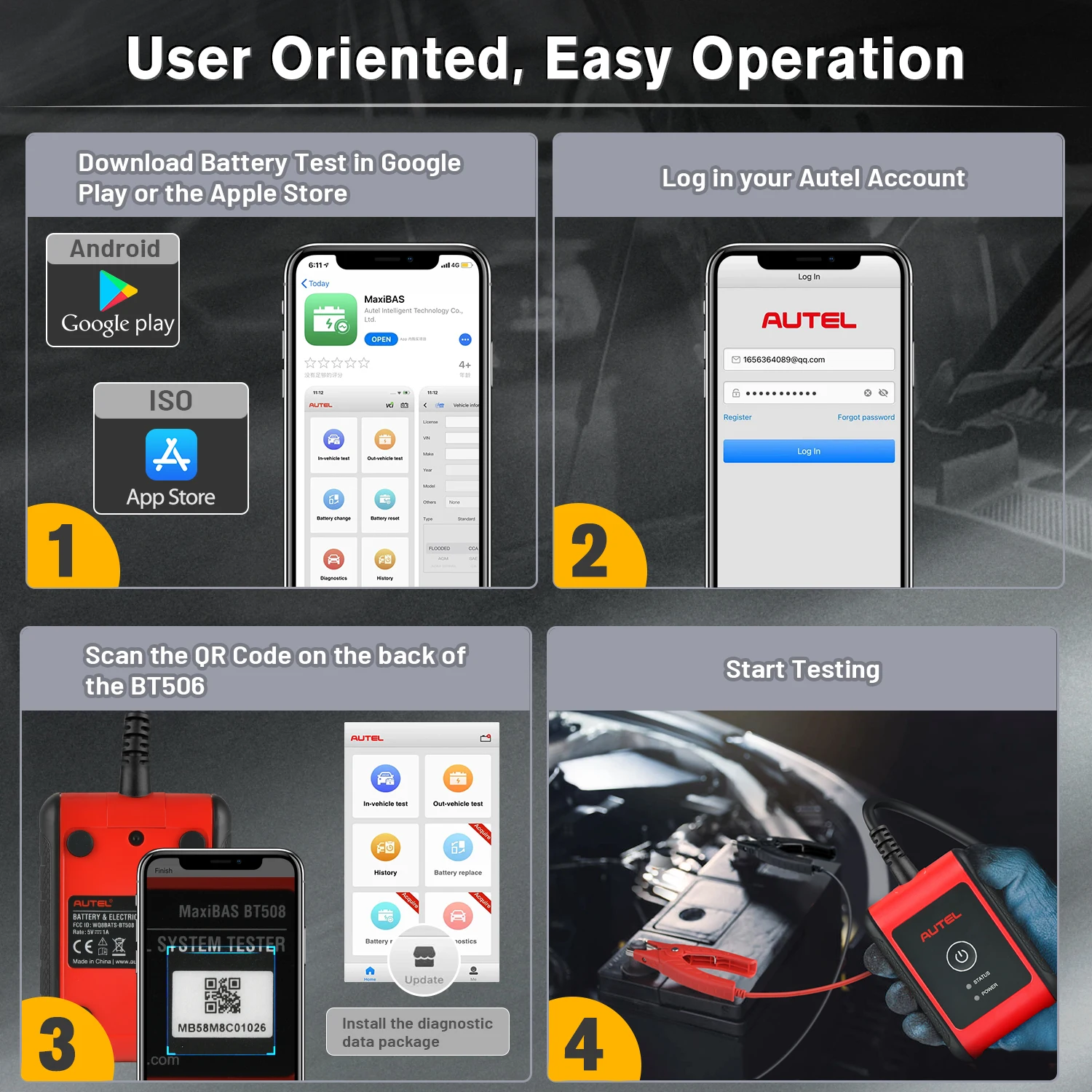

One-Screen Instructions:

New to the battery tester? No worries at all! Autel BT506 provides detailed and step to step instructions, just follow the on-screen indicators, you can finish battery diagnosis easily.

Automatically Identify Battery Type:

Clamp the BT506 to a in-vehicle battery, the vehicle information will be automatically populated and its battery information tab will pop up from the bottom of the screen, select the correct battery parameters on the screen to process the diagnosis.

Polarity Protection:

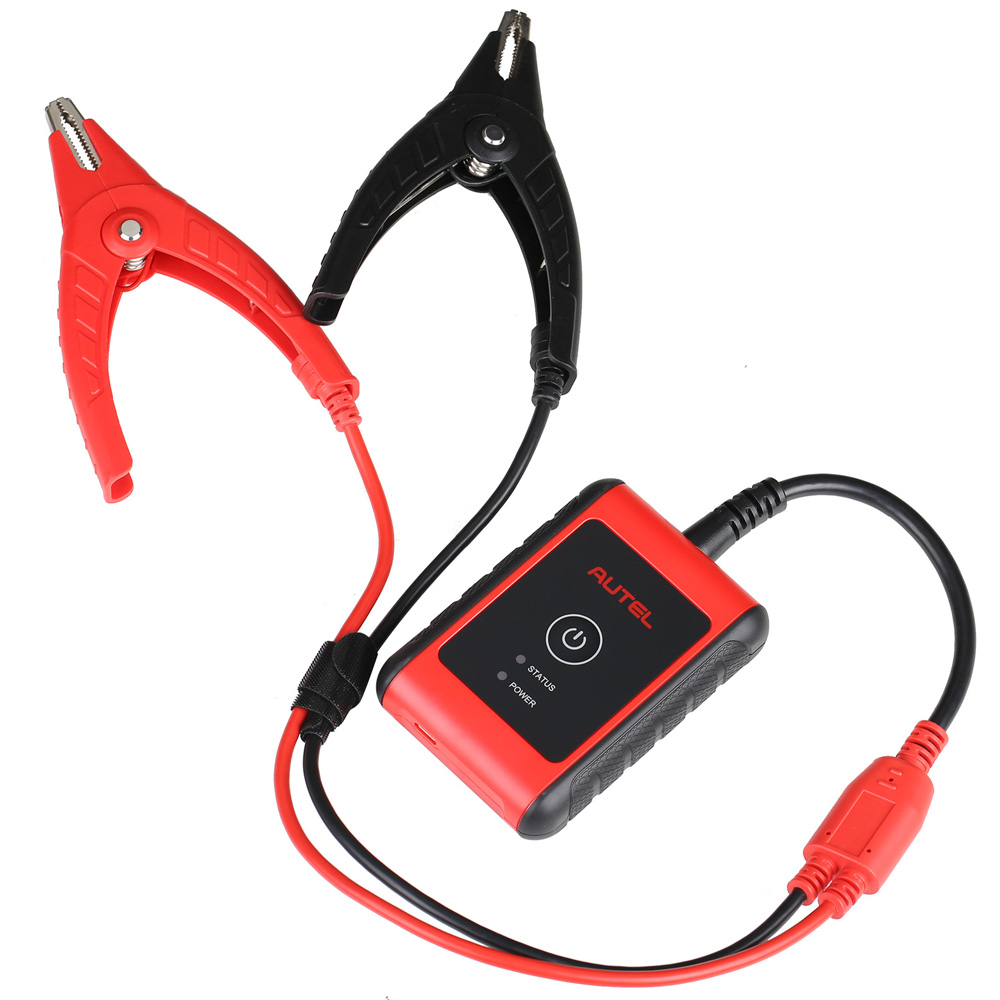

Metal clamps of the BT506 are protected by short-circuit protection, no worries even you reverse the positive and negative poles.

Easy Repair Report Sharing:

The Battery Test app can save a history of repair reports from your diagnostic sessions. Repair report in PDF can also be generated for the easy viewing, sharing, and printing of these reports.

Upgradeable To BT508:

Want more functions? Purchase the Autel VCI V200P to upgrade the BT506 to the BT508 so it will be able to perform battery reset, battery change, and full system fault scan for one vehicle brand.

Use With Autel Scanner:

Already have an Autel scanner at your hands? Autel BT506will be a great addition for detailed vehicle battery health diagnostics. It is compatible with the newest models such as Autel Maxisys MS906 Pro, MS906 Pro-TS, MS Elite 2 to perform complete battery, cranking, charging systems check.

Lifetime Free Update:

Check regularly to see if there is latest firmware updates, you can download the free software updates valid for a lifetime to keep your BT506 scanner up to date.

BT506 vs. BT508 vs. BT608 vs. BT609 Comparison

Specifications:

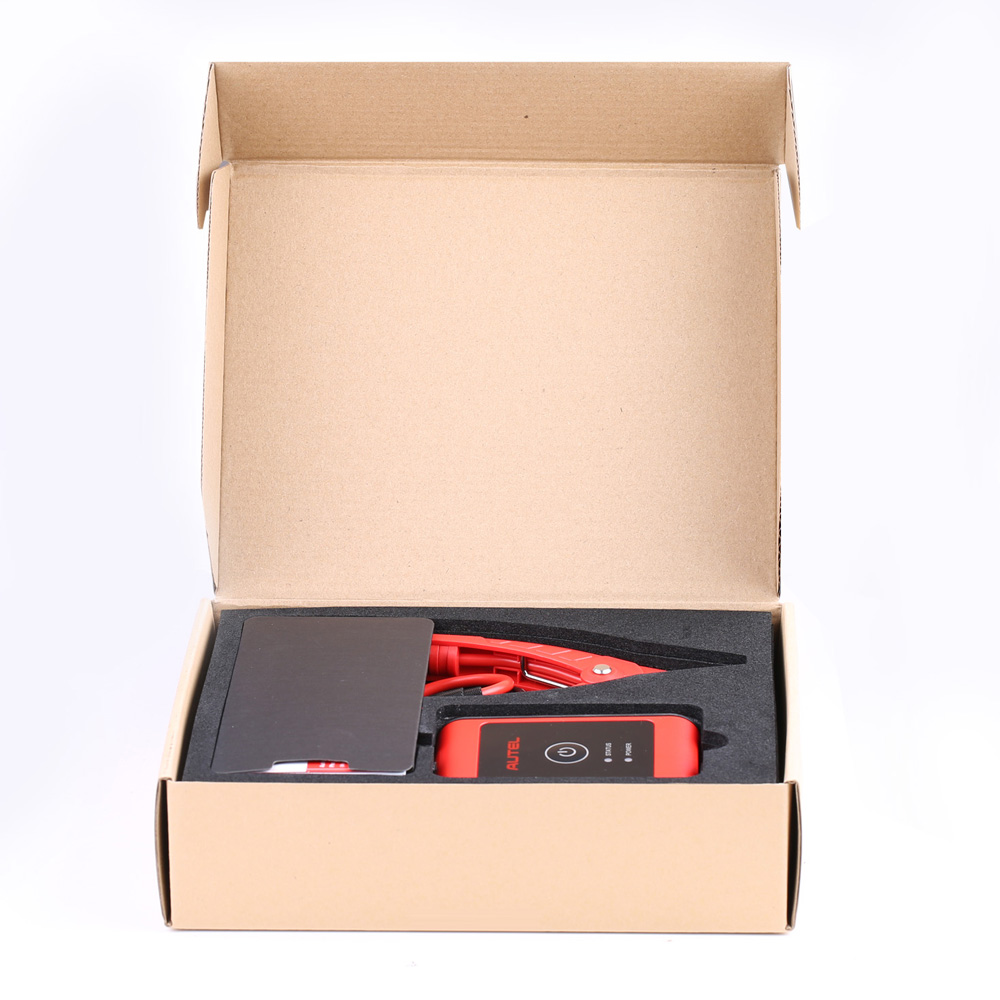

Package List:

1pc x MaxiBAS BT506

1pc x  User Manual
