Neutrik NC3FBH1 3-Pole Female XLR Receptacle

sku NC3FBH1 CT / NG

BRAND NEW!!! FREE SHIPPING!!!

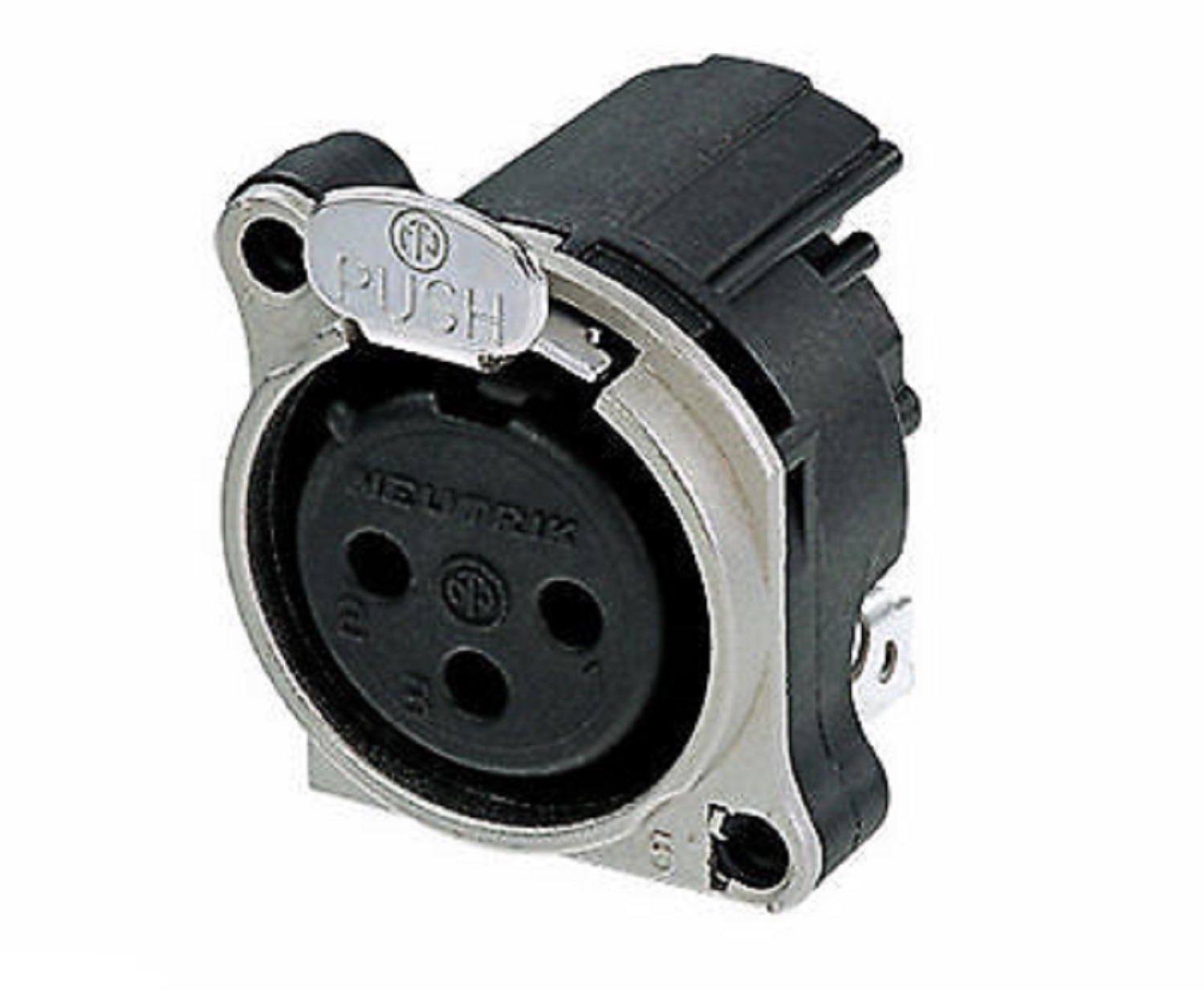

    Included in this sale transaction is a single Neutrik brand 3-Pole Female XLR Receptacle Connector as shown in the photo.

    FEATURES & SPECS:
    Product
    Model: NC3FBH1
    Connection Type: XLR
    Gender: female
    Electrical
    Capacitance between contacts: ≤ 4 pF
    Contact resistance: ≤ 5 mΩ (inner)
    Dielectric strength: 1,5 kVdc
    Insulation resistance: > 10 GΩ (initial)
    Rated current per contact: 6 A
    Rated voltage: 50 V
    Grounding Options: Pin 1 connected direct to front panel and connector shell, no separate ground contact
    Mechanical
    Insertion force: ≤ 20 N
    Withdrawal force: ≤ 20 N
    Lifetime: > 1000 mating cycles
    Wiring: Horizontal PCB mount
    Locking device: Latch lock
    Mounting direction: rear
    Chassis shape: B
    Mounting: B-Screw

    3 pole female XLR receptacle, grounding: mating connector shell to pin1 and front panel, horizontal PCB mount

    Same as A series with exception of a metal mounting flange featuring continuous circumferential ground contact to chassis for best EMC practice. UL recognized component.

    • Smallest XLR receptacles, highest packing density
    • Metal mounting flange featuring continuous circumferential ground contact to chassis for best EMC and RF protection
    • Tulip type female contact
    • Housing flammability UL94V-0
