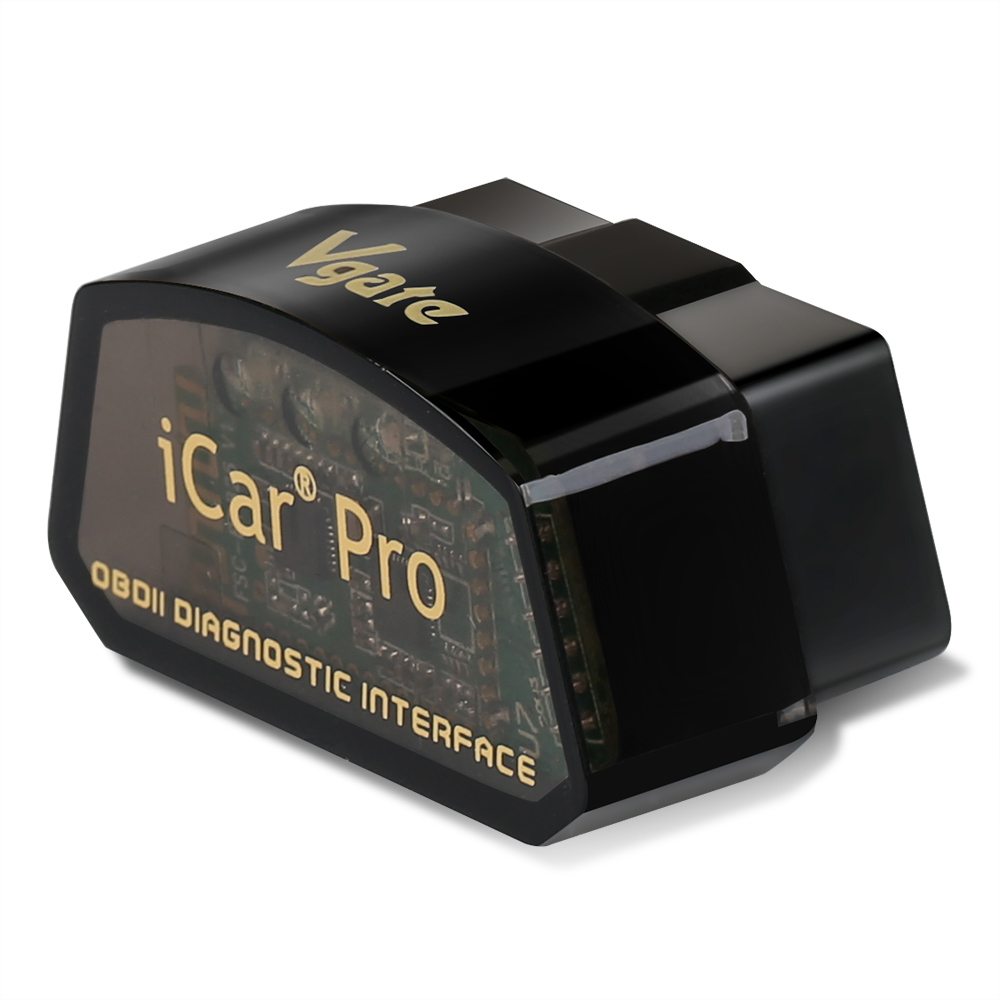

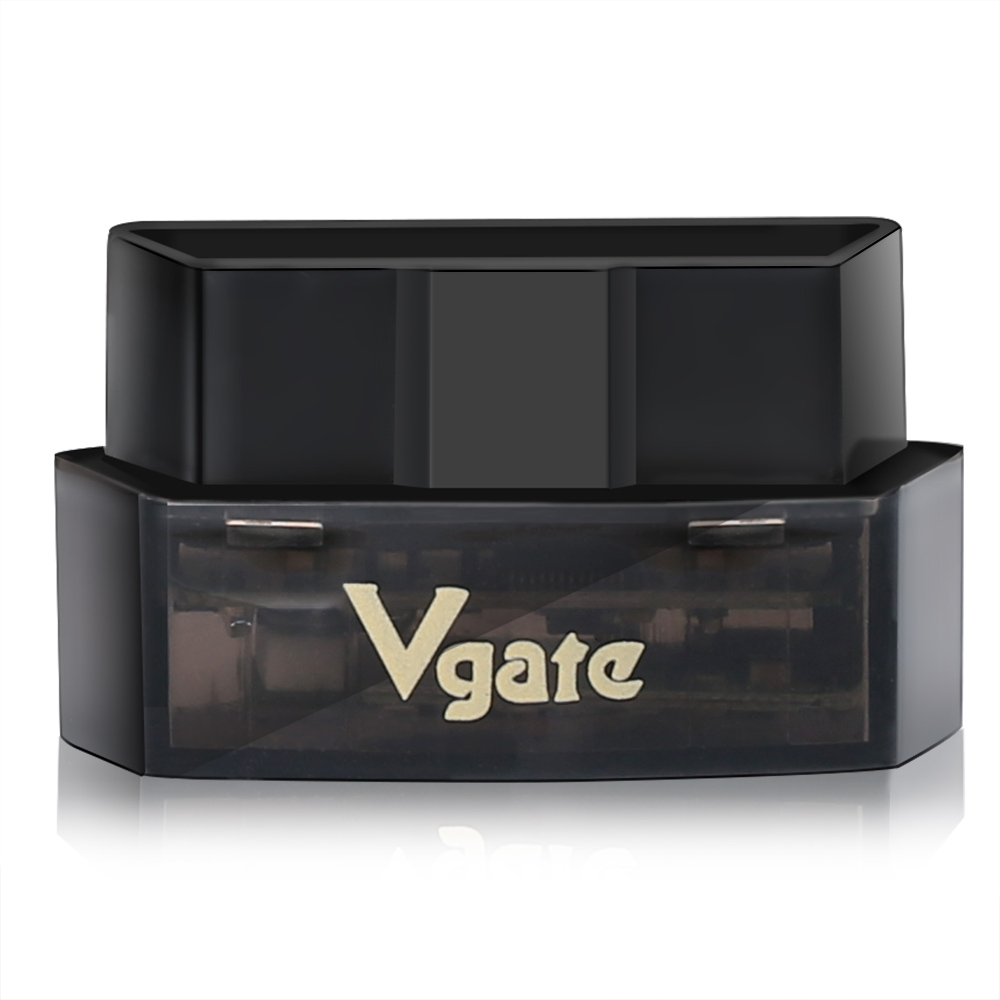

Vgate iCar Pro Bluetooth-compatible 4.0 OBDII Scanner for Android & iOS

Please Note: This device does not support vehicle with the DOIP protocol!

Features:

● CLEAR CHECK ENGINE LIGHT - This iCar Pro code reader will help you save money and accurately diagnose check engine light problem. Very easy to use.

● EASY FITMENT - The majority of cars made in the past 2 decades are fitted with an OBD2 diagnostic port, simply find the port and plug the iCar Pro in.

● FIT AND FORGET - It really is possible to fit and forget beacuse it's micro size and unique power saving functionality that protects your battery

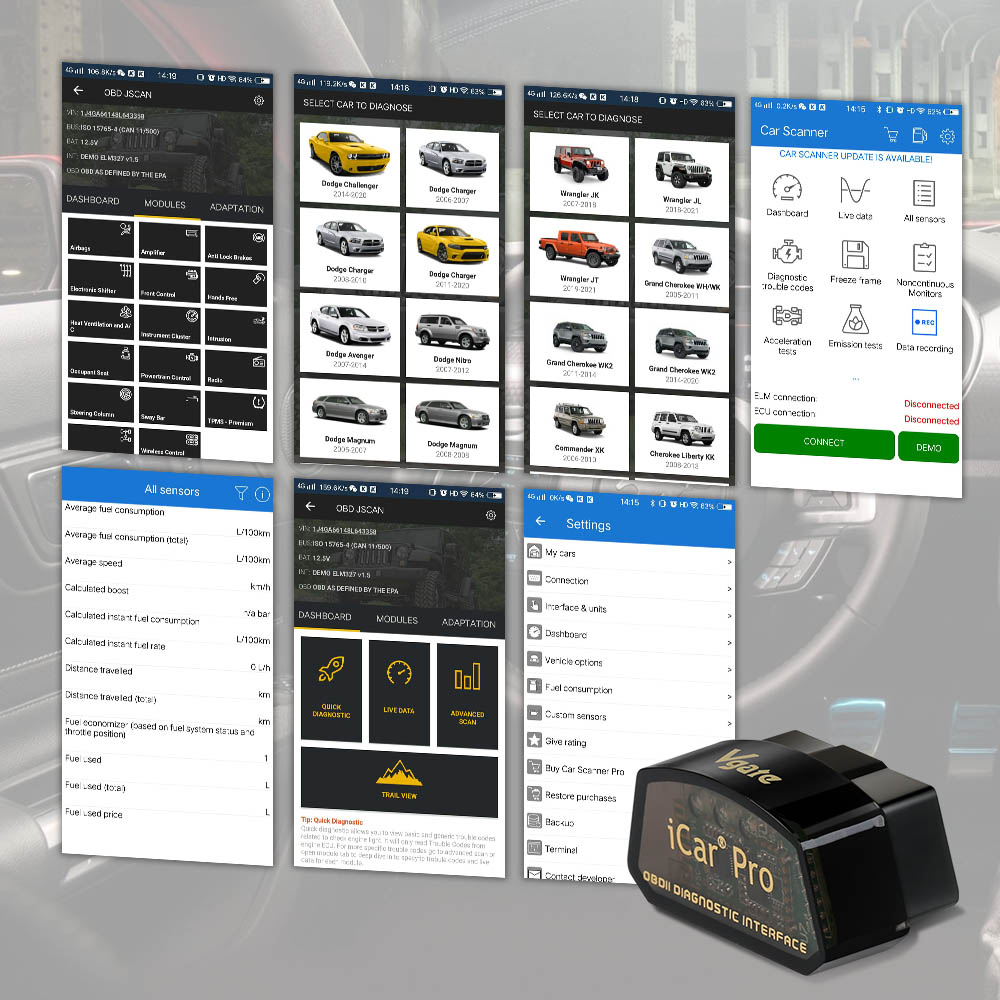

● WORKS WITH HUNDREDS OF APPS - The Vgate iCar Pro Bluetooth-compatible Low Energy device works with the most popular OBD apps. Please find download instruction for Android device in product description.

● 2 YEAR WARRANTY - We offer a 2 year warranty as standard. If you have any problem with the device simply send it back and we will despatch a brand new replacement the following working day.

Functions:

Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning. (over 3000 generic code definitions in the database).

Clear trouble codes and turn off the MIL ("Check Engine" light)

Engine RPM

Calculated Load Value

Coolant Temperature

Fuel System Status

Vehicle Speed

Short Term Fuel Trim

Long Term Fuel Trim

Intake Manifold Pressure

Timing Advance

Intake Air Temperature

Air Flow Rate

Absolute Throttle Position

Oxygen sensor voltages/associated short term fuel trims

Fuel System status

Fuel Pressure

Tips before your purchase:

For your vehicle to be OBD II compliant it must have a 16-pin DLC (Data Link Connector) under the dash and the Vehicle Emission Control Information Label must state that the vehicle is OBD II compliant. To be sure your vehicle complies with OBD-II, look for a sticker on the vehicle under the hood in the engine compartment that clearly states “OBD II compliant or certified”.

OBD-II protocols supported:

SAE J1850 PWM(41.6 Kbaud)

SAE J1850 VPW(10.4 Kbaud)

ISO9141-2(5 baud init,10.4 Kbaud)

ISO14230-4 KWP(5 baud init,10.4 Kbaud)

ISO14230-4 KWP(fast init,10.4 Kbaud)

ISO15765-4 CAN(11bit ID,500 Kbaud)

ISO15765-4 CAN(29bit ID,500 Kbaud)

ISO15765-4 CAN(11bit ID,250 Kbaud)

ISO15765-4 CAN(29bit ID,250 Kbaud)

SAE J1939 CAN(29bit ID,250* Kbaud)

USER1 CAN(11*bit ID,125* Kbaud)

USER2 CAN(11*bit ID,50* kbaud)

Vehicle Coverage:

Works on all OBD2 Vehicles (1996 onwards in USA) and EOBD vehicles (Petrol cars from 2001 and diesel cars from 2003/2004 in Europe)

Please note: Not all models of cars and all functional devices can be supported.

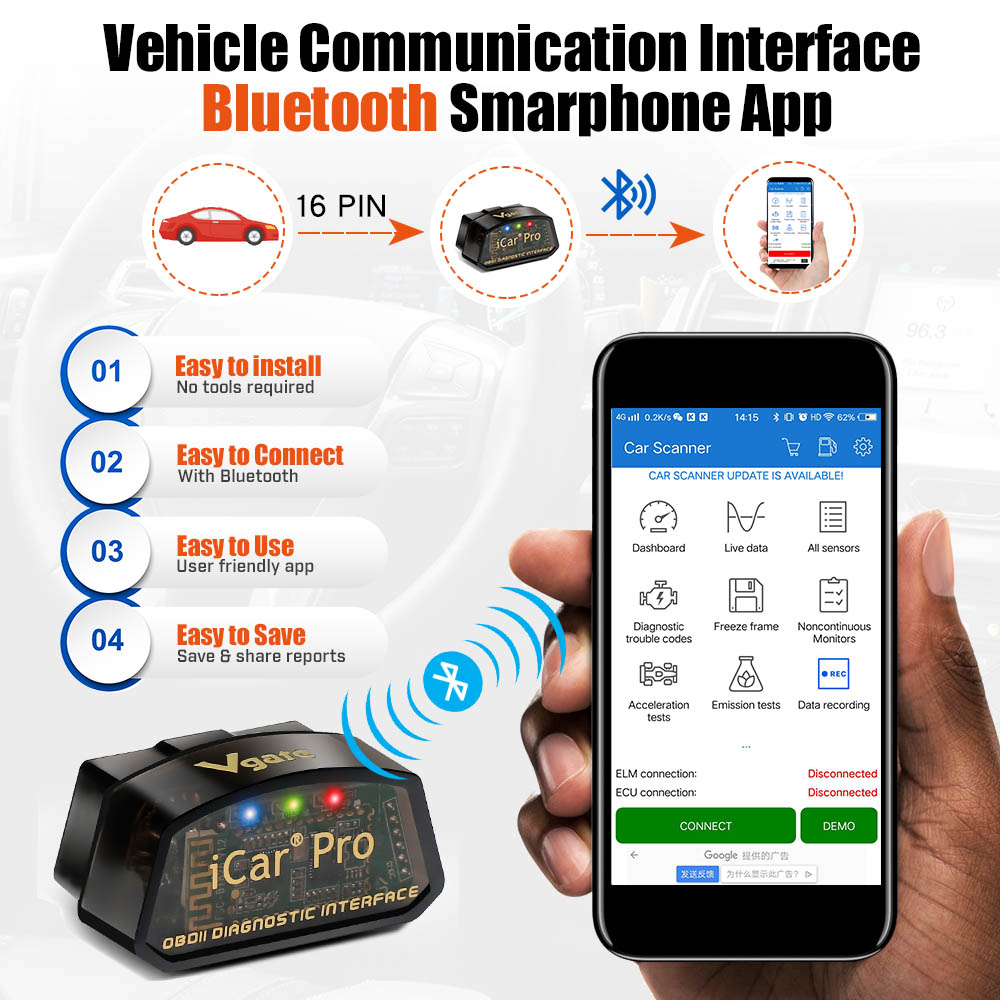

How to setup Bluetooth-compatible pairing:

BLE4.0 Dual mode version

For Android users:

Home screen

Go to setting page

Select V-LINK Default password is “1234”

Device paired

Run Torque app

Go to Torque app OBD II adapter setting

Choose connecion type>Bluetooth-compatible

Choose Bluetooth-compatible device>V-LINK

Exit Torque app completely

Run Torque app

Connected

For iOS users:

Home screen

Go to setting page

Click on Bluetooth-compatible function

(Device name is invisible)

Run Accurate app

Go to Accurate app setting page

Select Bluetooth-compatible and connect

Exit Accurate app and run again

Connected

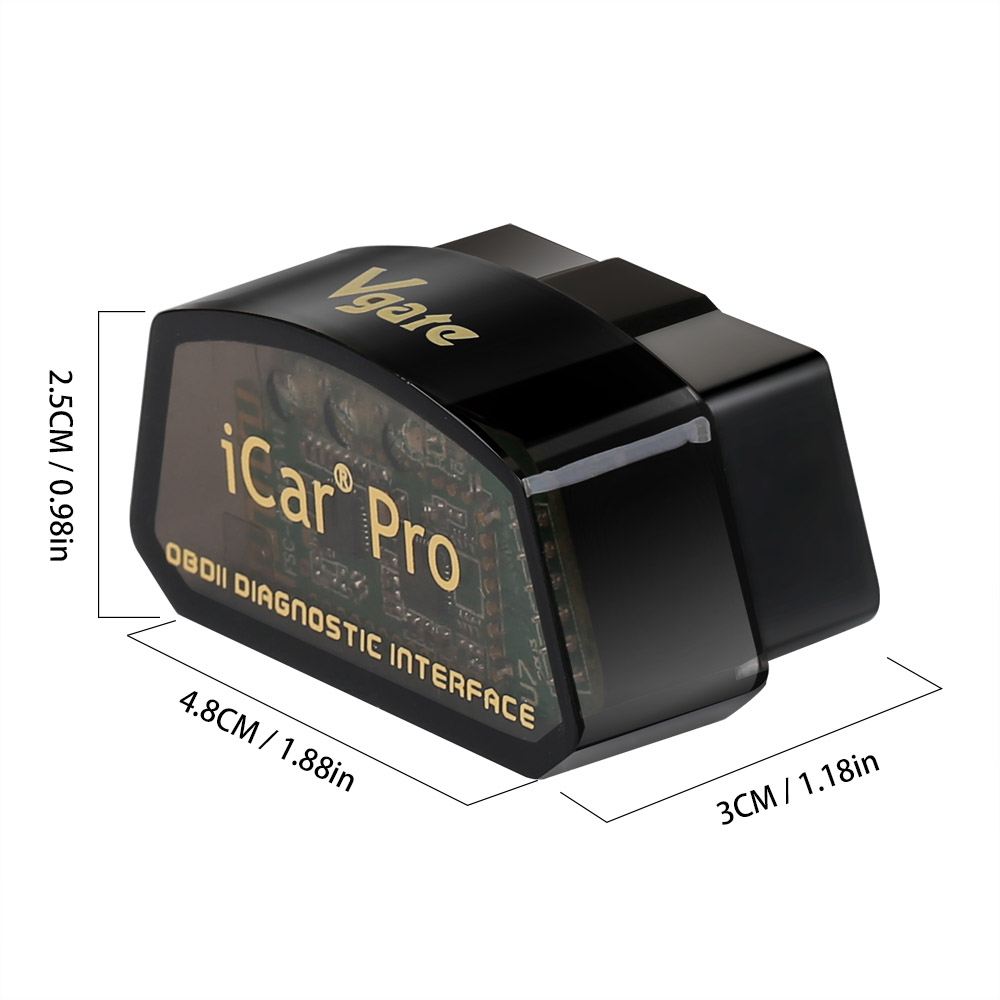

Specification:

Supply Voltage: 11.5V—15V

Supply Current: <200Ma

Standby Current: <30Ma  ( TONWON Pro   =<3Ma )

Operating Temperature: -40℃--85℃

Operating Humidity: 5%--95%RH Non-Dewfall

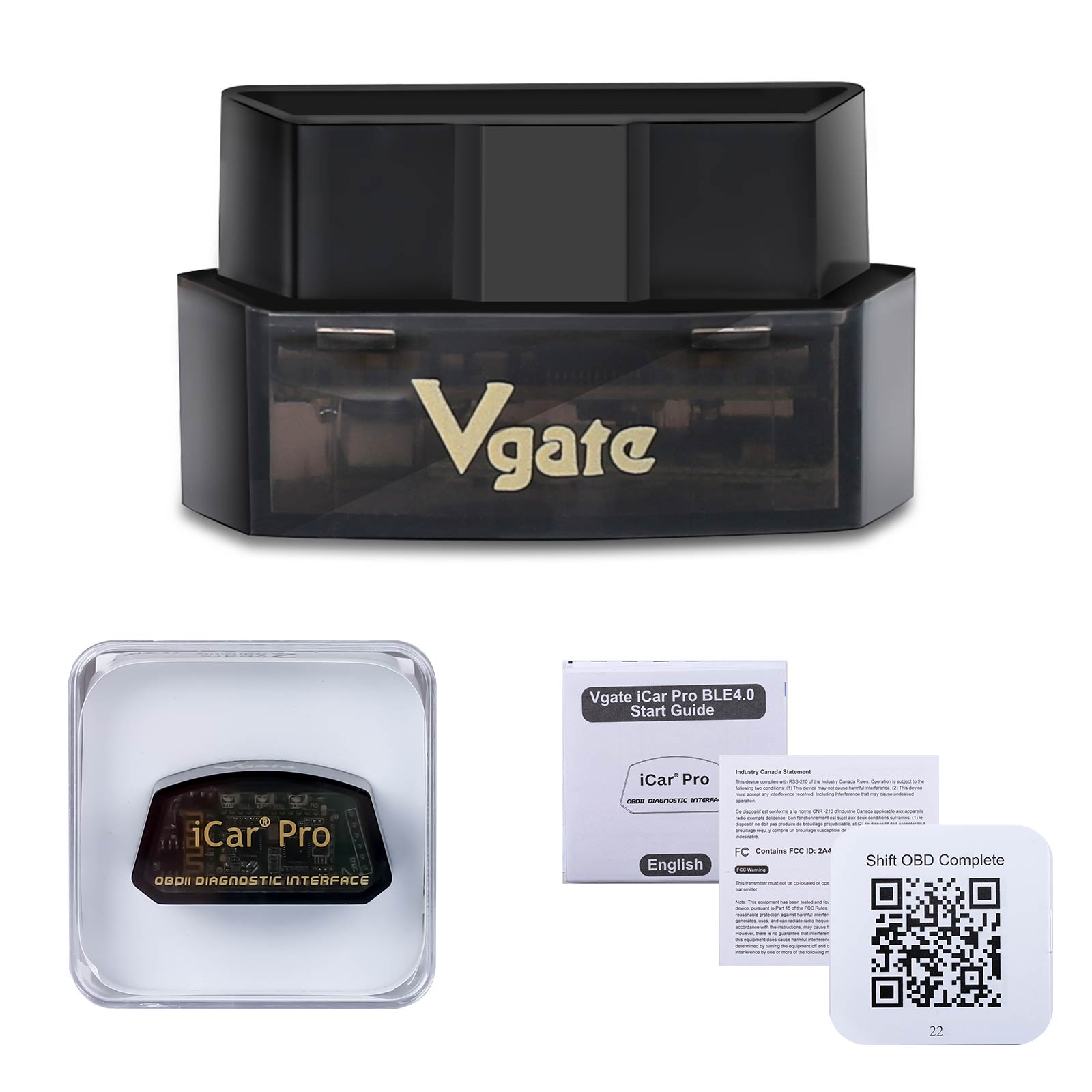

Package Includes:

1pc x Vgate iCar Pro Bluetooth-compatible 4.0 OBDII adapter

1pc x User manual
