Description:
Package included:
1PC(Depends on your choice!)
| Type | Photo | Description |

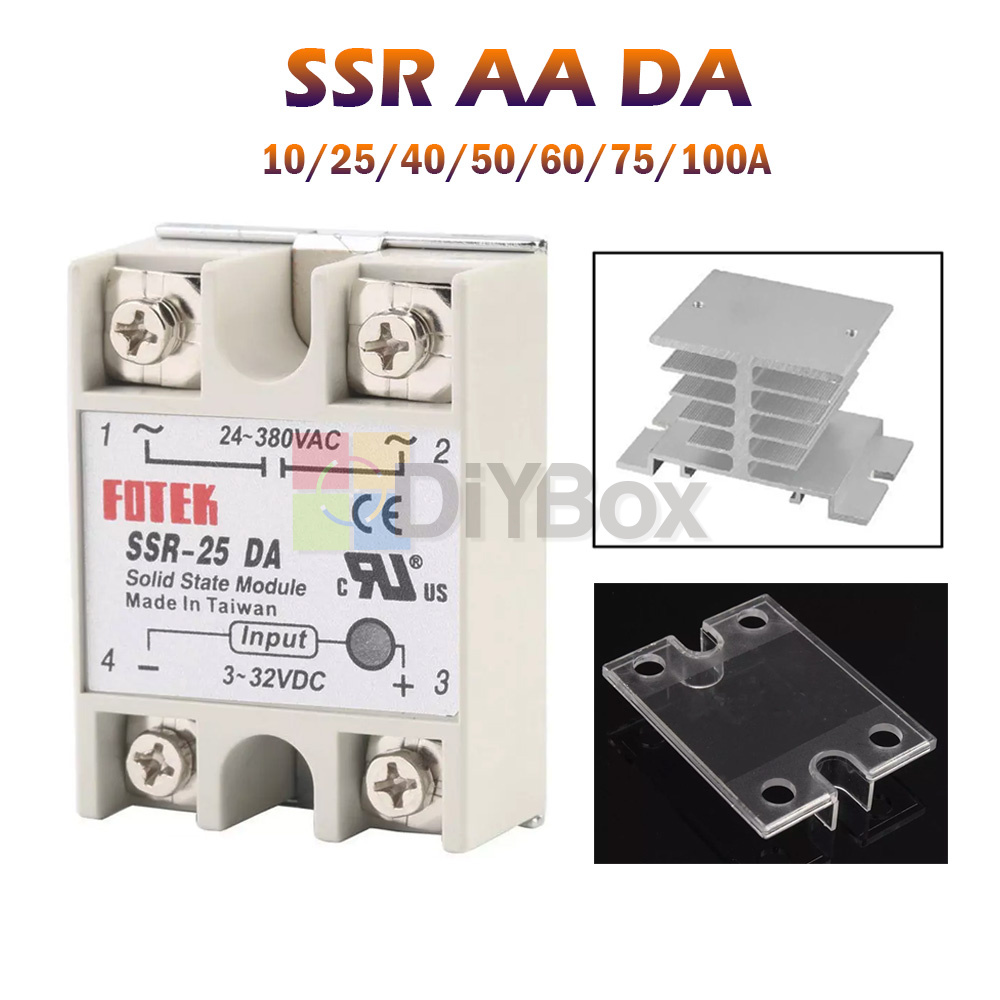

| SSR-25DA |  |
Input voltage: 3-32VDC Output voltage: 24-380VAC Output current: 25A Working voltage: 250V On voltage: ≤1V One-off Time: ≤10ms Off leakage Current: ≤2mA Color: White Item size: 60*45*23mm Net weight: 97g Package weight: 106g |

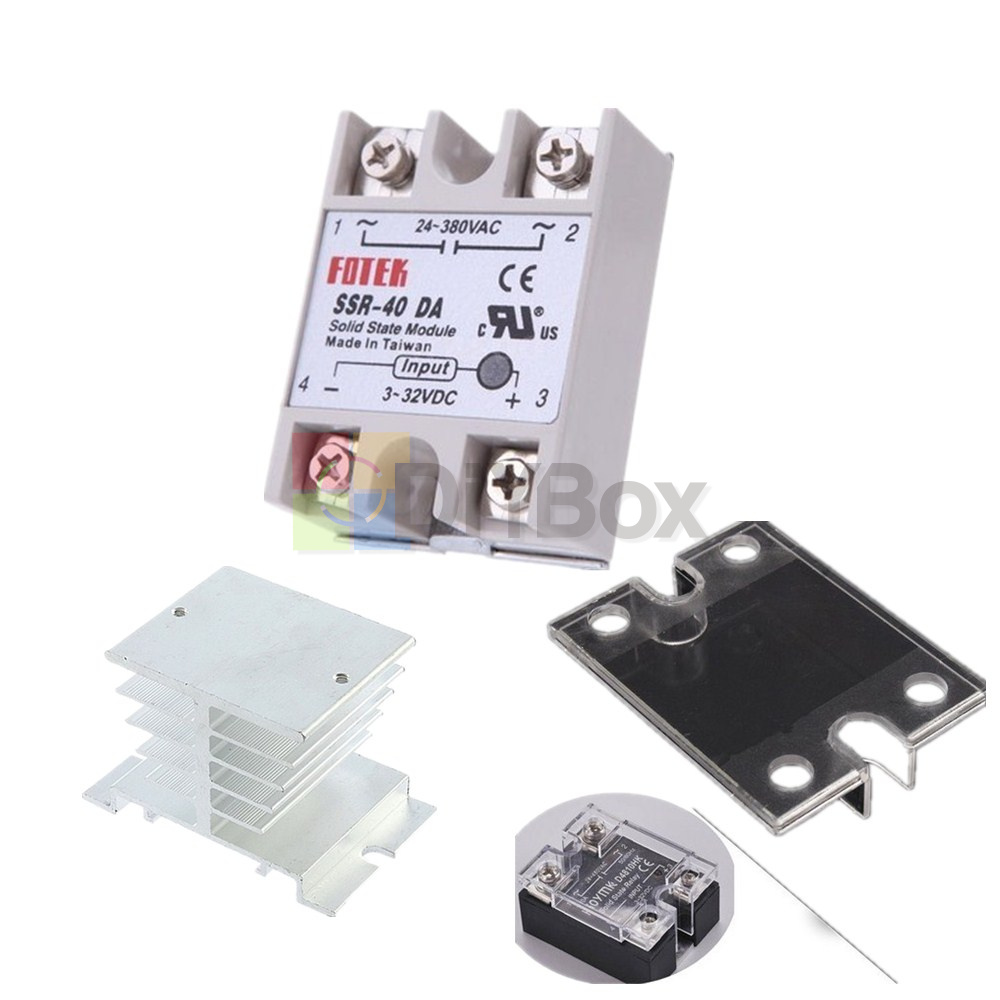

| SSR-40DA |  |
Color: Gray. |
| SSR-40AA |  |
Model: SSR-40AA Input voltage: 80-250V AC Output voltage: 24-380V AC Output current: 40A Working Voltage: 250V On voltage: <= 1V One-off time: <= 10ms Off leakage current: <= 2mA Relay Size: 6 x 4.5 x 2.2cm / 2.3 x 1.7 x 0.8inch (L*W*H) Heat Sink Size: 8 x 5 x 5cm/ 3.1 x 2 x 2inch (L*W*H) Total Size: 8 x 5 x 7.2cm/ 3.1 x 2 x 2.8inch (L*W*H) Net weight: 212g |
| SSR-75DA |  |
Model: SSR-75 DA Input voltage: 3-32VDC Output voltage: 24-380VAC Output current: 75A On voltage: ≤1V One-off Time: ≤10ms Off leakage Current: ≤2mA Weight: 0.105kg |
| SSR-25AA |  |
Color: Grey white Size: 6.3*4.5*2.3 cm Output voltage: AC 24-380V Output current: 25A Input voltage: DC 3-32V Control method: AC to AC On-off time: ≤ 10ms Mounting Method: Bolts fixed |
| SSR-100DA |  |
Model:SSR-100 DA Input voltage: 3-32VDC Output voltage: 24-380VAC Output current: 100A Working voltage: 250V On voltage: ≤1V One-off Time: ≤10ms Off leakage Current: ≤2mA Weight: 0.107kg |
| SSR-60DA |  |
Brand new and high quality. Solid State Relay: DC to AC Input Operating Voltage: 3V~32V DC Rated Load Current: 60A Output Operating Voltage: 24~380V AC The Single Phrase Solid State Relay is ideal for various household/industrial automation process control applications, such as heating & cooling control, numerical-controlled machinery, remote-control system, etc. Highly reliable, compact size designed to offer users maximum simplicity High Isolation over than 50MΩ/ 500VDC High Dielectric over than 2.5KVAC / 1min Minimum Blocking Voltage: 600VAC Leakage Current: 3.0mA LED indicator Please kindly note that a heat sink has to be used when Load is over 10A |

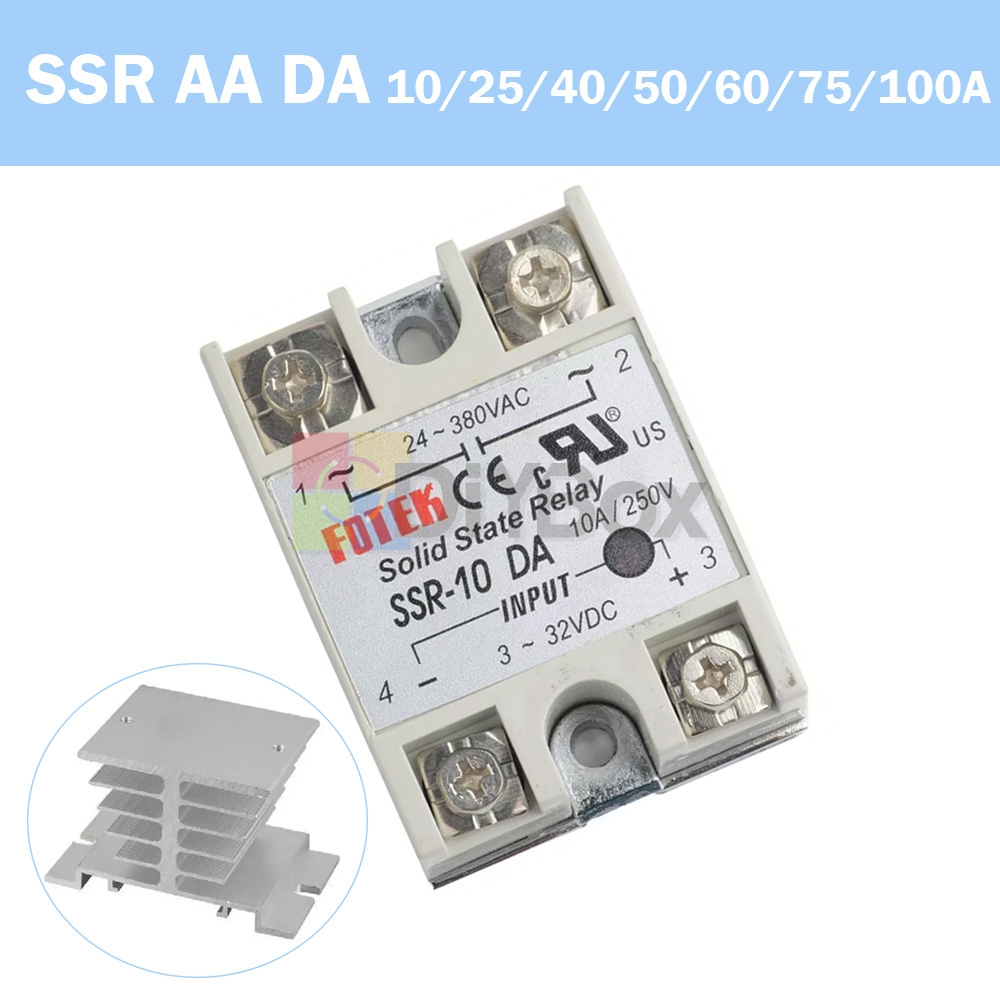

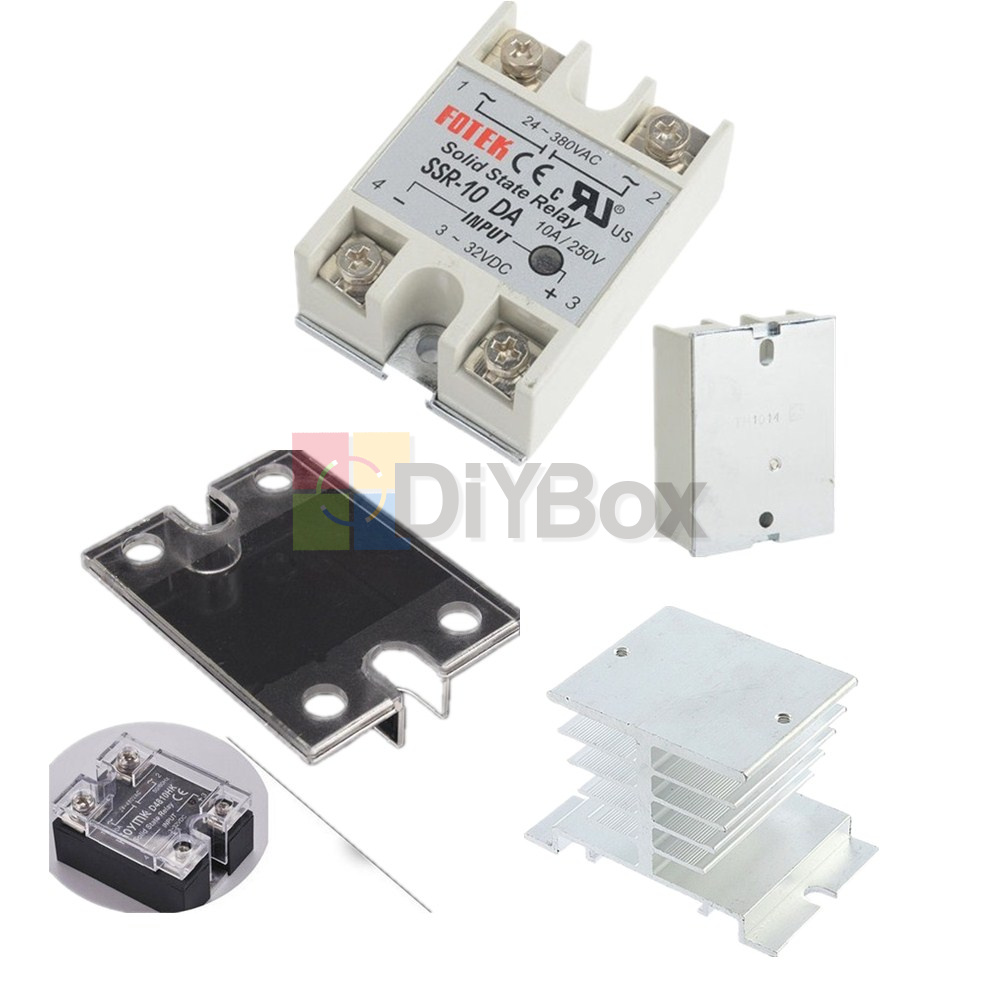

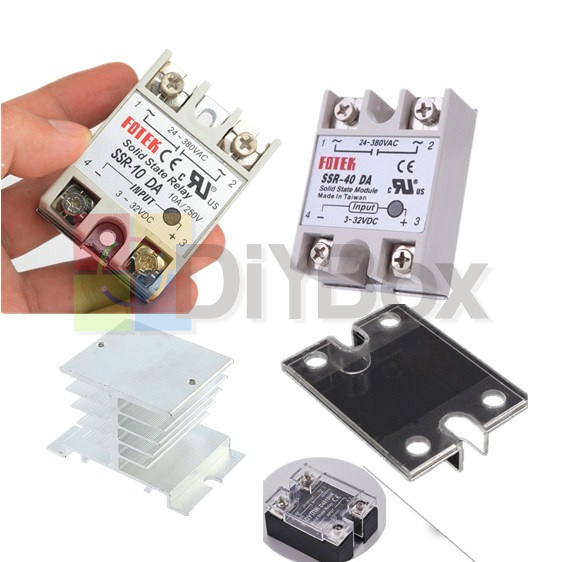

| SSR-10DA |  |
Net Weight: 120g Size:6 x 4.5 x 2.3cm Long service life and high reliability Highly reliable, compact size designed to offer users maximum simplicity Fast switching Reduced electromagnetic interference Output voltage: AC 24-380V Output current: 10A Input voltage: DC 3-32V Control Method: DC to AC Mounting Method: Bolts fixed |
| SSR-50DA |  |
Output voltage: AC 24-380V Output current: 50A Input voltage: DC 3-32V Control Method: DC to AC Mounting Method: Bolts fixed 3-25mA control current DC -State leakage current ≤ 2mA On-state buck ≤ 1.5VAC Off-state time ≤ 10mS Dielectric strength 2500VAC Insulation resistance 500Mω/500VDC Ambient temperature -30 ℃ - +75 ℃ |
| SSR Safety Cover Case |  |
1. Size: 6 x 4.4cm/2.36" x 1.73"(L*W) 2. Material: Hard Plastic 3. Color: Clear 4. Suitable for single phase solid state relay(SSR). |
| Aluminum Heat Sink |  |
Materail: Aluminium alloy. Size:Roof:50mm x 60mm.Foot:80mm x 50mm. Height:43mm. Weight:96g Compatible with:Designed specially for single phase solid state relay. Color :Silver |
| 5A 1Ch |  |
Using FR-4 double-sided circuit boards; Using high-quality solid-state relays 5A; The input and output are using KF128-3.81 Terminal Block, wiring more convenient; Use SS8050 1.5A high current transistor for switching transistor, quality is more stable; The board has four screw holes. Size:(L*W*H)6.89*7.10*2.28cm/2.71"*2.80"*0.90" Power supply: 3-32VDC (wide voltage power supply) Trigger: high level trigger, 3-32VDC relay switches on (ON), 0-0.5V relay is switched off (OFF) 0.5-2.5 volts unknown state Load current: 5-220VDC 5A (DC only) Wiring Port Description: DC +: positive power supply (3-32VDC) DC-: negative CH1: trigger terminal (3-32VDC high level trigger active) |
