11KW 15HP VFD Inverter Converter Motor Speed Control Frequency Drive 220V/380V


Shipping tips:

For shipments to customers in the United States, we will use the DDP (Delivered Duty Paid) model, where we cover all customs clearance fees.

For countries outside the United States, shipments will be sent via Expedited Shipping such as DHL, FEDEX, or UPS; Customers are responsible for cooperating with customs clearance procedures and paying any applicable duties and taxes.

Package include:

  • 1x HY GT Series 11KW VFD Inverter 220V or 380V



220V Version
specification：
Suitable motor: ≤ 7.5KW（10hp）
Input voltage: single phase or three phase 220V 60Hz
Output voltage：220V three phase
Output frequency:0.5- 50/60Hz, 0.5-400Hz
Input Frequency: 50Hz/60Hz
Rated Current:48A (Represents the maximum current the VFD can withstand)



380V Version
specification：
Suitable motor: ≤ 7.5KW（10hp）
Input voltage: three phase 380V 60Hz
Output voltage：380V three phase
Output frequency:0.5- 50/60Hz, 0.5-400Hz
Input Frequency: 50Hz/60Hz
Rated Current:48A (Represents the maximum current the VFD can withstand)


GT-011G-2 VFD Specifications

Applicable motor power≤7.5kw(10hp)
Applicable motor rated current＜50 amps
Input valtage support220V Version:220VAC(+/-5%) 1 or 3 phase;
380V Version: 380V(+/-5%)
output valtage3 phase 220V (220V Version) or 3 phase 380V (380V Version)
input Frequency47-63Hz
output frequency0-400Hz, 0-50Hz/60Hz （According to motor setup)
Circuit breaker suggestion80A
Wire specification suggestion9 AWG

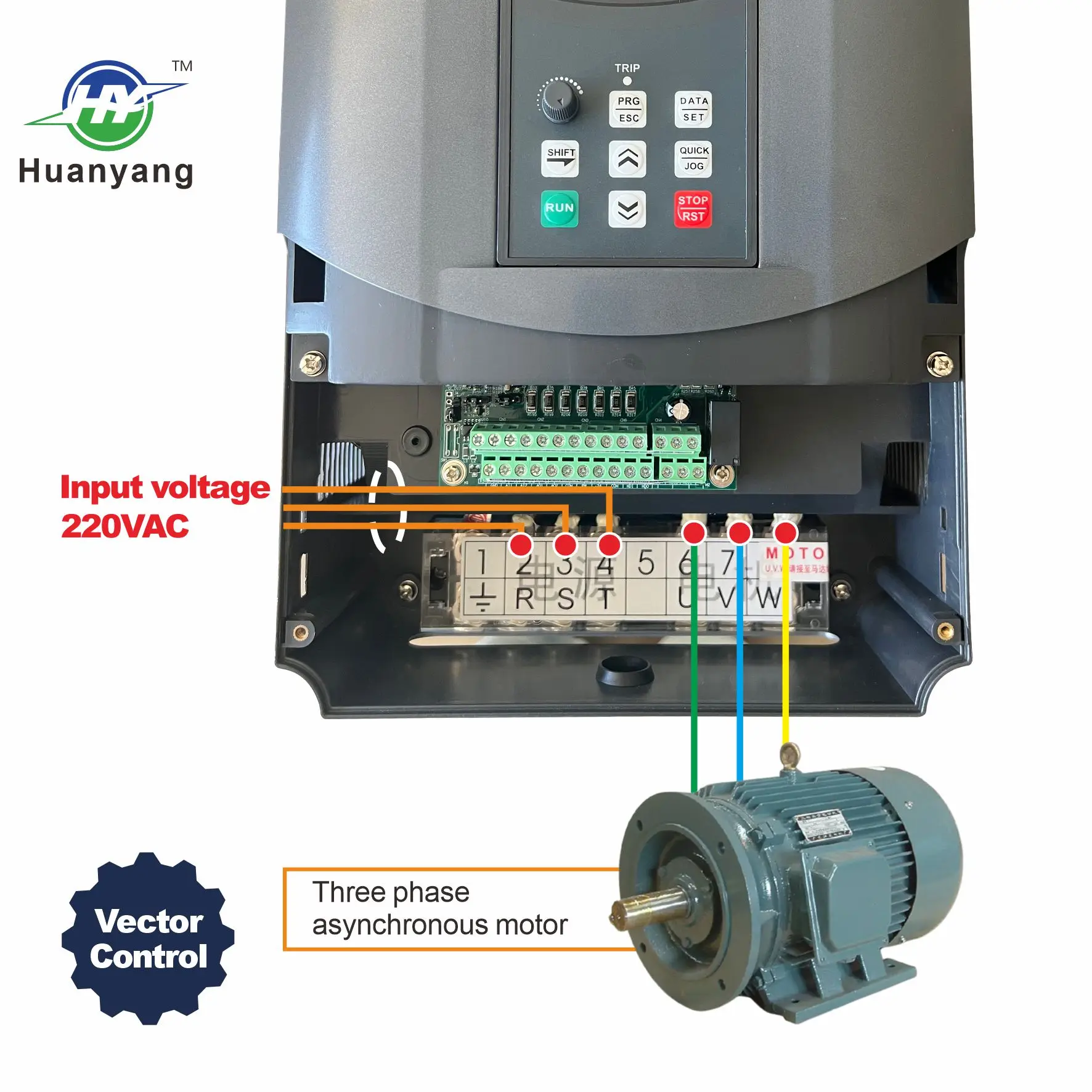

How to connect the motor


Technical Features:

PID control;advanced calculous PID closed-loop arithmetic, quick responding speed and high suitability;
Easy PLC function can realize 16 legs of speed and inverter control function
RS485 communication port, adopting standard international MODBUS main circuit control
With extremely strong anti-jamming capability
Low output ratting torque 0.5HZ-150%, low speed running ability
Carrier adjustable by 16KHZ, completely soundless working environment
Broad voltage working area, normal running in 304V-456V
Auto voltage regulation (AVR) technique, for ensuring the inverter load capability
Dead-time compensation and auto torque slip compensation function, can realize 180% high orque output at low frequency 0.25Hz


How to connect the motor

400hz spindle

50/60hz motor

cooling fan

Basic parameter for 400hz spindle

Set p0.03=400，p0.04=400，p0.06=400

，p2.02=400

( Note ：This is to match the basic parameters of the 400hz spindle, do not need to set other parameters can be connected）

Basic parameter for 3 phase 50/60Hz motor

Set p0.03=50/60, p0.04=50/60, p0.06=50/60，p2.02=50/60

( Note ：The default setting of the VFD is 50hz, which can be directly connected to the motor for driving)

DC cooling fan/Aluminum base

  • DC cooling fan low noise, large air volume help vfd heat dissipation, improve product stability
  • Aluminum base: This ensures the stability of the product and increases the heat dissipation capacity of the fan

If you have single phase 220V AC power supply,pls connect R & T these two pins to single phase AC 220V input.



Application:

Mettalurgy,petroleum,chemical, textile, electricity, building material, coal, medicine, food, paper making, plastic, printing, lifting, cable, washing, water supply, HVAC, sewage disposal and other industries.

Machinery: CNC router, CNC machine, milling machine, drilling machine, wingding machine, mixer, extruder, slitter, winder, compressor, ventilator, pump, grinder, conveyor, elevator, centrifuger and other speed control machines.
