4 Axis 6040 CNC Router 2.2KW USB Milling Cutting Engraving Machine Mach3 Control 110v or 220V
· 1 x 4 Axis 6040 2200W USB Mach3 CNC Router machine with dust cover 110V or 220V Version

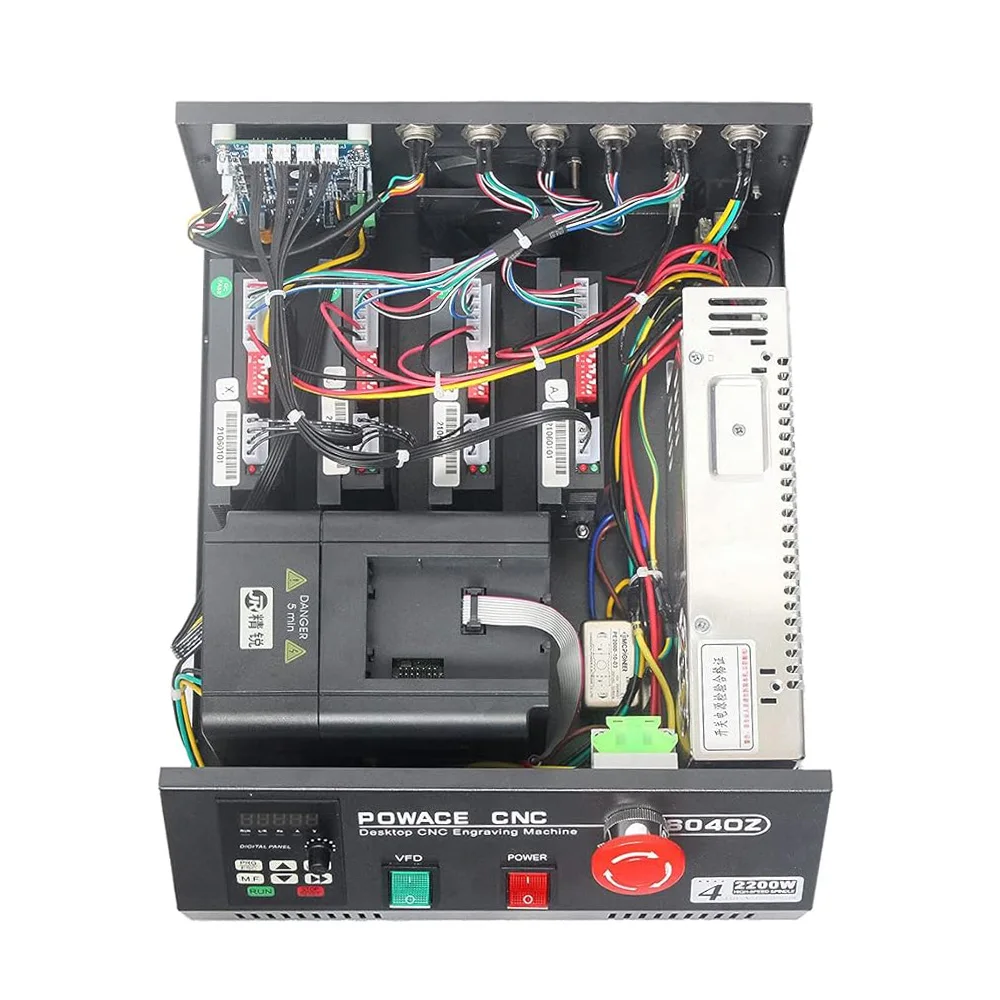

· 1 x Controller box (4 axis)
· 1 x USB cable
· 1 x Power cable ( US or EU Standard plug )
· 1 x Tool box and tools
· 3 x Axis nema23 stepper motors
· 1 x 2.2KW water cooled spindle motor ER20
· 1 x 2.2KW Inverter VFD
· 2 x connect wires
· 1 x the 4th rotary axis with tailstock
· 1 x water pump
The machine is semi assembled, and you need to assemble it simply after receiving it.
Product technical parameters:

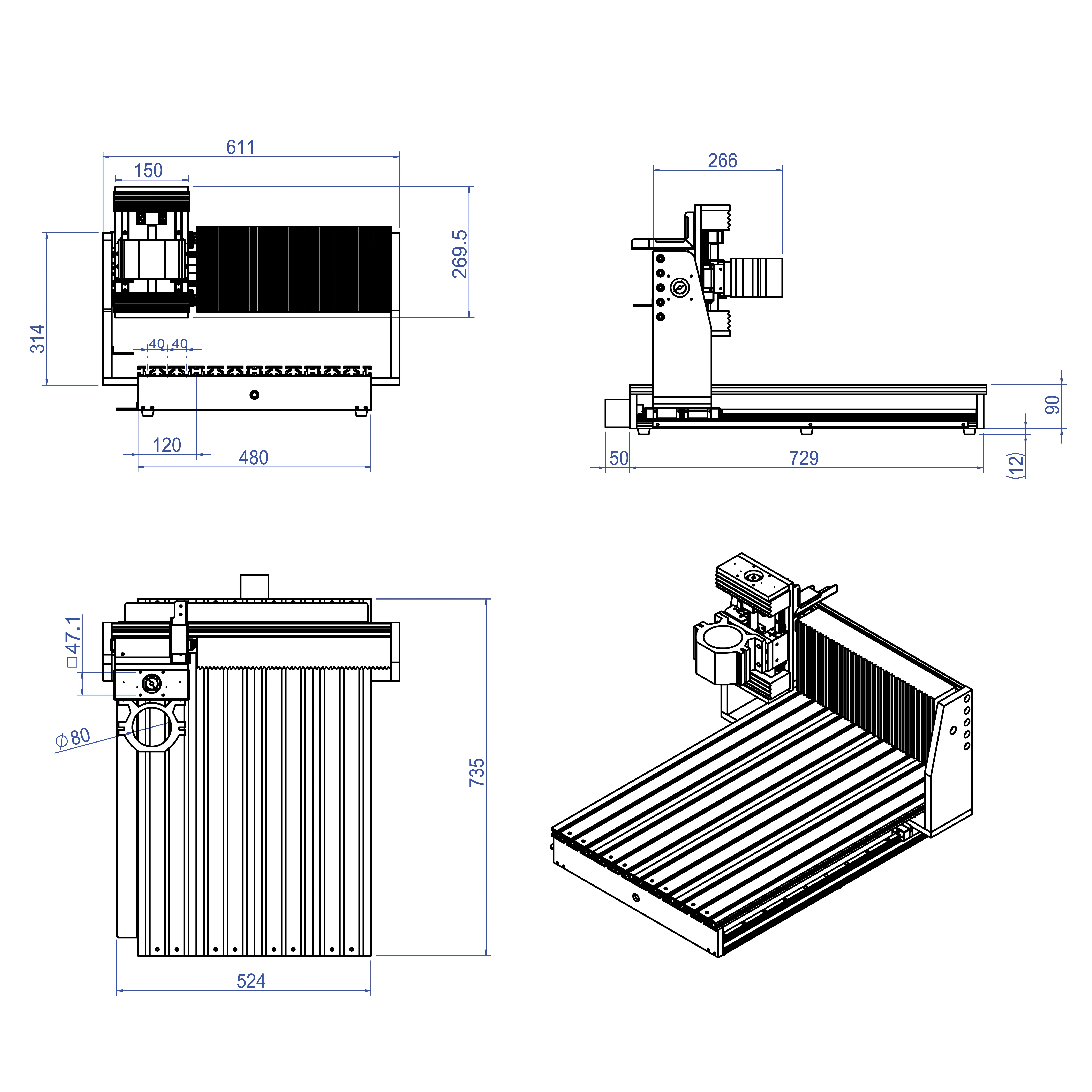

1) Machine size: 750x610x390mm/29.5x24x15.3"
2) 3-axis effective travel: X=330mm/13", removing the dust cover can achieve 400mm/15.7", Y=580mm/22.8", Z=70mm/2.75", and removing the dust cover can achieve 95mm for the Z-axis;
3) Workbench size: 735x480mm/29x18.8" Slot width: 8.5mm/0.33"
4) Maximum workpiece thickness: ≤ 100mm/3.93"
5) Transmission device: Y-axis=2005 screw HGH15 square rail; X-axis=1605 screw HGH15 square rail; Z-axis=1605 screw HGH15 square rail. The shafts are all equipped with brand new SFU2005&SFU1605 ball screws and high-quality couplings.

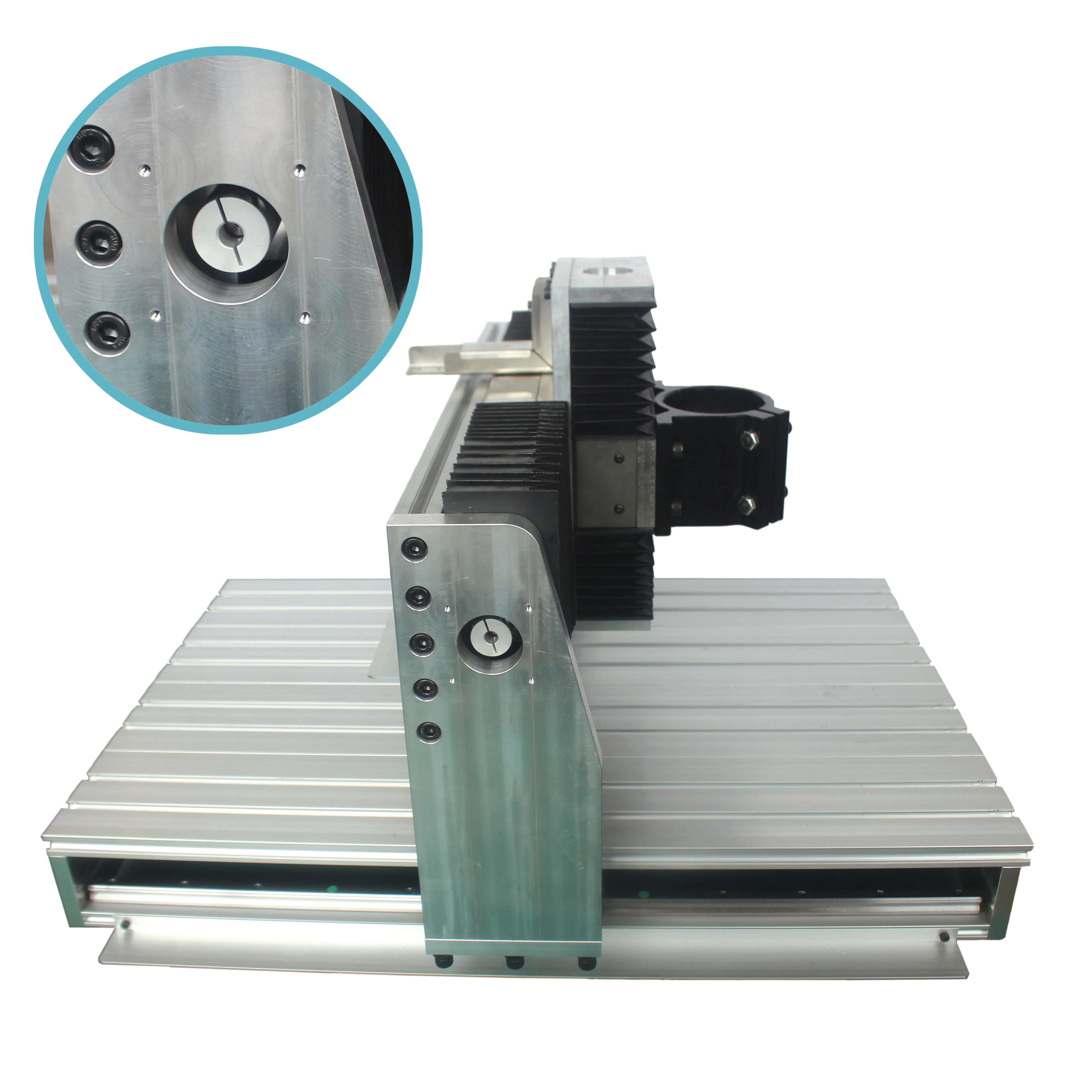

6) Rack material: 6061-T5 aluminum alloy, high strength, precision machined by CNC machining center, all surfaces are precision machined by CNC, without any surface treatment, resulting in higher accuracy.
7) Track type: chrome plated shaft+linear bearing (surface hardened 61HRC)
8) Repetitive positioning accuracy: 0.05mm
9) Spindle fixture diameter: 65mm and 80mm can be interchanged. (Customer installation universal fixture required to achieve) Installation hole position 117.5x46mm M8
10) Applicable motor: nema23 stepper motor 3A
11) Packaging size: 680x230x460mm&680x830x180mm
Specifications (4 Axis 6040Z-2200W)
Spindle Motor: Powerful Brushless frequency spindle, 2200W 2.2KW Water cooled spindle
Revolution Speed: 3000~24000rpm/min
Collet type: ER20 (equipped with 6mm collet)
X Y Z Motor: NEMA23 Stepper Motor
Stepper Drives: High performance,Each axis independently driven
Feed rate: 300~5000mm/min
Support system: Win XP,7,8,10 (32bit or 64bit)
Communication Interface: USB2.0 (Please use Mach3 control)
Command Code: G code/.nc/.ncc/.tab/.txt
Operation Environment: Temp: 5°~40° C; Humidity: 35 to 80%
Application
The 6040Z-2200W USB CNC engraving machines make it fast and easy to engrave or scribe a wide variety of materials. Spindle speed can be varied between 3,000 and 24,000 rpm for engraving a wide variety of materials, including wood, urethane foam, plastic, acrylic, and metals.
CNC 6040 is suitble for Industry,Technology Research,Advertising Design,Arts Creation,Teaching,Student Project and Hobby Purposes.CNC 6040 is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making,PCB,Adverstising Signs,Artwork,Crafts,Aircraft Models,RC Model parts,etc.So,you can do engraving work at office or home.In addition,It is with four axis(rotary axis) and tailstock.
Features:
1) Easy operation and installation.
2) Made of aluminum alloy frame material, it is more stable and sturdy.
3) X-axis, Y-axis, and Z-axis engraving make carving more precise and three-dimensional.
4) More precise control of engraving
5) Carving almost anything on almost any surface

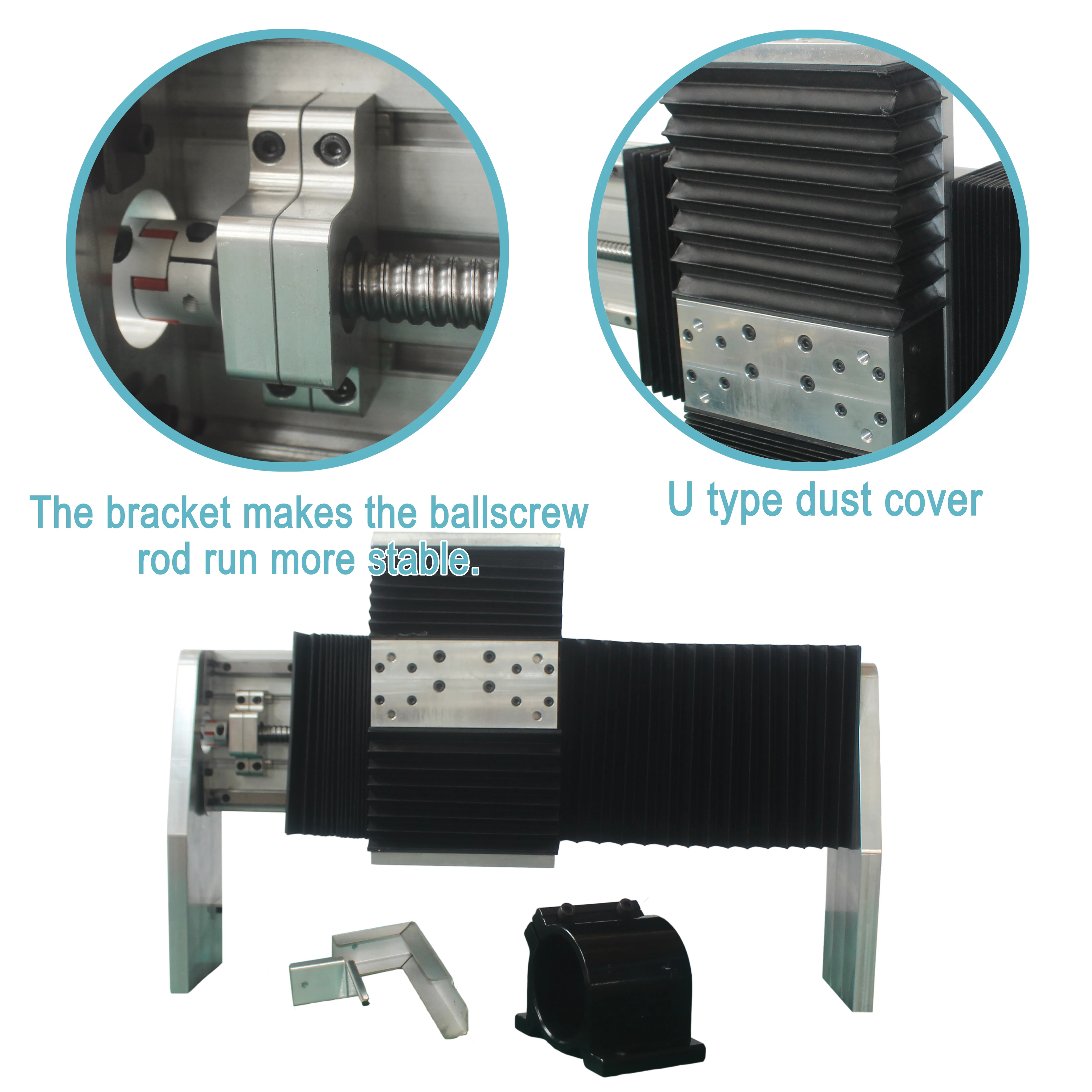

6) The cover plate reduces contamination of the screw and shaft.
7) Strengthen and thicken the body to ensure safer transportation and longer service life.
8) The chrome plated shaft is not easily deformed and is suitable for long-term use.
9) Elastic couplings can be used for high torque transmission.
10) This project has been equipped with new SFU2005&SFU1605 ball screws. Anti black light, high accuracy, and long service life.
