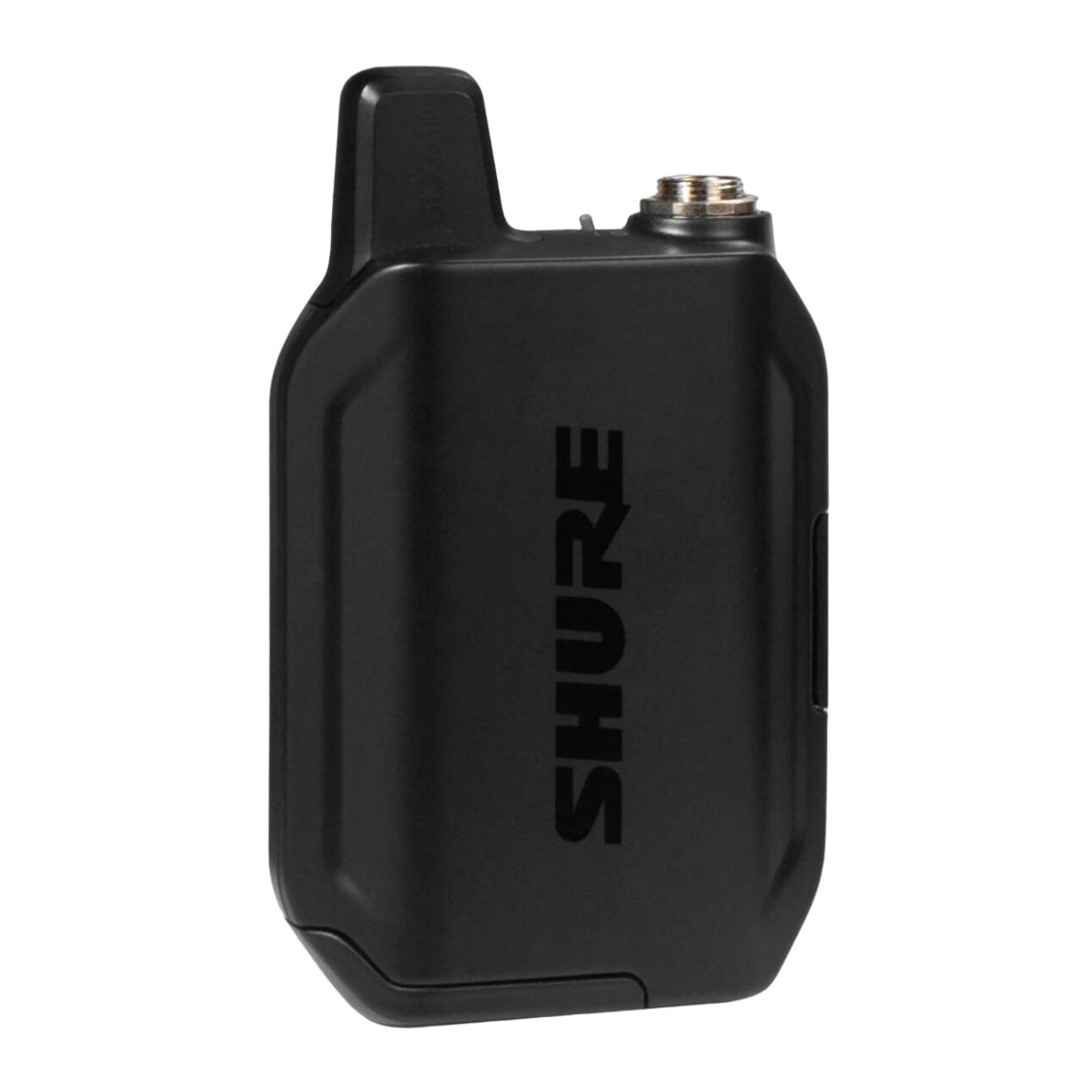

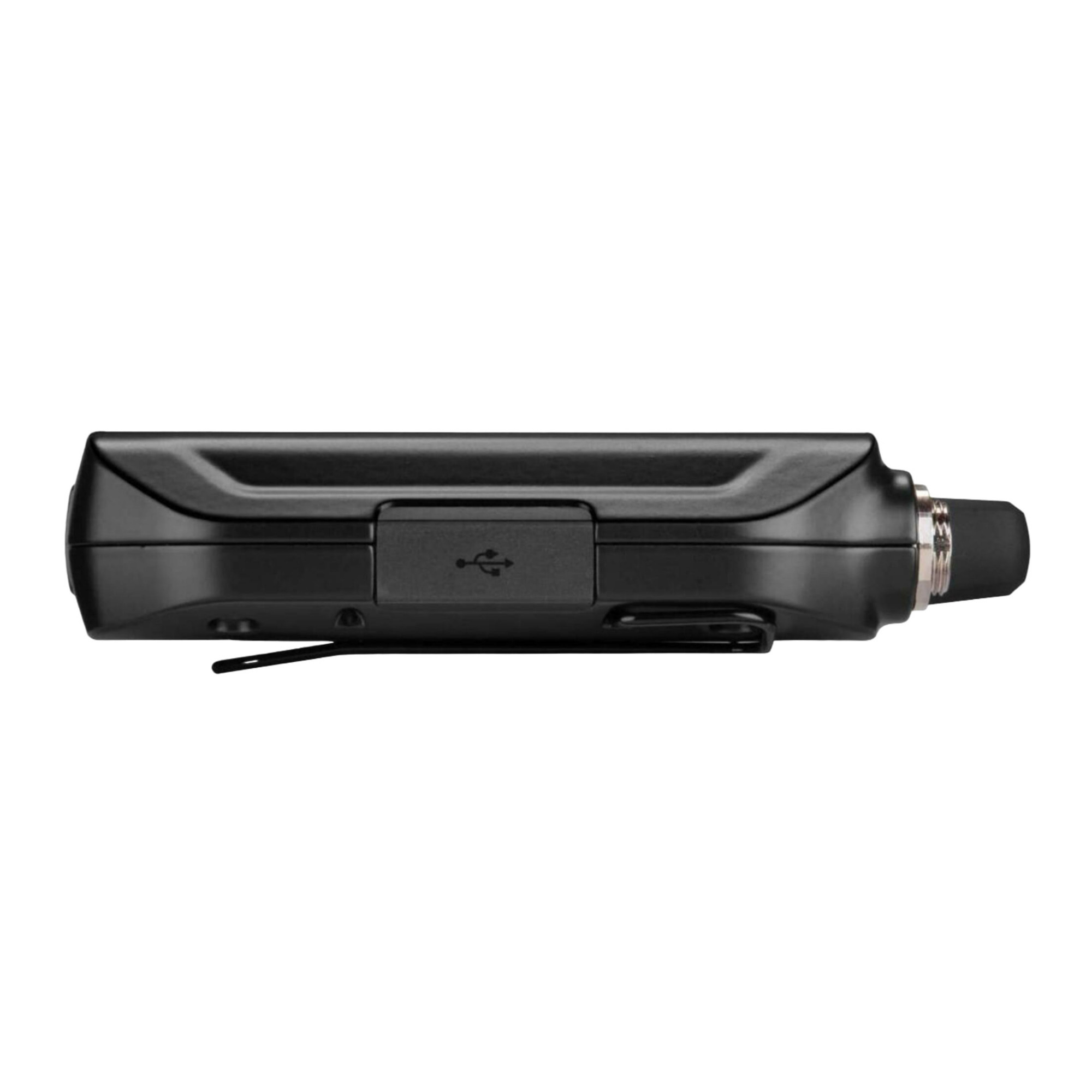

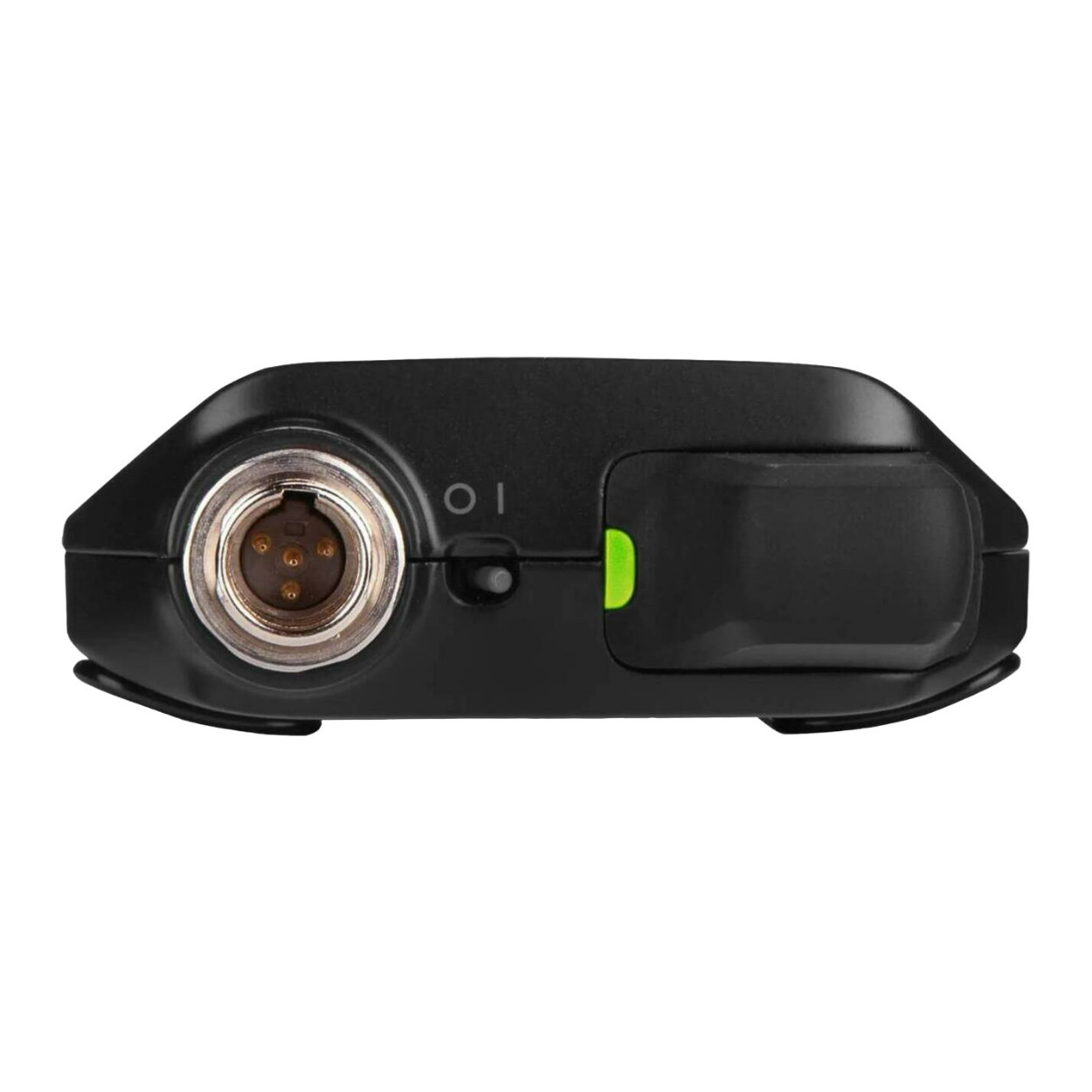

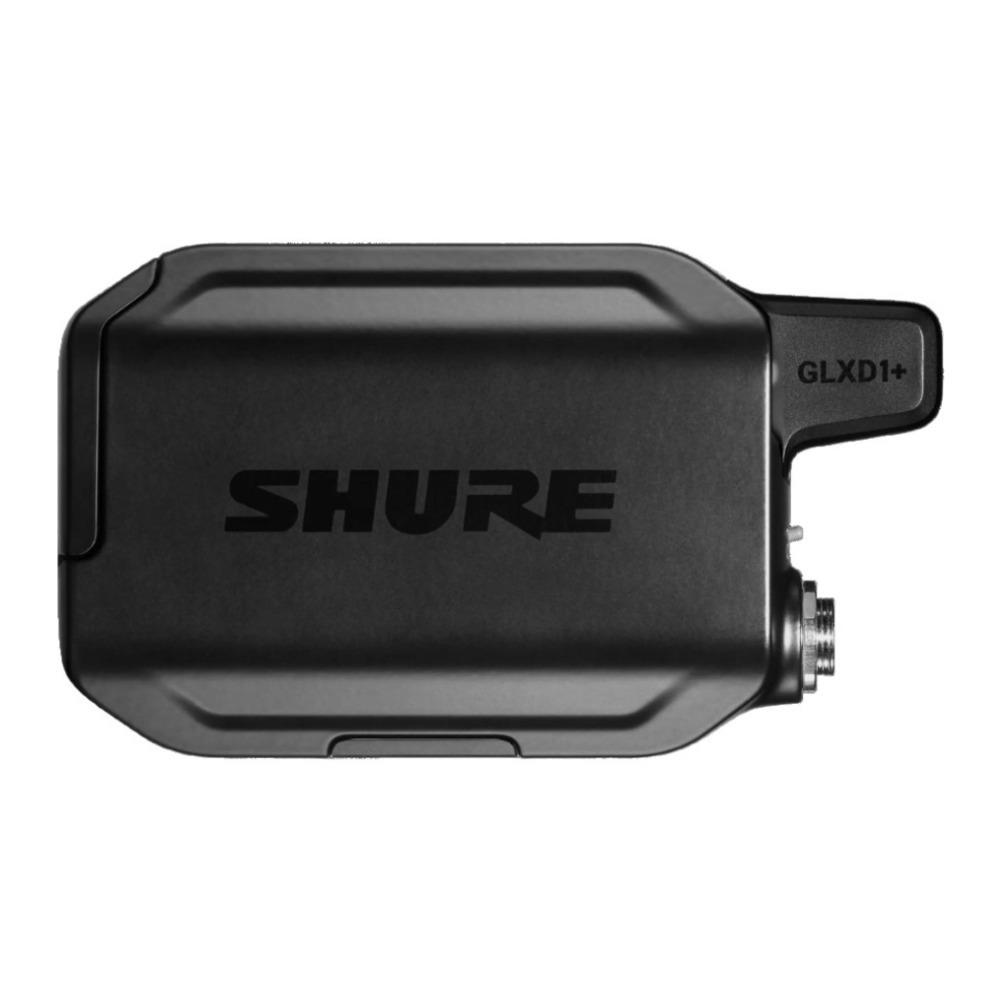

Shure GLXD1+ Z3 Frequency Band Digital Wireless Bodypack Transmitter (Black)

Brand New in Original Packaging
GLXD1-Z3
Features
  • Comes in a Z3 frequency band
  • Rugged, metal construction with an ergonomic design
  • Reversible belt clip to fit comfortably and snugly
  • Compatible with an instrument cable
  • Compatible with a variety of headsets and Lavalier microphones
  • Features SB904 lithium-ion rechargeable battery
  • Aluminum alloy, ABS plastic housing
  • Up to 11.5 hours of battery life
What's in the Box
  • Shure GLXD1+ Z3 Frequency Band Digital Wireless Dual Band Bodypack Transmitter (Black)
  • SB904 Lithium-Ion Rechargeable Battery
  • Limited 2-Year Warranty
Item Description

The Shure GLXD1+ Dual Band Bodypack Transmitter has a rugged, metal construction with an ergonomic design and reversible belt clip to fit comfortably and snugly in various positions. This transmitter comes in a Z3 frequency band and has an aluminum alloy, ABS plastic housing. This transmitter features an SB904 lithium-ion rechargeable battery.

Compatibility

This transmitter is compatible with instrument cable, and a variety of headset and Lavalier microphone options.

Specifications

Shure GLXD1+ Z3 Frequency Band Digital Wireless Dual Band Bodypack Transmitter


General

  • Frequency band: Z3
  • Color: Black
  • Tuning bandwidth: 2400 - 2483.5 MHz and 5725 - 5850 MHz
  • Transmit mode: Shure proprietary digital
  • RF output power: 10 mW E.I.R.P. maximum
  • Ambient temperature range:
    • Charging: 0-degree-C (32-degree-F) to 40-degree-C (104-degree-F)
    • Operating: 0-degree-C (32-degree-F) to 45-degree-C (113-degree-F)
  • Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low­impedance output) and the tip of the high impedance 1/4-inch output
  • Audio frequency response: 20 Hz – 20 kHz
  • Dynamic range: 122 dB, A-weighted
  • RF sensitivity: -88 dBm, typical
  • Total harmonic distortion: 0.2%, typical
  • Battery life: Up to 11.5 hours
  • Channel count:
    • Up to 4 typical, 8 optimal
    • 2.4 GHz only: Up to 4 typical, 5 optimal

GLXD1+

  • Power requirements:
    • Shure rechargeable li-ion battery: SB904
    • USB power supply (US/Canada): SBC10-USB15WSUSTWJ
  • Antenna type: Dual-band internal monopole
  • Dimensions (H x W x D): 4.5 x 2.6 x 1.1 inch (115 x 66.94 x 28.51 mm)
  • Weight: 5.4 oz (153.1 g), without battery
  • Housing: Aluminum alloy, ABS plastic
  • Input impedance: 900 k ohm
  • TX input:
    • Connector: 4-pin male mini connector (TA4M)
    • Maximum input level: +8.4 dBV (7.5 Vp-p)
  • Configuration: Unbalanced
  • Pin assignments:
    • 1: Ground (cable shield)
    • 2: + 5 V bias
    • 3: Audio
    • 4: Tied through active load to ground (on instrument adapter cable, pin 4 floats)
