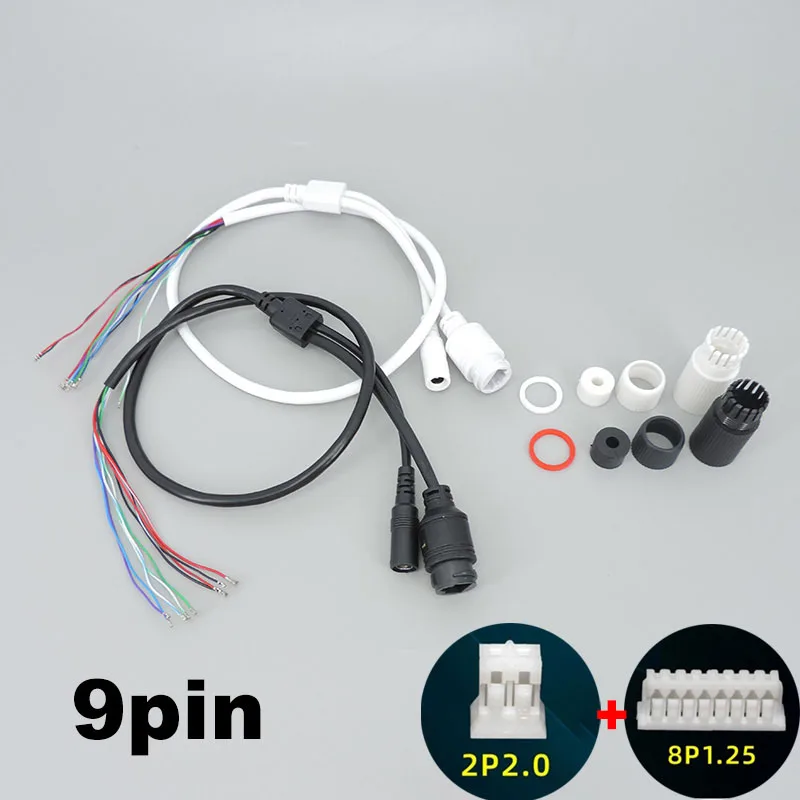

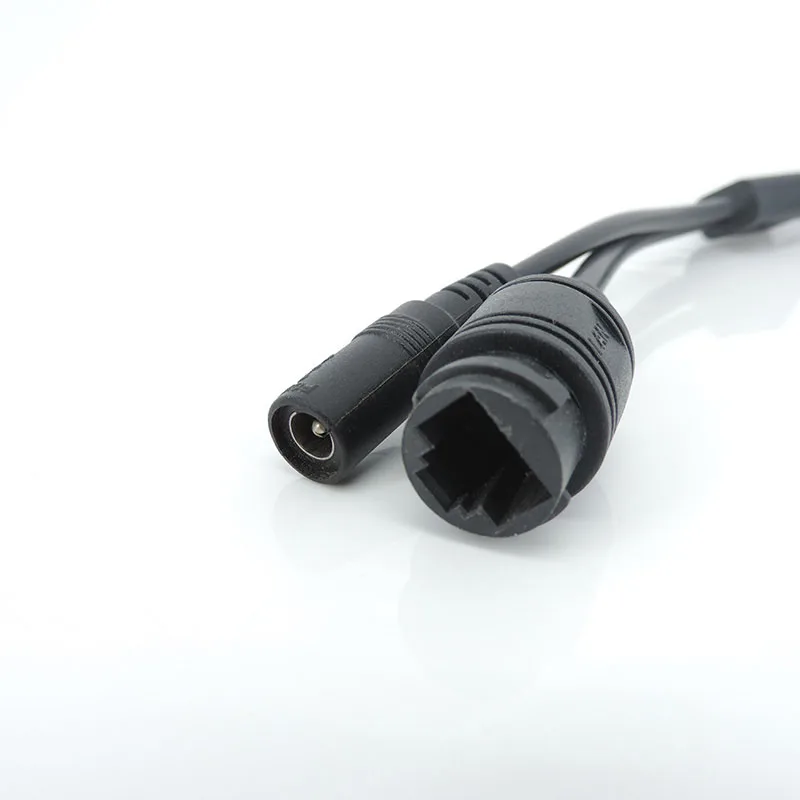

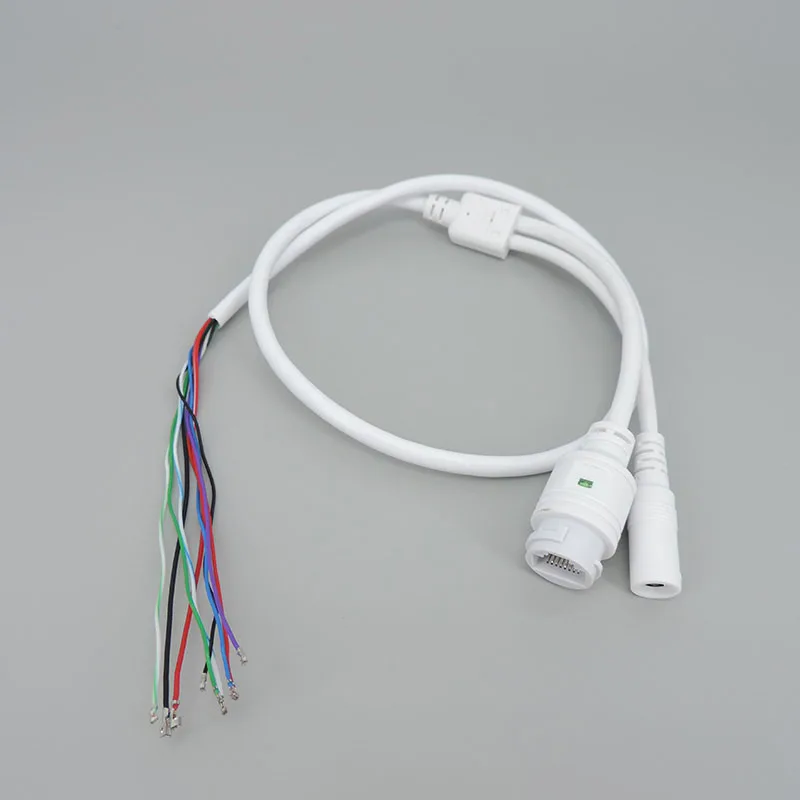

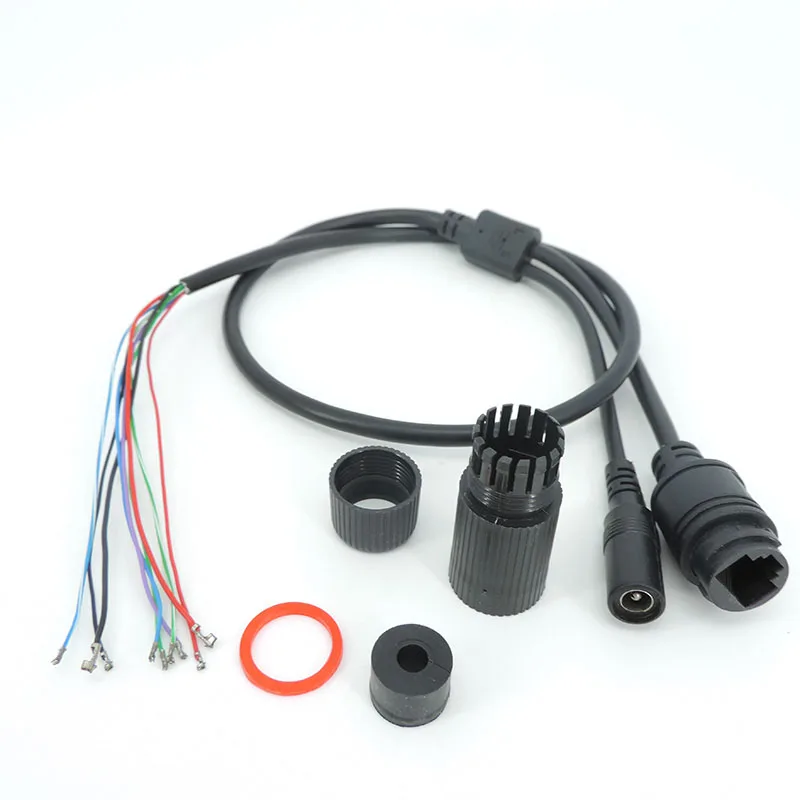

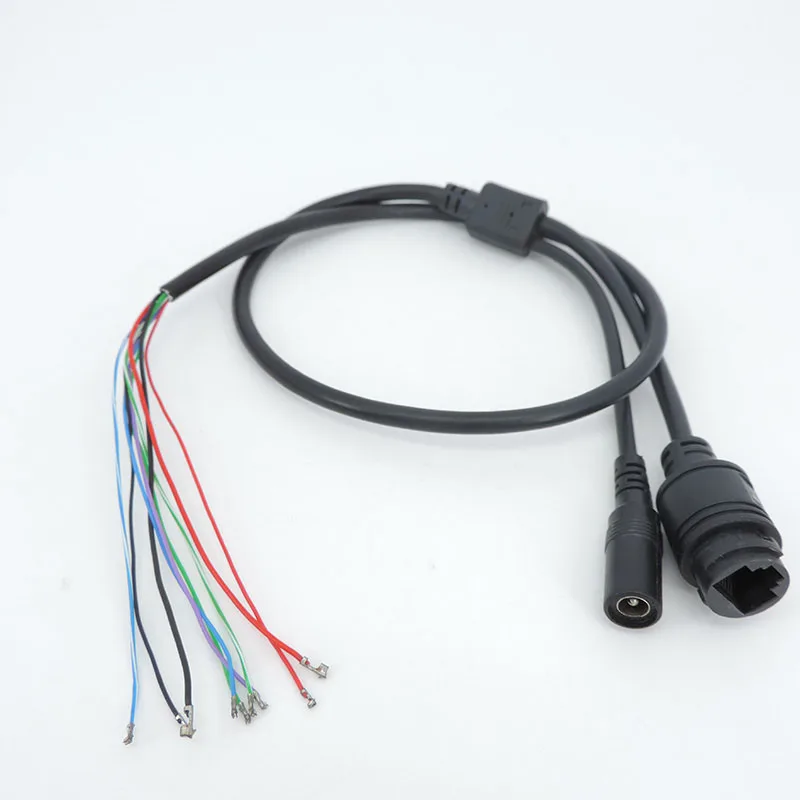

9 core POE LAN cable for CCTV IP camera board module RJ45 DC power 12V standard type without 4/5/7/8 wires status LED waterproof
* One green color status LED in RJ45 connector.

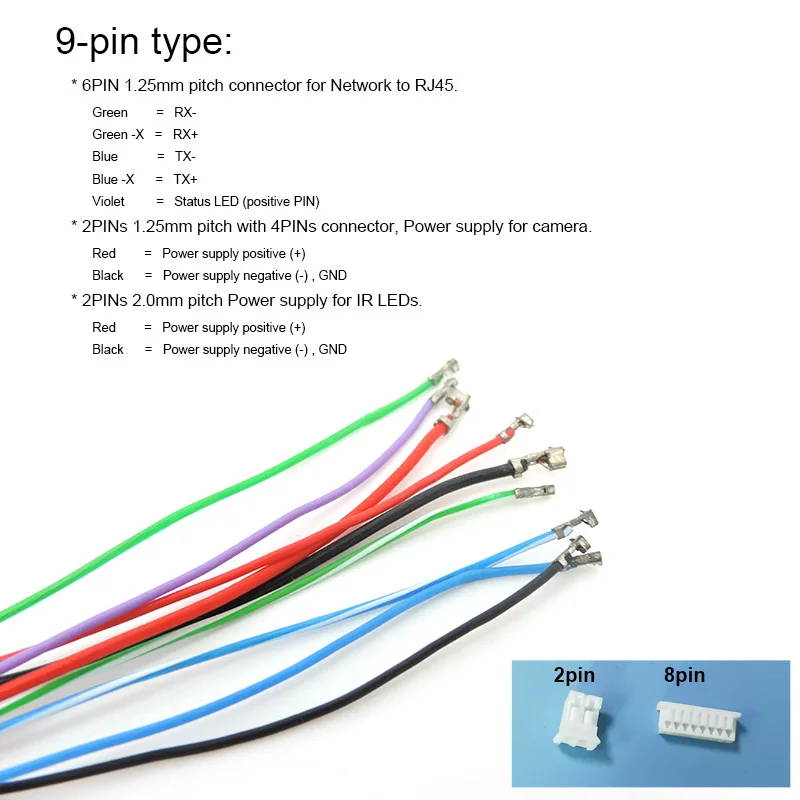

* 6PIN 1.25mm pitch connector for Network to RJ45.
Green = RX-
Green -X = RX+
Blue = TX-
Blue -X = TX+
Violet = Status LED (positive PIN)
* 2PINs 1.25mm pitch with 4PINs connector, Power supply for camera.
Red = Power supply positive (+)
Black = Power supply negative (-) , GND
* 2PINs 2.0mm pitch Power supply for IR LEDs.
Red = Power supply positive (+)
Black = Power supply negative (-) , GND
* Special Note : DC jack is for input voltage DC 12V only, if input voltage higher than DC12V, may damage status LED, OR damage the camera.

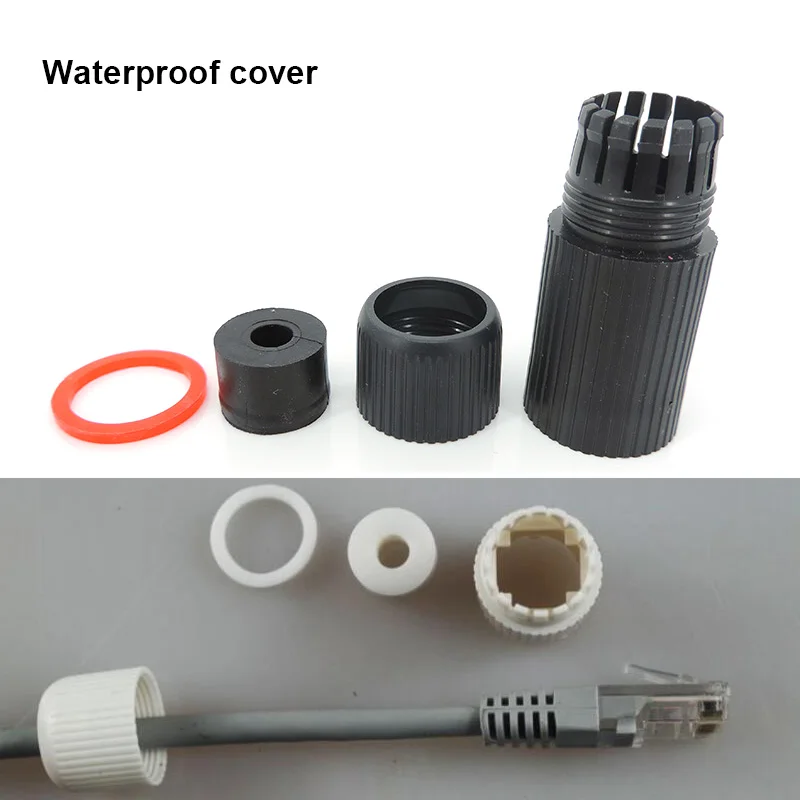

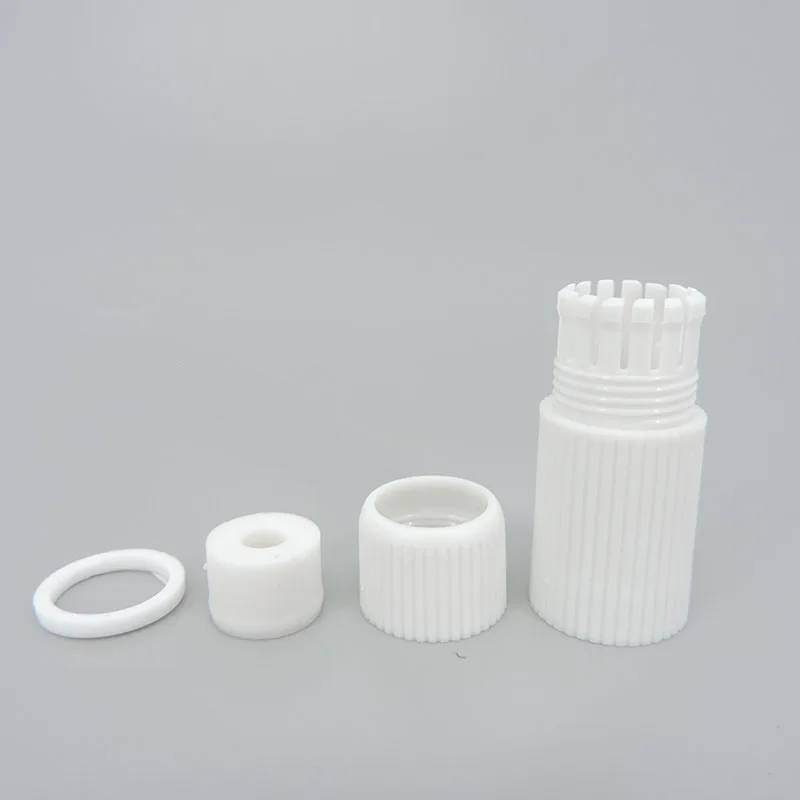

* Important Note : DC jack not has water-proof connector, should be well isolated for water-proof while installation.
Packing List / Item Included
1pcs LAN cable or 2pcs or 4pcs for choose
