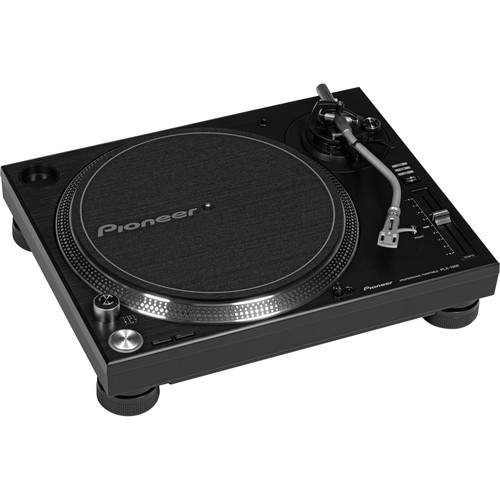

The Pioneer PLX-1000 - Professional Turntable
is designed for personal listening and live performance applications
such as DJing at a party or in a club. The table utilizes a high-torque
direct drive motor and a classic layout that DJs are familiar with,
including tempo control, a start/stop button, and a lighted speed guide.
The high-torque motor is capable of at least 4.5 kg/cm of torque and
can reach a rotational speed of 33 1/3 rpm in 0.3 seconds.
The turntable is built with a heavy-mass zinc die-cast chassis with a
reinforced bottom made of 8mm thick resin. The unit's base is reinforced
with a 9mm thick vibration dampening material for stable playback. The

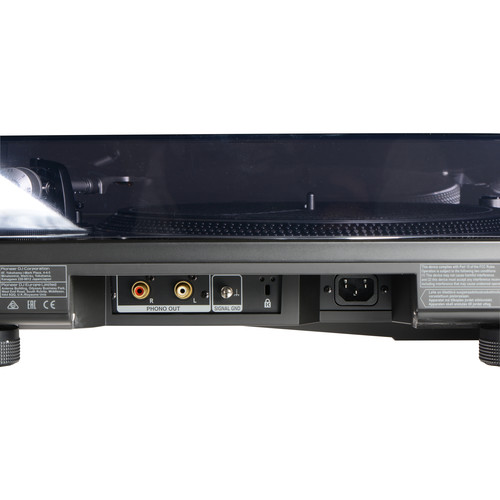

tonearm uses rubber insulation to minimize howling effects, and the RCA
jacks are gold-plated for lower impedance signals and improved sound
quality. For convenience and durability the turntable features
detachable power and RCA audio cables to prevent turntable failure as a
result of cable failure. An integrated Kensington lock allows you to
secure the turntable to the DJ booth.
The turntable allows for tempo adjustments of ±8%, ±16%, and ±50%, with a
reset button for instant ±0% fixed rotation speed. It comes with a

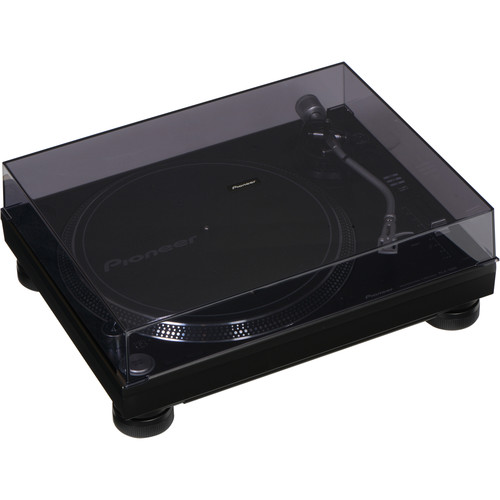

turntable sheet, a slip mat, a dust cover, a head shell, a balance
weight, a sub weight, a shell weight, an adapter for EP records, a power
cord, a stereo RCA audio cable, and a ground wire.
| Drive Method | Quartz lock serve type direct drive |
| Wow and Flutter | 0.1% or less WRMS (JIS WTD) |
| Motor | 3-phase brushless DC motor |
| S/N Ratio | 70 dB (DIN-B) |
| Brake | Electronic brake |
| Turntable | Aluminum Die-Casting Diameter: 13.07" |
| Maximum Rotation Speed | 33-1/3 and 45 rpm |
| Torque | 4.5 kg per cm or more |
| Adjustment Range | ±8%, ±16%, ±50% |
| Start Time | 0.3 seconds (at 33 1/3 rpm) |
| Arm Type | Universal type S-shape tonearm, gimbal-supported type bearing structure, static type balance |
| Effective Arm Length | 9.05" (23.0 cm) |
| Height Adjustment | 0.23" (5.8 cm) |
| Overhang | 0.59" (1.50 cm) |
| Stylus | 0 to 0.14 oz (1 scale 0, 0.03 oz) |
| Cartridge Weight | Single Cartridge: 0.12 oz to 0.45 oz (13.1 to 12.8 g) When Shell Weight is Used: 0.12 to 0.22 oz (3.40 to 6.24 g) When Only Balanced Weight is Used: 0.21 to 0.35 oz (5.95 to 9.92 g) When Sub Weight is Used: 0.33 to 0.45 oz (9.36 to 12.8 g) |
| Power Requirements | 110 to 120 VAC or 220 to 240 VAC, 50/60 Hz |
| Power Consumption | 9 W |
| Audio Connector | 2x RCA (left and right stereo pair) |
| Dimensions (W x H x D) | 17.83 x 6.25 x 13.89" (45.29 x 15.88 x 35.28 cm) |
| Weight | 28.88 lb (13.10 kg) |
![]() |
