Delta oil pump type A1 R2

2141FU

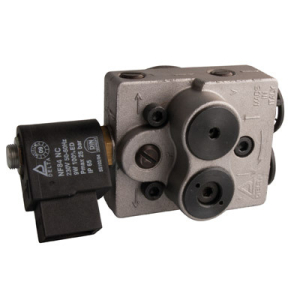

Delta oil pump with solenoid valve type A1 R2



Scope of delivery/equipment:


• Delta oil pump with solenoid valve
• Type: Type A1 R2
• Nozzle performance: 30 litres at 10 bar
• Universal oil burner pumps made of aluminium
• Particularly suitable as a compact service pump in confined spaces
• Direction of rotation: Variable (right or left)
• Serial number: Type A1 R2



Technical information:


• Viscosity range: 1.2 – 12 mm²/s
• Oil temperature: max. 60°C
• Pressure range: 6 – 20 bar
• Suction side vacuum: max. 0.5bars
• Suction side pressure: max. 2 bar
• Operating system: single-line or dual-line
• Pressure/vacuum measuring connections: DN6 (1/8“)
• Nozzle connection: DN6 (1/8”) on both sides
• Flow and return connections: DN8 (¼”)
• Dimensions (EN 225): Hub ø 32, shaft ø 8
• Coil 230 V, 50/60 Hz
• Speed: max. 3,500 rpm

Interchangeable with the following existing pumps:

• VM1-LL1 - A1-L1
• VM1-LR1 - A1-L1
• VM1-LL2 - A1-L2
• VM1-LR2 - A1-L2
• VM1-RL1 - A1-R1
• VM1-RR1 - A1-R1
• VM1-RL2 - A1-R2
• VM1-RR2 - A1-R2
• VM2-LL1 - A2-L1
• VM2-LR1 - A2-L1
• VM2-LL2 - A2-L2
• VM2-LR2 - A2-L2
• VM2-RL1 - A2-R1
• VM2-RR1 - A2-R1
• VM2-RL2 - A2-R2
• VM2-RR2 - A2-R2
