Product Description

Pair UPVC Side Hung Window Hinges Heavy Duty Fire Egress Friction Stays 8" 13" Yale Trojan Mega 13.5 & 16.5mm Stack Heights

Yale Trojan Mega Egress Hinges – Superior Strength and Versatility for All Side Hung Windows. Upgrade your window systems with the unparalleled strength and versatility of Yale Trojan Mega Egress Hinges. Crafted to accommodate a wide range of sizes in just one hinge, these robust components are the ultimate solution for your side-hung window applications. With a maximum weight load capacity of 33kg for the 8-inch hinge and 40kg for the 13-inch hinge, they ensure exceptional durability and performance. The true 90º egress opening guarantees compliance with fire egress standards, making it a reliable choice for safety and convenience. Suitable for all sash widths up to 900mm, these hinges are engineered to meet the highest standards of quality and security. The Mega Egress Hinges are available in 13.5mm or 16.5mm stack heights and come in pairs with 18mm track width, ensuring they fit seamlessly into your existing window setups.

The Easy Clean feature, exclusive to the 13-inch hinge (not on the 8" version), allows the sash to slide away from the corner and auto-lock back into egress mode, providing both safety and ease of maintenance. These hinges are tested to BS EN 1670 Grade 5 for ultimate corrosion resistance and have undergone over 30,000 cycles under a 40kg operational load, affirming their reliability and longevity. The Yale Trojan Mega Egress Hinges are a superior choice for any DIY enthusiast or professional installer looking to enhance window functionality and security.

Features:

• Maximum Weight Load: 33kg (8 inch) or 40kg (13 inch)
• Hinge Types: 8 inch EGRESS ONLY; 13 inch EGRESS & EASY CLEAN

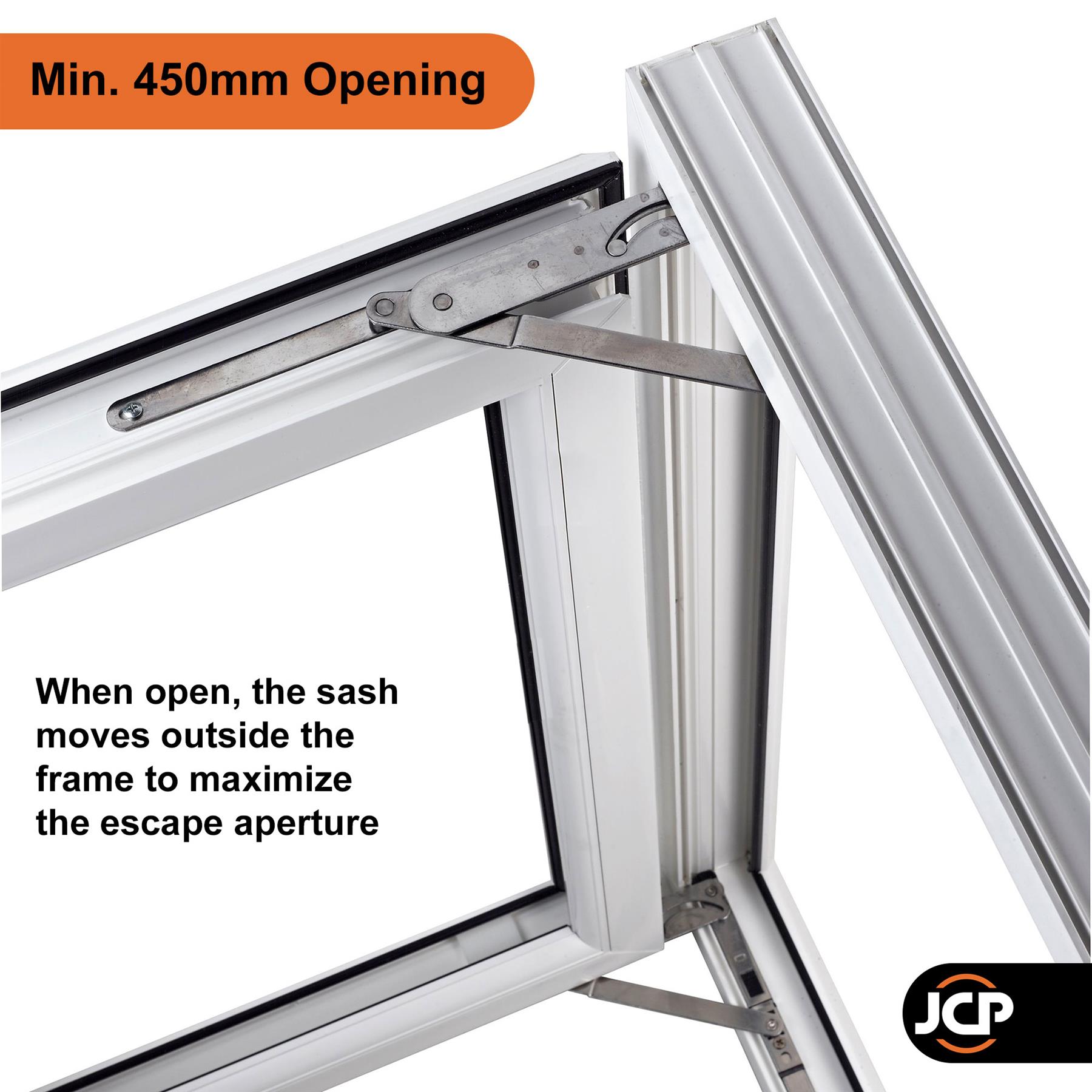

• True 90º Egress Opening: Meets minimum escape requirements with a 450mm opening
• Corrosion Resistance: Tested to BS EN 1670 Grade 5 classification
• Excellent weather sealing & great draught proofing performance

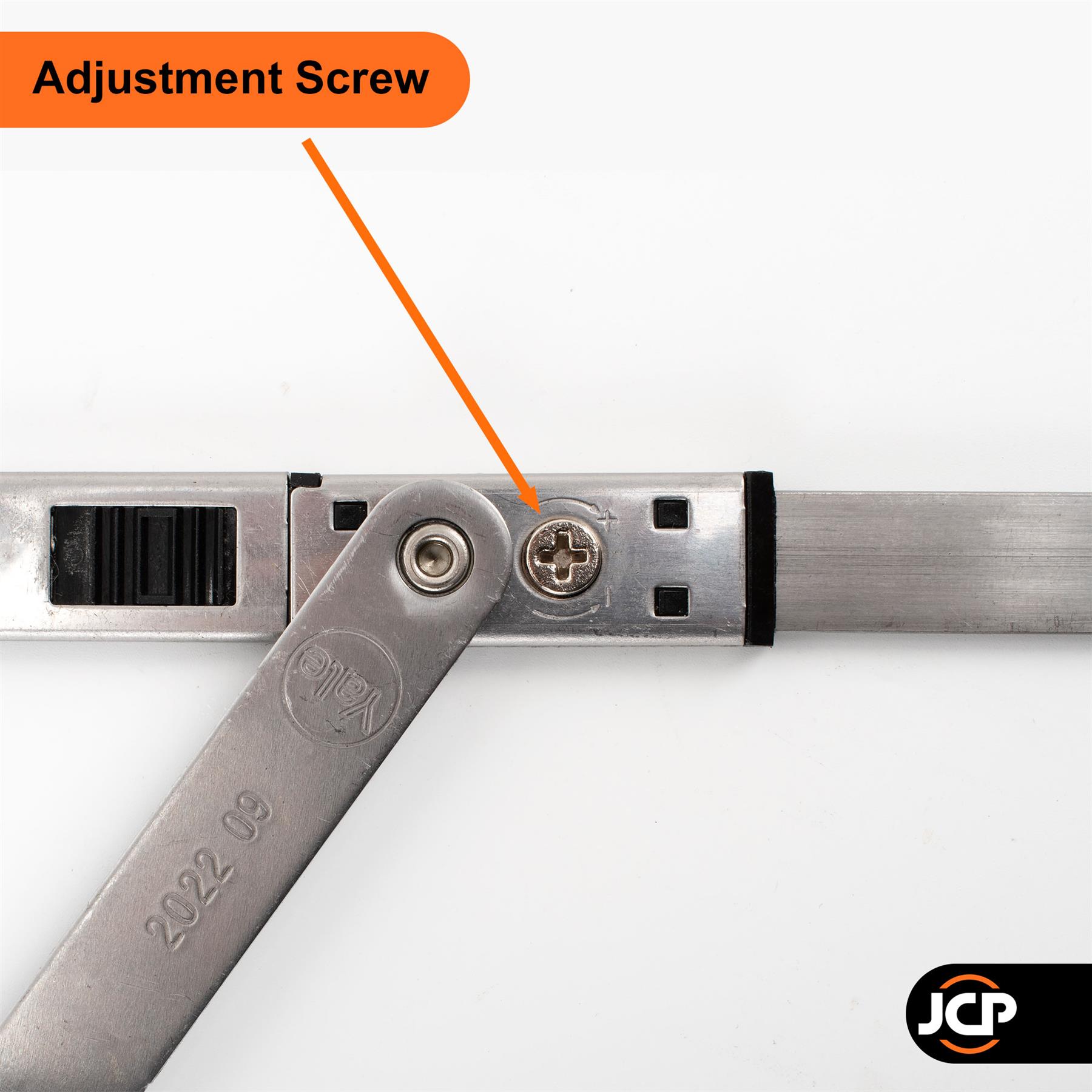

• Adjustable friction screw

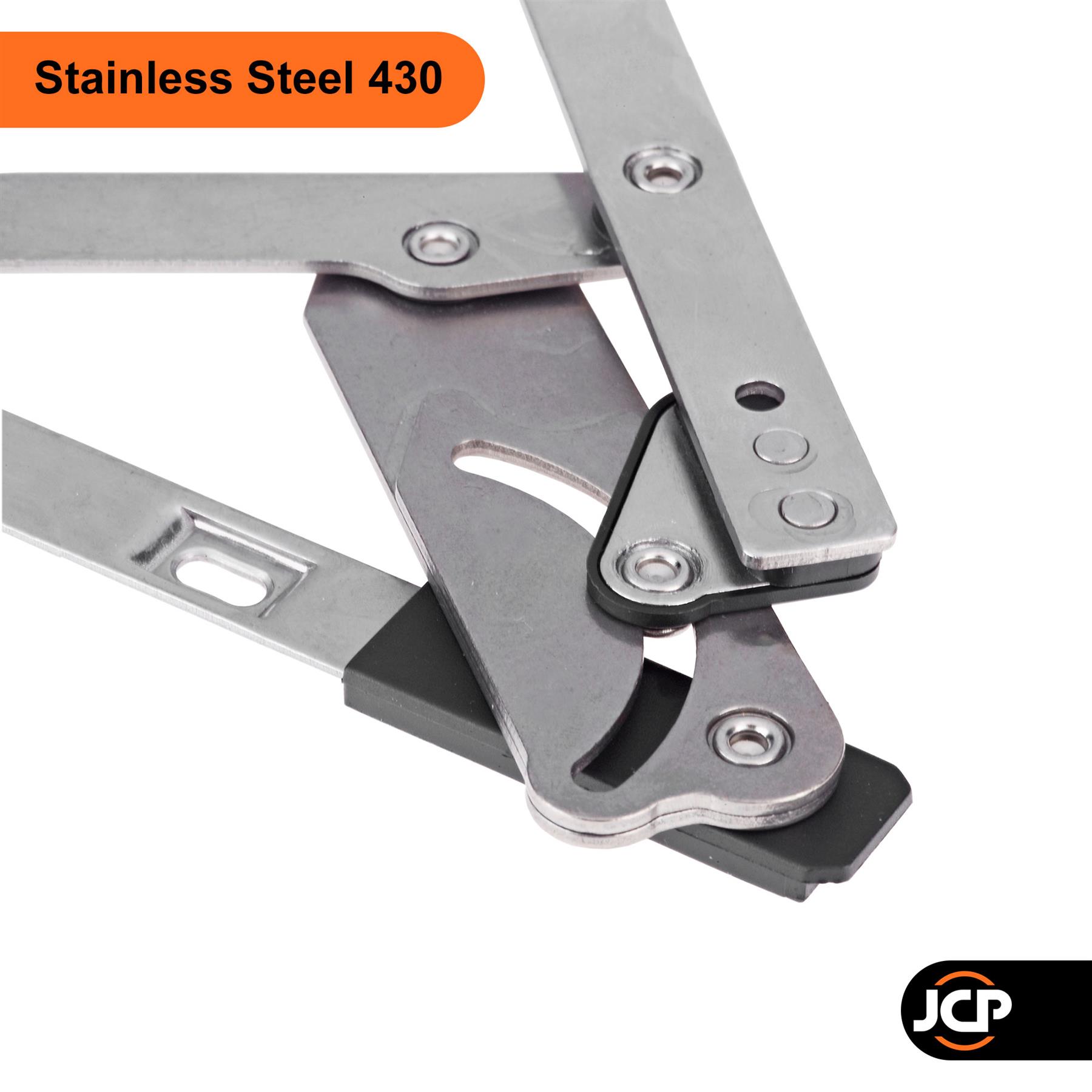

• Material: Stainless Steel: Grade 430
• For side-hung 8" and 13" window applications
• Cycle-tested to an impressive 30,000 cycles with a 40kg load
• Security: Designed to meet PAS 24 security standards when used with Yale ASD
• N.B. Fixings Not Included

What's in the pack?

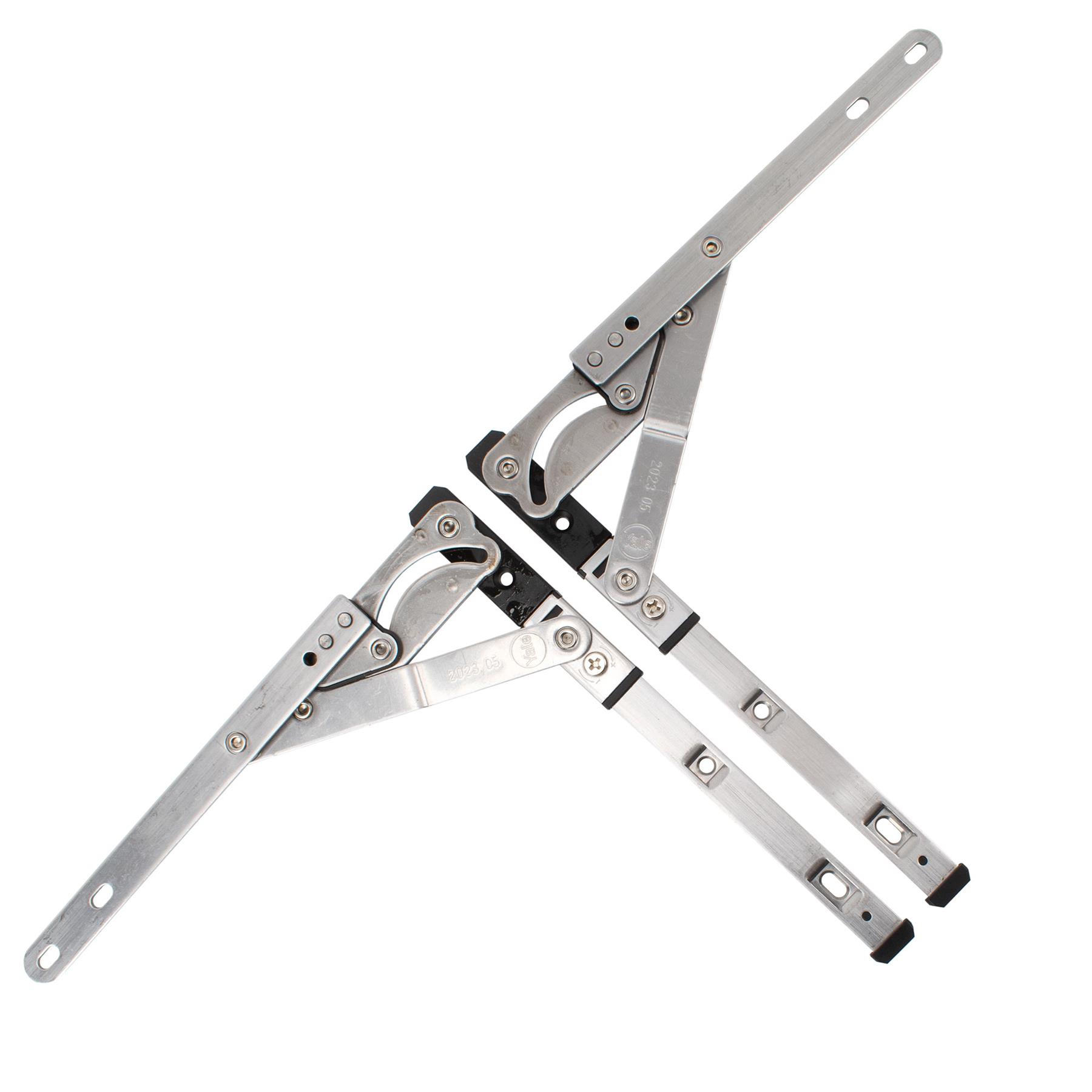

1 x Pair Yale Trojan Mega uPVC Window Hinge Egress Friction Stays

Dimensions:

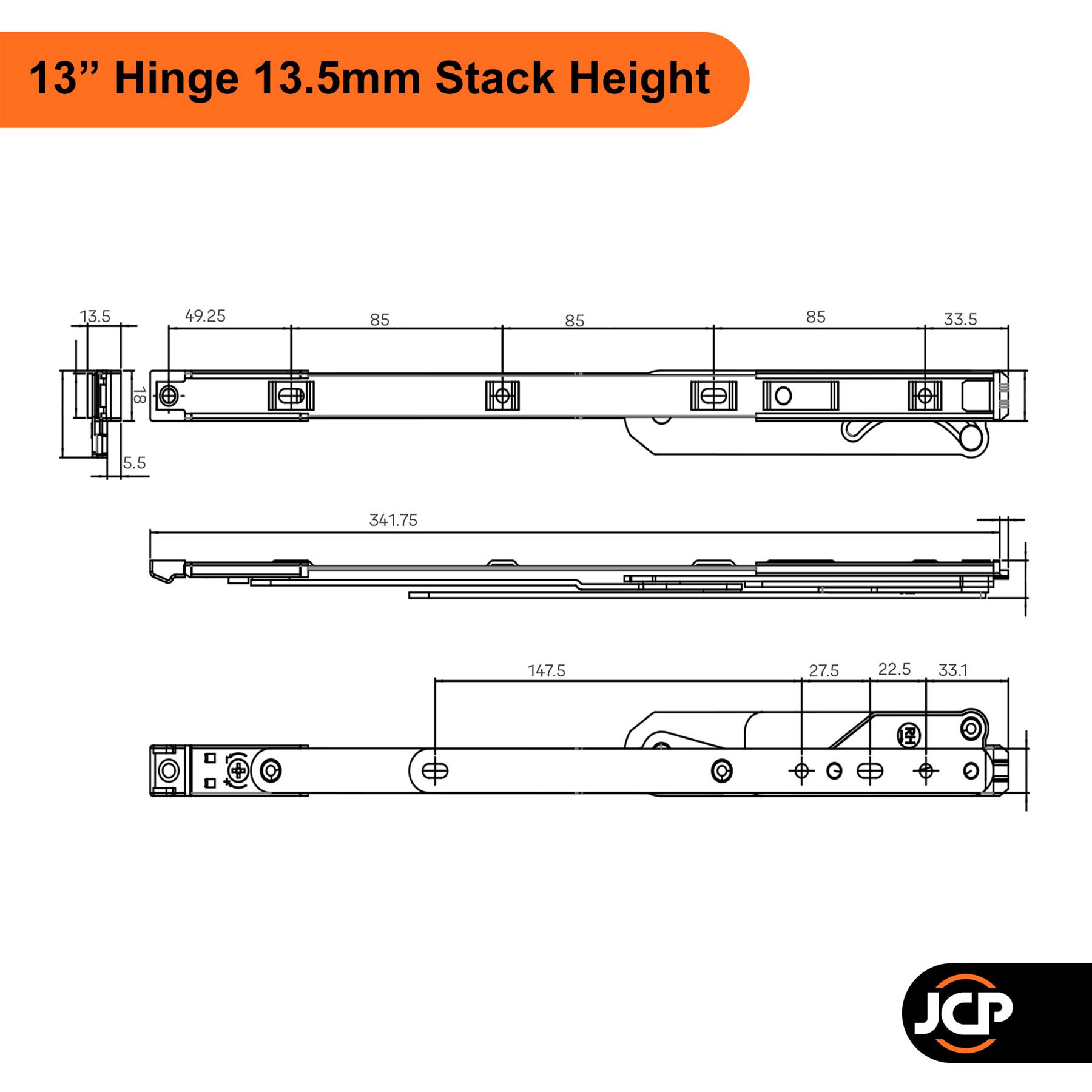

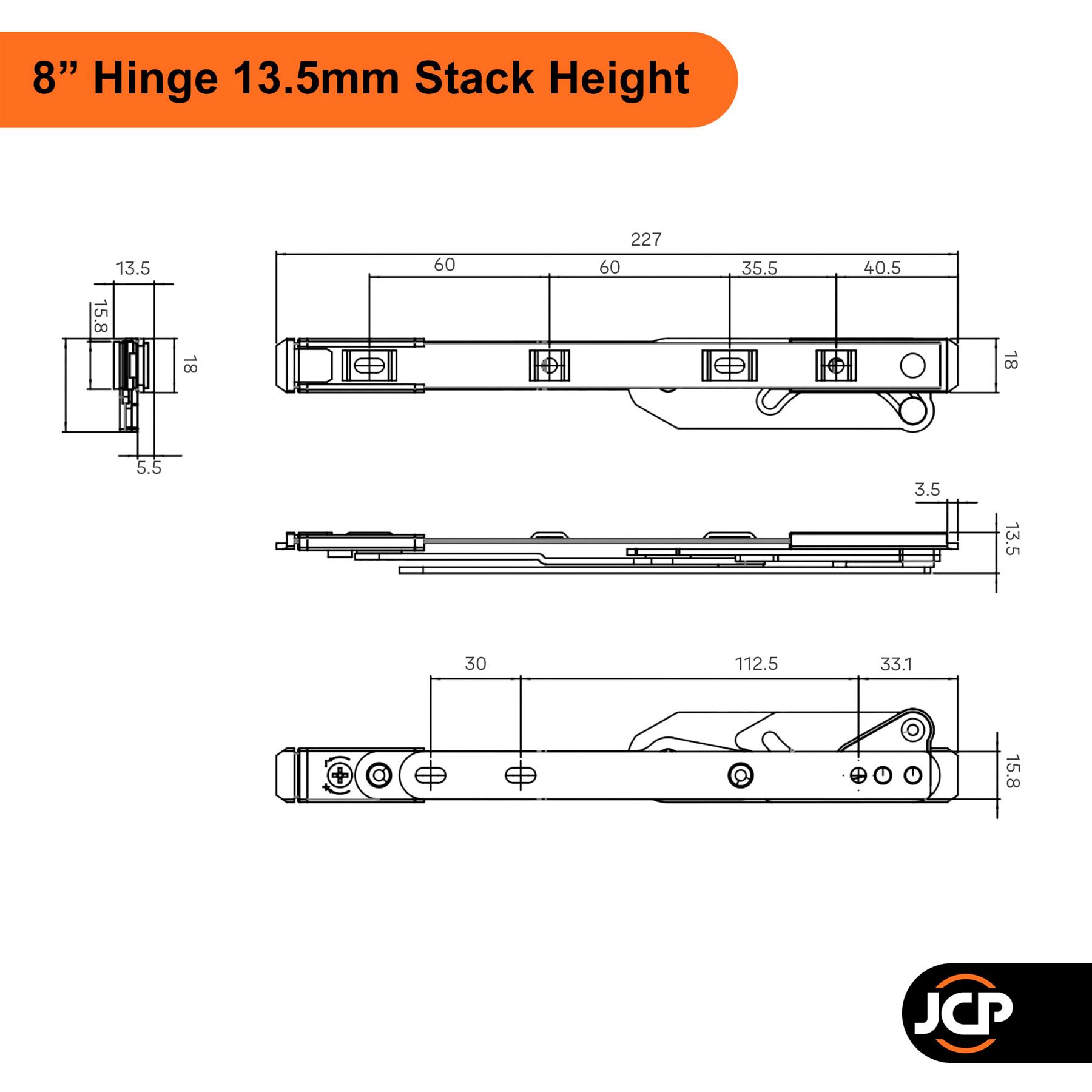

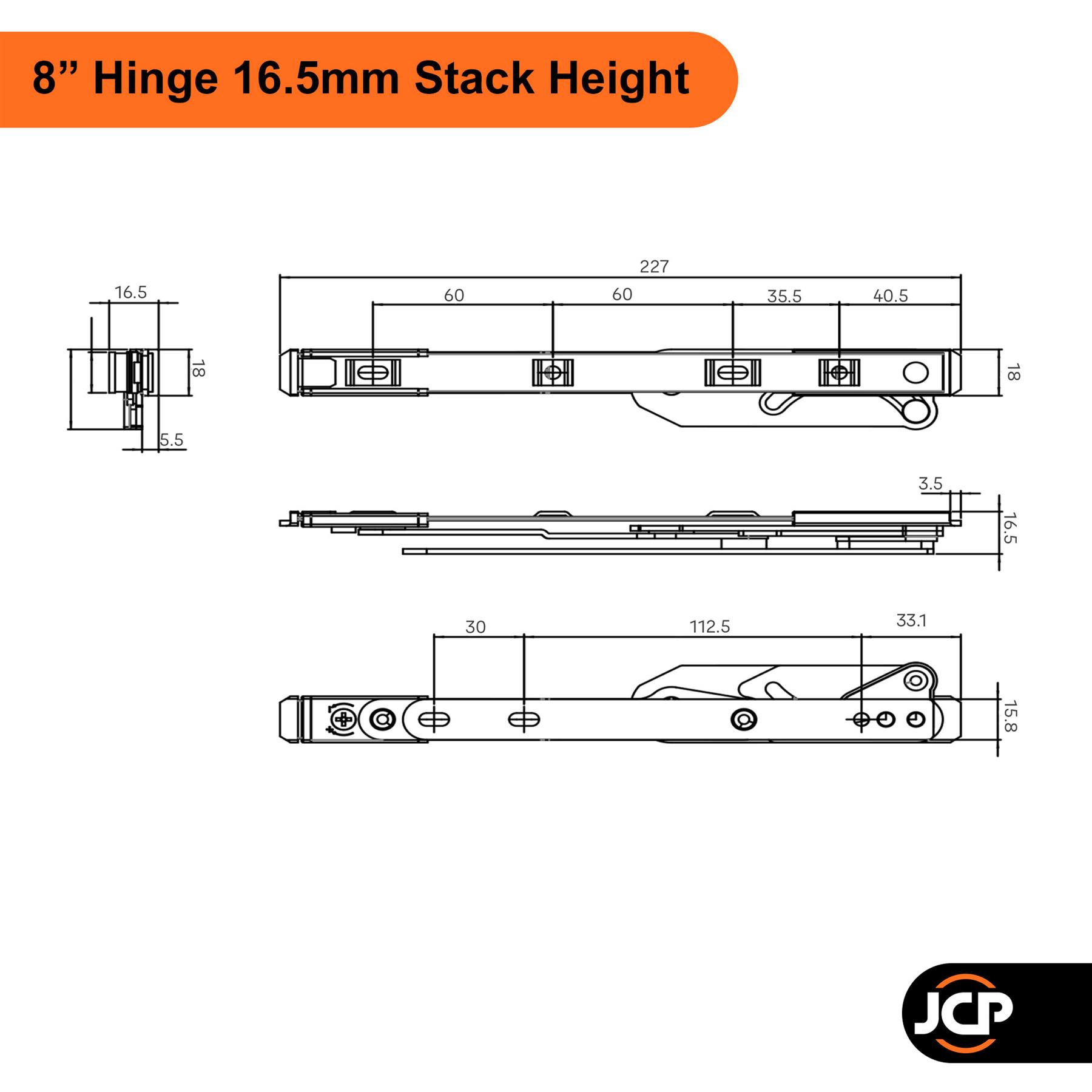

• Stack heights: 13.5 mm and 16.5mm
• Hinge width: 18mm
• Hinge length side hung: 8” and 13”

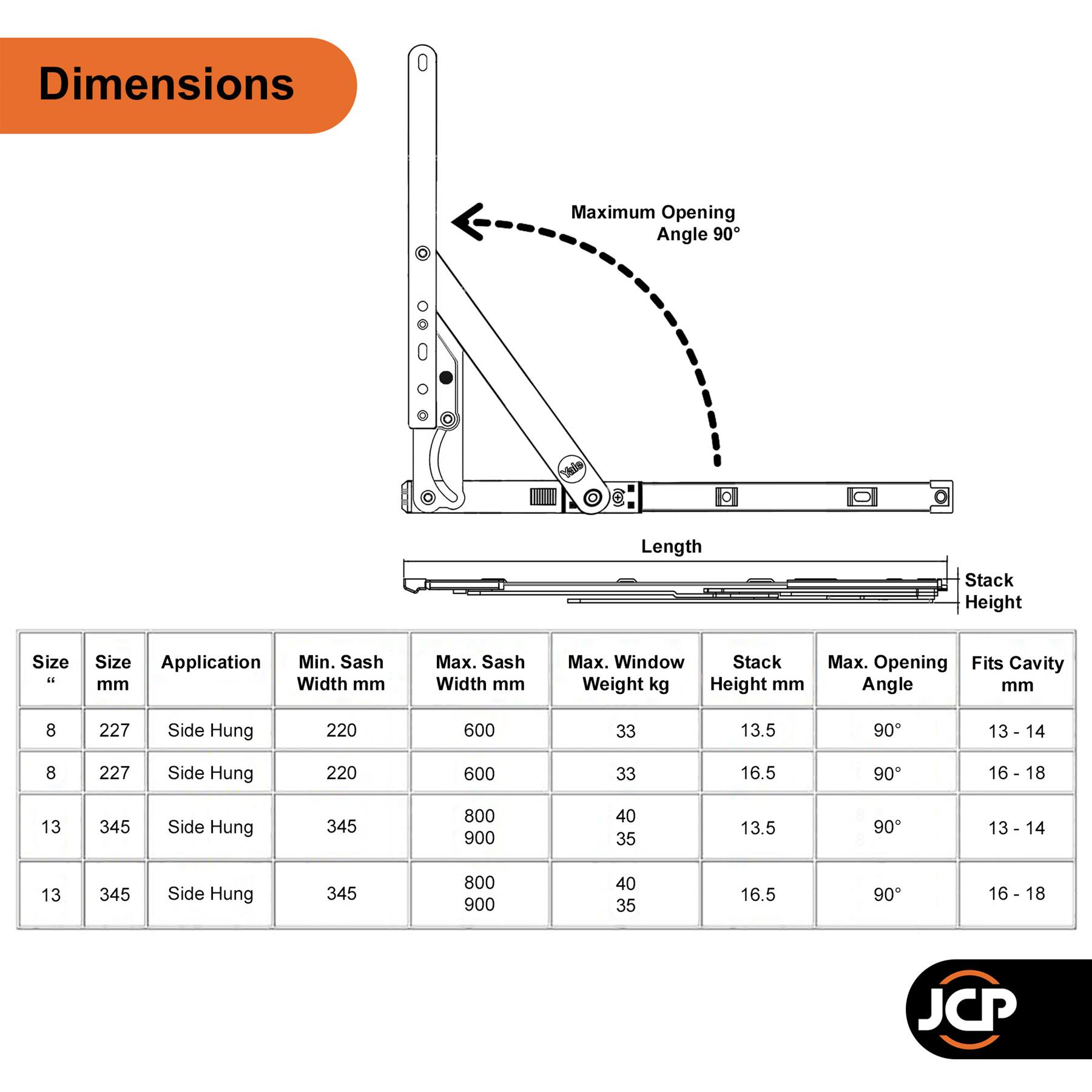

How should I measure my hinges?

The diagram in the image gallery will help you with this:

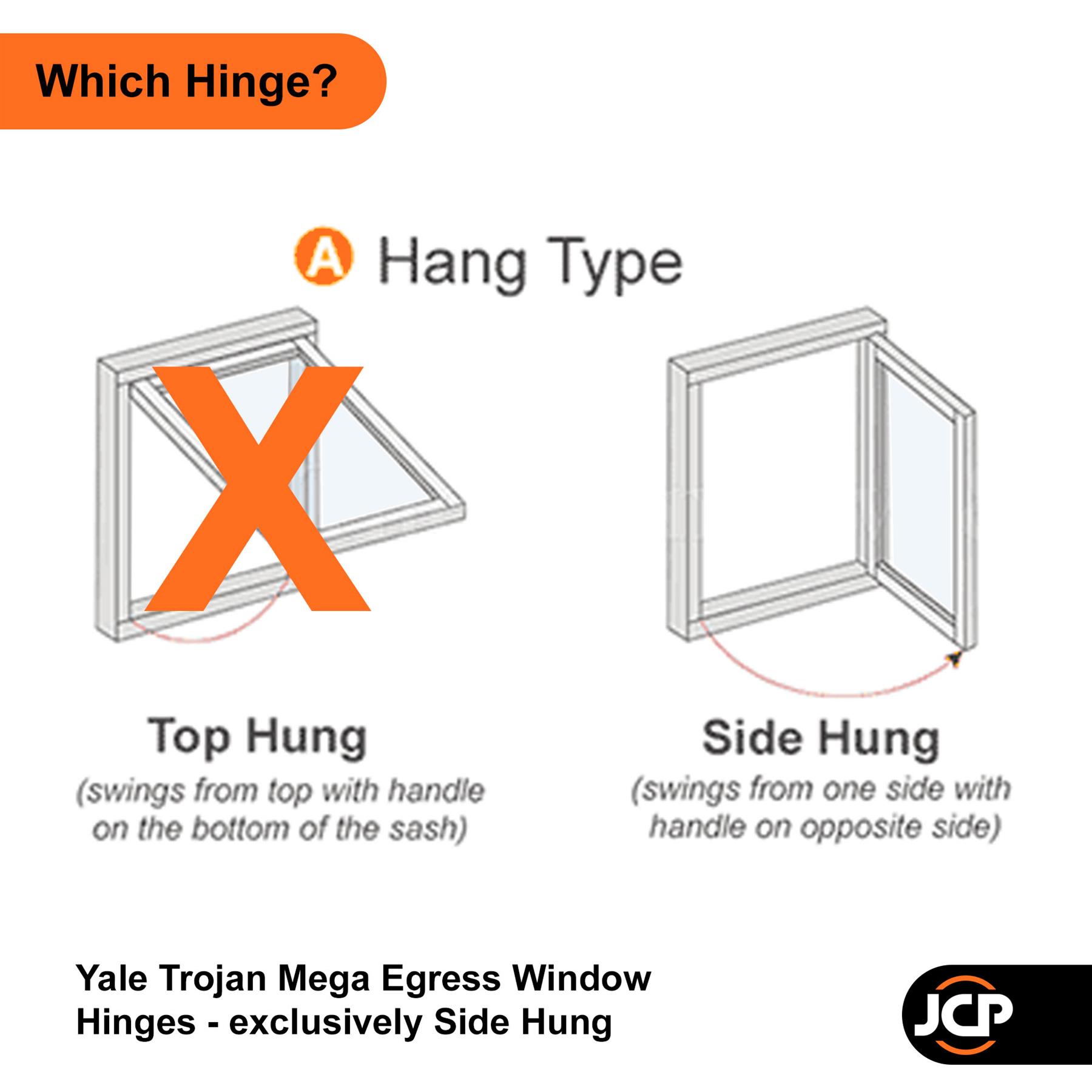

A: First you need to establish the hanging type, do you require a top or side hung hinge? These hinges are side hung only.

B: Then you need to take your first measurement - this is the actual length of the hinge. You will need to measure the part that fixes to the window frame (not sash), please see the diagram showing where the hinge length measurements are taken from.

C: The second measurement is that of the hinge width i.e. the width of the metal part that fixes to the outer frame

D: The final measurement that you need is the stack height; this hinge is available in 13.5mm and 16.5mm stack heights, so even if you are unsure you can usually calculate which is correct because of the 3mm difference. .

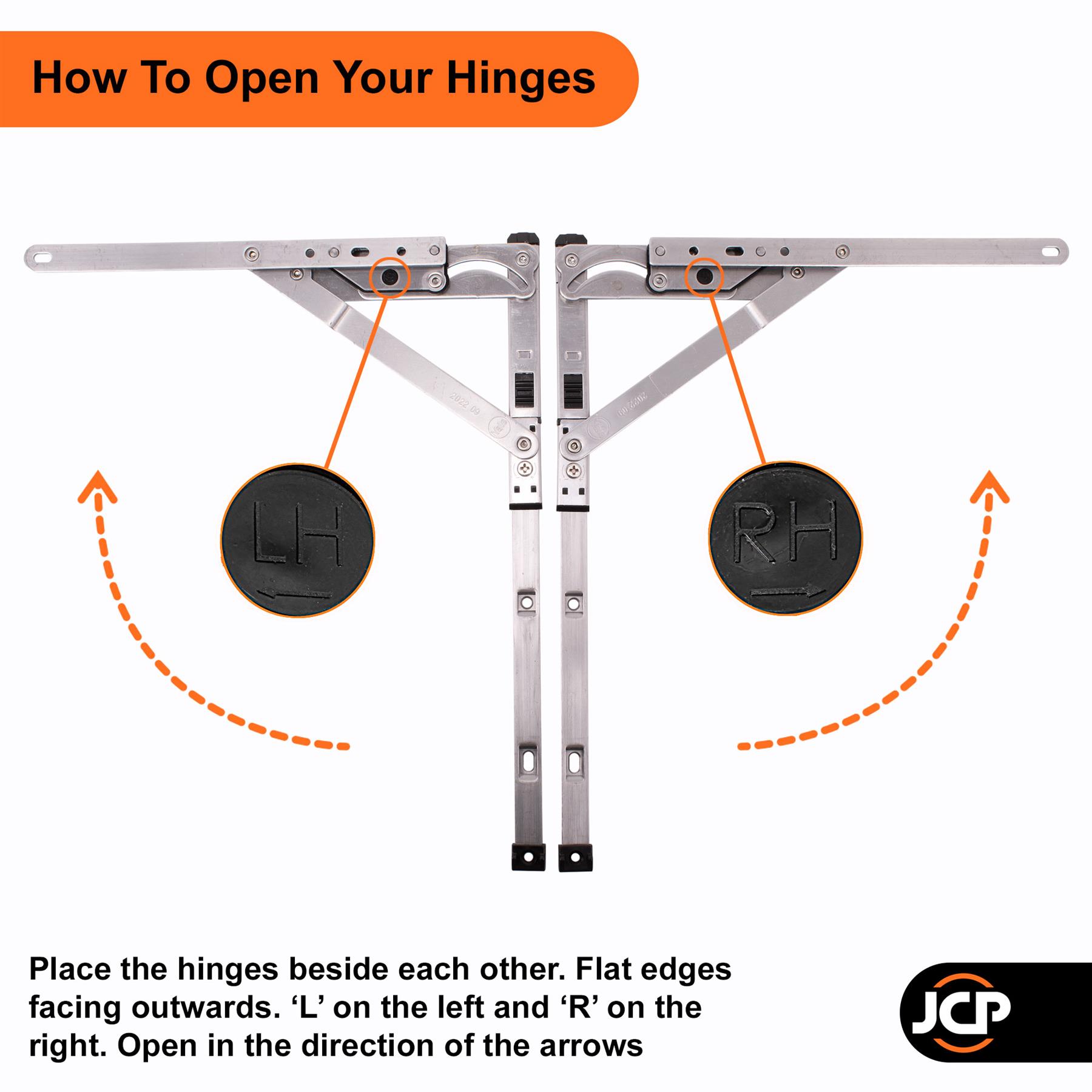

My new hinges are opening the wrong way?

Certainly, we understand that mistakes can occur. If you've opened your door hinges the wrong way, don't worry; you're not alone. The 13" hinge is marked with either an 'LH' or an 'RH' in the little black button at the top of the hinge, along with an arrow indicating the correct opening direction. The 8" hinges do not have these markings. To correct the error, simply perform the following steps:

1. Carefully close the hinges back to their original shape, making sure they are correctly aligned.
2. Lie the hinges next to each other with the Yale logo facing upwards, the flat edges on the outside and the 'mechanisms' towards the inside.
3. The hinges are now on the correct sides. Open the left hand hinge by pulling the top arm to the left and the right hand to the right.

By following these steps, you'll be able to fix the issue without any hassle.

.
