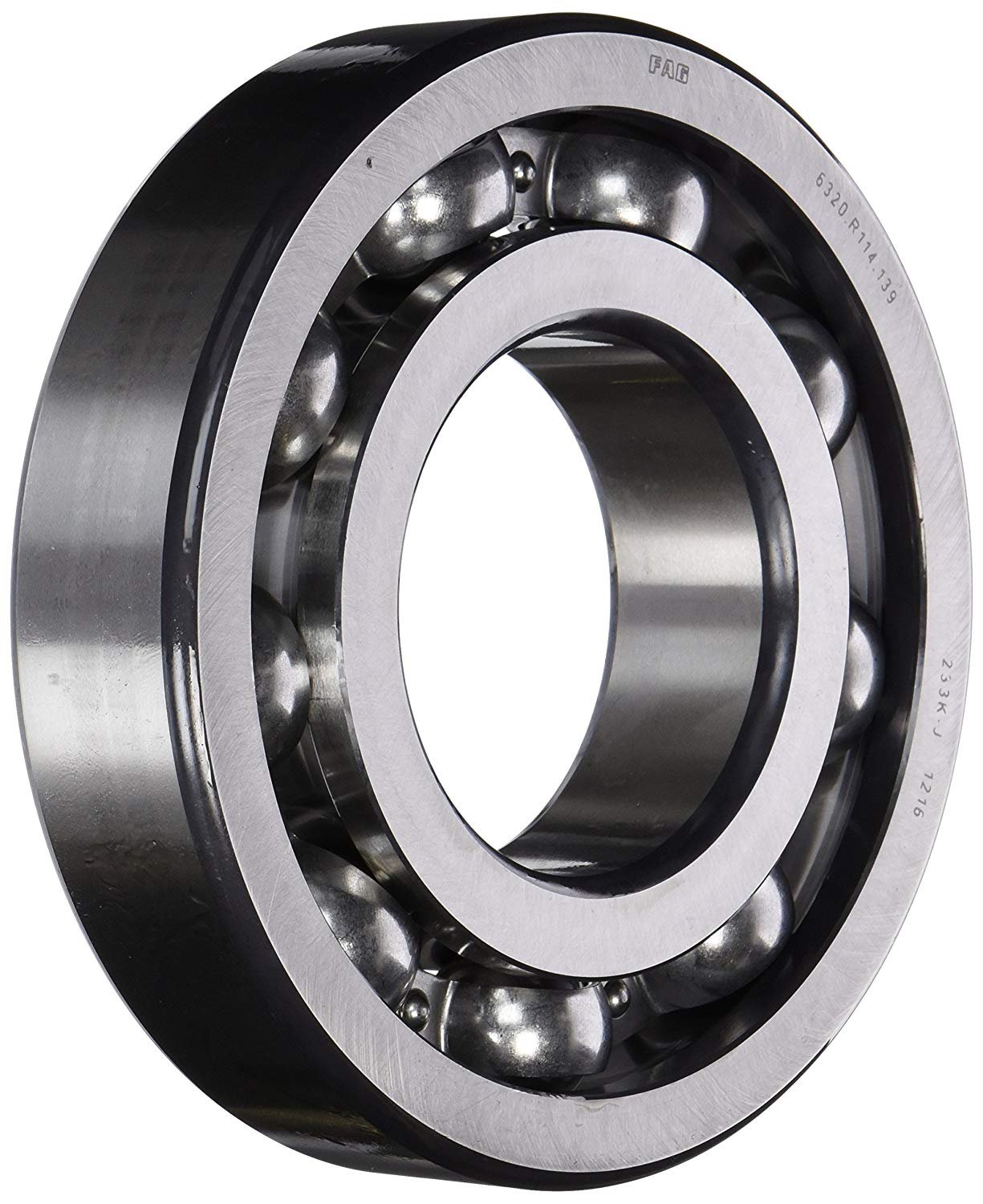

FAG 6320-R114-139 Radial Ball Bearing

Brand New!!! Made in USA!!! Genuine!!! Free Expedited Shipping!!!

This sale transaction is for ONE SINGLE FAG brand radial bearing. Included in this listing will be all that is shown in the photo/s. Nothing more.

*The bearing is brand new!

*Not refurbished or re-manufactured!

*Made in the USA.  Genuine FAG bearings!

Please note the lightly brownish substance you see on the surface of the bearing is grease/lubricant, prepared by the manufacturer.

Please thoroughly pursue independently research to confirm compatibility and applications prior purchasing. Product description and specifications are taken directly from the manufacturer. Please refer to photos for specs.

Product Description:

This FAG Light 6200 Series single row deep  groove ball bearing with a sheet steel cage supports radial loads and  axial loads in both directions. It is also suitable for high speed  applications. This bearing has a C3 radial internal clearance  designation to indicate that the radial slack between the inner and  outer rings is greater than the standard CN (normal) clearance. It  allows for thermal expansion as the bearing supports radial loads and  its balls, operating in the deep raceway geometry, reduce rotational  friction. This bearing is rated "Light," making it applicable for  average radial loads and light axial loads where space is tight and  shaft diameters are relatively large. It can be used to a maximum  operating temperature of 120 degrees C/248 degrees F. The inner and  outer rings and balls are made of a low-alloy, through-hardened chromium  steel for durability, heat tolerance, and resistance to deformity under  heavy loads, and the sheet steel cage prevents the balls from coming  into contact with each other during use, reducing friction, vibration,  and noise. The open design allows for lubricating the bearing in place.

Rolling bearings use rolling elements to maintain the separation between  moving parts to reduce rotational friction and support radial and axial  loads. These elements can be one of the following types: ball,  cylindrical, spherical, barrel, needle, spindle, or tapered. All rolling  bearings are open, shielded, or sealed. Sealed bearings are lubricated  with oil or grease in the bearing factory, while open and shielded  bearings are meant to be lubricated in place, with periodic  reapplication of lubrication, based on use. The shield protects the  working parts of the bearing from environmental debris that may be  introduced and could reduce the ball bearing speed and lifespan. Rolling  bearings are used in a range of applications from agricultural  machinery to conveying equipment, robotics, dental equipment, elevators,  rolling mills, ship rudder shafts, and aggregate crushers, among  others.

Product Specifications:



• Mfr Part#:                          6320-R114-139
• Bore Diameter:                  100 millimeters
• Outside Diameter:             215 millimeters
• Bearing Width:                  47 millimeters
• Static Load Capacity:        30500                                                                               pounds
• Dynamic Load Capacity:  36500                                                                               pounds
• EAN:                                 4012801281300

Main bearing dimensions	DIN 715
Basic dynamic load ratings	DIN ISO 281
Dimensional and geometric tolerances	DIN 620-3 (ISO 199), tolerance class PN
Through-hardening steel for inner and outer rings and rollers	ISO 683-17
Steel strip for cage	EN 10139, SAE J403
Load carrying capacity and life	DIN ISO 281 Appendix 1
System for creating part numbers for rolling bearings	DIN 623-1



Product Features:



• Axially symmetric races to support radial loads while maintaining high speeds and rotational accuracy
• Conforms to ABEC 1 precision standard for performance within a narrow range of variation
• Reduced radial internal clearance for radial slack between the  inner and outer rings is less than CN (normal) for more precise  performance, reduced radial play, and accompanying wear
• Steel cage evenly spaces the rollers for even load distribution and prevents contact to reduce friction, vibrations, and noise
• Open bearing for lubrication in place and for use in  applications with little exposure to dirt, grime, debris, and other  contaminants

FAG  manufactures a variety of bearings that meet International Organization  for Standardization (ISO) and Deutsches Institut für Normung (DIN)  standards for quality assurance. Founded in 1883, FAG is based in  Schweinfurt, Germany.
