Main function:
Highly sensitive sensor
Cold hot spot tracking
Fast capture temperature
data storage
Fast image refresh
USB data transmission
Adjustable emissivity
2.8 display screen
Item Specifics:

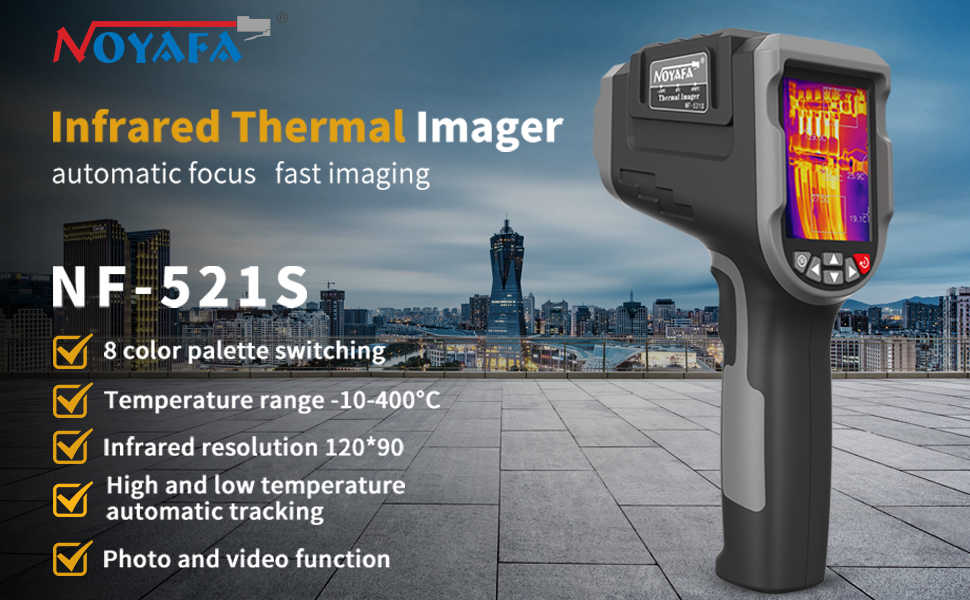

Model: NF-521S
Infrared resolution 120*90
Pixel size: 12um
Working band 8~14um
Frame rate: 25Hz<70mK@25℃
NETD temperature range: low temperature range-10 ~ 120℃ and high temperature range 100 ~ 400℃
Temperature measurement accuracy: +/-3℃ or 3% of reading.
FOV:H=50° ,V=37.5°
Camera: 720P
Angle of view: H = 83 V = 55.
Palette: white hot, black hot, iron red, rainbow and other eight palettes.
Display screen: TFT2.8 inch screen.
Image storage: EMMC-8G has built-in storage and can be copied via USB.
Temperature display: full-screen maximum temperature, minimum temperature and central point temperature.
Temperature function: central point temperature measurement, automatic tracking of the highest temperature and lowest temperature in the picture, and regional temperature measurement.
Temperature measurement mode: central point temperature measurement, highest temperature and lowest temperature.
Image mode: edge fusion, layer fusion, visible light, infrared, picture in picture.
Settings: language, emissivity, degree-day, high temperature alarm, storage formatting, date setting, automatic shutdown, brightness, factory settings, about.
Album: Thumbnails, Image Browsing, Image Deleting
Keys: 6-key layout (up, down, left and right keys, power key/back key, menu key /OK key).
Curtain: 2.8-inch TFT display screen
Trigger: short press to take a picture, freeze an image, and long press to record.
Battery: 18650 2600mAH
External interface: USB interface (charging, data copying)
Software: provide standard analysis software for offline analysis.
Image format JPEG/Mp4
Upgrade: firmware/software upgrade to be determined. Firmware upgrade: offline upgrade (mode of downloading estimated upgrade package by computer)
Software upgrade: In the early stage, Noah's Ark official website provided an upgrade package, and later switched to a server.
Size 60*120*210mm
Protection level: Thermal imaging lens uses germanium window to block visible light to be determined.
Fall-proof rating: designed to be one meter (3.28 inches).
Storage environment: -40~85℃
Working environment -10~50℃
Accessories:
Memory card*1pcs
Charging cable*1pcs
Manual*1pcs
