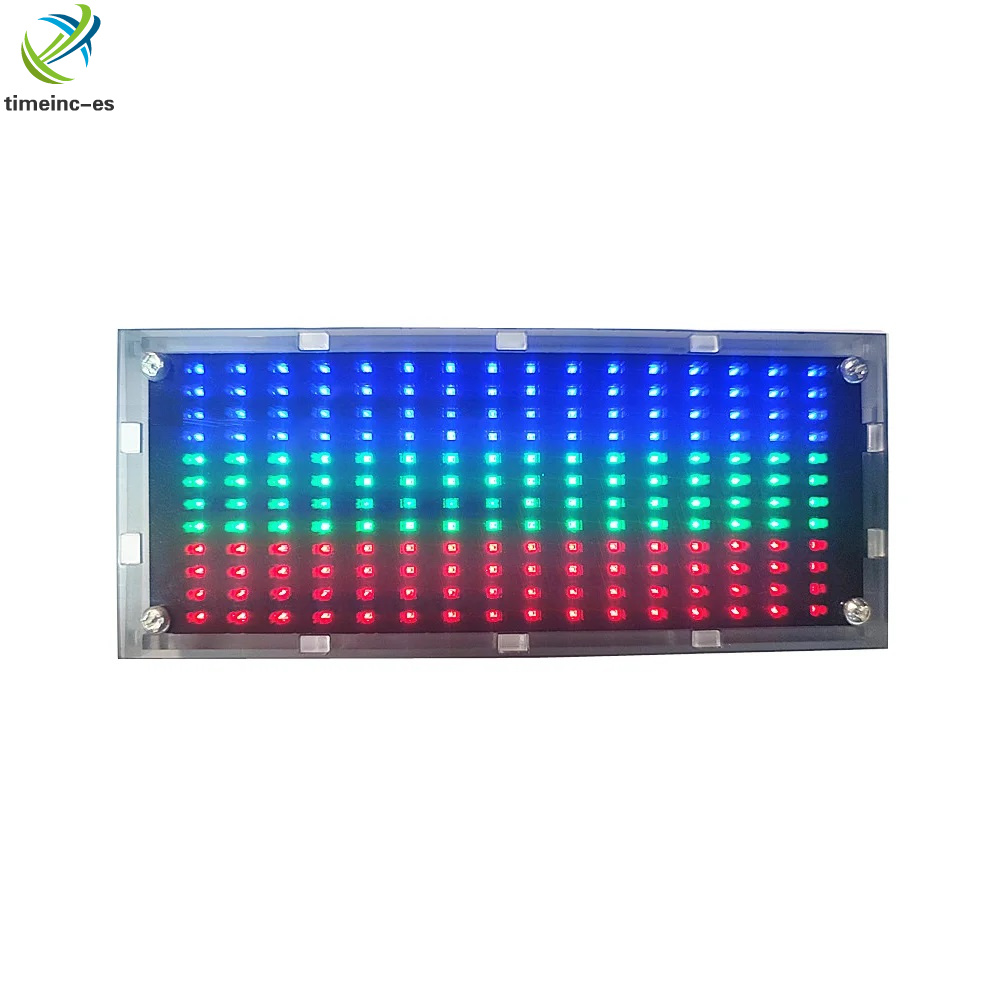

SIZE : 138X58X21.5MM

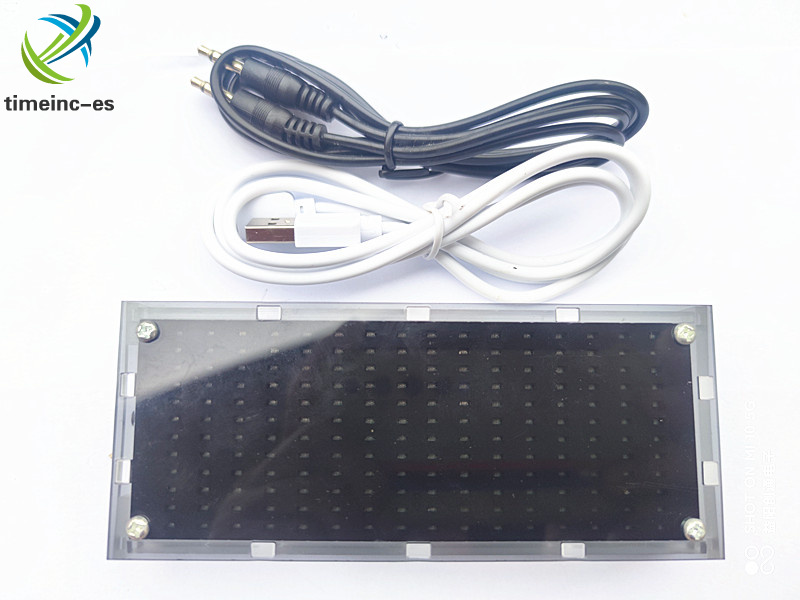

Power supply ： USB power OR Rechargeable Lithium Battery (Integrated charging circuit, charging red light, automatic stop and turning green light when full, support voice control or line input, 4-level brightness adjustable light, automatic sensitivity increase function, no need for manual intervention, no matter the signal size, always beating in a suitable range to avoid because of The signal is too strong and it is used as a light )

Product button function description:

1. The power switch is a button type. Press to power on. Press again to power off;

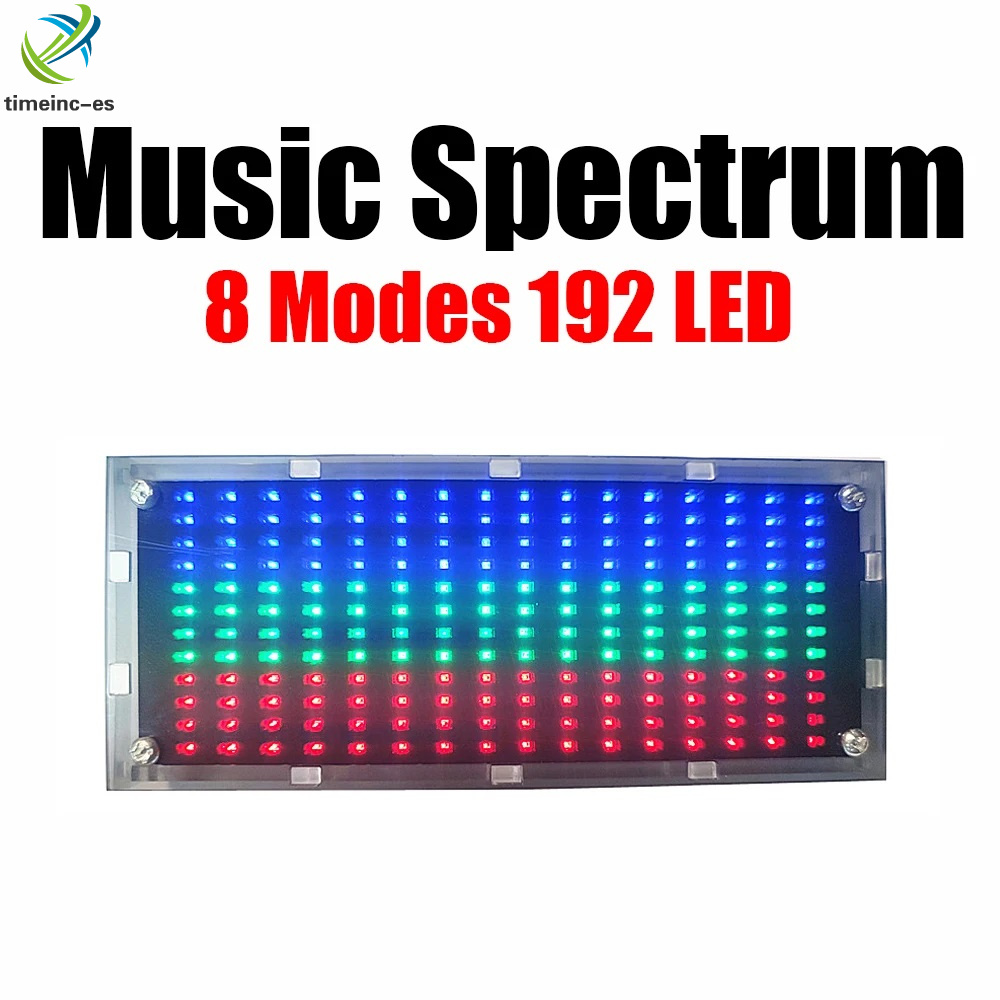

2. Short press the function key to switch the display pattern. There are 8 built-in modes

3. The function key is divided into long press and short press. Long press to enter or exit to save. Short press to select the desired function.

4. Press and hold for 2 seconds to enter the menu. There are 3 menus in total.

L stands for brightness, adjustable in 4 levels, the default is L3;

S stands for sensitivity, A (auto)/U (highest)/H (high)/M (medium)/L (low), the default SA (meaning automatic sensitivity), generally do not need to be adjusted;

C stands for signal, M (voice control)/L (left channel)/R (right channel)/LR (dual channel), default CM (meaning voice control)

5. Press and hold the function key for 2 seconds to enter the menu. At this time, short press to display three menus in a cycle. Press and hold again to select, then short press to select the desired function. Press and hold again to exit and save;
