• Offers many new creative details
• 32-bit AD/DA and 32-bit floating-point processing
• Customizable FX and Track buttons for each phrase track
• Mark Back function provides enhanced undo/redo flexibility
• Two XLR mic inputs with phantom power
• Two stereo line input pairs
• 200 onboard rhythm patterns and 16 drum kits
• 49 Input FX types and 53 Track FX types
• Five simultaneous stereo phrase tracks
• Built for free-flowing expression on stage and in the studio

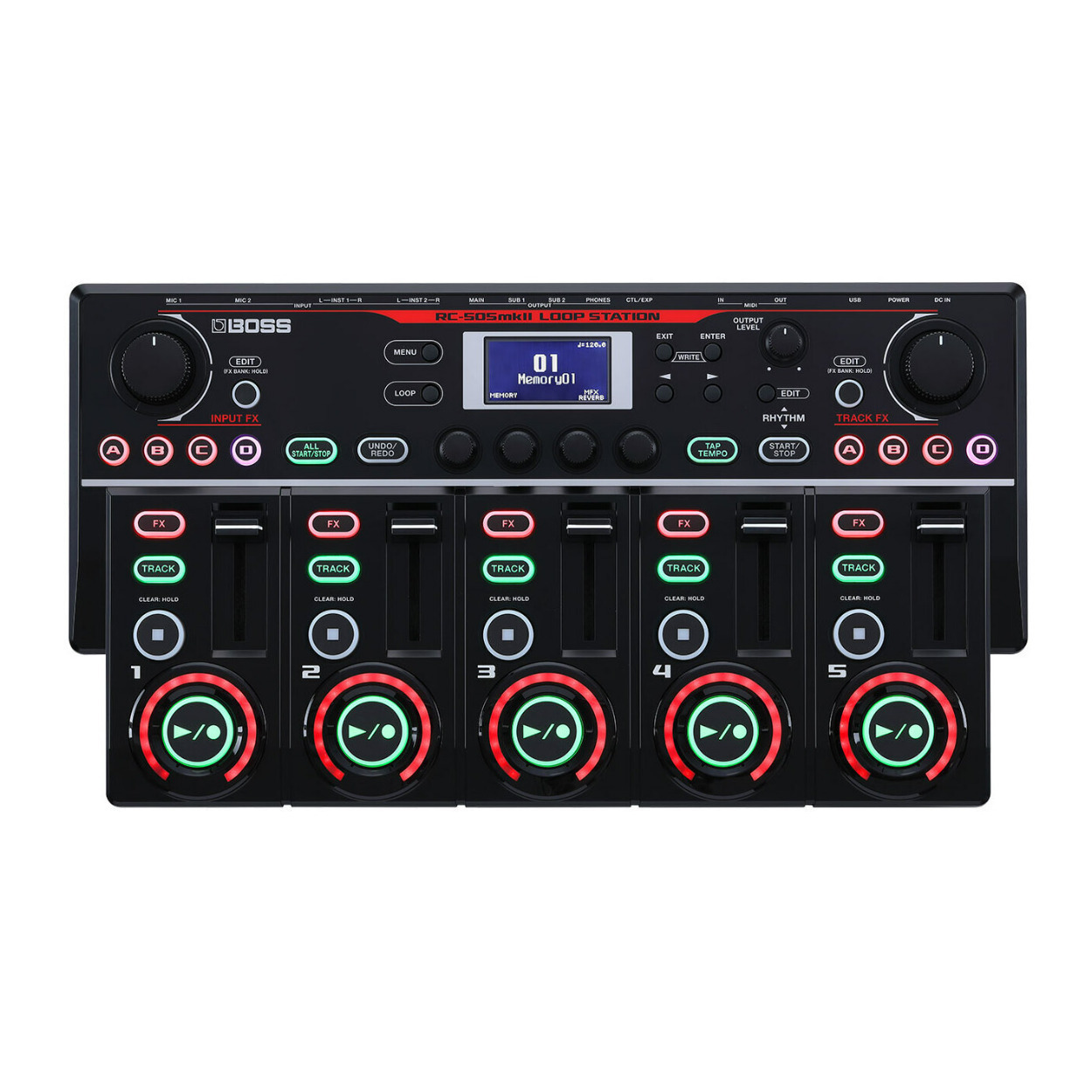

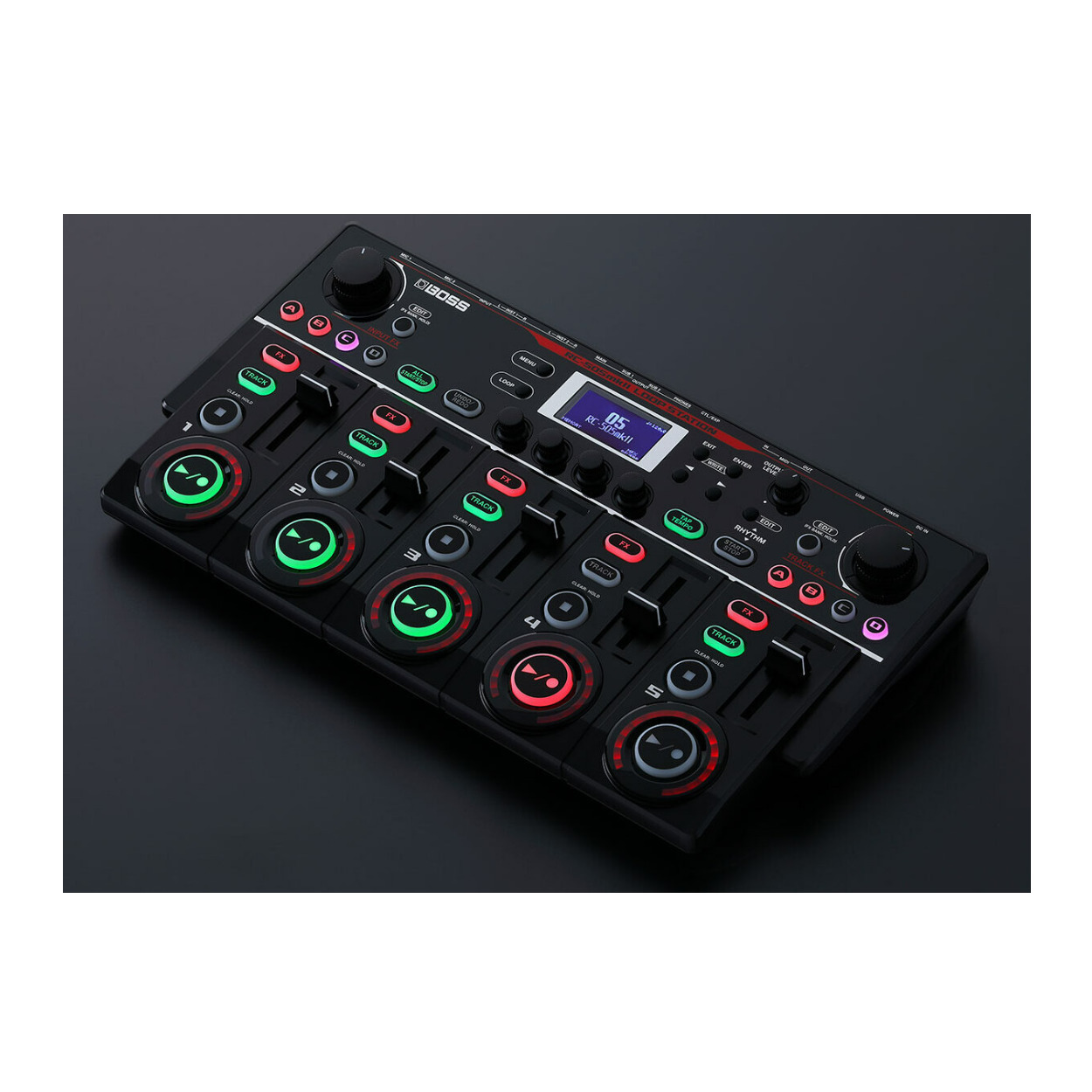

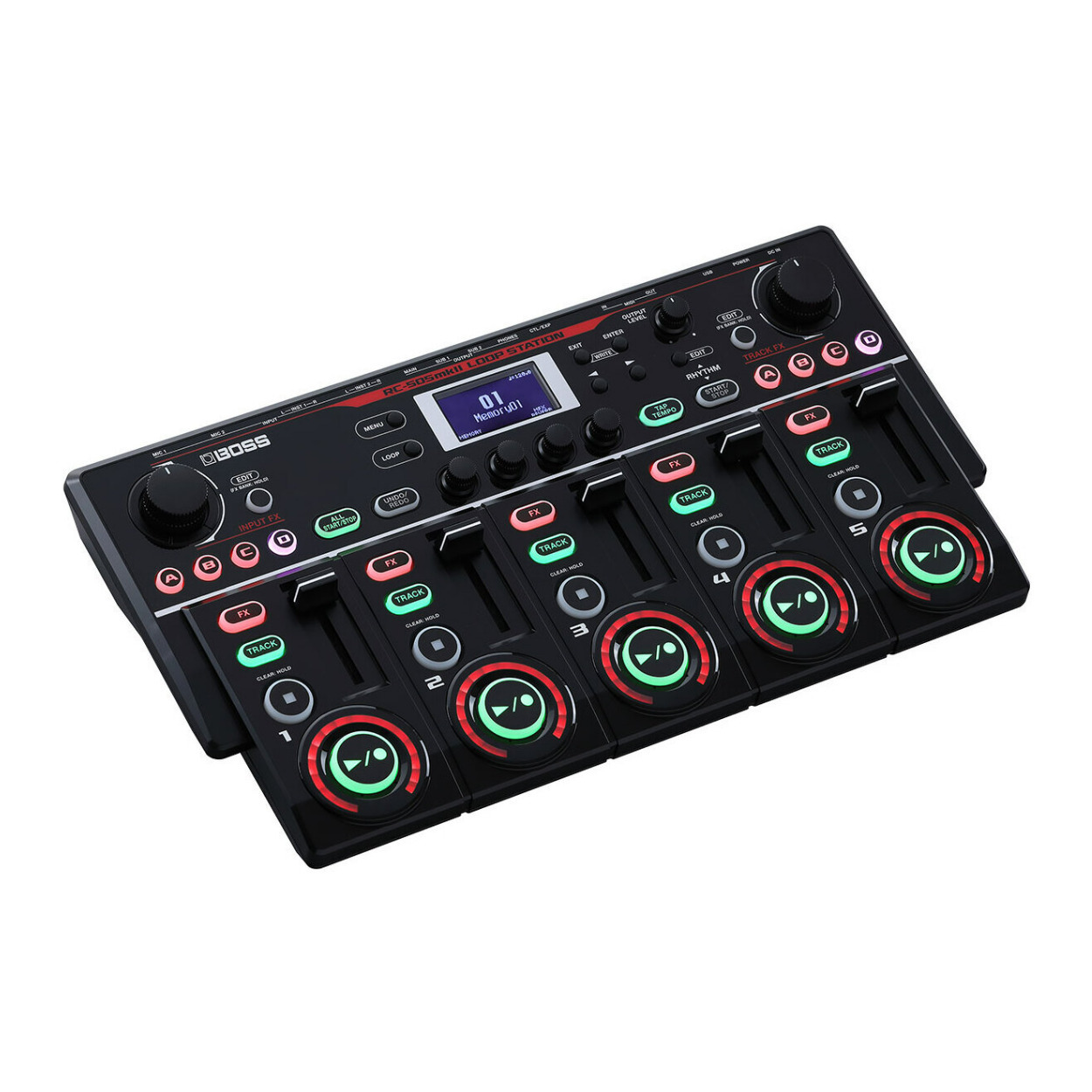

Packed with inspiring tools for on-the-spot music creation, the BOSS RC-505mkII brings next-generation power and flexibility to the world’s most popular tabletop looper. Elevate your performances with five stereo tracks and four simultaneous Input FX and Track FX, and soar even further with customizable buttons, expanded I/O, increased mixing control, and other enhancements requested by long-time RC-505 users. Built for free-flowing expression on stage and in the studio, the RC-505mkII is a dream machine for beatboxers, vocalists, multi-instrumentalists, and other fearless looping artists.

More to Love

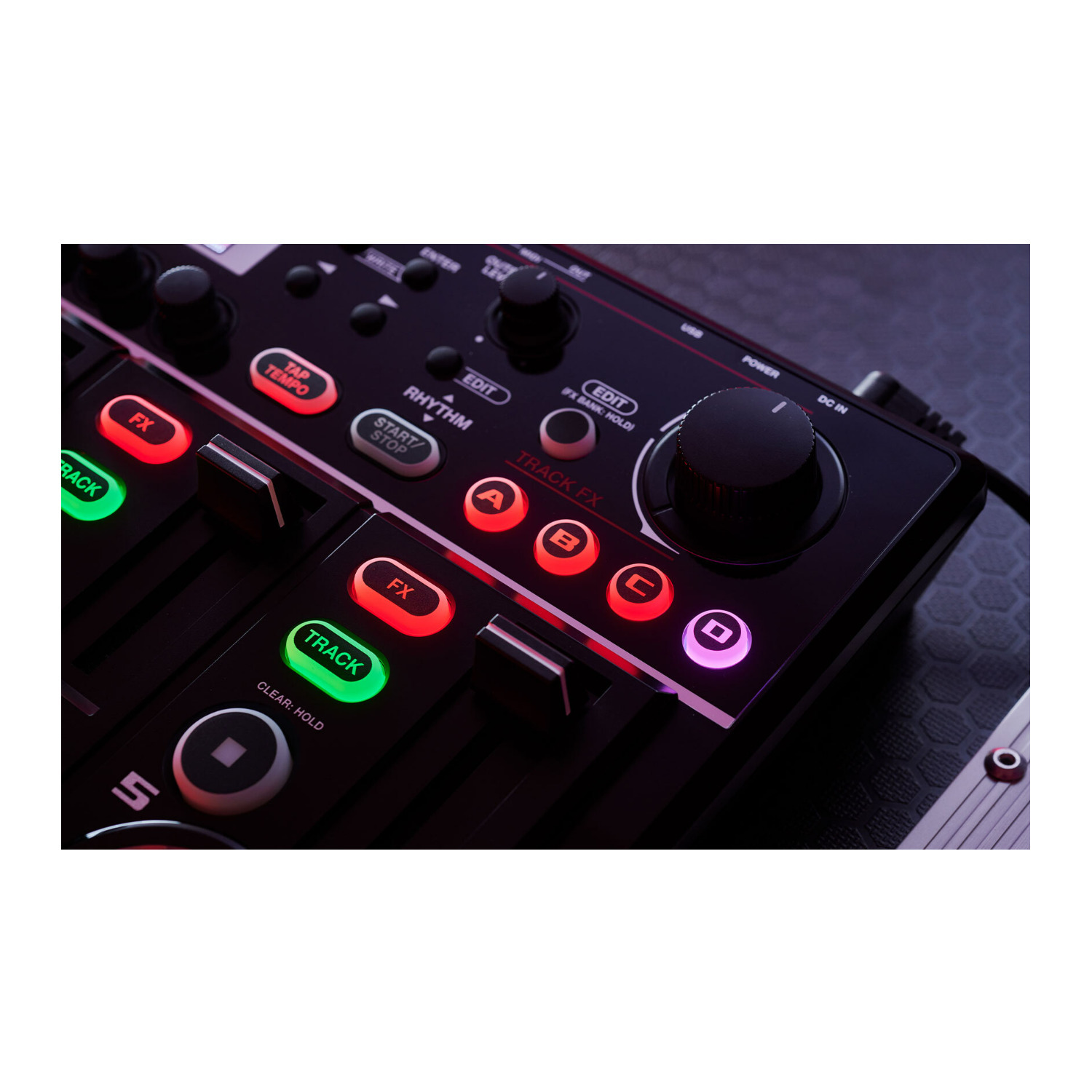

The RC‐505mkII retains everything that made the original so loved and adds a wealth of new features to make the looping experience even more creative and free-flowing. The faders provide longer throws for finer adjustments, and they also have a more solid feel under the fingers. And each track now has dedicated FX and Track buttons, making it easier to color and control your loops in the heat of the moment. Undo/redo has also been enhanced with a Mark Back function that lets you instantly jump back to a previous loop state while performing.

Customize Your Workflow

While the original RC‐505 was very customizable, the RC‐505mkII takes things to the next level with a vast range of user-configurable controls. You can assign various CTL parameters to the FX and Track buttons and trigger them with a press, hold, or double‐click. Pressing the Undo/Redo button reveals a secondary layer, doubling your options. Two external control jacks are also available for connecting footswitches or expression pedals, and each has its own dedicated set of parameters. Then tap into the Assign screens to set up 16 different targets for hardware control and MIDI operation.

More Sonic Colors

Sonic variations help make loop performances more compelling, and the RC‐505mkII provides a greatly expanded FX palette to color your sounds during recording and playback. There are 49 Input FX and 53 Track FX types to choose from, including powerful new vocal harmony effects, and you can use up to four in each section at once. Going further, groups of four Input FX and Track FX can be stored in four banks for quick recall, along with toggle or momentary button settings for each type. A step sequence function is also available in some FX to automate parameter changes for dynamic real‐time movement.

Connect and Mix

With the RC‐505mkII’s expanded connectivity and onboard audio processing, you can do more with less external gear. You have two XLR inputs for mics and two mono/stereo line input pairs for instruments and other devices, plus an input mixer with two mic compressors and independent EQs for all channels. Three stereo output pairs and an output mixer are also available, complete with assignable routing options and master reverb and compressor effects. It’s even possible to customize the headphone's output to monitor individual tracks and rhythm sounds. And via USB, you can integrate with computer DAWs and use BOSS Tone Studio to import/export WAV loops.

Creative Details

To meet the unique workflow needs of different performers, the RC‐505mkII offers many new creative details inspired by longtime Loop Station users. Three different overdub modes are available, including one that lets you replace the current sound in a loop track while it’s playing plus a new Bounce In function for capturing multiple tracks into one. Half and double-speed options are also on hand, and you can freely change the overall playback speed with or without pitch change. Additionally, it’s now possible to assign the Auto Rec function to a panel button or footswitch for quick activation whenever you need it.

• BOSS RC-505MKII User-Configurable Controls 49 Input FX and 53 Track FX Types Tabletop Looper
• AC Adaptor
• Owner Manual
• Leaflet Using The Unit Safely

BOSS RC-505MKII User-Configurable Controls 49 Input FX and 53 Track FX Types Tabletop Looper

• Sampling frequency: 44.1 kHz
• AD/DA conversion: 32 bits
• Processing: 32-bit floating point
• Recording/Playback:
• Number of tracks: 5
• Data format: WAV (44.1 kHz, 32-bit float, stereo)
• Maximum recording time: Approx. 1.5 hours (1 track), Approx.13 hours (total of All memories)
• Rhythm type: 200 types or greater
• Rhythm kit: 16 types
• Effect:
• INPUT FX: 49 types
• TRACK FX: 53 types
• MASTER FX: 2 types
• Memory: 99
• Nominal input level:
• MIC 1, 2 INPUT: -40 dBu
• INST 1, 2 INPUT: -10 dBu
• Maximum input level:
• MIC 1, 2 INPUT: 0 dBu
• IINST 1, 2 INPUT: +7 dBu/+20 dBu (selectable)
• Input impedance:
• MIC 1, 2 INPUT: 3k ohms
• INST 1, 2 INPUT: 1 M ohms/25 k ohms (selectable)
• Nominal output level:
• MAIN OUTPUT: -10 dBu
• SUB 1, 2 OUTPUT: -10 dBu
• Maximum output level:
• MAIN OUTPUT: +7 dBu
• SUB 1, 2 OUTPUT: +7 dBu
• Output impedance:
• MAIN OUTPUT: 1 k ohm
• SUB 1, 2 OUTPUT: 1 k ohm
• Recommended load impedance:
• MAIN OUTPUT: 10 k ohms or greater
• SUB 1, 2 OUTPUT: 10 k ohms or greater
• Controls: TRACK1--5 REC/PLAY button, TRACK1--5 STOP button, TRACK1--5 TRACK button, TRACK1--5 FX button, ALL START/STOP button, UNDO/REDO button, TAP TEMPO button, RHYTHM START/STOP button, RHYTHM EDIT button, INPUT FX A--D button, INPUT FX EDIT button, TRACK FX A--D button, TRACK FX EDIT button, MENU button, LOOP button, ENTER button, EXIT button, PAGE buttons, 1--4 knobs, OUTPUT LEVEL knob, TRACK1--5 LEVEL Faders
• Display: Graphic LCD (128 x 64 dots, backlit LCD)

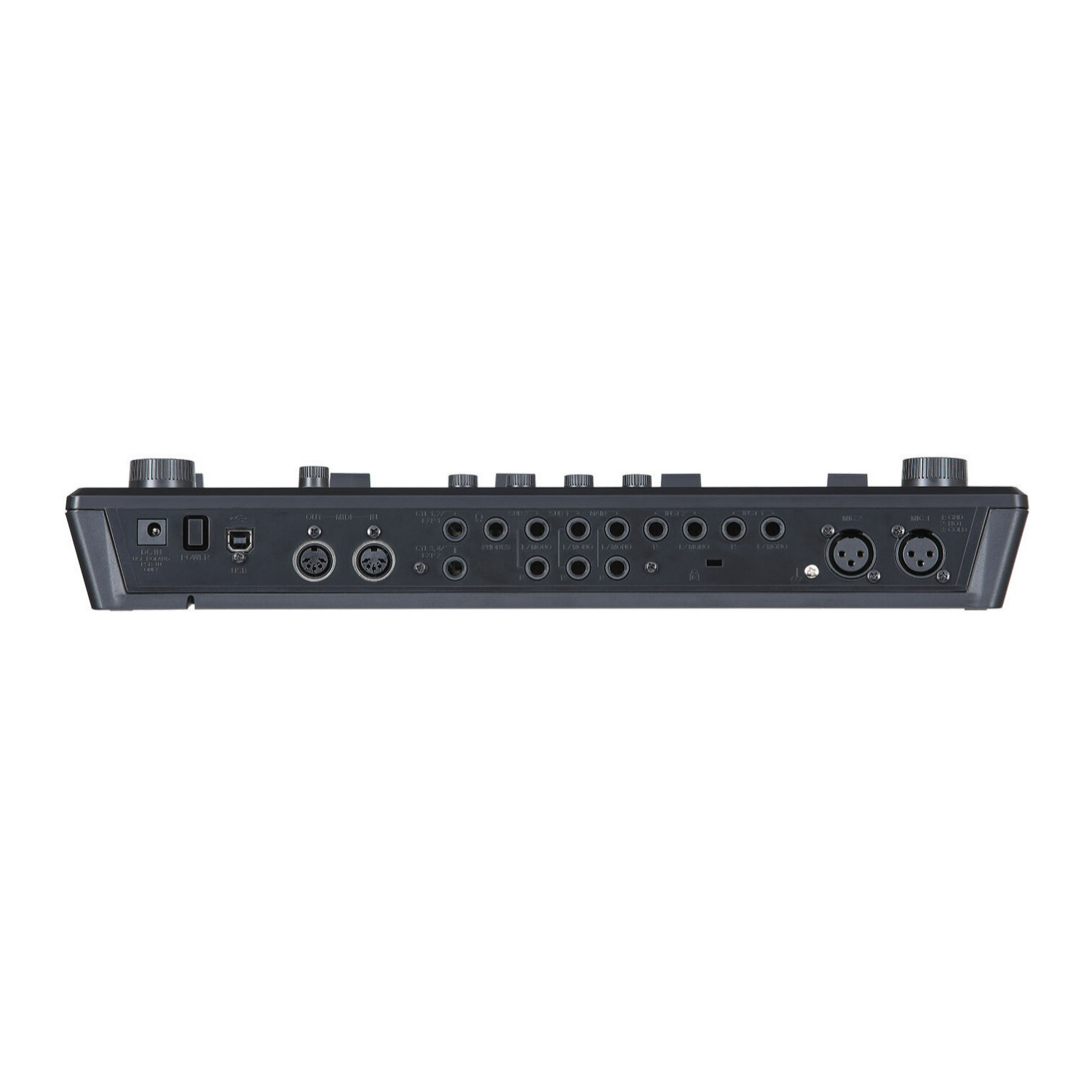

• Connectors:
• MIC IN 1, 2 jack: XLR type (balanced, phantom power: DC 48 V, 10 mA Max
• INST IN 1, 2 jacks, MAIN OUT jacks, SUB OUT 1, 2 jacks: 1/4-inch phone type
• PHONES jack: Stereo 1/4-inch phone type
• CTL1,2/EXP1 jack, CTL3,4/EXP2 jack: 1/4-inch TRS phone type
• USB port: USB B type
• MIDI (IN, OUT) connectors
• DC IN jack
• Power supply: AC adaptor
• Current draw:
• 1.0 A (with phantom power)
• 0.9 A (without phantom power)
• Options sold separately:
• Footswitch: FS-5U
• Dual footswitch: FS-6, FS-7
• Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5
• Width: 16 9/16 inch (420 mm)
• Depth: 9 1/4 inch (234 mm)
• Height: 2 11/16 inch (67 mm)
• Weight: 4 lb (1.8 kg)
