11 core CCTV POE IP network Camera PCB Module video power cable RJ45 DC female connector Terminlas waterproof with 4/5(+) 7/8(-)

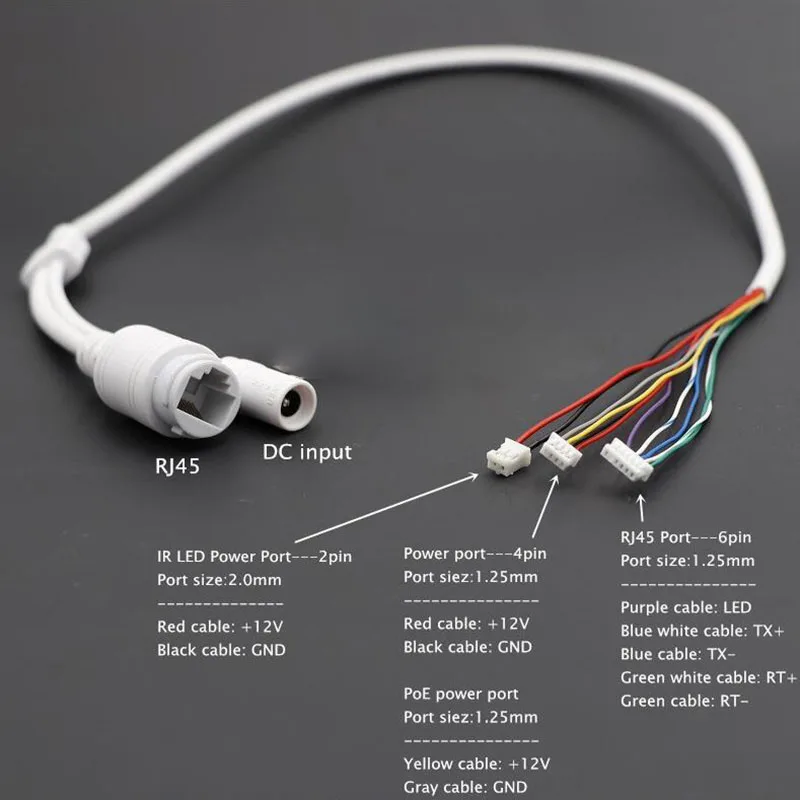

Description
CCTV POE IP network Camera PCB Module video power cable With RJ45 DC female connector Terminlas waterproof cable
Size: length 700mm,Φ5mm
Cable color: white/black
-----------------------------------------------------------------------------------
2 PIN---2.0mm
Red: + 12V
Black: GND
2 PIN---1.25mm
Red: + 12V
Black: GND
2 PIN---1.25mm
Yellow: PoE +12V (4/5 of RJ-45)
Gray: PoE GND (7/8 of RJ-45)
5 PIN---1.25mm
Blue: TX-
Blue+White: TX+
Green: RX-
Green +White:RX+
Purple: LED
-----------------------------------------------------------------------------------

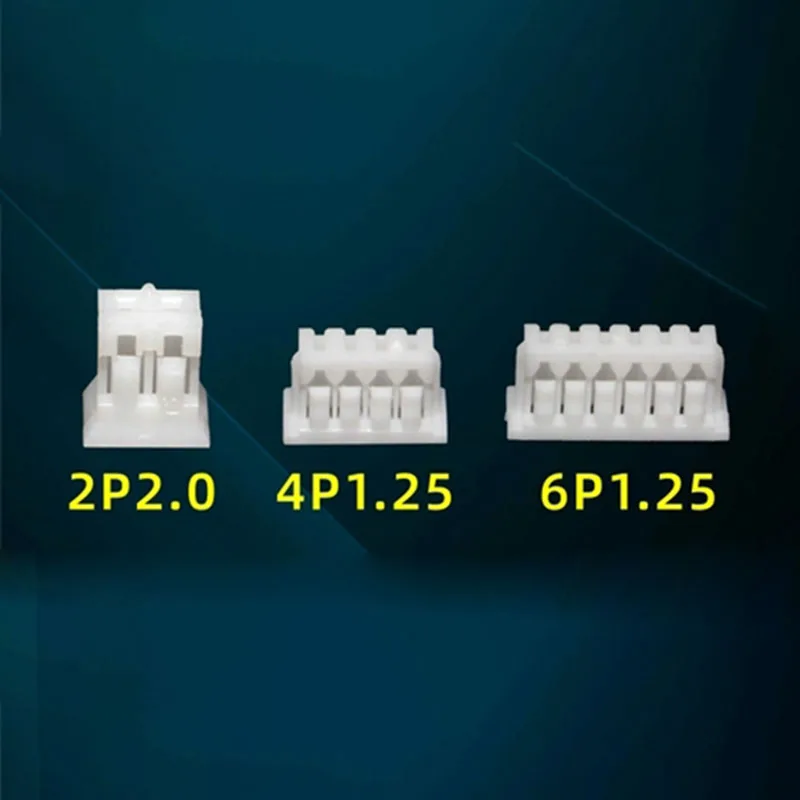

Packing list:
1 pcs network video cable
1 pcs 2pin port(2.0mm)
1 pcs 4pin port (1.25mm)
1 pcs 6pin port (1.25mm)
Please note: 1 pcs 2pin port (2.0mm), 1 pcs 4pin port (1.25mm), 1 pcs 6pin port (1.25mm) and cable are separate,Please according to their own needs,Arrange the cable sequence.
