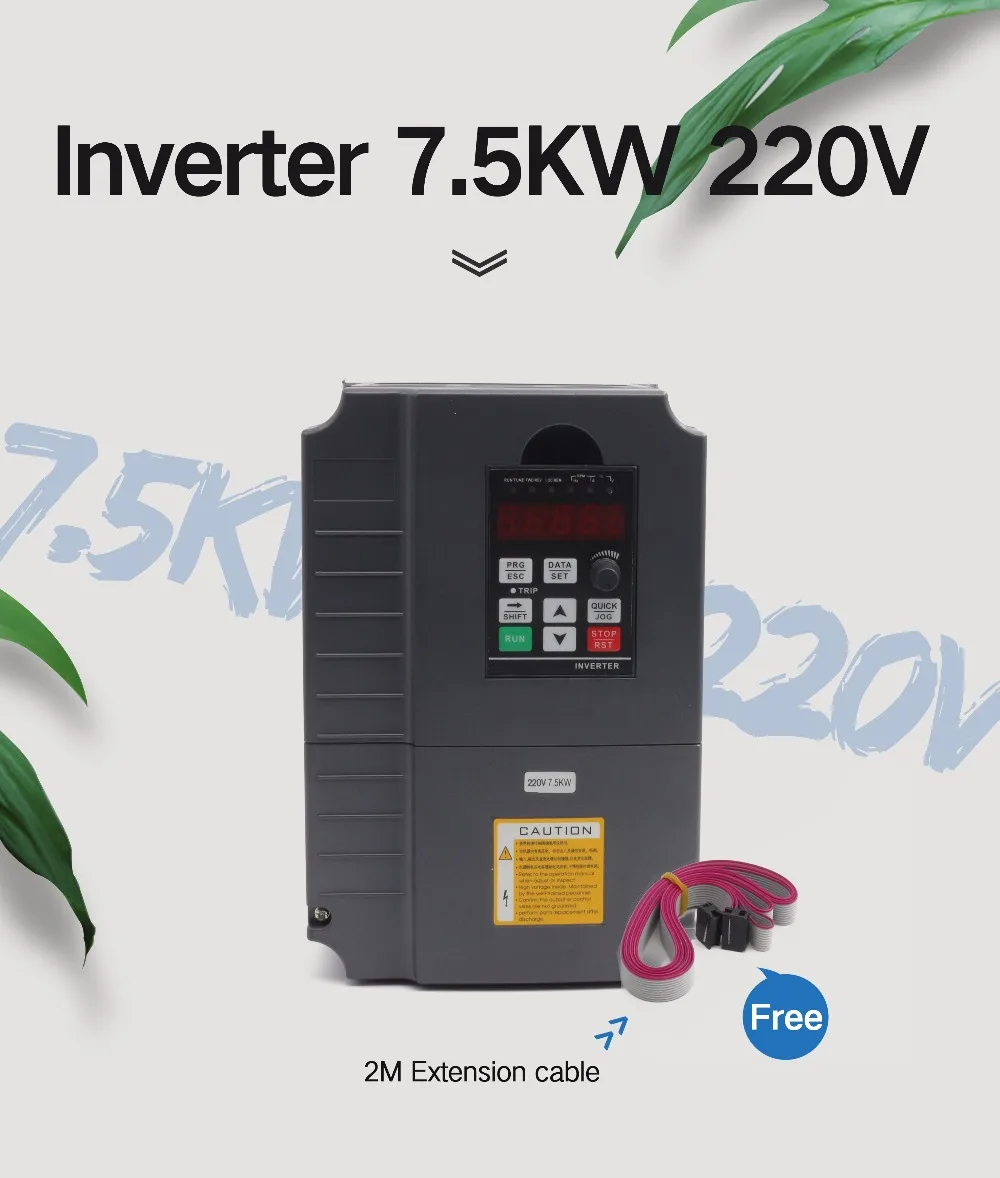

HY 7.5KW 220V VFD Variable Frequency Drive Inverter 10HP Motor Speed Control VSD

Package included:
1 x 7.5KW VFD Inverter 220V (220V input & 220V output)
1 x English user manual

100% New and High Quality!!!

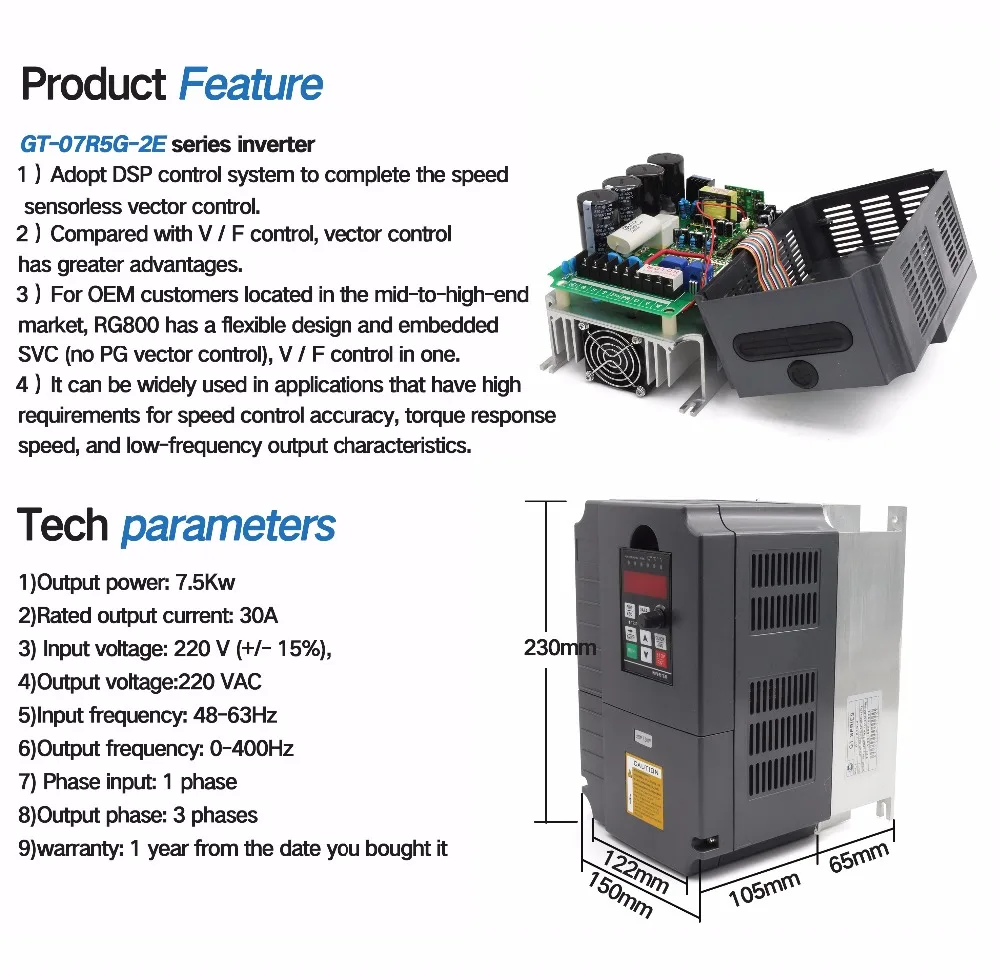

Technical Paramer
1.Inpute voltage:220V±15%
2.Output voltage:220VAC±15%
3.Input Frequency:48-63HZ
4.Outpute Frequency:0-400HZ
5.Inpute phase: 1 phase
6.Outpute phase:3 phase
7.warranty:2 year
8.Current: 30A

This VFD can be used for constant torque loads(such as hard starting:Air conpressor,HVAC units) and variable torque loads(such as pumps,fans,etc) It can be used as a motor speed control and a phase converter.The inpute for this VFD is 1 or 3 phase as you like.You can control different speed when you use this VFD.Most of our customers bought this VFD from us to use for:Lathes,Mill,car Hoists,Pumps&conveyors,etc.This item use sine wave PWN(SPWM) for the control system and performace excellently.

Feature
1.Easy PLC function can realize 16 legs of speed and inverter control function;
2.RS485 communication port, adopting standard international MODBUS main circuit control;
3.With extremely strong anti-jamming capability;
4.Low output ratting torque 0.5HZ-150%, low speed running ability;
5.Carrier adjustable by 16KHZ, completely soundless working environment;
6.Broad voltage working area;
7.Auto voltage regulation (AVR) technique, for ensuring the inverter load capability;
8.Various control technique by both synchronization and non-synchronization, dynamically realize fast starting without changing brakes;
9.With perfect error protection and short circuit starting protection capability;
10.PASS I.S.O.9001 Quality certification,which means this item is of the top quality item.

Specification
Series
HY inverters
Control Mode
SPWM
Input Power
220V class:220V(+/-15%)

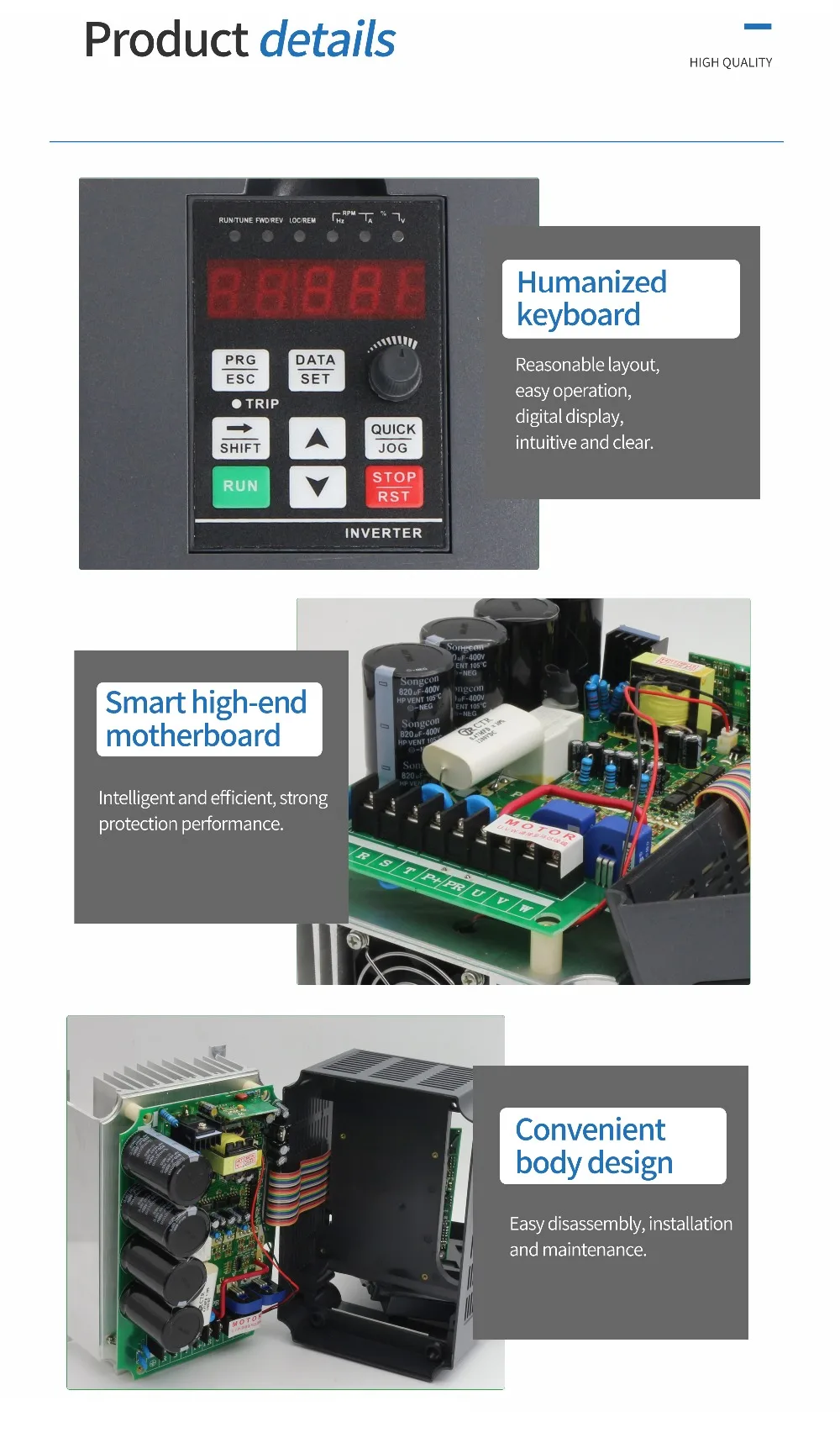

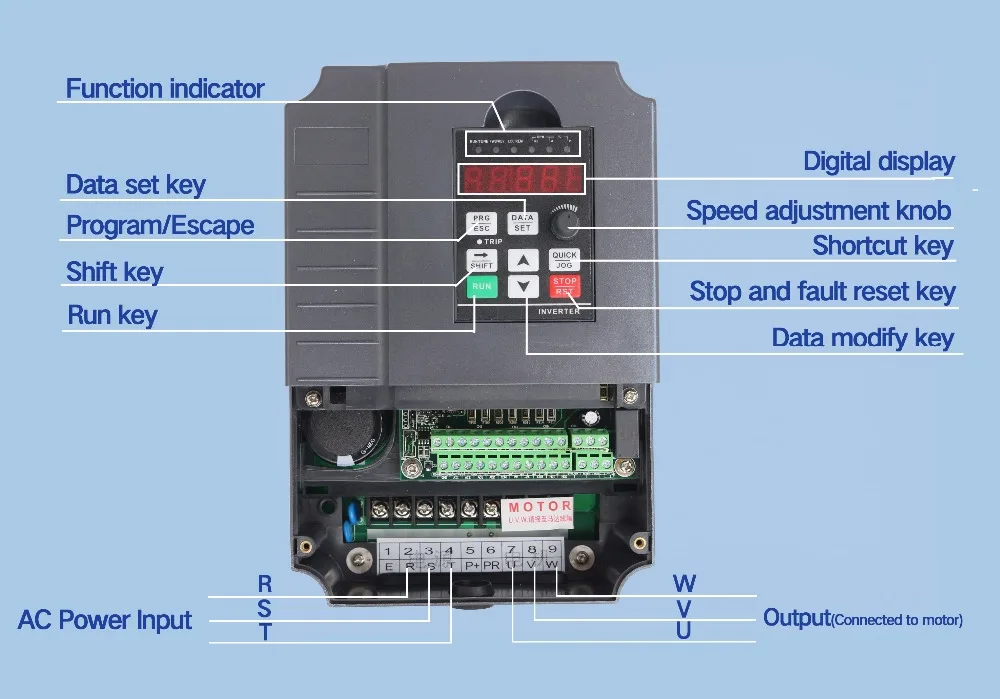

5-Digits Display & Status Indicator Lamp
Displaying frequency, current, revolution, voltage, counter, temperature, FOR or REV rotation, and fault, etc.
Communication Control
RS-485
Working Temperature
-10~40 Celsius Degrees
Humidity
0-95% Relative Humidity(without dew)
Vibration
Below 0.5G
Frequency Control
Range
0.1~2500.0Hz
Accuracy
Digital: 0.1%(-10~40 Celsius Degrees); Analog: 0.1% (15Celsius Degrees---45Celsius Degrees)
Setting Resolution
Digital: 0.1Hz; Analog: 0.1% of max. Operating frequency
Output Resolution
0.1Hz
Operator Setting Method
Press directly keys to set.
Analog Setting Method
External Voltage 0-5V,0-10V,4-20mA,0-20mA.
Other Functions
Frequency lower limit, starting frequency, stopping frequency, three skip frequencies can be respectively set.
General Control
Ramp Control
Selectable 4-speed steps ramp-up and -down time (0.1-6500s).
V/F Curve
Set V/F curve at will.
Torque Control
Torque increase settable by max. 10.0%. The starting torque can reach 150% at 1.0Hz.
Multi-Inputs
6 multi-function input terminals for 8speed steps control, program operation, switching of 4-speed Ramp, UP/DOWN function, counter, external emergency stop and other functions.
Multi-Outputs
5 multi-output for displaying of running, zero speed, counter, external abnormity, program operation and other information and warnings.
Other Functions
Auto Voltage Regulation(AVR), Decelerating Stop or Coasting Stop, DC Braking, Auto Reset and Restart, Frequency Track, PLC Program Control, Traverse Control, Drawing Control,Auto Energy Saving, Carrier Adjustable (Up to 20KHz), etc.
Protection Functions
Overload Protection
Electronic relay protection motor drive
Drive(for constant torque 150% per min. for the kinds of fan 120% per min.)
Fuse Protection
When the fuse breaks, the motor will stop.
Over-voltage
220V class:DC Voltage >400V
380V class:DC Voltage >800V
Under-voltage
220V class:DC Voltage <200V
380V class:DC Voltage <400V
Restart After Instant Stop
Restart with Frequency Track after Instant Stop
Stall Protection
Stall protection in ramp operation
Output Short Circuit
Electrical circuit protection
Other Functions
Fin over-heat protection, restriction of reverse running, direct start after power on, fault reset, parameter lock PID, one-drive-more, etc.
