Item 1 : OBDSTAR P50 A.i.rb.ag Reset Equipment Covers 95 Brands and 15300+ E-C-U Part No.

OBDSTAR P50 is the new generation of a.i.rbag reset equipment. With powerful functions and wide coverage, it covers 95 brands and 15300+ E-C-U part No., some MC-U.

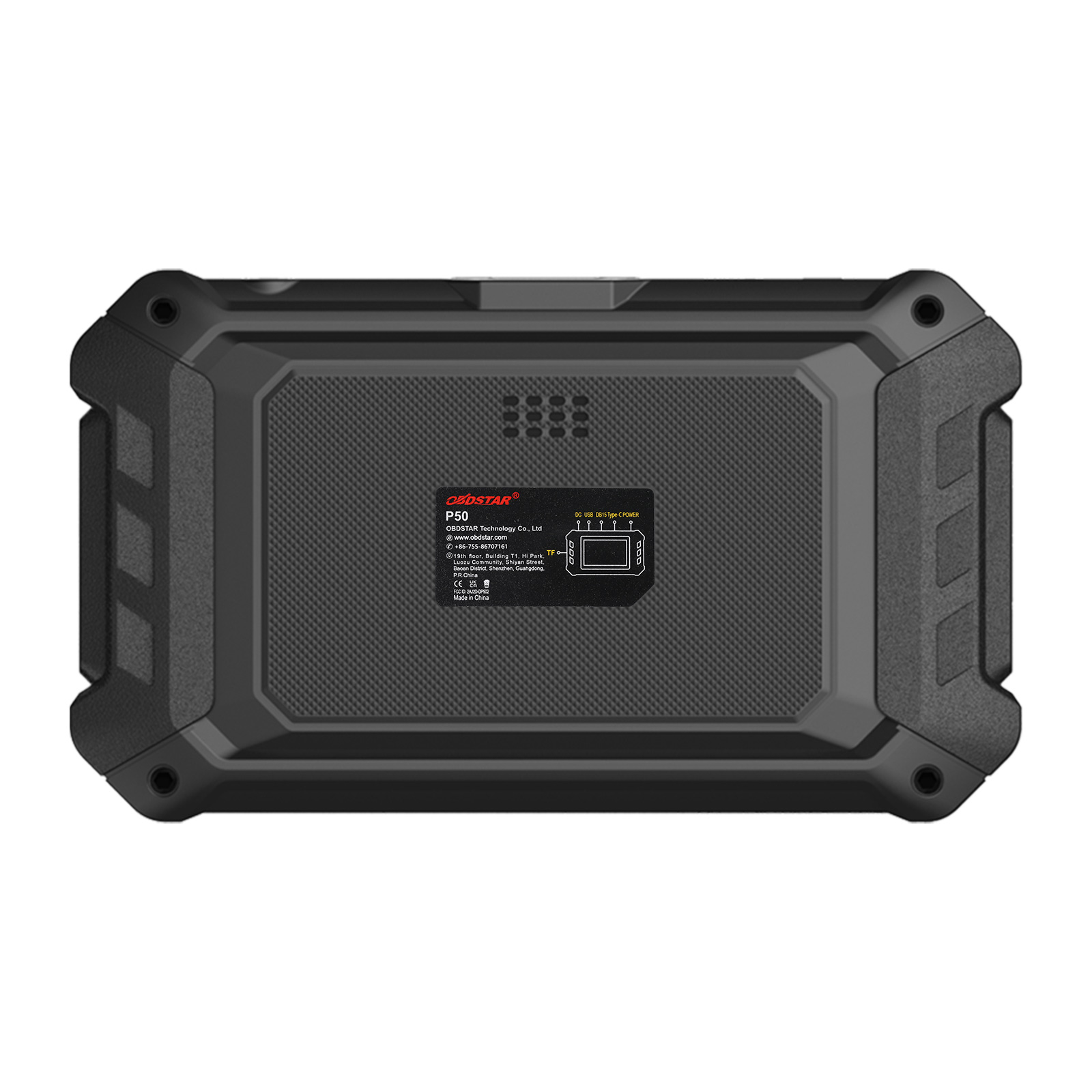

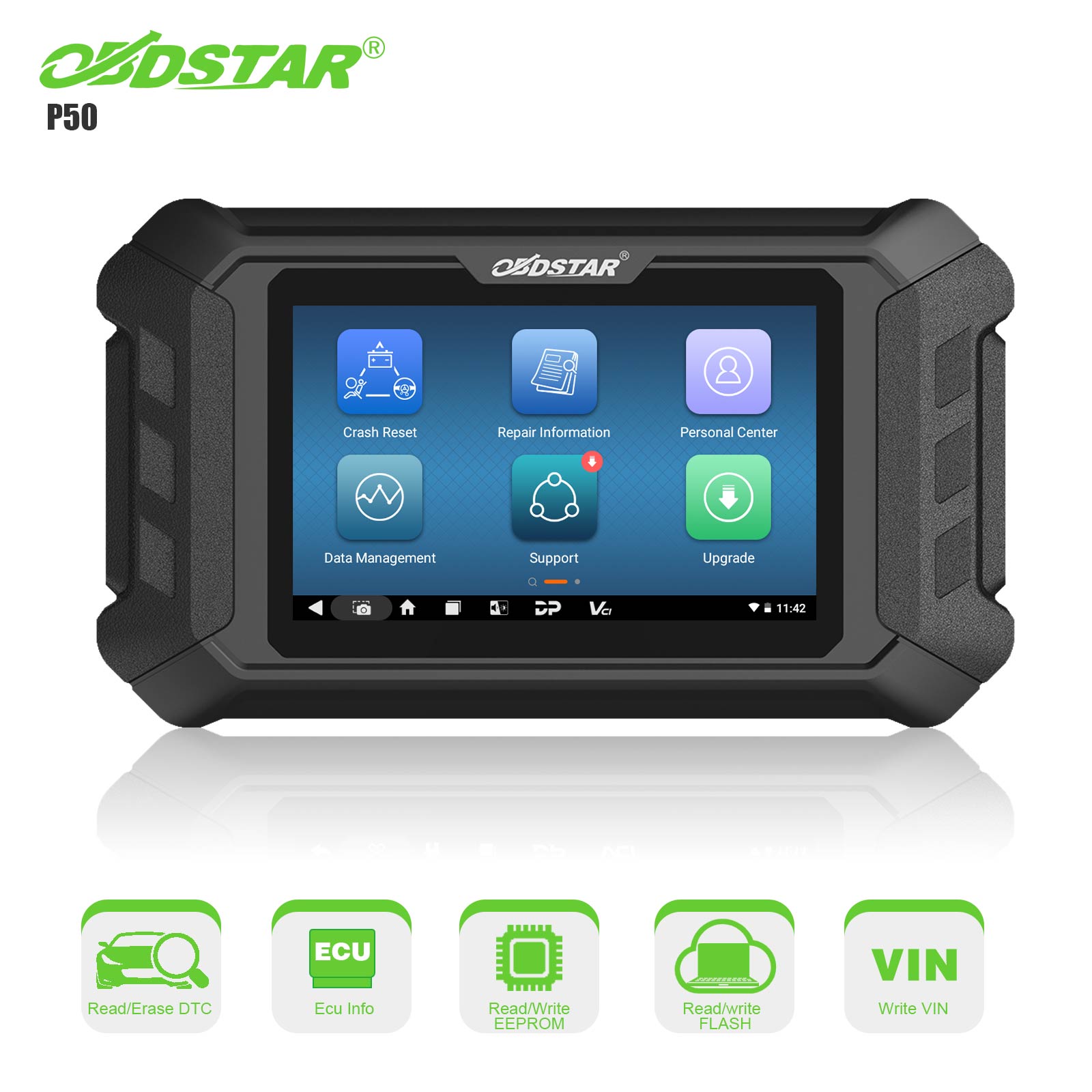

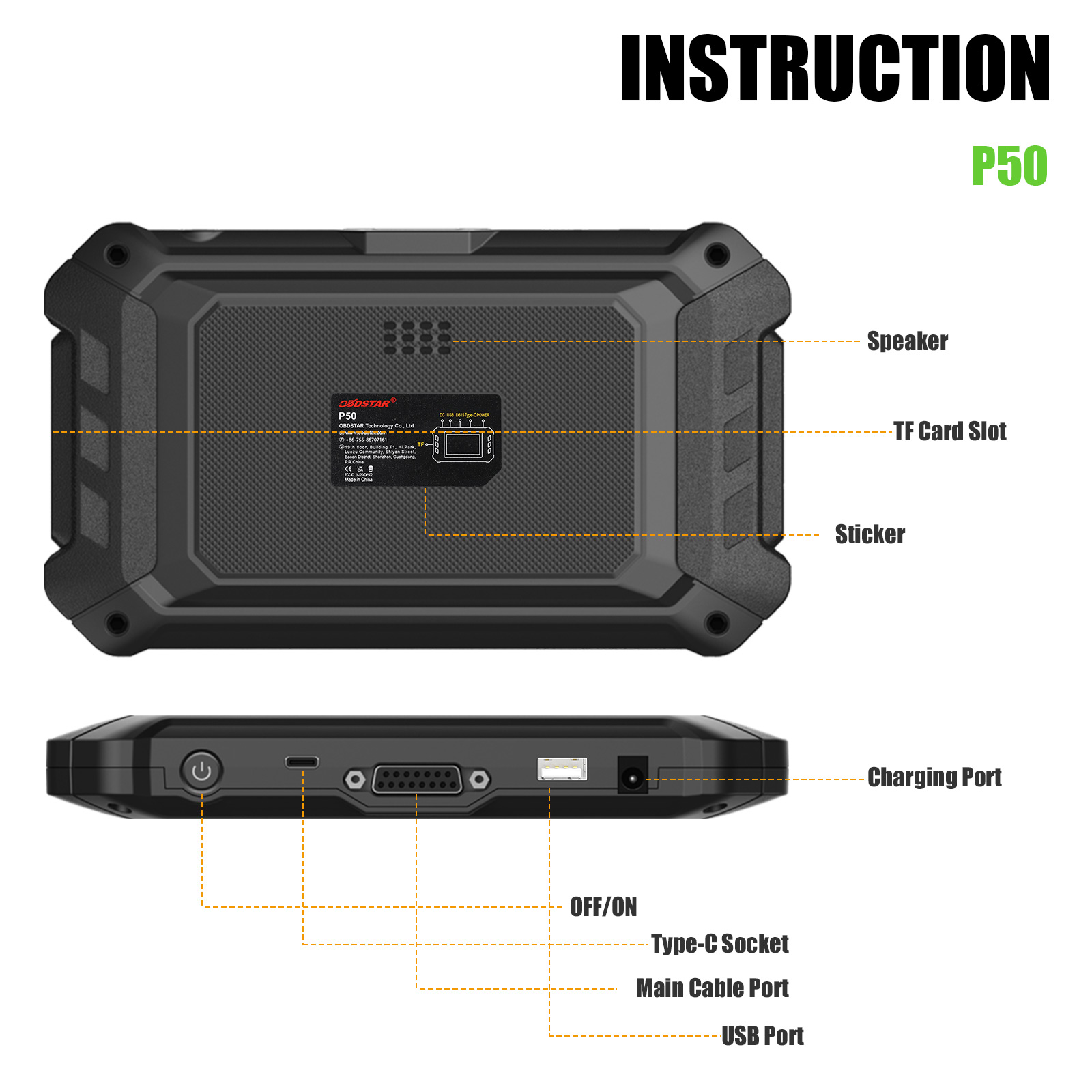

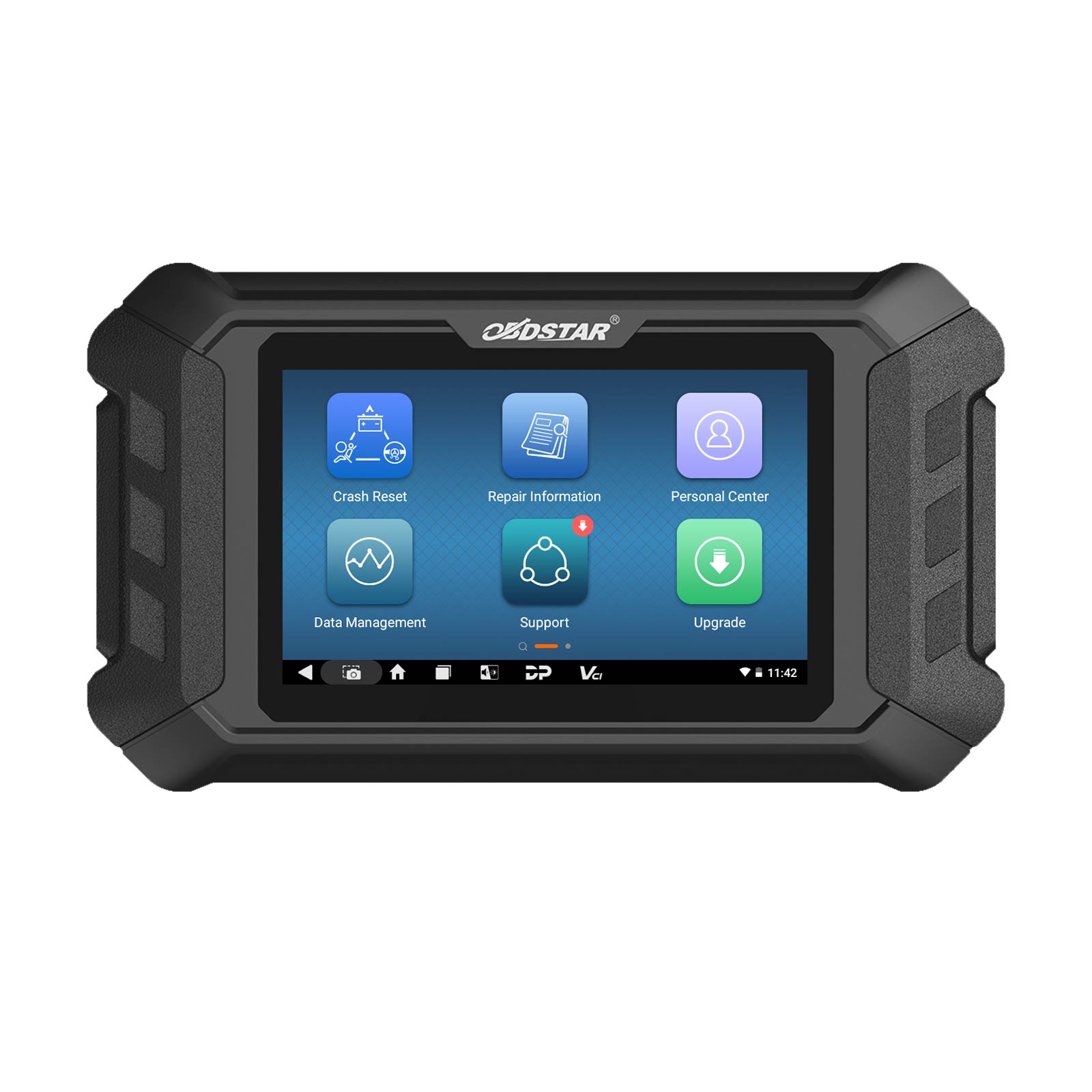

OBDSTAR P50 is based on RK3128 quad-core processor, extremely fast and smooth; equipped with 5-inch capacitive touch sensitive screen.

OBDSTAR P50 Basic Functions:

1. Supports one-click a.ir.bag reset for 95 brands and over 15300+ E-C-U part No.

2. Supports fuzzy search for E-C-U part No.

3. Contains clear BENCH mode wiring diagram

4. Contains powerful and complete description files for fault code

5. Supports for Hyundai/Kia TC2xxx types bench a.ir.b.ag reset with CAN FD adapter

6. Supports battery reset(MVBM) function

7. Supports SAS reset function

8.One year update for free. 150 USD for update per year from second year. ( 90 USD for another year of update if you renew it before expires)

More functions in developing...

Notice:

1. Language: English Only.

2.There is no software on the device. After registering account, enter the one-click upgrade to download the software.

3. If you also need Clu-ster Calibration & Oil Light/ Service Reset Function , you can buy the OBDSTAR P50 Authorization to get the same function as the Odo Master

OBDSTAR P50 Advanced Functions:

Read E-CU Information: Read E-CU part number, historical frame number, current frame number, collision record.

Read DTC

Erase DTC

Read EEPROM: Read EEPROM data from E-CU for backup

Write EEPROM: Write EEPROM data into E-CU

Read FLASH

Write FLASH

Write VIN: Write back the correct VIN after exE-C-Uting [Crash Data Clear]

Clear/Erase Crash: Clear E-C-U crash data

Unlo-ck E-C-U

Battery Reset for Audi and Volvo by BENCH

P004 Highlights:

P004 adapter is designed for EC-U progarmming, reading or writing data in bench mode. It has merits below:

1. Progarmming devices keep in normal communication no matter turn on or off 12V power button;

2. Turn on or off 120Ω resistance at any time for CANBUS E-C-U;

3. Support 6&14 and 3&11 CANBUS Protocol at the same time;

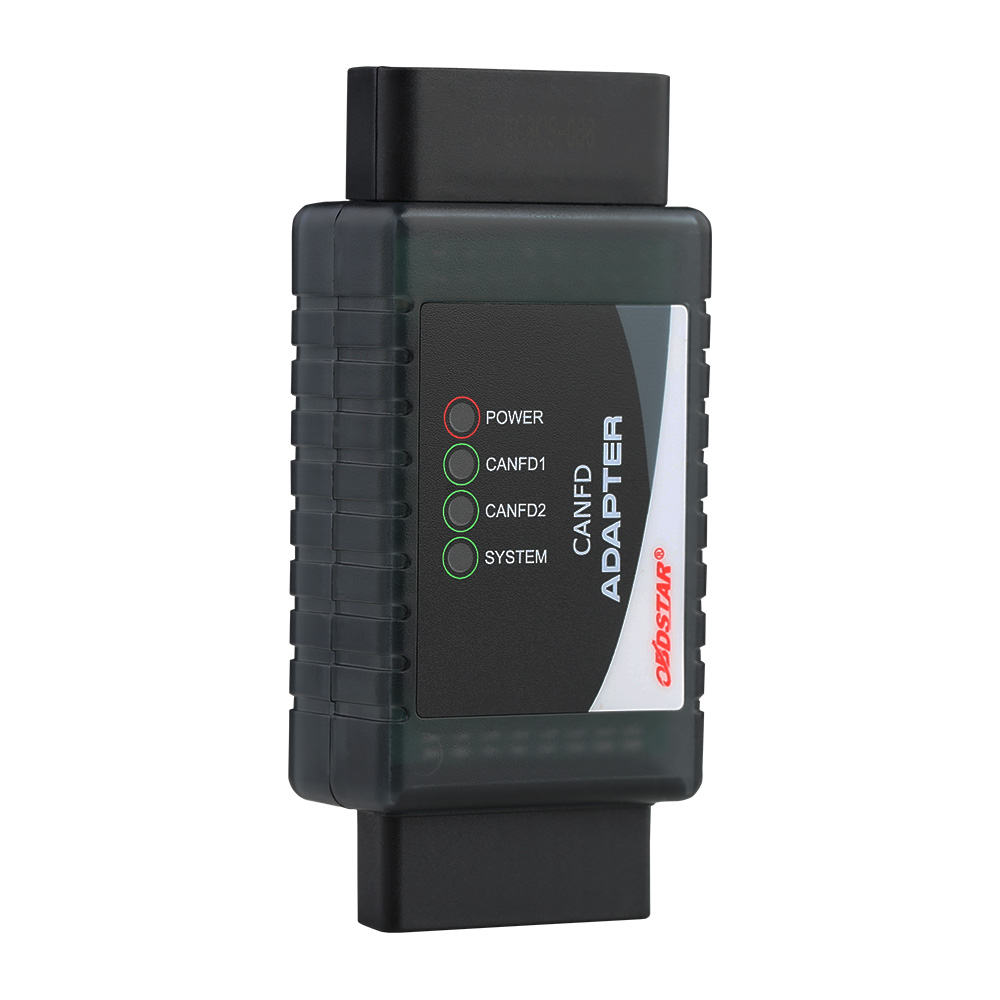

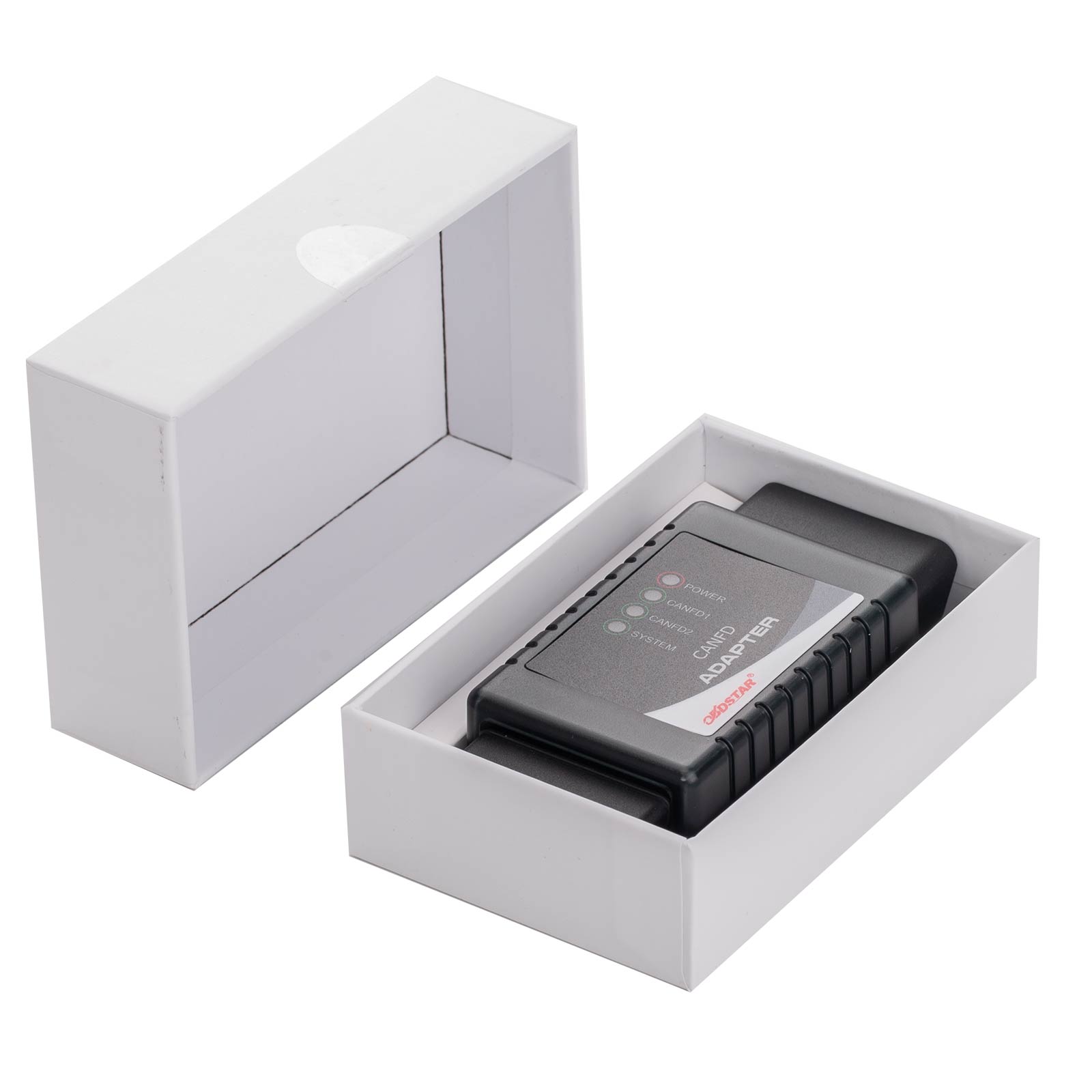

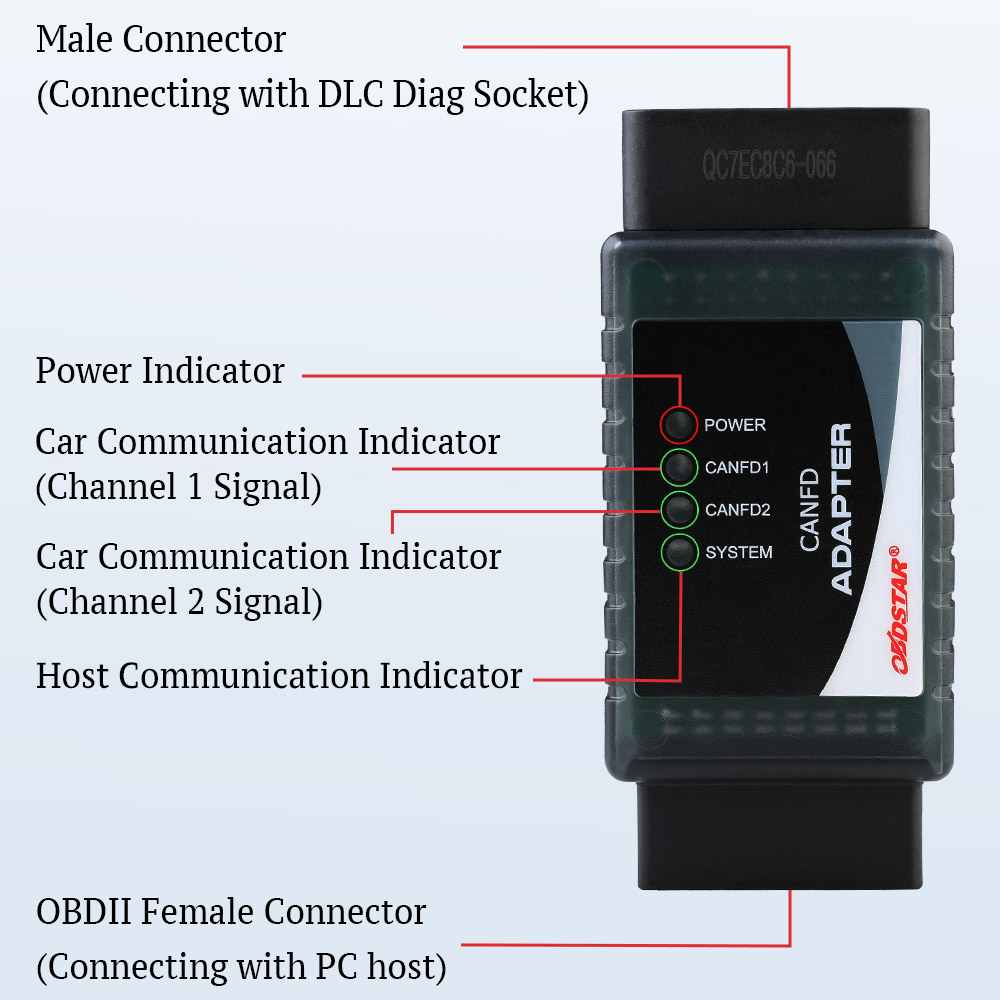

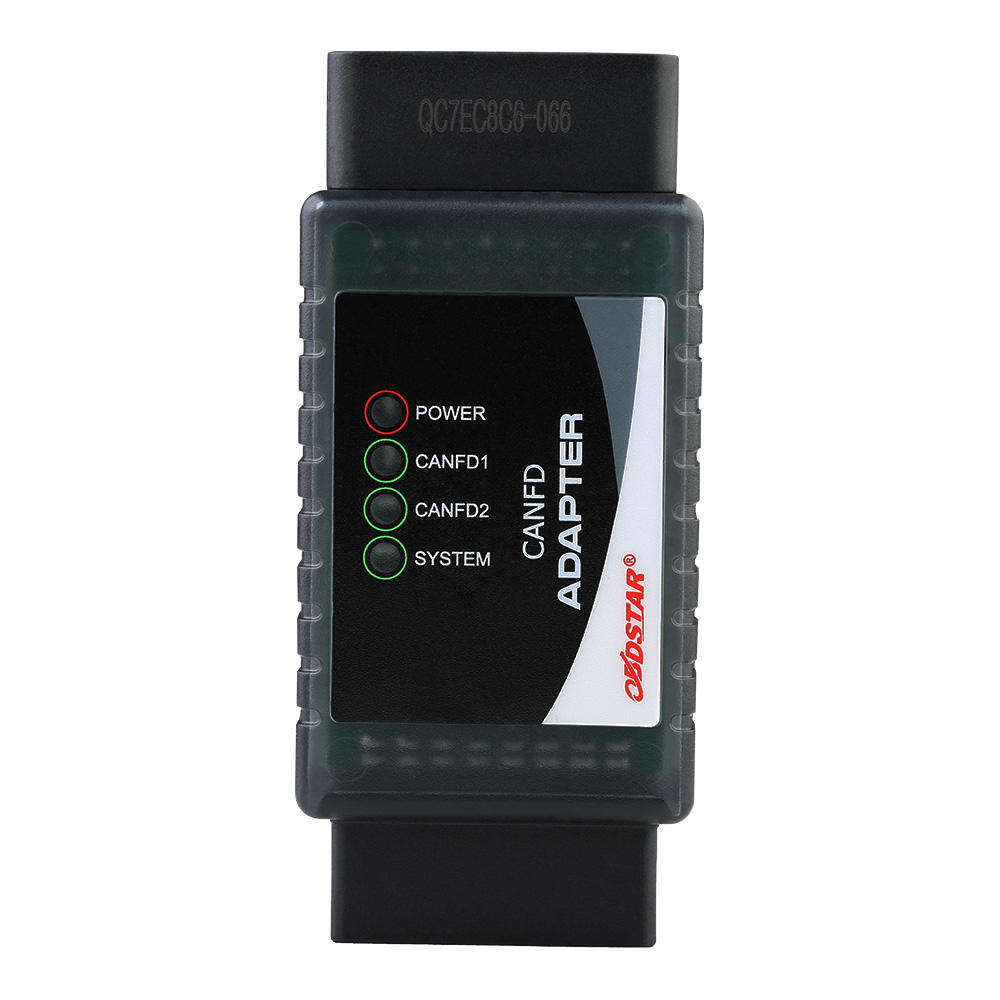

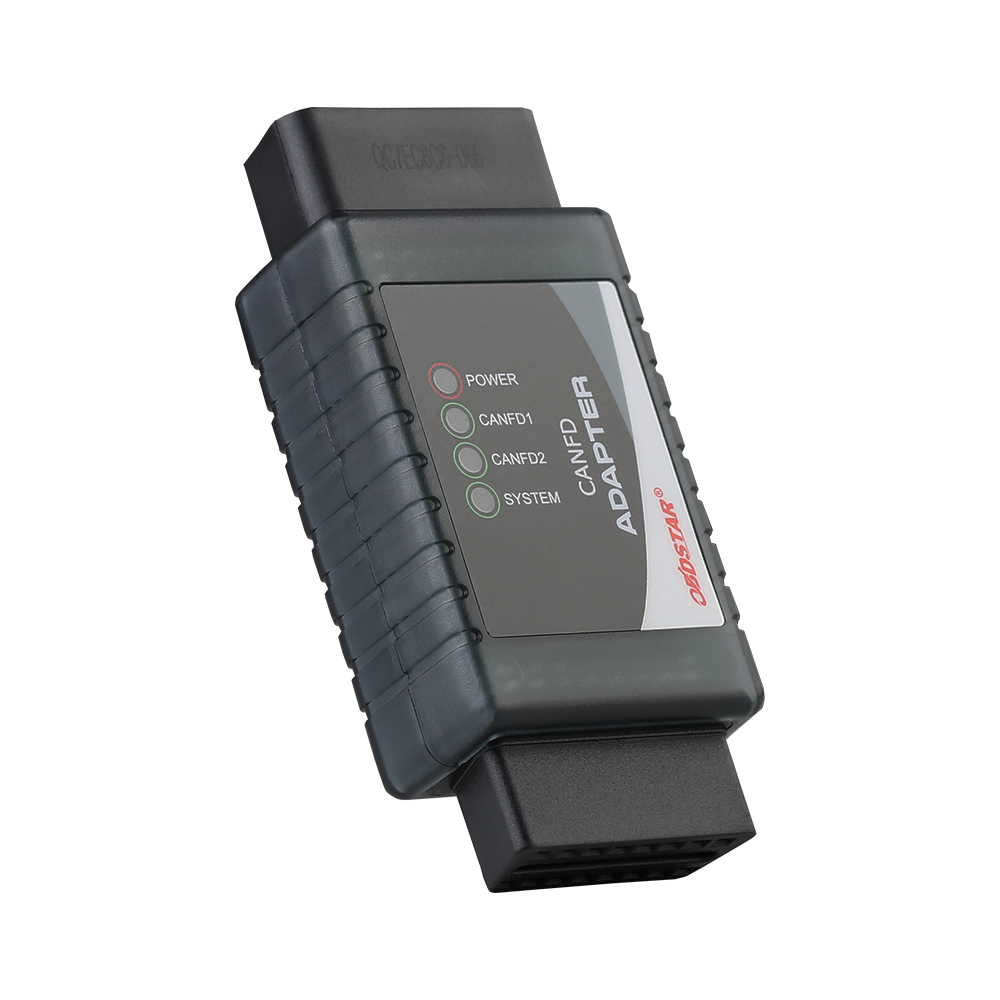

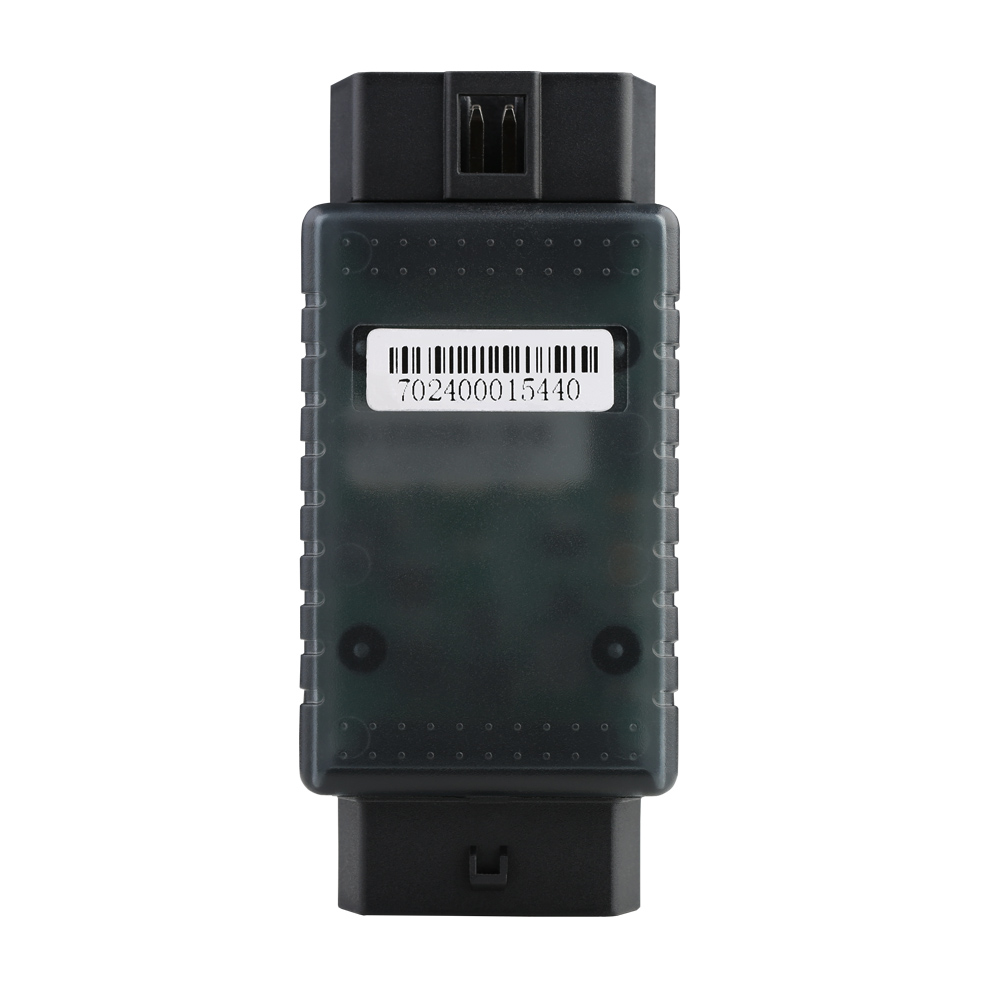

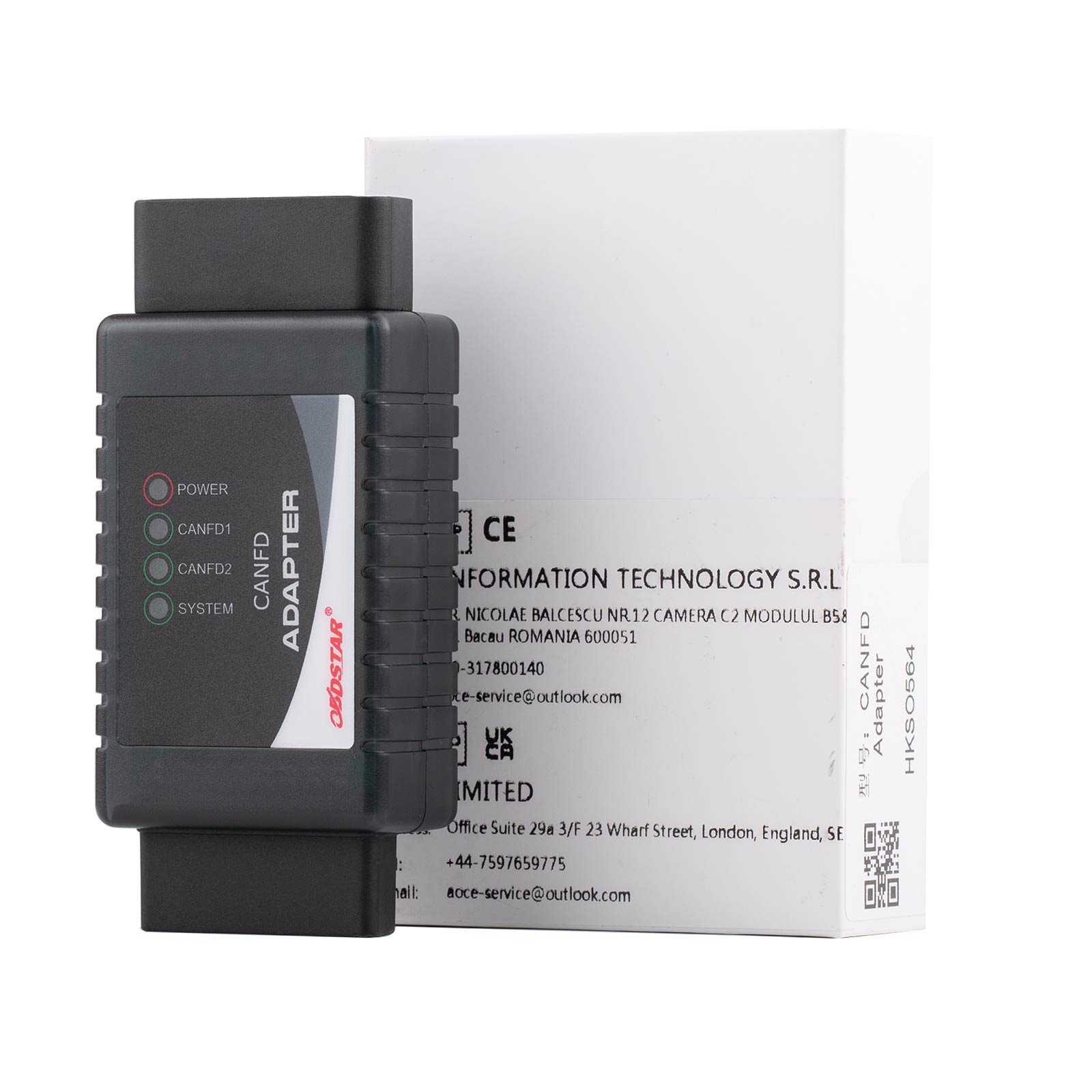

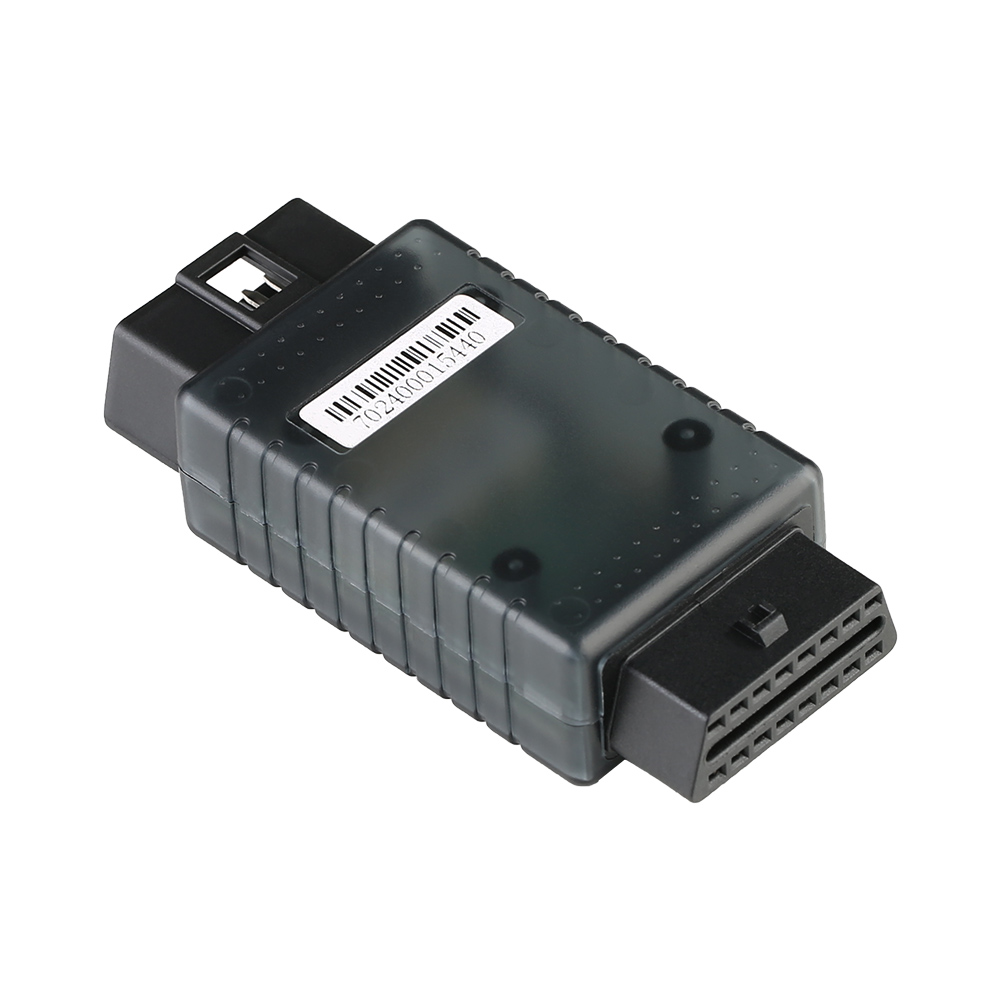

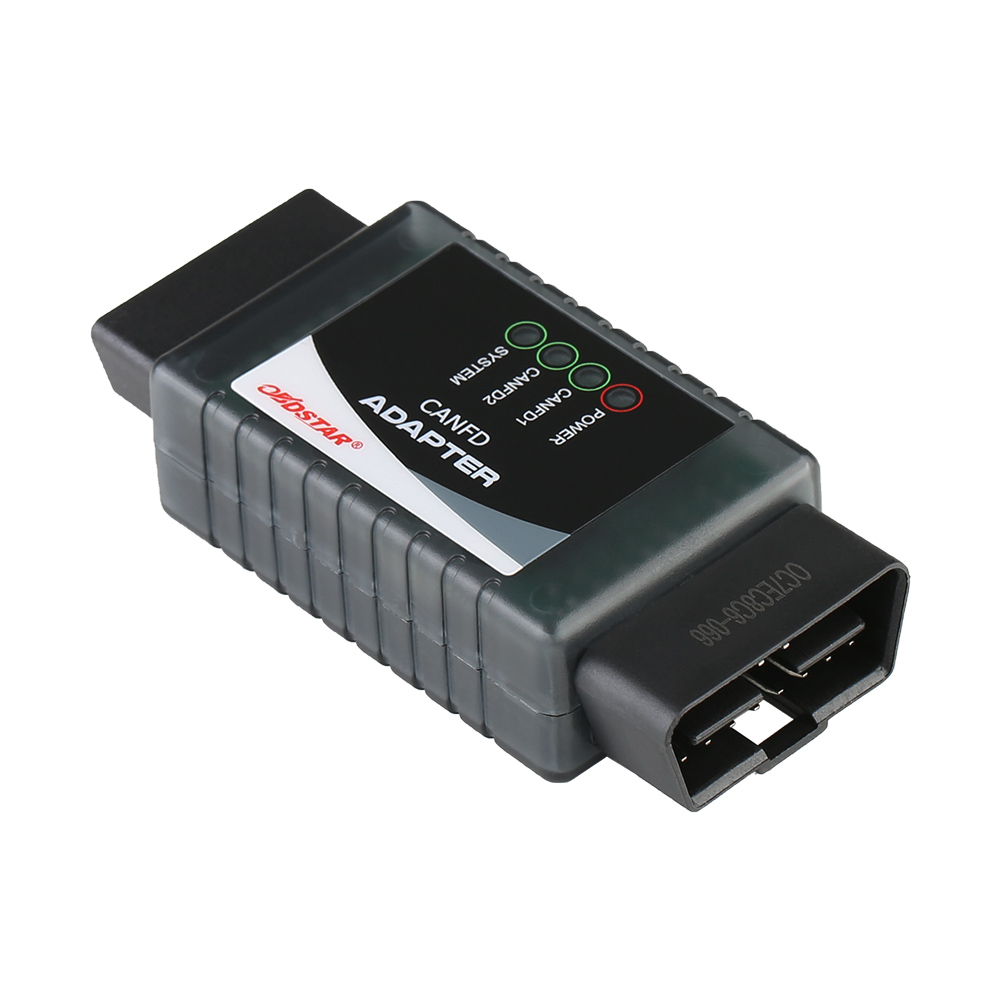

4. Optional CANFD adaptor (Mainly used for models after 2020, such as for HYUNDAI/KIA, etc.);

5. Support for GM Single CAN(GM SCAN);

6. Support Kline Protocol;

7. P004 jumper can connect with multiple wires at the same time, make wiring clearer and easier;

8. DB15 connector can communicate with any OBDII-16 I/O interface.

How to use OBDSTAR P50?

Please register the device before using.

Distributor code: 0086A002.

The general operation steps are as follows:

1. Read the part number---To see whether it reads the correct part number

2. Read fault codes---Check if there is an a-irbag crash fault

3. Clear the fault code---A few car models' a-irbag fault codes can be cleared by cleaning the fault codes directly

4. If reading EEPROM is supported, please read EEPROM

5. Clear the collision record

6. If there is a w-rite VIN function, please w-rite VIN ( Very few For Ford and For R-enault models' VIN information will be erased when cleaning the fault codes)

7. Clear the fault code

8. Read the fault code---To confirm that the fault has been successfully cleared

Attention:

Any part number listed as DIAG ONLY, can read the fault codes only, but can't clear the crash data.
Any part number listed as PARTIALLY or BETA, if the P50 failed to work with it, there is no solution, but it's not a quality issue.

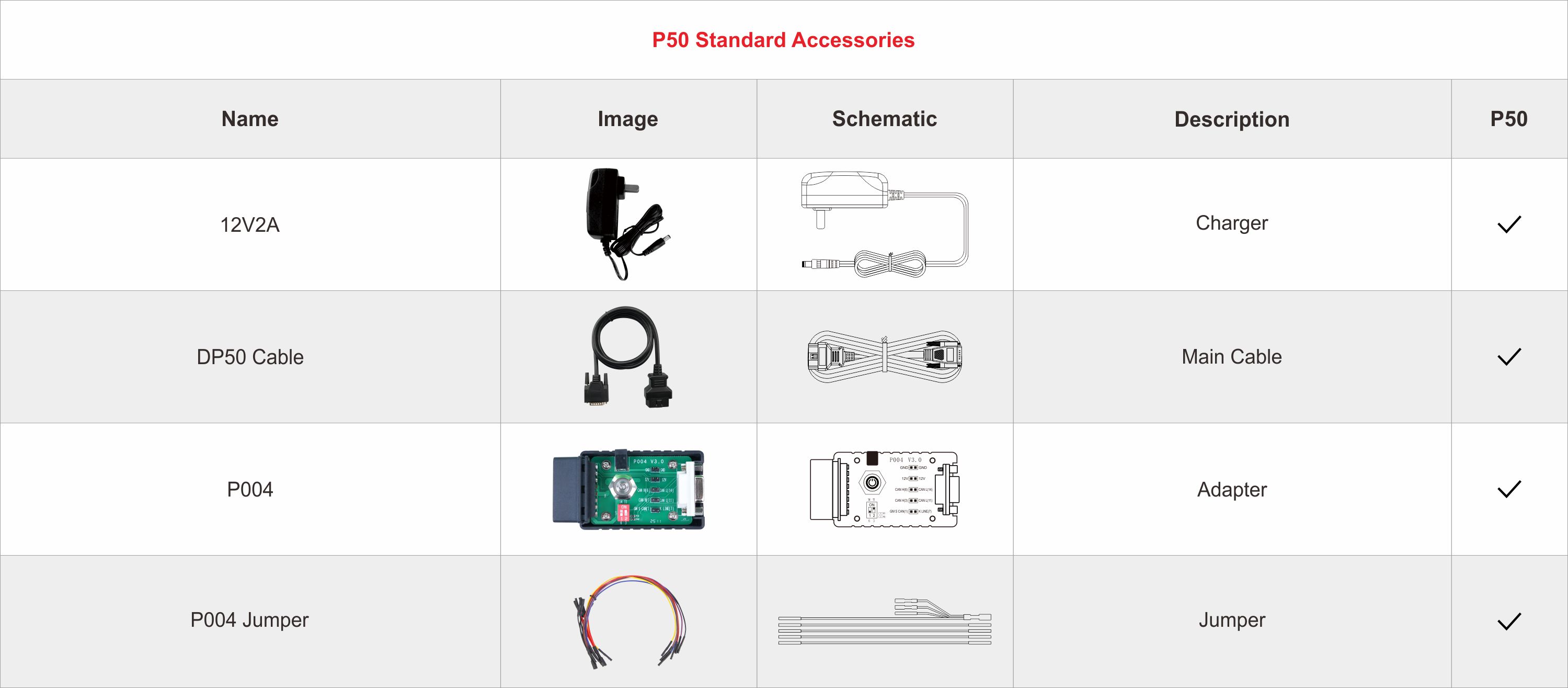

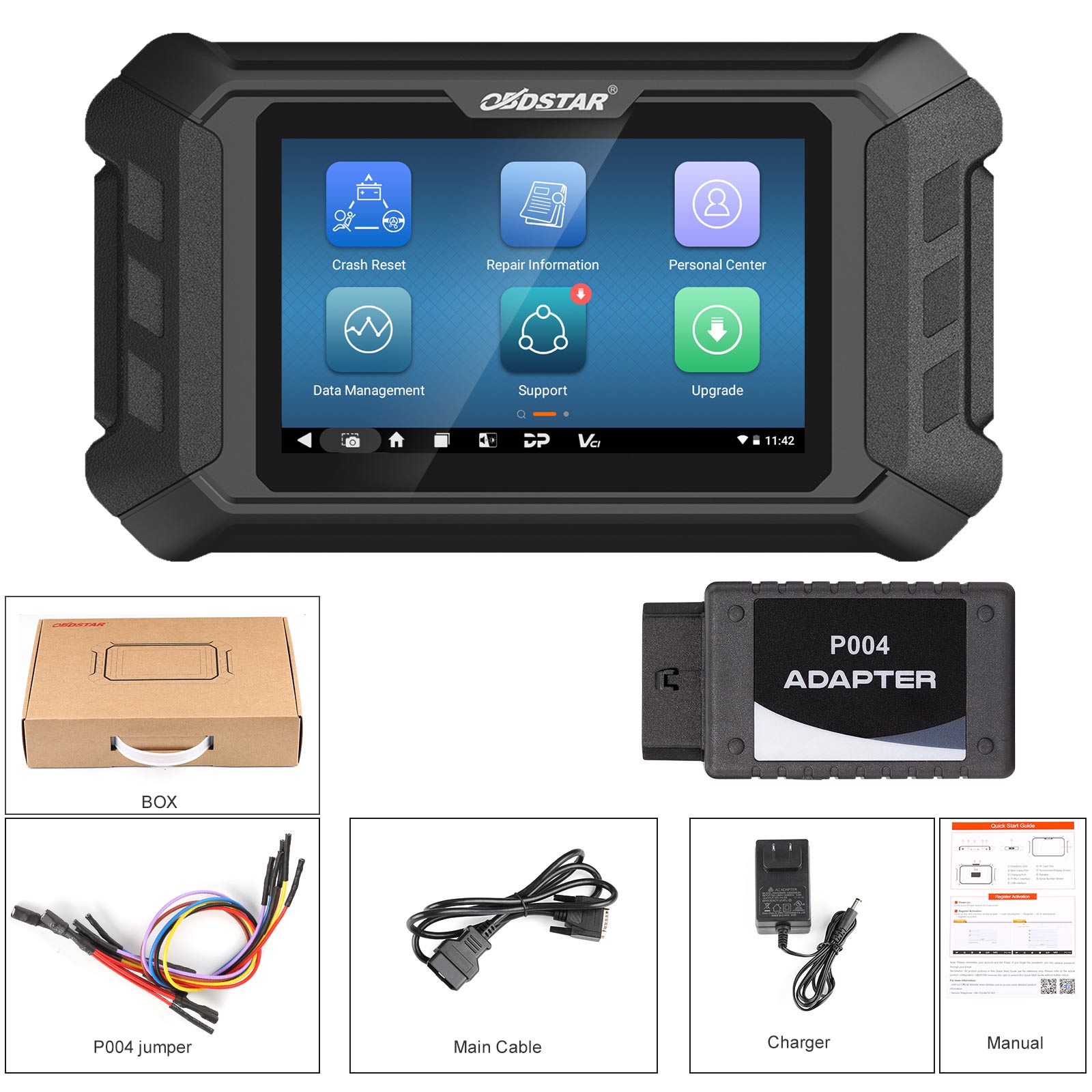

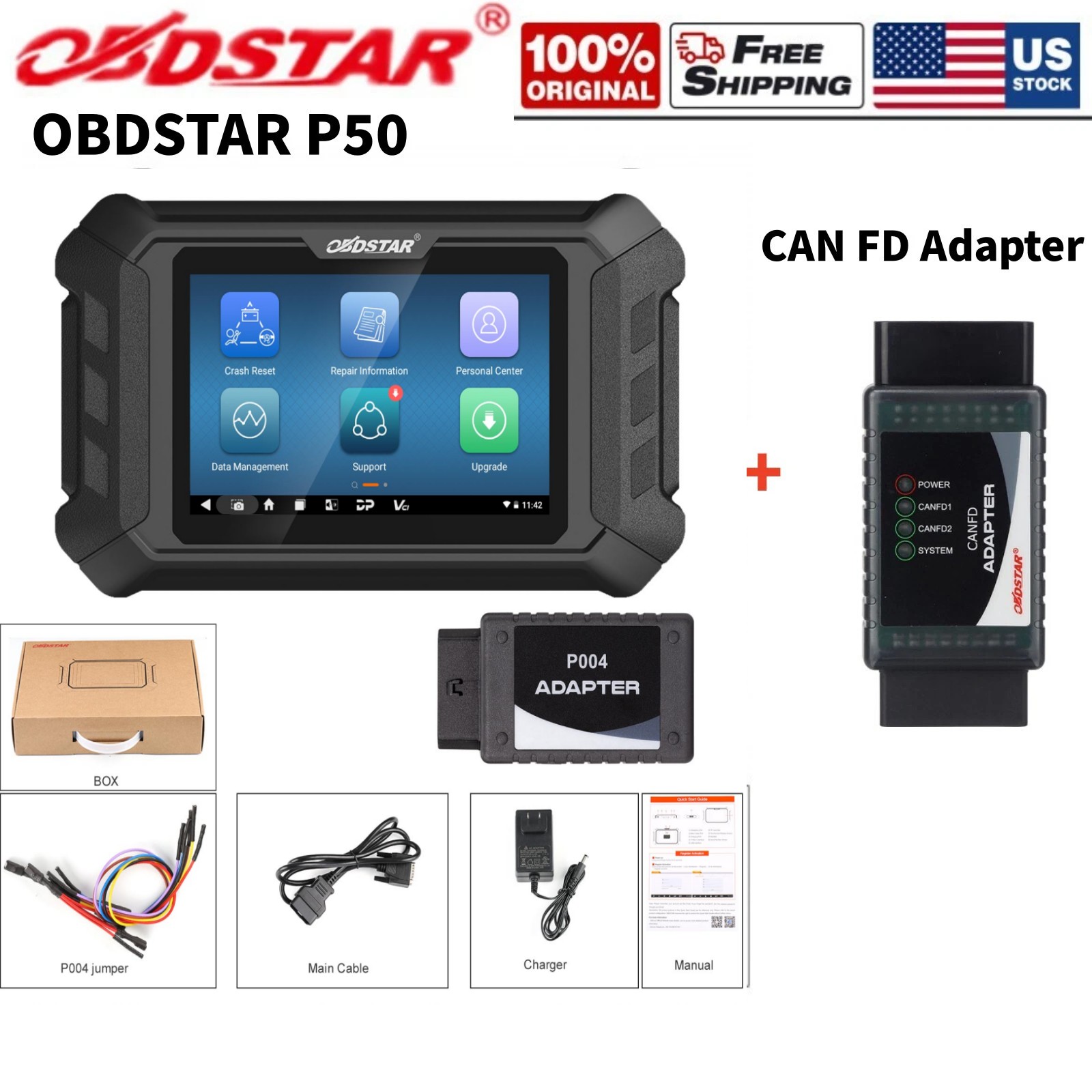

Package Includes:

1pc x P50 Main Unit

1pc x Main Cable

1pc x P004 Adapter

1pc x P004 Jumper

1pc x 12V2A Charger

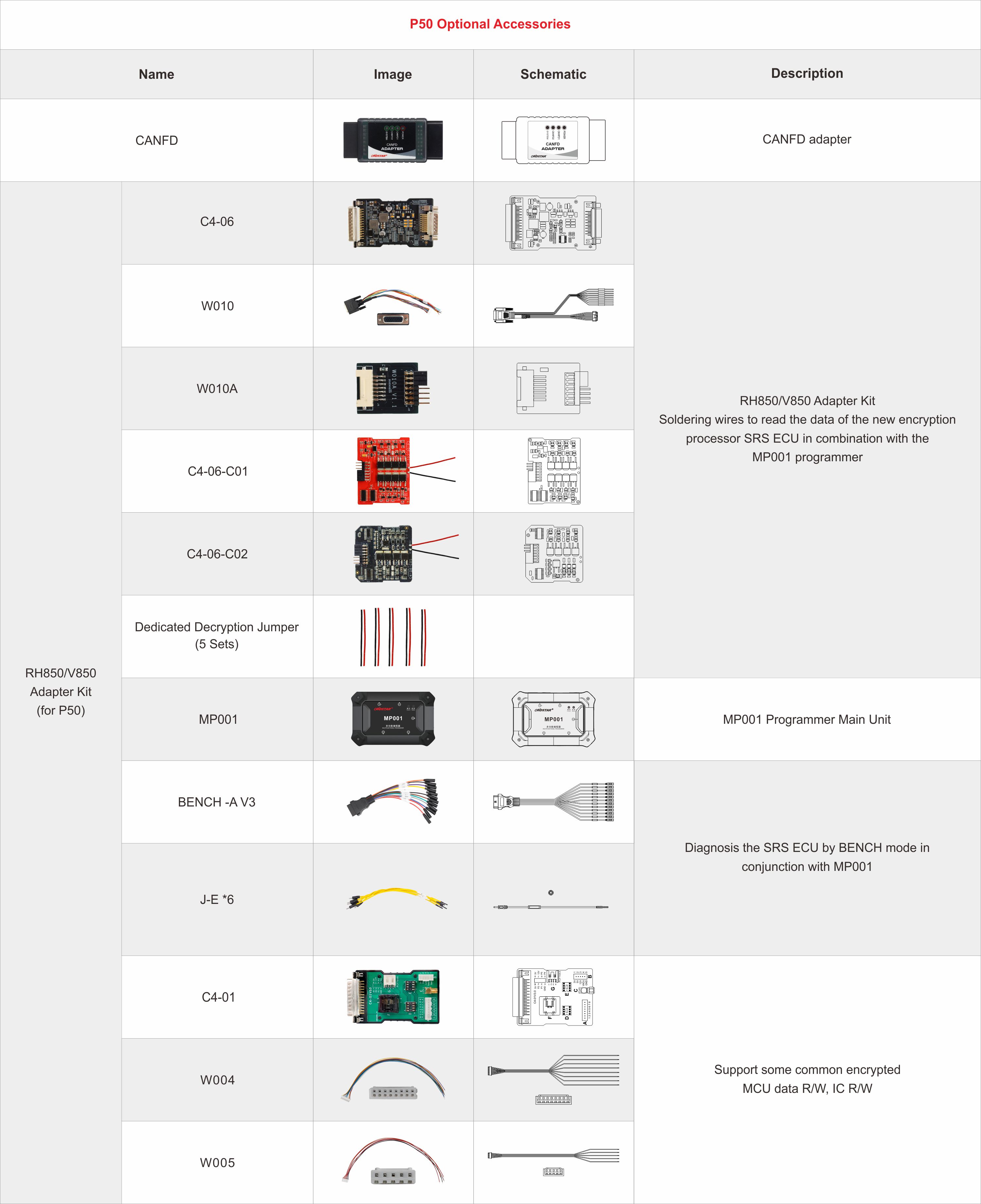

Note: Optional accessory not included!
