Hight Power 3.5W White Laser Car Laser Light Stage Lighting Source Module
Characteristics:
✔ Technology core: high energy laser excitation fluorescent crystal to produce White light
✔ Luminous intensity reaches 540cd/mm2
✔ 10000 hours service life
✔ No moving parts, high stability, high shock resistance
✔ Low-voltage drive, instant on-off
✔ Full coverage of visible spectrum, no infrared and ultraviolet components
✔ Adjustable brightness, support amplitude modulation and frequency modulation
✔ Original imported laser
✔ High conversion efficiency, lighting is 30%+ higher than market productsProduct principle

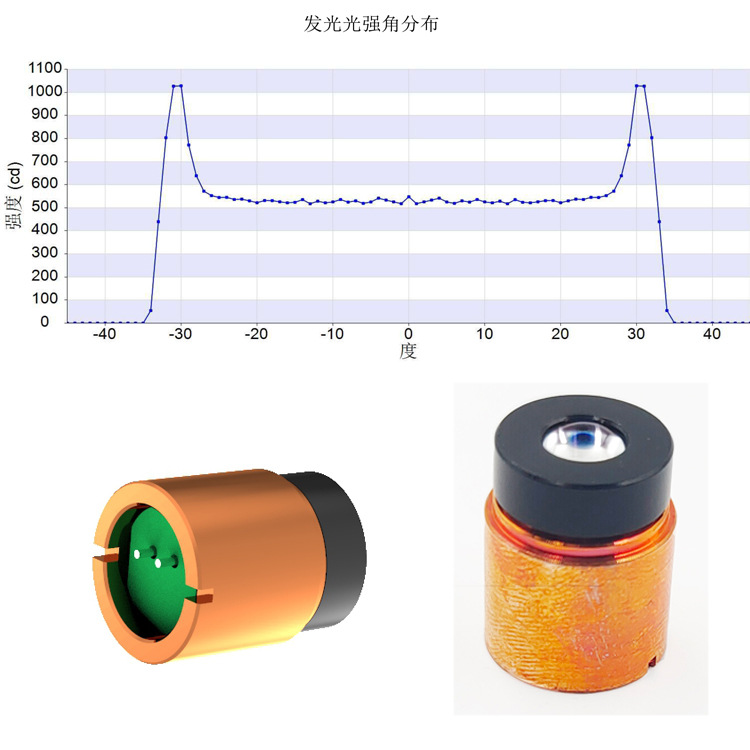

Luminescence Angular Intensity Distribution
Luminescence Angular Intensity Distribution

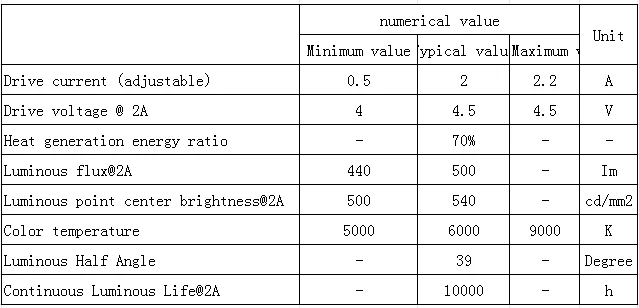

Product parameters

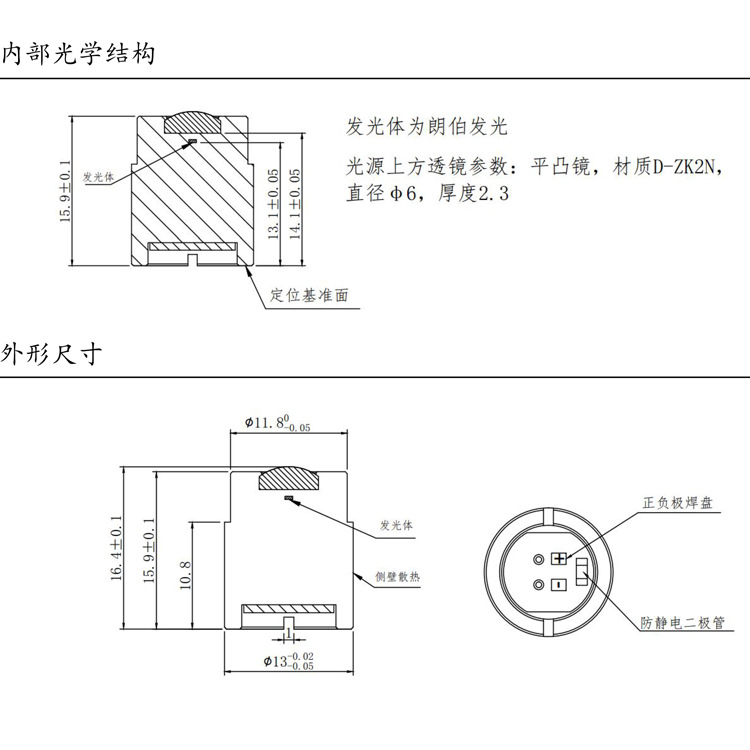

1. Appearance size: diameter 17.5X20.5mm
2. Appearance material: H62 brass
3. Laser parameters: 5W 455nm
4. Product color temperature: 4500-6200K optional
5. Structural principle: Monochromatic blue laser directly penetrates the fluorescent sheet
6. Diffusion angle: 60 degrees
7. Luminous flux: 750lm
Heat dissipation requirements
1. The heat dissipation system only needs to dissipate heat through the heat dissipation surface (see the labeling in the external dimension drawing). The temperature of the heat sink is not higher than 60℃.
2. The heat sink must be in full contact with the threads to ensure that the heat of the light source can be quickly conducted to the heat sink.
3. If necessary, the radiator needs to add a fan cooling to ensure that the temperature is not higher than 60 ℃.
4. Calculation of Heat Generation: Heat Generation = Driving Electric Power x Heat Generation Energy Ratio = Driving Electric Power x 70%.
Drive Description
Drive interface: according to the outline dimensions of the drawing labeling, in the positive and negative pads, welding positive and negative leads.
Driving method: The laser must be driven by constant current, using a constant current circuit within the 4.3-5V voltage, and ensure that the output voltage at any time - including instantaneous voltage, such as the power-up moment and ripple moment - does not exceed the maximum voltage in the Care should be taken to prevent electrostatic damage during transit. The maximum voltage can be increased in consideration of voltage loss.
Package
1pc High Power 3.5W Specialty Lighting Laser
1pc High Power 3.5W Specialty Lighting Laser
