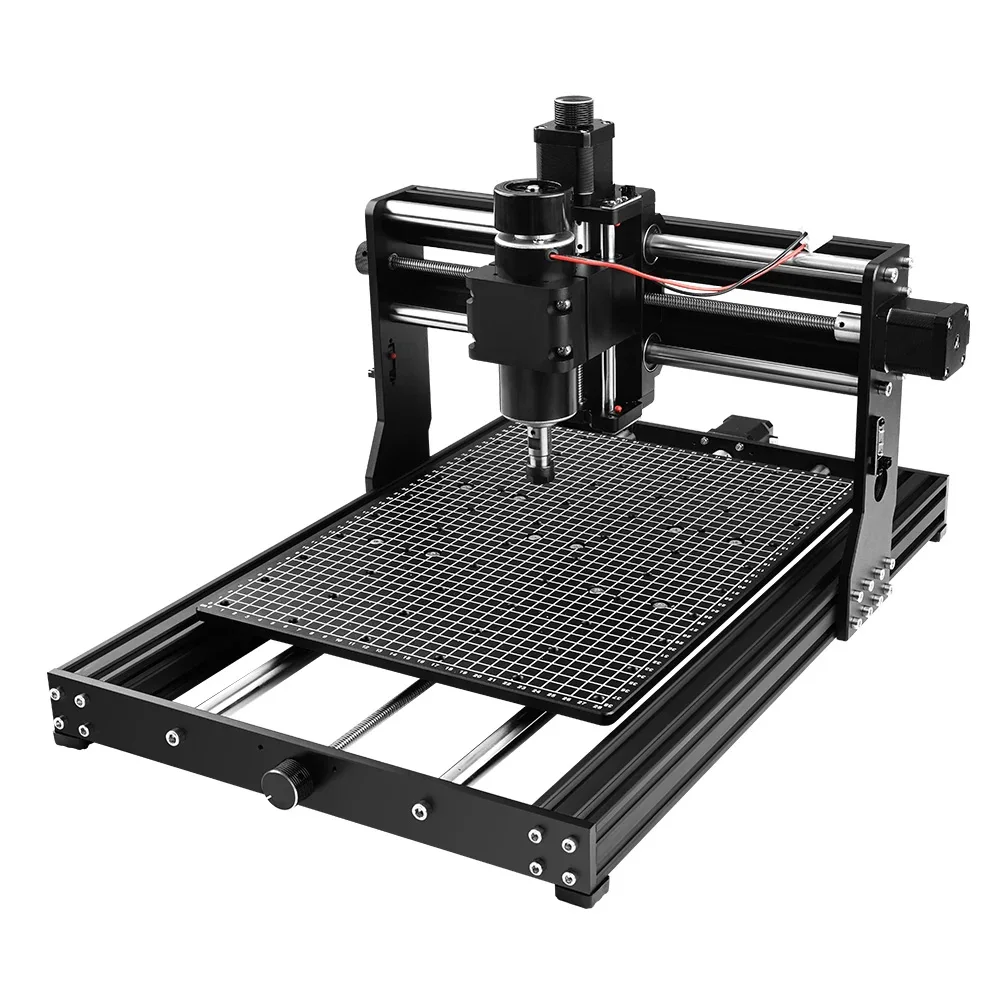

Specifications

Overall Size： 632 x 458 x 355 mm

Working Area： 400 x 300 x 73 mm

Power Supply： 48V 10.4A

Stepper Motor： Nema17 42x42x48 mm 0.55N.m 1.68A

Limit Switch：  X、Y、Z (both ends)

Precision：  0.01mm

Emergency Stop Switch：  Yes

Power Of Spindle Motor：  500W

Speed Of Spindle Motor：  11000rpm/min

Support Add-ons:  20W or 40W Laser (Optional)

Material: Aluminum

System: Windows: Windows XP/Win7/8/10/11 (32/64 can be) and Mac OS

Software: Grblcontrol (Candle) / Other GRBL compatible software

Features:

【Accessories Upgrade】 No plastic parts! The cnc machine features a sturdy all-metal body structure and utilizes a screw-driven mechanism. The X and Y axis are equipped with 16mm optical rods, which enhance the engraving precision and machining power. Comes with replaceable aluminum alloy Z-axis fixture and 65mm spindle fixture for compatibility with optional trimming machines.

【Large Working Area & Large Power】The 4030 PRO CNC router machine has a large working area of 300 x 400 x 73mm (11.8 x 15.7x 2.8inch). With a spindle power of 500W and a speed of 11000rpm, it offers increased power and efficiency, along with more silent. The accompanying 6.35mm milling cutter and chuck enable the spindle to be utilized in more scenarios, expanding its range of applications.

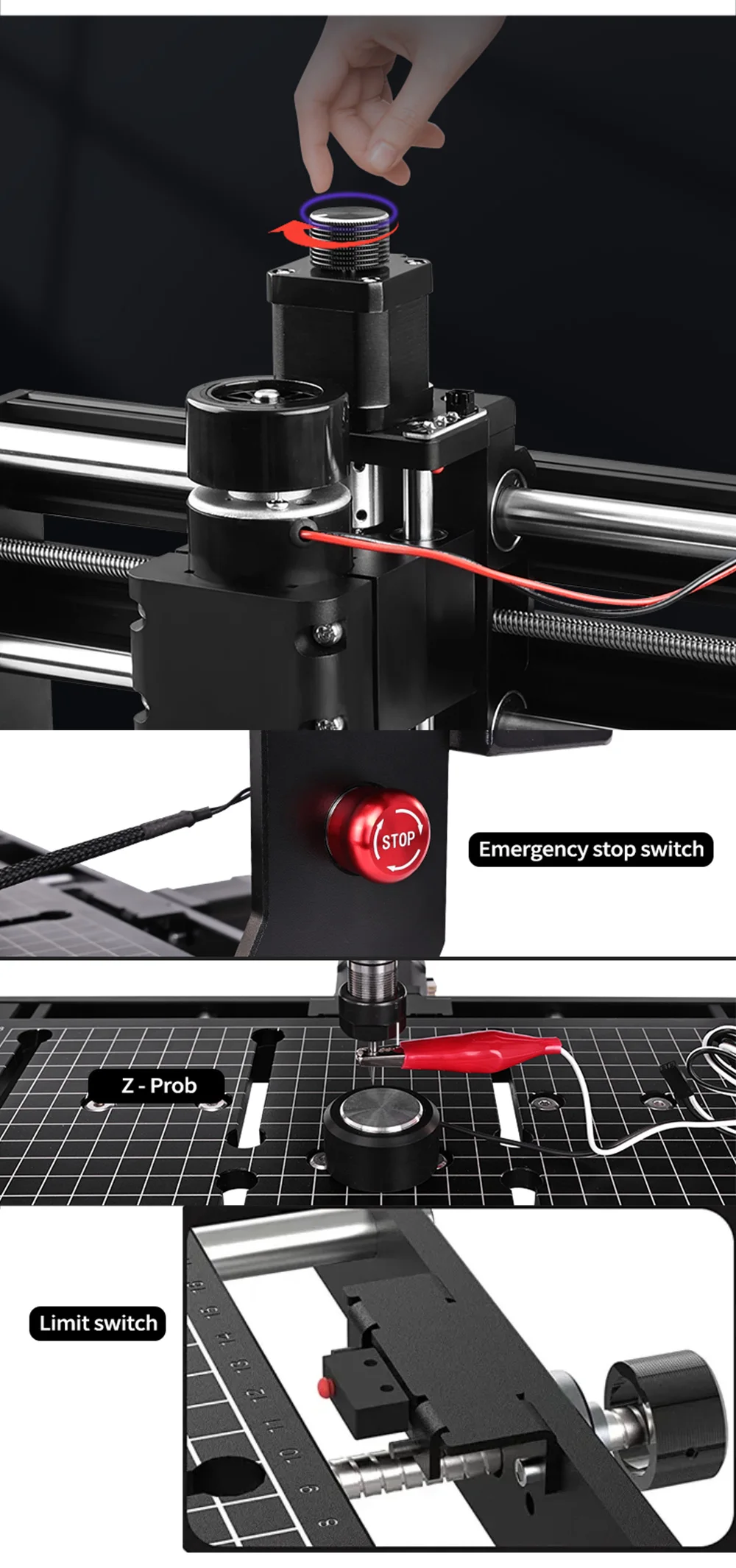

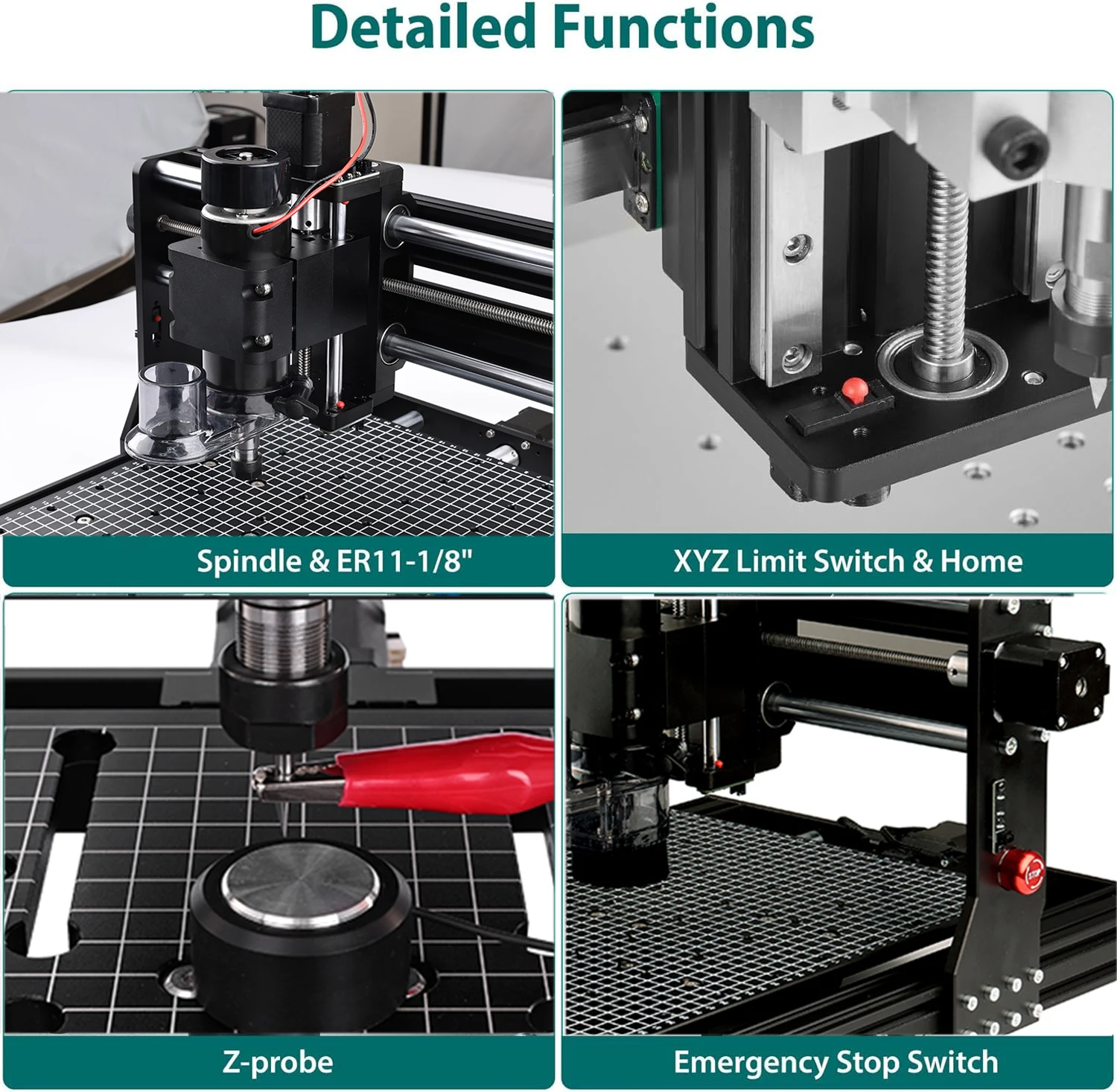

【Easy to Use】 The pre-assembled module of the engraving machine's XZ axis gantry and base assembly reduces the assembly workload, significantly lowering the assembly difficulty and allowing you to start carving in less time. The inclusion of a metal emergency stop switch along with 6 limit switches enhances the convenience and safety, making it suitable for both novice and experienced enthusiasts.

【Wide Application Range&Strong Compatibility】 The CNC woodworking machine is compatible with GRBL software and supports Windows XP / 7 / 8 / 10 / 11 and Mac OS systems. Suitable for engraving stainless steel, wood, aluminum, brass, organic glass, leather, PCB, MDF, acrylic acid, resin, nylon, carbon fiber, polyvinyl chloride, polychlorinated biphenyls, PCB, PVC and other projects and materials.

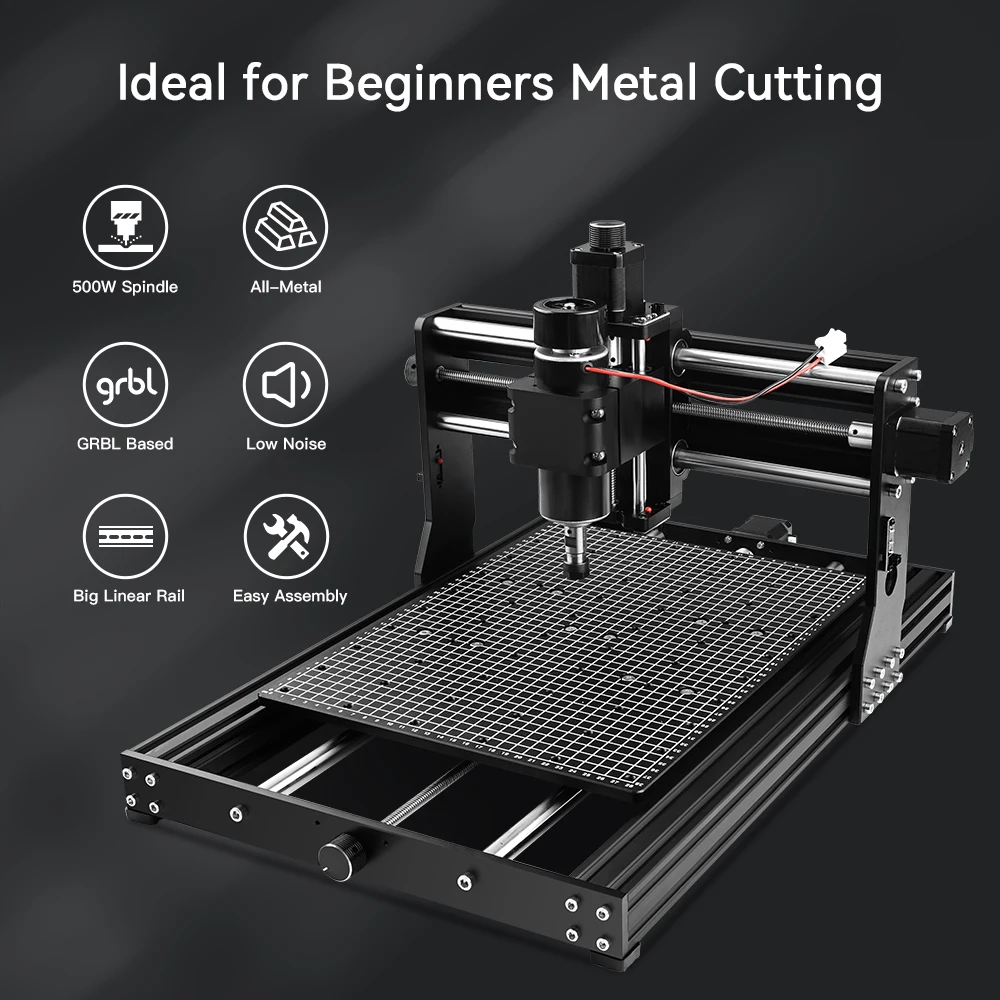

• High Power Spindle & All-metal Body:

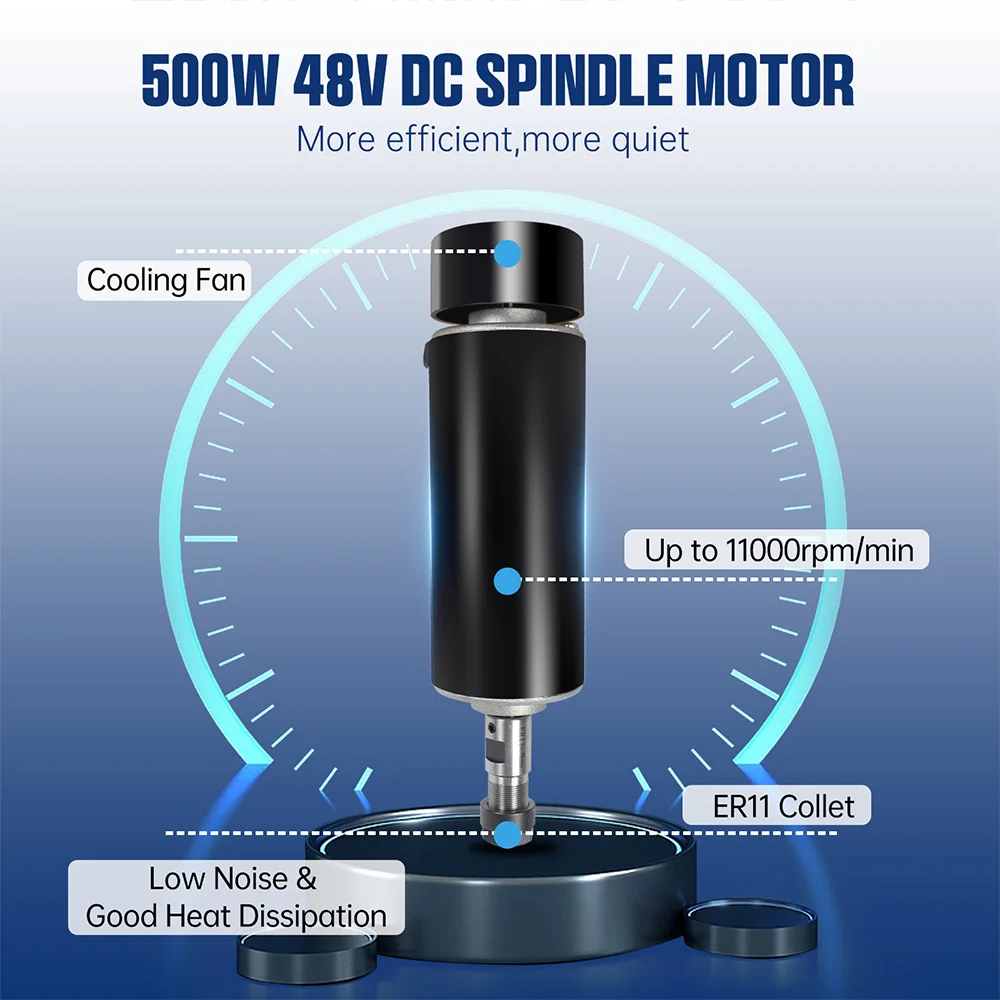

This 4030PRO CNC machine is solidly built with all-metal body structure and upgraded 500W 52mm spindle with E11 collet, more powerful and higher efficiency, making it possible to cut stainless steel, aluminum and other metals

• High Precision & Stability:

All-metal X-Z axis part, up to 73mm of vertical travel, more powerful stepper motor, all of these are designed to ensure the movement of the 3-axis faster and more stable, resulting in improved engraving accuracy

• Larger Working Area:

The working area of the 4030 -PLUS router vs the 3018-PRO is larger, increased to 400*300*73mm. Our working table with a particular appearance has precise scale lines and a flat working surface, convenient for you to locate and measure the engraving material size. And the high quality emergency stop and 6 limit switches for all-around protection making it more safe to use

• The machine is semi-assembled, easy to install





20w/40w Laser module

Feature：

Specification (20W)

Size of Laser Module: 40*40*130mm

Input Voltage & Current: 12V 3A

Laser Wavelength: 450±5nm

Output Power: 20W

Optical Powe: 5000mW

Precision: 0.08mm

Interface: pin (12V, GND, PWM)

Weight: 231g

Cutting Depth: 3-5mm

Features: High speed engraving (Max. 1.5mm)

Deep cutting (Max.5mm, speed: 100mm/min, power: 1000)

Application : Other Laser engraving machine

Applicable Materials: Plywood、Fabric、Slid wood、Plastic、Bamboo、Paper、Acrylic、Food、

Ceramics、Stainless steel、Leather、Cardboard、Coated Metal、Kraft Paper、Glass

Specification (40W)

Size of Laser Module: 40*40*150mm

Input Voltage & Current: 12V 3A

Laser Wavelength: 450±5nm

Output Power: 40W

Optical Powe: 1000mW

Precision: 0.08mm

Interface: pin (12V, GND, PWM)

Weight: 277g

Cutting Depth: 3-5mm

Features: High speed engraving (Max. 1.5mm)

Deep cutting (Max.5mm, speed: 100mm/min, power: 1000)

Applicable Materials: Plywood、Fabric、Slid wood、Plastic、Bamboo、Paper、Acrylic、Food、

Ceramics、Stainless steel、Leather、Cardboard、Coated Metal、Kraft Paper、Glass.

Noted：If you want to engrave glass, please stick glass colored paper first and then engrave.



Advantage：

【Compressed Spot Technology】Premium LD-C lens allow the engraver module to form compressed beam spot, mini focus spot size: 0.08* 0.08mm, which is with high accuracy, high efficiency and penetration. Cutting up to 4mm thickness plywood in one pass.

【Safe and Effective】With eye-protection cover, no need to wear goggle, convenient to use. All aluminum alloy shell with cooling fan for heat dissipation, light weight and good performance. Cutting speed: cutting 4mm plywood in one pass at a speed of 100mm/min; engraving speed: 304 stainless steel, up to 100mm/min, fast and efficient.

【Excellent Compatibility】Just need to simply connect to the CNC machine with screws and wire to the motherboard then the installation is finished. Compatible with most of the cnc router machine in the market, including cutting machine, cnc engraving machine, DIY engraver, milling machine.

【Guaranteed Assurance】We offer intimate after-sale service with 3 year warranty. If there is any problem or using inquire related to our engraving module head, just feel free to contact us, we will response within 24 hours.

Application Material:

Carving Objects: All wood, bamboo, paper, plastic, leather, PCB board, aluminum oxide, stainless steel, non-reflective plating and lacquered metal, glass

Cutting Objects: Cardboard, non-woven fabric, light wood, Acrylic material, thin plastic board.

Wide applications

• Can engrave on Stainless steel,Wood, MDF, Carbon fiber, PCB, PVC, Leather, Paper, Acrylic, Resin, Ceramic products, Food, Bamboo, Plastic, Nylon, Plywood, Brass, Plexiglass, Aluminum and so on.
• If you change the spindle to a 5.5W-40W module,then also can carve the kraft paper, wood, leather(wallet), bamboo, rubber.

This machine can both engraving and cutting.

• It can cut 8mm wood products at one time,more easy to create DIY handmade.
• The recommended thickness for each layer of wood is 1mm, and the feed speed is 300mm/min

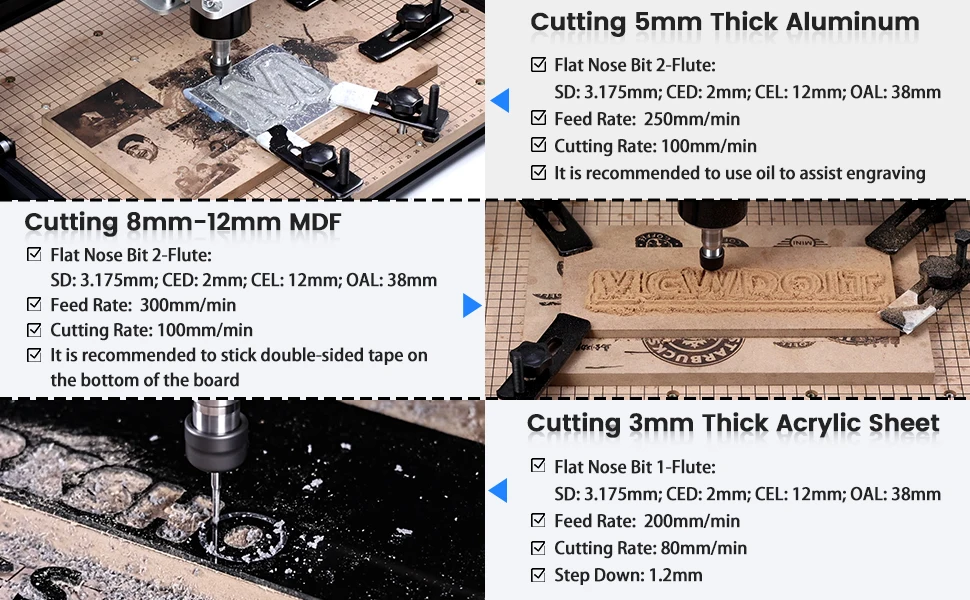

• Cutting 8-12mm MDF (Wooden Class) ; Feed rate: 300mm/min;Cutting rate: 100mm/min
• Cutting the 2-3mm Acrylic: (Acrylic Type); Feed rate: 200mm/min;Cutting rate: 80mm/min

This machine can also carve metal, and the depth and feeding speed required for each pass need to be adjusted according to different metal types,the lower the speed, the more stable the work will be.

• The recommended depth for each pass of stainless steel is 0.1mm, and the feed rate is 120mm/min
• Recommended cutting depth for aluminum and brass is ≤ 0.5mm, and feed speed is ≤ 300mm/min
• Cutting 1-5mm Aluminum Plate: (Metal Type) ; Feed rate: 250mm/min;Cutting rate: 100mm/min

Attention:

• Due to the huge friction between the milling cutter and the metal, the temperature of the metal will be very high. Therefore, please constantly add lubricating oil during the carving process.

GRBL Software

• Our parcel include a 4G USB flash drive,you can download the english user manual and GRBL software from the flash drive.
• File Format (gcode): *.nc, *.ncc, *.ngc, *.tap, *.cnc.
• Software used to create Gcode: Carbide Create, Artcam, MeshCam, Fusion360, Inkscape etc.

 Support Multi-Languages



Touchscreen offline controller

Feature:

• This offline controller is equipped with a 2.8 inch LCD touch screen,the touch screen control design of the offline machine can make controlling the engraving machine more simple and convenient;
• The SD card contains some files for testing, and you can also put the desired files into the SD card.The functions of the touch screen offline controller are the same as the computer's control software,and you can also control every movement of the engraving machine as if you were operating on top of the engraving machine.
• You can successfully and easily operate the engraving machine without connecting to a computer,greatly improving work efficiency;Just put the project you need inside that SD card,and you can operate the engraving machine via this offline controller.

Touch Screen	2.8” Touchscreen LCD Display
Product size	3.74*3.17*0.7inch (95*80*18mm)
Product weight	350g (0.77 pound)
Connector Port	8 Pin
Software Type	GRBL Offline Controller
Compatibility	Compatible with 4030 pro,3020 plus,4540 CNC Router

Size:

• Display Size: 2.8 inch (56.9*42.7mm)
• Product Size: 3.74*3.15*0.7 inch(95*80*18mm)

Precautions for use

• When connecting to an offline controller for operation, please do not connect the control panel to the PC through a USB cable at the same time, otherwise the following interface will be displayed, resulting in offline unavailability;
• When the status display bar displays "??", it means that the offline machine tool cannot recognize the status of the control panel at this time. You need to press the reset button on the CNC machine tool control panel and then restart the offline machine tool;
• This offline controller is compatible with the GRBL 1.1 controller.

Wide Application

• This touchscreen grbl offline controller is suitable for 3018,3018 pro,3018 pro max,upgraded 3018 pro,3020 plus,4540 series etc cnc router,grbl

White offline controller:

GRBL Offline Remote Controller

• Support SD card and TF card at the same time, standard capacity 1G.
• With this offline controller module, you can directly control the CNC router without connecting it to your computer.
• After inserting the file into the SD card,the engraving file can be directly identified. You can also use the micro USB cable to connect the offline hand controller board to your computer and save the file directly.
• Easy to use: All you have to do is connect the offline module to the GRBL controller board, which you can use it to control the CNC rounter.
• Manually control: manually adjust X,Y,Z axis location as engraving starting point,manually open or close spindle,manully open or close cooling fan
• File engraving: after off-line controller save file, it can connect the GRBL control board and process engraving,no need to connect PC computer
• Save file: after the off-line controller connect PC,it will be recognized as USB,large capacity storage device, can access engraving file directly.
• SD shows it is SD card condition,turn on power supply after insert SD card,otherwise,it won't work.SD card capacity 4G could be recognized.

Main Page

• Ctrl: Machine Control;
• File: Use the Gcode file;
• Press [Y+] [Y-] to select; Press[Ok] to Enter

Control Page

• X± Y± Z±: Moving Axis
• OK/Spindle: Spindle ON/OFF
• Exit/Step: Change Step/Exit (long press)
• How to increase the spindle power: After pressing the spindle button, press and hold the OK button and the Z+ button simultaneously to increase the speed.
• How to decrease the spindle: After pressing the spindle button, press and hold the OK button and the Z- button simultaneously to decrease the speed.

File Page

• Common supported formats include nc. tex. tap.
• Press [Y+] [Y-] to select file
• Press [Ok] to Enter
• Press [Ok] to begin if you are ready
• Note:Long press [Exit] to stop machining
