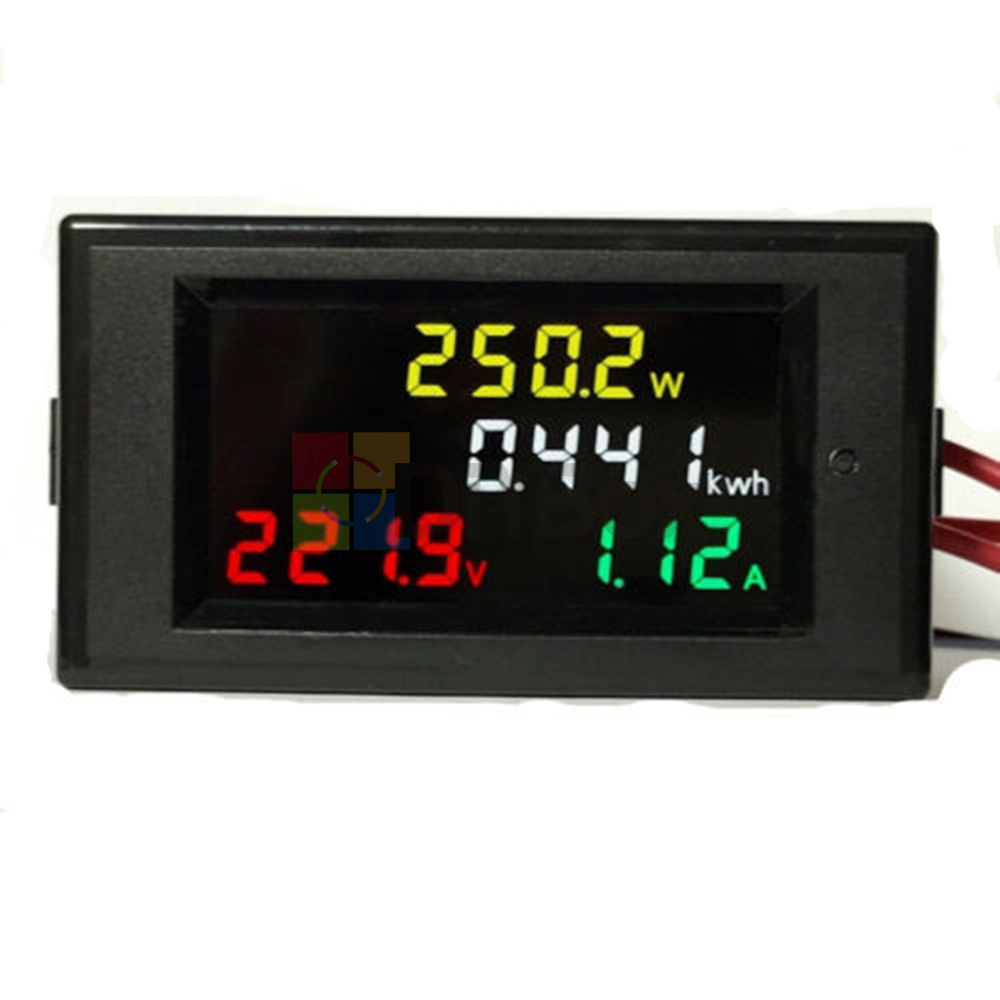

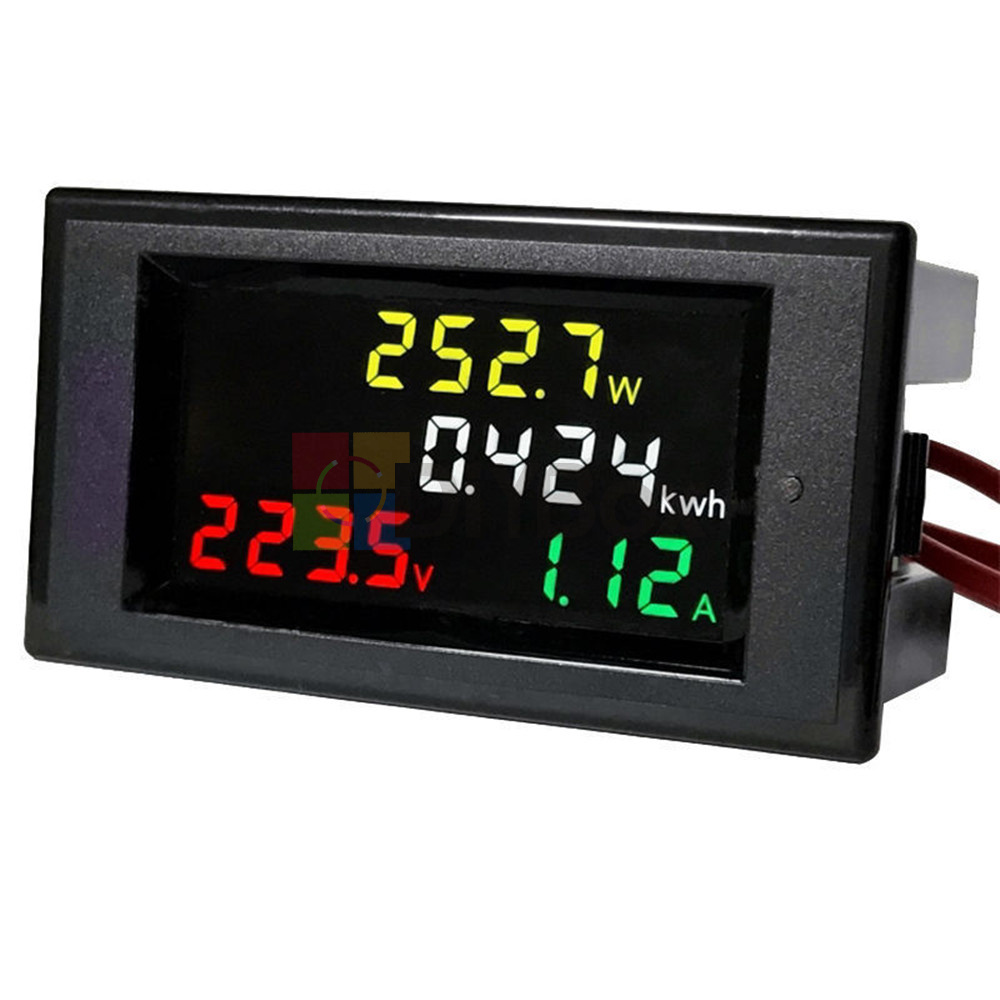

Description:
AC 80-300V/200-450V
Dimensions: 79 * 43 * 48mm / 3.1 * 1.7 * 1.9 in
Installation size: 76 * 39mm /3 * 1.5 in
Voltage measuring range: AC 80.0~300.0V/200-450V
Current measuring range: AC 0A~99.99A, the current display resolution is 0.01A, when more than 100A, it will display for 100.0A
Active power range: when the "display range" within 0-10000W, the power display range is: 0-9999.9W ; when the "display range" above 10000W, the power display range is: 10000-22000W
Electric power range: when the "display range" within 0-10000KWH, the electric power display 9999.999 ; above 10KWH, the electric power display 00000.99KWH ; Maximum display is: 9999999KWH
Accuracy: 1%± 2 words
Measuring speed: 2 times/second
Working temperature: -10℃~50℃
Working humidity: 10~80%(No cream)
Working air pressure: 80~106kPa
Direct sunlight: NO
Attentions:

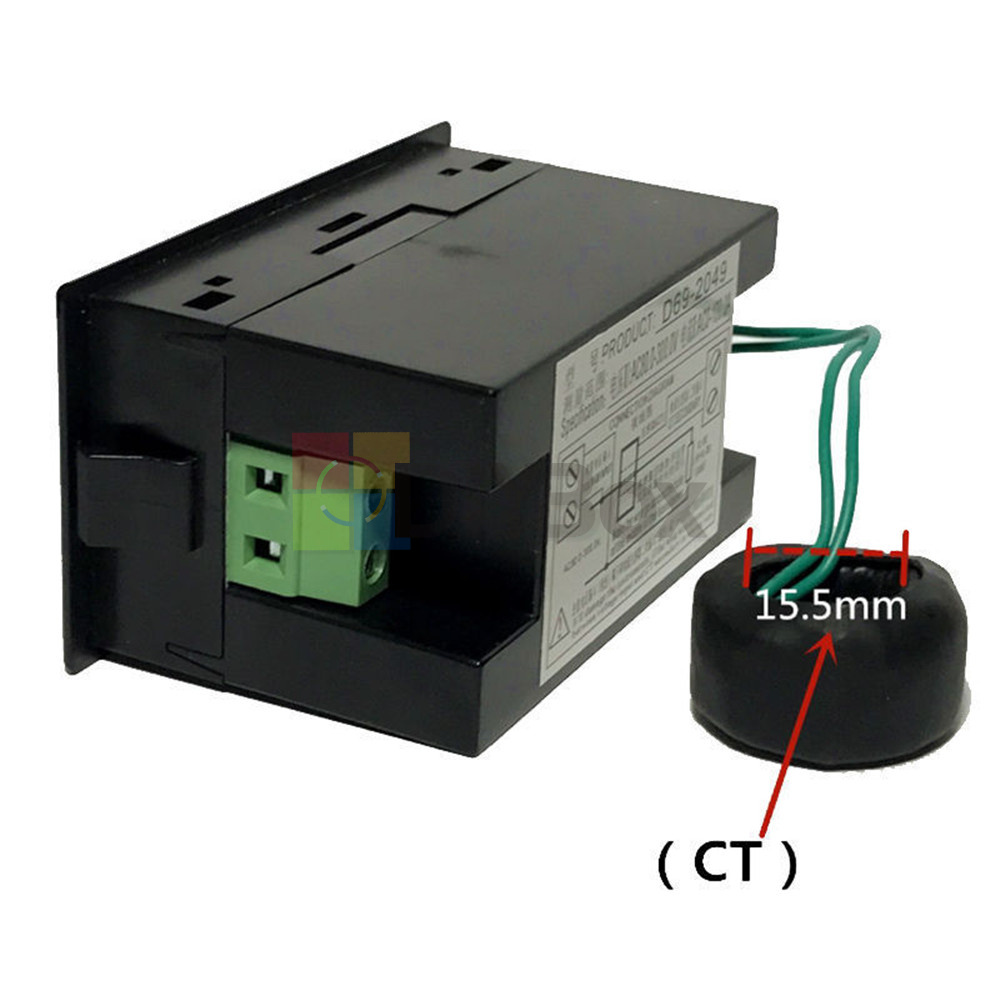

The voltage input (green) terminal and the current transformer secondary input (blue) wiring terminal wiring can not be wrong, otherwise the instrument will be damaged
This instrument is only applicable to the AC 50-60HZ mains power, can not be used for square wave, the inverter output and the correction is positive Hyun wave circuit measurement, or instrument will be damaged
The installation process can not be squeezed instrument meter LCD screen, otherwise there will be garbled / broken code situation
Package Included:
1PC*meter(AC 80-300V/200-450V)
1PC*CT
AC 80-300V/200-450V
Dimensions: 79 * 43 * 48mm / 3.1 * 1.7 * 1.9 in
Installation size: 76 * 39mm /3 * 1.5 in
Voltage measuring range: AC 80.0~300.0V/200-450V
Current measuring range: AC 0A~99.99A, the current display resolution is 0.01A, when more than 100A, it will display for 100.0A
Active power range: when the "display range" within 0-10000W, the power display range is: 0-9999.9W ; when the "display range" above 10000W, the power display range is: 10000-22000W
Electric power range: when the "display range" within 0-10000KWH, the electric power display 9999.999 ; above 10KWH, the electric power display 00000.99KWH ; Maximum display is: 9999999KWH
Accuracy: 1%± 2 words
Measuring speed: 2 times/second
Working temperature: -10℃~50℃
Working humidity: 10~80%(No cream)
Working air pressure: 80~106kPa
Direct sunlight: NO
Attentions:
The voltage input (green) terminal and the current transformer secondary input (blue) wiring terminal wiring can not be wrong, otherwise the instrument will be damaged
This instrument is only applicable to the AC 50-60HZ mains power, can not be used for square wave, the inverter output and the correction is positive Hyun wave circuit measurement, or instrument will be damaged
The installation process can not be squeezed instrument meter LCD screen, otherwise there will be garbled / broken code situation
Package Included:
1PC*meter(AC 80-300V/200-450V)
1PC*CT

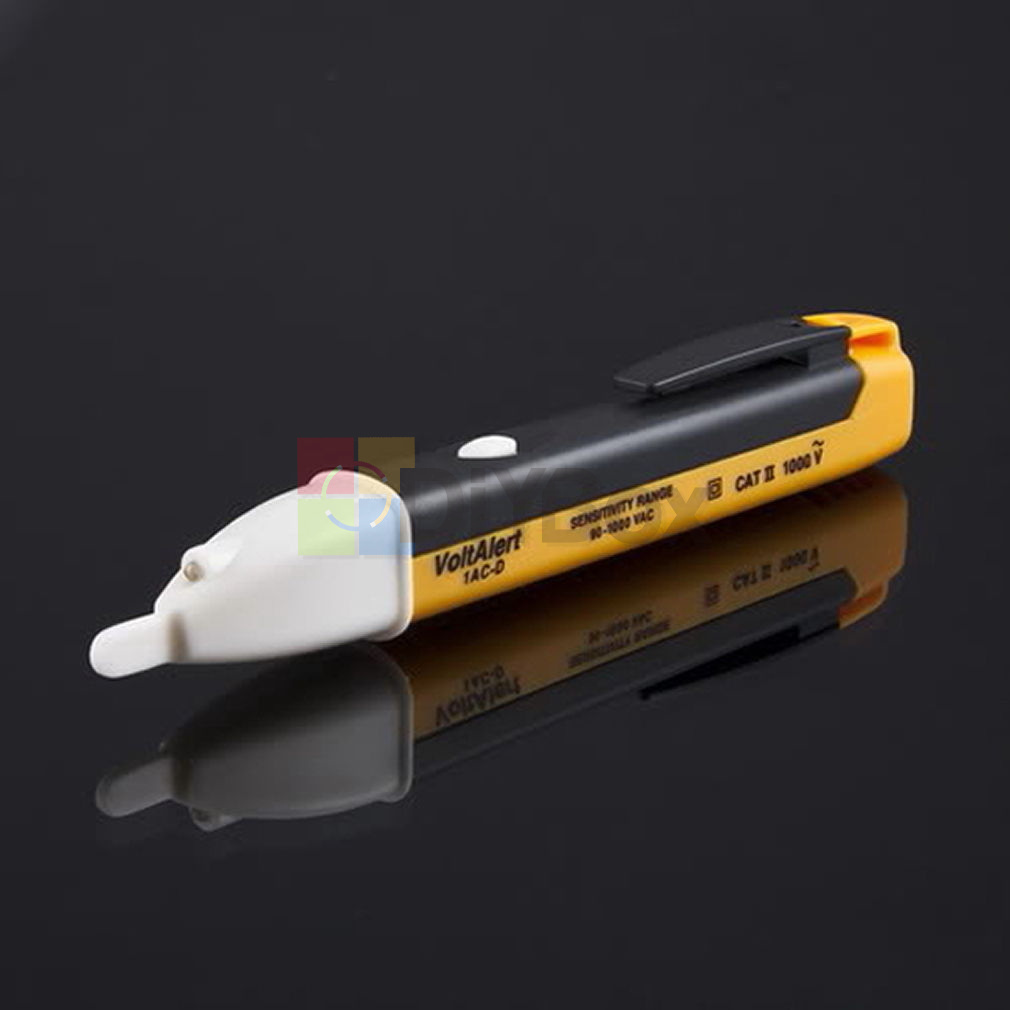

AC Voltage Power Detector
Electric Socket Wall AC Power Outlet Voltage Detector Sensor Tester Pen 90-1000V
The next generation AC non-contact voltage testers are easy to use — just touch the tip to a terminal strip, outlet, or supply cord. When the tip glows red and the unit beeps, you know there is voltage present. Electricians, maintenance, service, safety personnel, and homeowners can quickly test for energized circuits in the workplace or at home.
Frequency Range: 50 to 500 Hz
Test Voltage Range: 90-1000V AC
Safety Rating : CAT II 1000v
Powered By: 2 x AAA Batteries (Not included)
A perfect tool kit for home and electric industry uses
Ideal design for testing power cables, circuit breakers, wall sockets, junction boxes, fuses, etc
Just press the button, white LED light can be always on when there is absence of voltage
"Beep" sound and red flashing LED would indicate the presence of voltage
Totally insulated, no exposed metal or conductive parts
Long life and low power consumption
Compact, safety, & easy to carry
Material: ABS Plastic
Color: Yellow & Grey
Package Included:
1PC*AC LED Light Voltage Alert Pen
The next generation AC non-contact voltage testers are easy to use — just touch the tip to a terminal strip, outlet, or supply cord. When the tip glows red and the unit beeps, you know there is voltage present. Electricians, maintenance, service, safety personnel, and homeowners can quickly test for energized circuits in the workplace or at home.
Frequency Range: 50 to 500 Hz
Test Voltage Range: 90-1000V AC
Safety Rating : CAT II 1000v
Powered By: 2 x AAA Batteries (Not included)
A perfect tool kit for home and electric industry uses
Ideal design for testing power cables, circuit breakers, wall sockets, junction boxes, fuses, etc
Just press the button, white LED light can be always on when there is absence of voltage
"Beep" sound and red flashing LED would indicate the presence of voltage
Totally insulated, no exposed metal or conductive parts
Long life and low power consumption
Compact, safety, & easy to carry
Material: ABS Plastic
Color: Yellow & Grey
Package Included:
1PC*AC LED Light Voltage Alert Pen

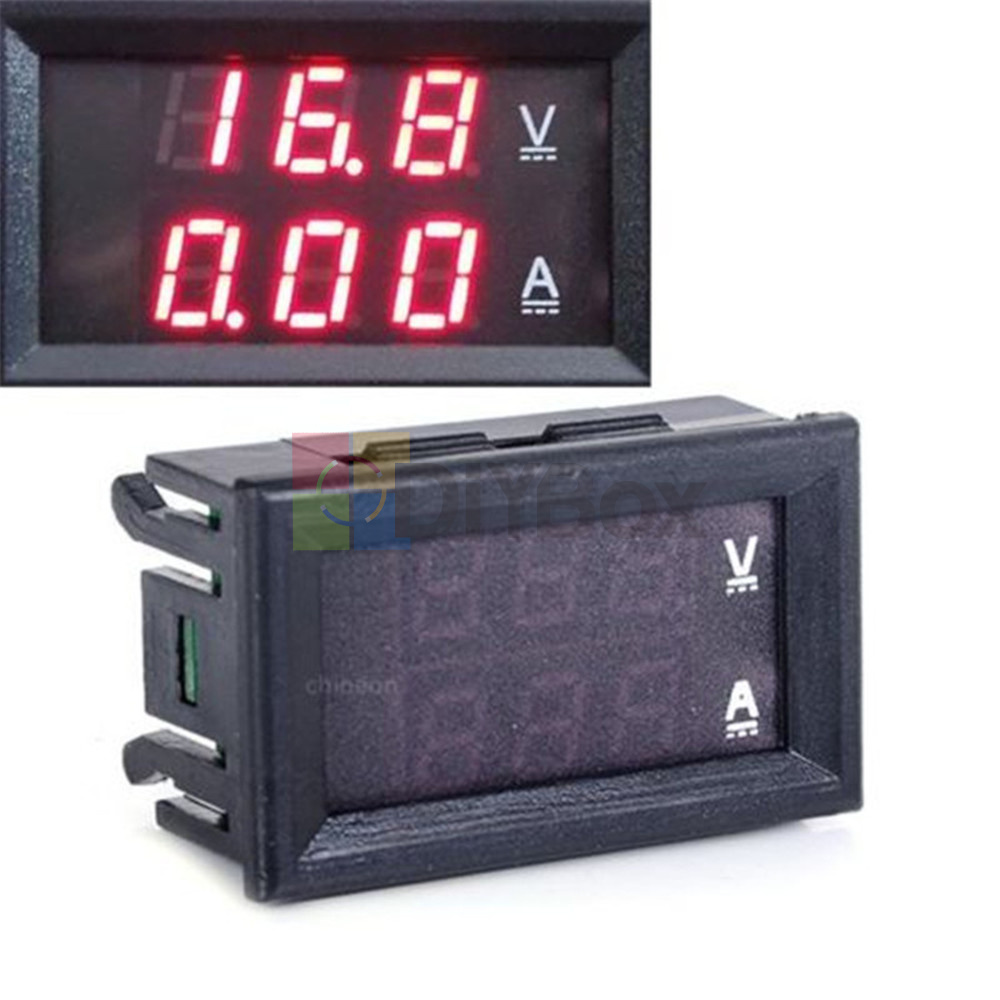

DC 0-100V Red+Red Voltmeter Ammeter
100% Brand New.
Size: 48mm x 29mm x 21mm.
Display color: Red LED(dual display).
Display: 0.28" LED digital.
Operating voltage: DC 4.5 ~ 30V.
Measure voltage: DC 0 ~ 100V.
Minimum resolution (V): 0.1V.
Refresh rate: ≥500ms / times.
Measure accuracy: 1% (± 1 digit).
Minimum resolution (A): 0.01A.
Operating Current: <20mA.
Measure current: 10A (direct measurement, built-in shunt).
Operating temperature: -10 to 65°c.
Operating Humidity: 10 to 80% (non-condensing).
Mounting cutout: 45.5mm x 26.5mm.
Package Included:
1PC*DC 0-100V Voltmeter Ammeter

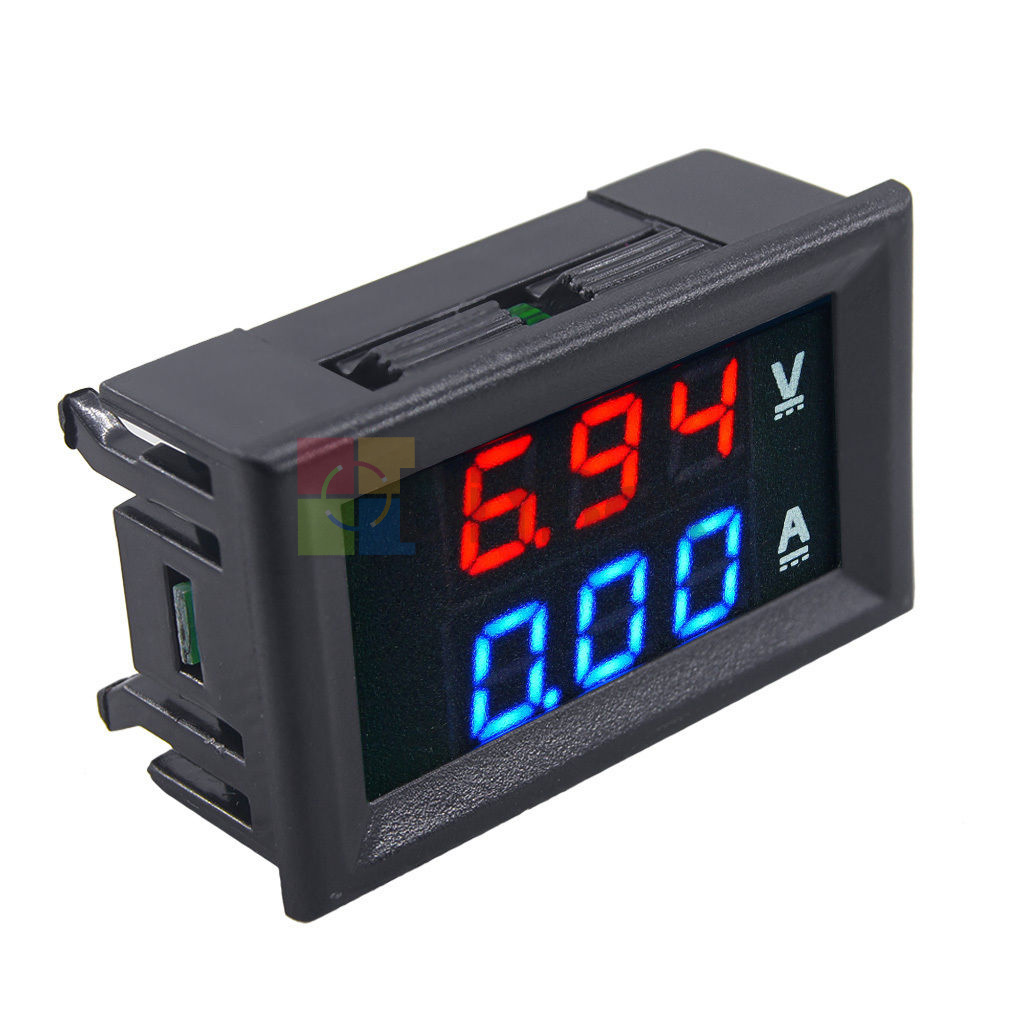

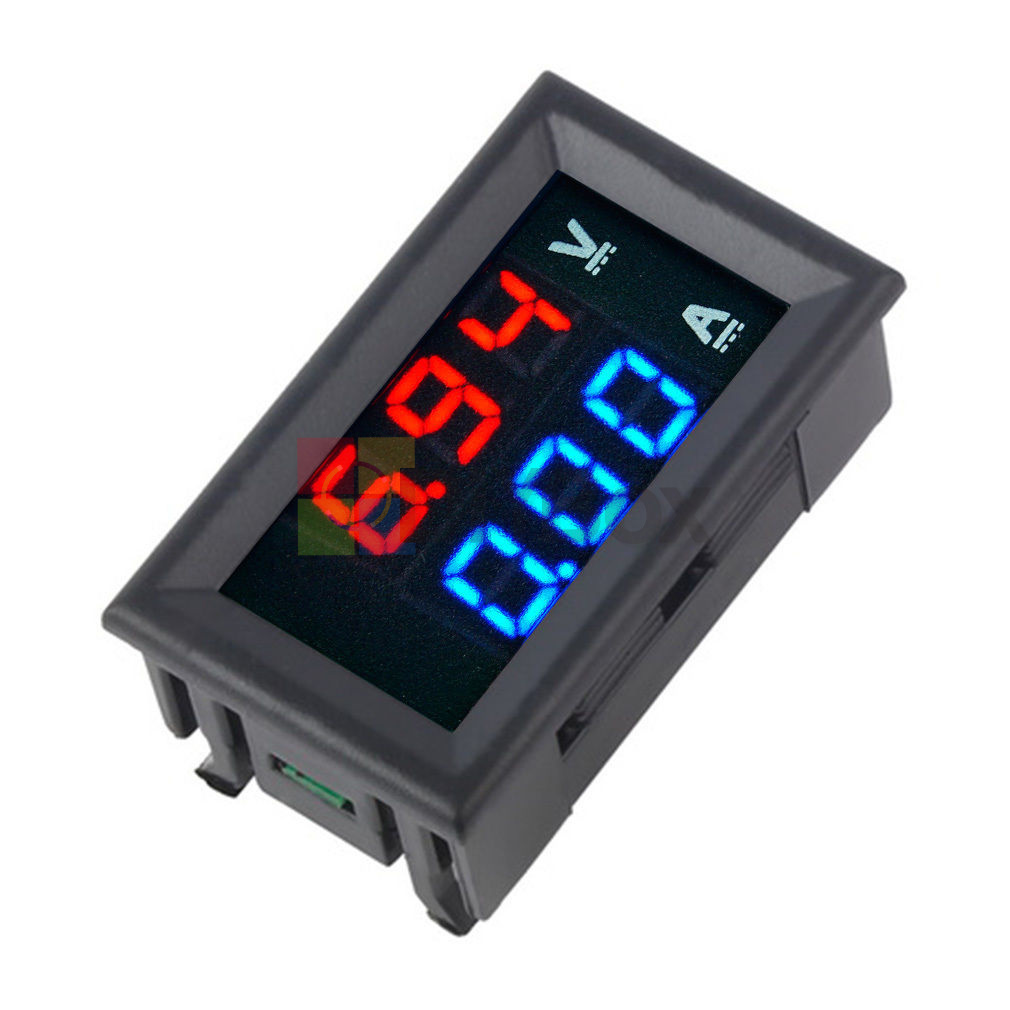

DC 0-100V Red+Blue Voltmeter Ammeter
100% Brand New.
Size: 48mm x 29mm x 21mm.
Display color: Red LED(dual display).
Display: 0.28" LED digital.
Operating voltage: DC 4.5 ~ 30V.
Measure voltage: DC 0 ~ 100V.
Minimum resolution (V): 0.1V.
Refresh rate: ≥500ms / times.
Measure accuracy: 1% (± 1 digit).
Minimum resolution (A): 0.01A.
Operating Current: <20mA.
Measure current: 10A (direct measurement, built-in shunt).
Operating temperature: -10 to 65°c.
Operating Humidity: 10 to 80% (non-condensing).
Mounting cutout: 45.5mm x 26.5mm.
Package Included:
1PC*DC 0-100V Voltmeter Ammeter
DC 0-100V Red+Blue Voltmeter Ammeter
Working voltage of Meter itself:DC 4 - 30V(The maximum input voltage can not exceed 30V. Otherwise the meter will be burned)
Working current of Meter itself:≤20mA
Voltage Measuring range: DC 0 - 100V
Current Measuring range: DC 0 - 10A
Voltage resolution (V): 0.1V
Current resolution (A): 0.01A
Measure accuracy: 1% (± 1 digit)
Display: 0.28" digital tube, Two color blue and red
Refresh rate: about 300mS / times
Dimensions:48mm*29mm*26mm
Operation Temp: -10℃-+65℃
Package Included:
1PC*DC 100V 10A Voltmeter & Ammeter
Working current of Meter itself:≤20mA
Voltage Measuring range: DC 0 - 100V
Current Measuring range: DC 0 - 10A
Voltage resolution (V): 0.1V
Current resolution (A): 0.01A
Measure accuracy: 1% (± 1 digit)
Display: 0.28" digital tube, Two color blue and red
Refresh rate: about 300mS / times
Dimensions:48mm*29mm*26mm
Operation Temp: -10℃-+65℃
Package Included:
1PC*DC 100V 10A Voltmeter & Ammeter
