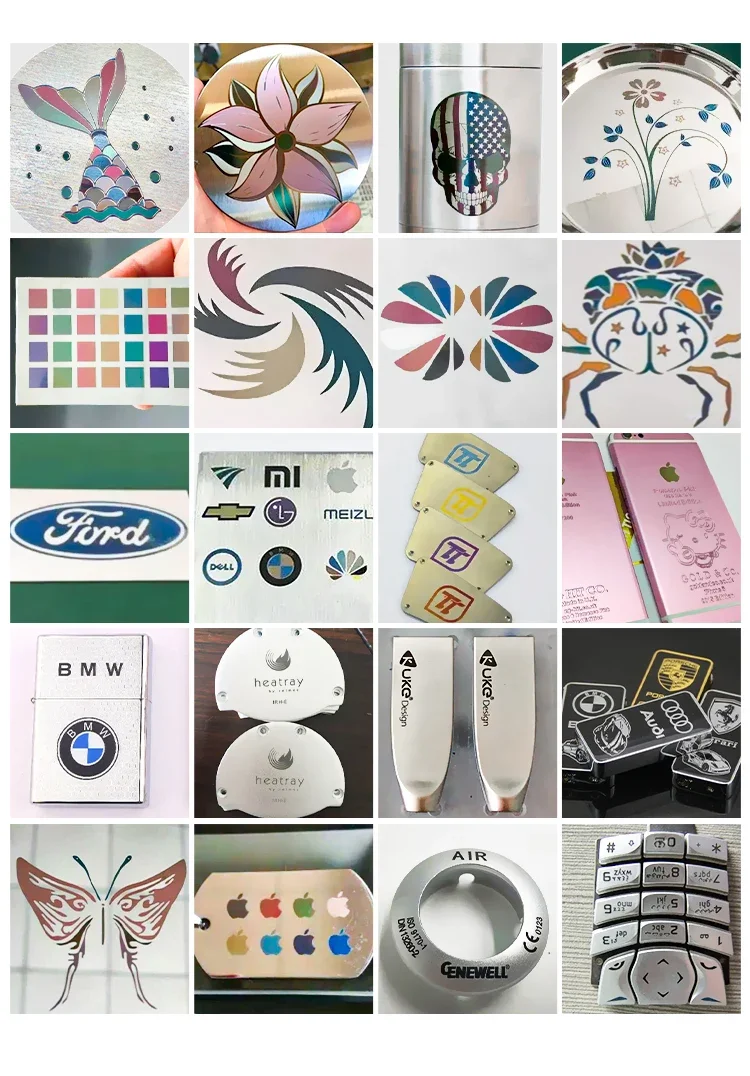

20W 30W 60W JPT MOPA M7 Fiber Metal Laser Marking Machine Colorful Print SG7110
Package included:
1 Set 20W/30W/60W JPT M7 MOPA Fiber Laser Marking Machine 110V or 220V with SG7110 Galvo
1 Set Rotation Axis A,B or C (optional)
1 Pieces 200x200mm Optics K9 Filed lens
1 Pieces 70x70mm Optics K9 Filed lens as a gift
1 Pcs U Disk (USB)
1 Pcs Data Line
1 Software Ezcad2
1 Set Foot Switch
1 Set Assembly Tools
4 pcs Fixed Sheet Metal
1 Set Power Cable
10 Pcs Metal Card
Note:
We have two vision main board for this machine, BJJCZ model for EZCAD
software and BSL model for Lightburn software which is optional, pls choose
the one you want when you place the order.
Note: The marking area is optional
we have 50x50/70x70/110x110/150x150/200x200/220x220mm and 300x300mm these size.
How to choose lens
Note: The marking area is optional
we have 50x50/70x70/110x110/150x150/200x200/220x220mm and 300x300mm these size.
How to choose lens
With Same Lens , The Higher Power , more precise marking.
With Same Power, The Smaller Lens, more precise marking.
Bigger Lens Engrave Bigger Area.
Smaller Lens more precise marking.
if 20w laser choose 200mm*200mm lens , that means your focus distance is very tall ,power come to mark object is cery very weak , so not biggest lens area is best ,but choose suitable lens.
Our recommendations:
20w choose 70mm*70mm , 110mm*110mm
30w choose 70mm*70mm , 110mm*110mm , 150mm*150mm, 200mm*200mm
50w choose 70mm*70mm , 110mm*110mm ,200mm*200mm, 300mm*300mm
The Optional Rotation AxisNote : The Rotation Axis is not for sale only, but order with the fiber laser marking.
The
"Conventional Rotary Axis D80" is the 80mm chuck style,which is also
the most widely used style chosen by most customers,the application
range of clamping is also the widest among the three.
The "Ring Rotation Axis D50&D60" is mainly used for ring jewelry etc.
The "Round wheel Rotation Axis" is mainly used for pen marking.

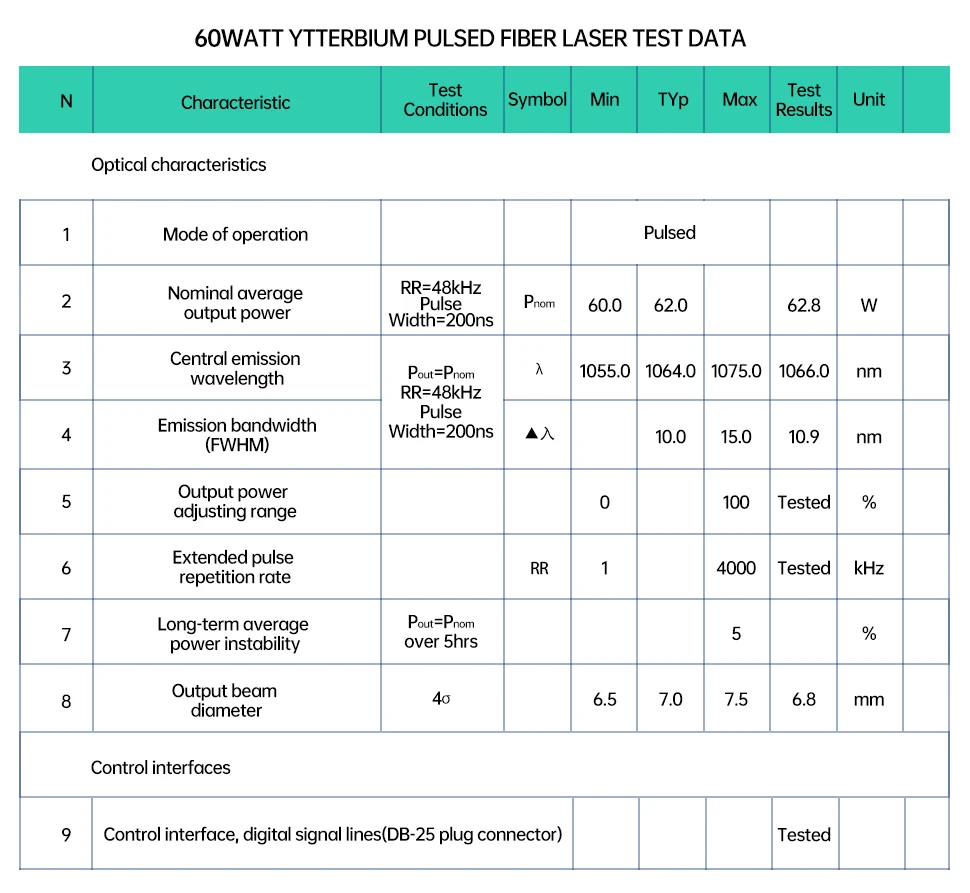

Technical Parameter
Model
Laser power
20W or 30W or 60W JPT M7 MOPA
Field Mirror(Work Area)
( 70*70mm / 110*110mm / 150*150mm / 175*175mm / 200*200mm / 300*300mm
Optional. Support extra purchase.）
Cooling Mode
Air Cooling
Laser Wavelength
JPT is 1064 um

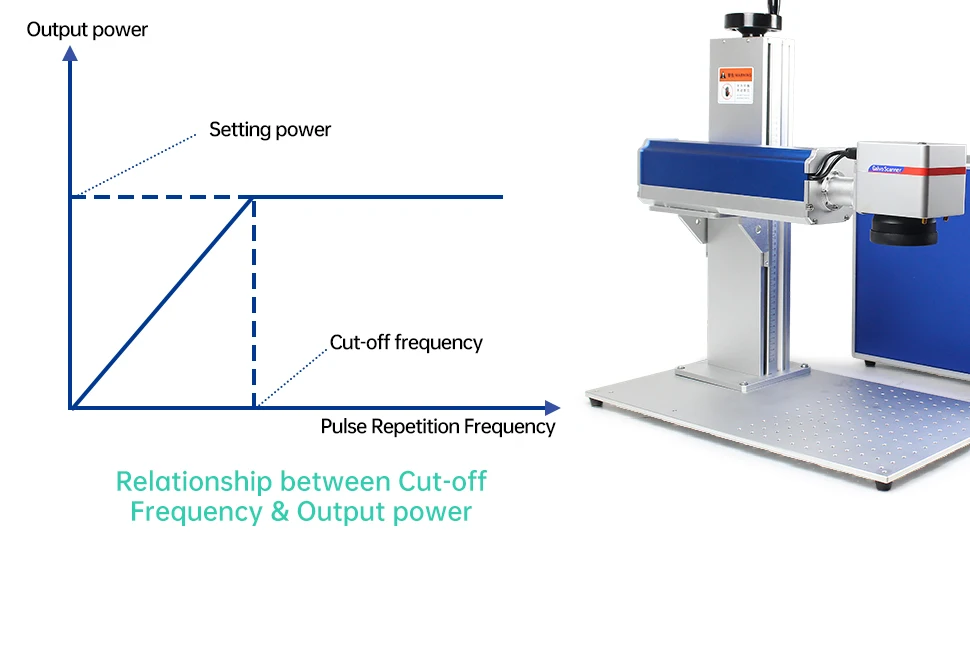

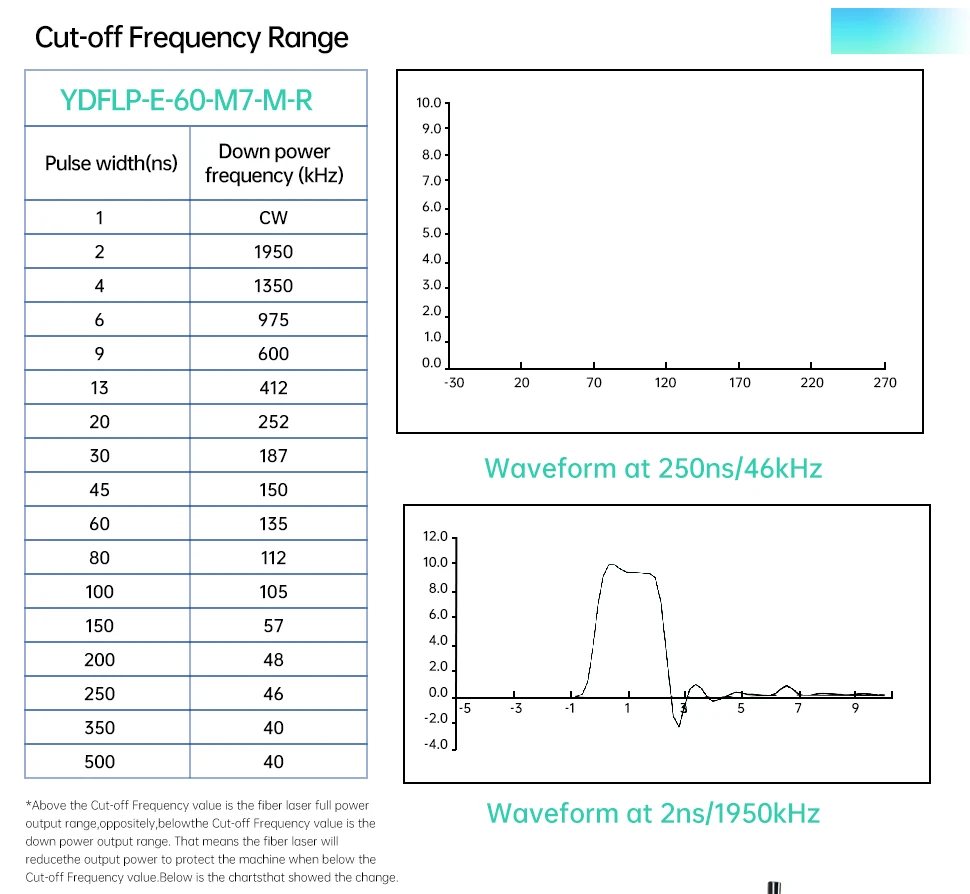

Frequency of pulse
JPT MOPA M7 is 1-4000KHZ
Marking Depth
≤0.3 mm
Marking Speed
≤ 8000mm/s SG7110
Marking Lines
1-10 lines
Minimum Line Width
0.01 mm
Minimum Character
0.15 mm
Repeatability Accuracy
±0.002 mm
Resolution Ratio
0.1 mm

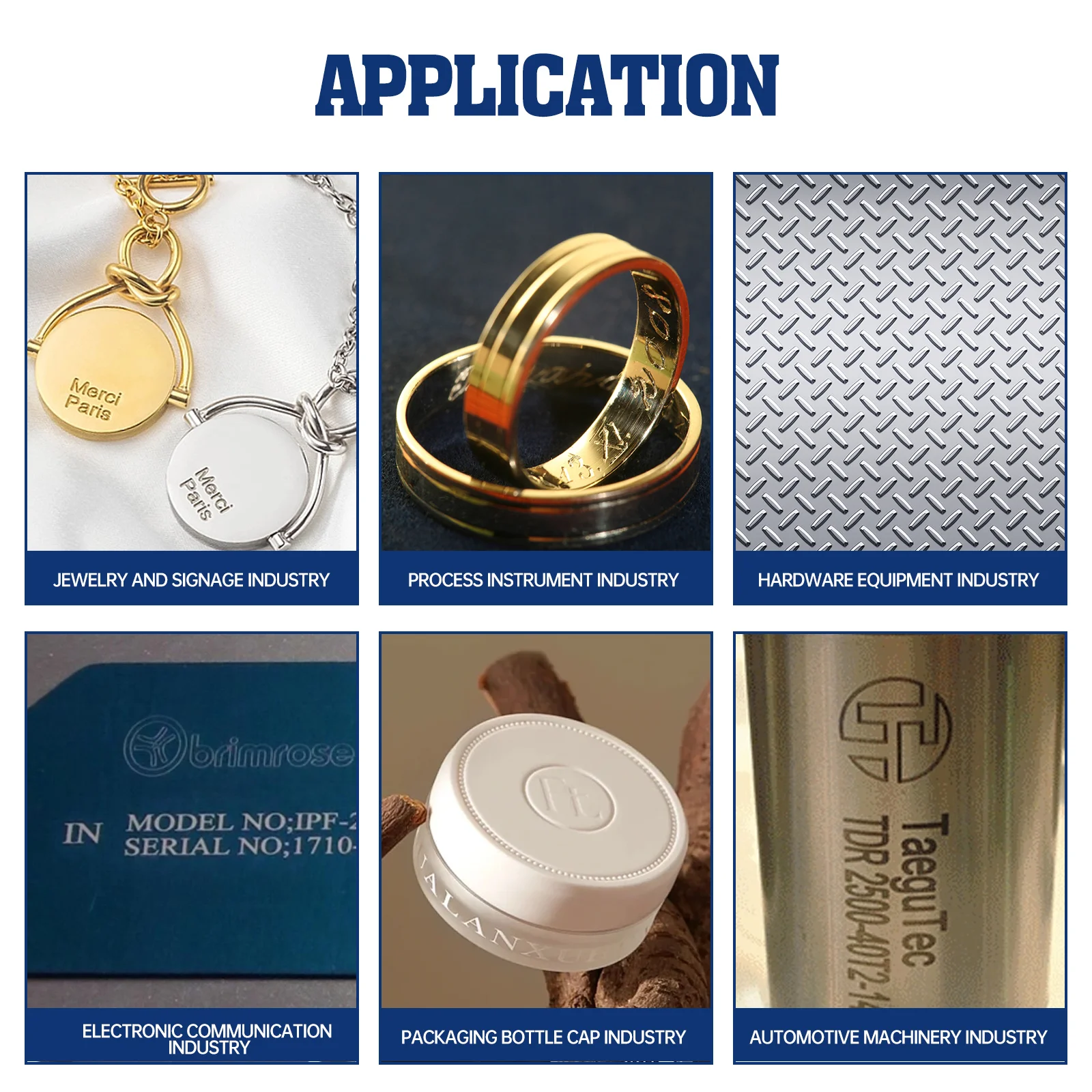

Marking Content
Text, pattern, date, bar code, etc
Operation System
Microsoft Windows XP or Windows 2000,WIN 7, WIN8, WIN 10
Control Software
EZCAD ENGLISH Control Software
Graphic Format Supported
BMP, JPG, GIF, TGA, Ai, DXF, PLT, PNG, TIF, ai, DXF, DST, etc.
Unit Power
≤0.9 KW

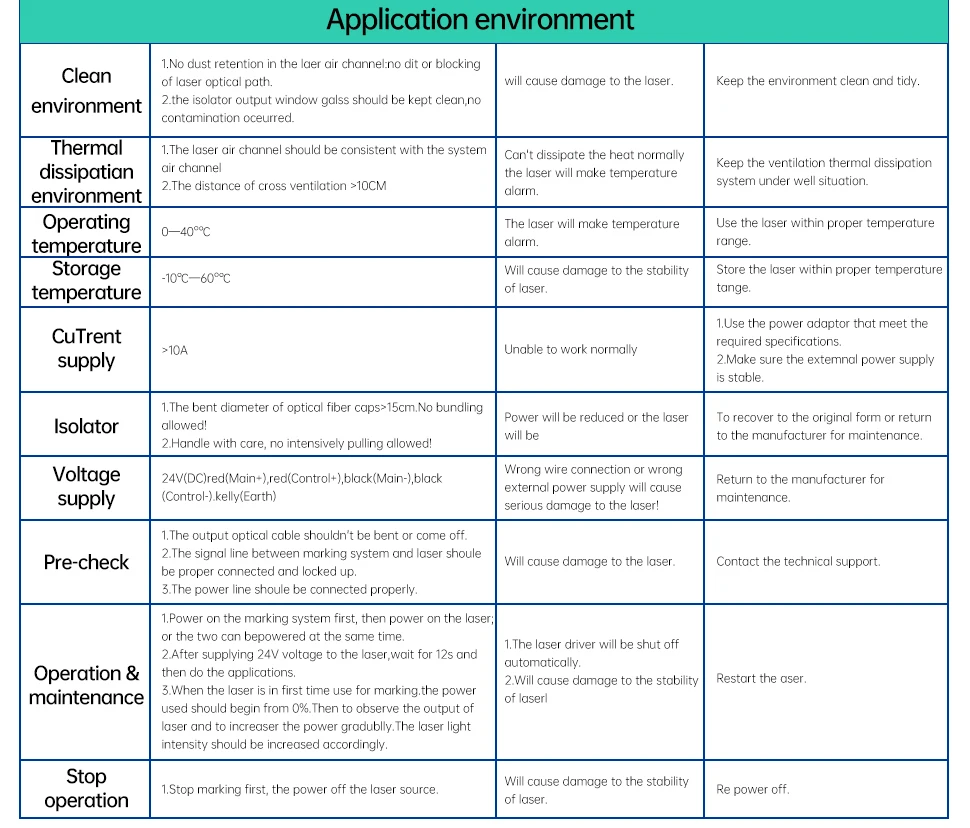

Operation Temperature
5°C-40°C
Relative Moisture
≤ 90%, no fog
Dimensions(L*W*H)
95 x 78 x 55 cm
Power supply requirements
220 V or 110V
Weight
40KG
Warranty
2-Year

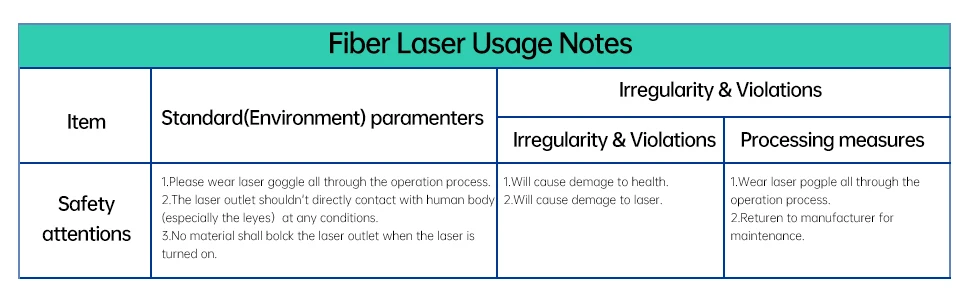

The motherboard supports win7/8/10 and supports 32-bit 64-bit.
1:Fully build the platform professional fiber laser marking machine shop, please customers to patronize, do not just look at the price. To look at the quality of the machine, use high-quality machine parts to give customers the best price and quality service! Provide S/N coding for our machines, machine lifetime service,
2: Machine configuration:

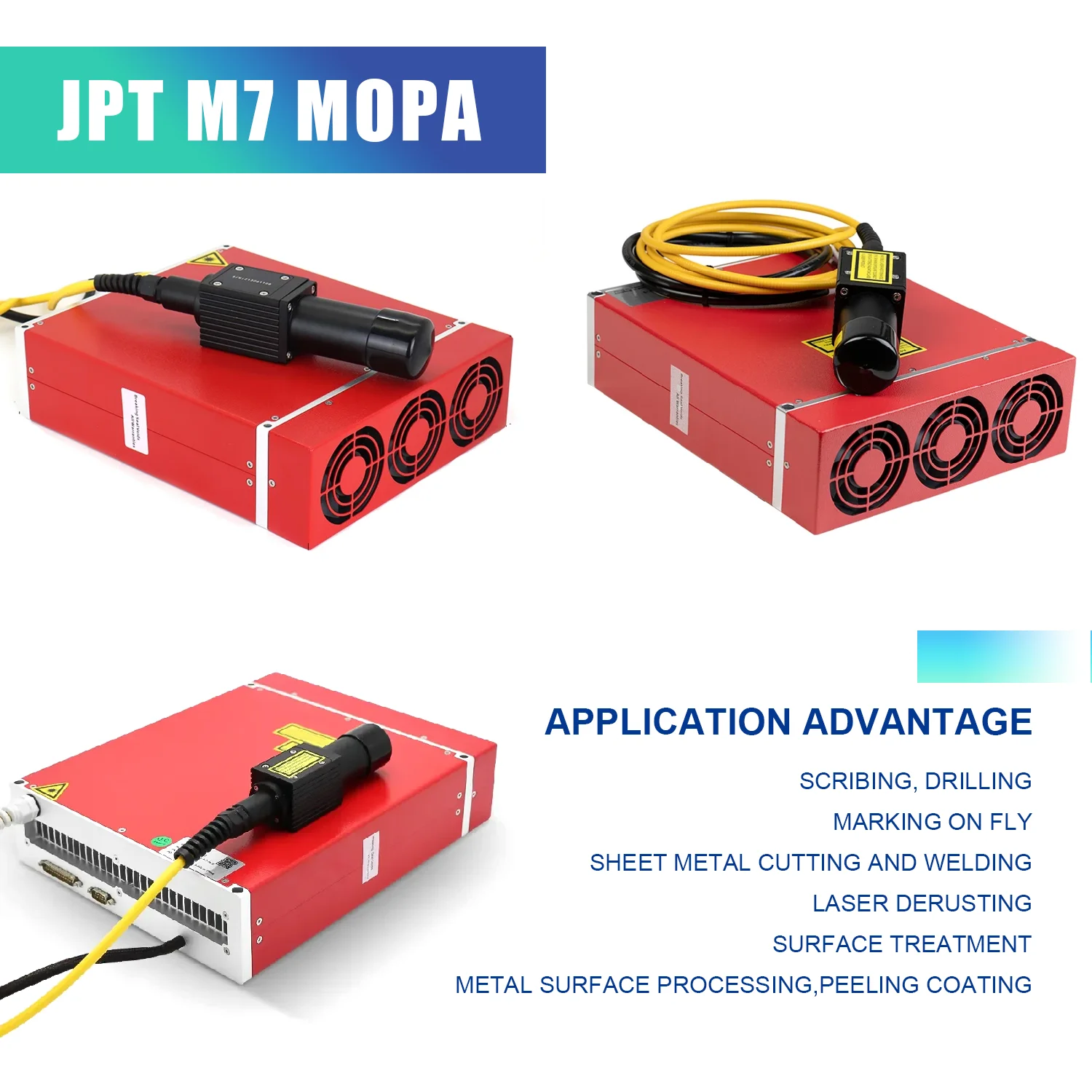

A;Fiber Laser brand:JPT
B; SINO-GALVO SG7110 galvanometer with Red dotsassistant focusing align.
C; Taiwan Meanwell (MW) power supply,
D; Motherboard with Rotary axis function, free built-in drive & rotary axis port.
E:Rotary axis (Optional)
3: In addition to these main accessories, we can gain an in-depth understanding of the machine configuration of the accessories and technical debugging of the main quality of the machine. It only provides you with a machine that runs stably and has a low failure rate. Machine accessories are related to the long life of the machine. In the short term, it is impossible to compare the stability and failure rate of the machine.
.
Model 1：D80 Rotary Axis
Clamp Diameter: 80mm
Claw quantity: 3
Version: High
Motor: 57*76mm(SNOWIT) With 2 Meter wire
1.Total height High version 250mm
2.Centre height High version: 130mm
3.High version support 180 degree adjust
Application: Fiber laser marking / Laser welding / CO2 laser engraving
Product Display:
Model 2：Ring Jewelry Rotary Axis
Motor: 60*88
Drive: TB6600/542A
Power supply: 24V
Center height: 50MM (with an elevation angle of 90 degrees)
Chuck: F69. Internal clamp application (product outer diameter 2 to 83mm),External support application (product inner diameter 11 to 91mm).
Application card needles: Factory equipped with four types of card needles with 3 each Transmission mode: direct connection
External dimensions: 130 * 90 * 90mm
Installation hole size: 50 * 50MM (M5.M6 screw)
Chuck maintenance, regularly adding lubricating oil to moving parts to improve service life. Advantages: Strong force, no shaking.
Rotary elastic clamp. Quick loading and unloading, improving efficiency (RE: The 69 chuck is only suitable for light and short products such as rings, bracelets, insulated cup covers, etc For slightly heavier categories, it is recommended to use a standard three grip chuck)
Model 3：Round Wheel Rotary Axis
(RE: 2 sides can use,front side with 24 channels, back side with M6 screw holes.
Need to use together with stepper motor drive.)
Brand: RATTMMOTOR
Model:D300
Diametre:300mm
Channel: 24pcs (Back side each channel with 4 pcs M6 screw holes)
Gap angle: 15 degree
Channel length: 90mm
Plate thickness: 10mm
Stepper motor: 57mm
Weight: 6KG
Application: Fiber laser marking / Laser welding / CO2 laser engraving
Factory Display:
Shipping
if 20w laser choose 200mm*200mm lens , that means your focus distance is very tall ,power come to mark object is cery very weak , so not biggest lens area is best ,but choose suitable lens.
Our recommendations:
20w choose 70mm*70mm , 110mm*110mm
30w choose 70mm*70mm , 110mm*110mm , 150mm*150mm, 200mm*200mm
50w choose 70mm*70mm , 110mm*110mm ,200mm*200mm, 300mm*300mm
The
"Conventional Rotary Axis D80" is the 80mm chuck style,which is also
the most widely used style chosen by most customers,the application
range of clamping is also the widest among the three.
The "Ring Rotation Axis D50&D60" is mainly used for ring jewelry etc.
The "Round wheel Rotation Axis" is mainly used for pen marking.
The
"Conventional Rotary Axis D80" is the 80mm chuck style,which is also
the most widely used style chosen by most customers,the application
range of clamping is also the widest among the three.
The "Ring Rotation Axis D50&D60" is mainly used for ring jewelry etc.
The "Round wheel Rotation Axis" is mainly used for pen marking.
The
"Conventional Rotary Axis D80" is the 80mm chuck style,which is also
the most widely used style chosen by most customers,the application
range of clamping is also the widest among the three.
The "Ring Rotation Axis D50&D60" is mainly used for ring jewelry etc.
The "Round wheel Rotation Axis" is mainly used for pen marking.
Technical Parameter
Model | |
Laser power | 20W or 30W or 60W JPT M7 MOPA |
Field Mirror(Work Area) | ( 70*70mm / 110*110mm / 150*150mm / 175*175mm / 200*200mm / 300*300mm |
Cooling Mode | Air Cooling |
Laser Wavelength | JPT is 1064 um |
Frequency of pulse | JPT MOPA M7 is 1-4000KHZ |
Marking Depth | ≤0.3 mm |
Marking Speed | ≤ 8000mm/s SG7110 |
Marking Lines | 1-10 lines |
Minimum Line Width | 0.01 mm |
Minimum Character | 0.15 mm |
Repeatability Accuracy | ±0.002 mm |
Resolution Ratio | 0.1 mm |
Marking Content | Text, pattern, date, bar code, etc |
Operation System | Microsoft Windows XP or Windows 2000,WIN 7, WIN8, WIN 10 |
Control Software | EZCAD ENGLISH Control Software |
Graphic Format Supported | BMP, JPG, GIF, TGA, Ai, DXF, PLT, PNG, TIF, ai, DXF, DST, etc. |
Unit Power | ≤0.9 KW |
Operation Temperature | 5°C-40°C |
Relative Moisture | ≤ 90%, no fog |
Dimensions(L*W*H) | 95 x 78 x 55 cm |
Power supply requirements | 220 V or 110V |
Weight | 40KG |
Warranty | 2-Year |
The motherboard supports win7/8/10 and supports 32-bit 64-bit.
1:Fully build the platform professional fiber laser marking machine shop, please customers to patronize, do not just look at the price. To look at the quality of the machine, use high-quality machine parts to give customers the best price and quality service! Provide S/N coding for our machines, machine lifetime service,
2: Machine configuration:
A;Fiber Laser brand:JPT
B; SINO-GALVO SG7110 galvanometer with Red dotsassistant focusing align.
C; Taiwan Meanwell (MW) power supply,
D; Motherboard with Rotary axis function, free built-in drive & rotary axis port.
E:Rotary axis (Optional)
3: In addition to these main accessories, we can gain an in-depth understanding of the machine configuration of the accessories and technical debugging of the main quality of the machine. It only provides you with a machine that runs stably and has a low failure rate. Machine accessories are related to the long life of the machine. In the short term, it is impossible to compare the stability and failure rate of the machine.
Model 1：D80 Rotary Axis
Clamp Diameter: 80mm
Claw quantity: 3
Version: High
Motor: 57*76mm(SNOWIT) With 2 Meter wire
1.Total height High version 250mm
2.Centre height High version: 130mm
3.High version support 180 degree adjustApplication: Fiber laser marking / Laser welding / CO2 laser engraving
Product Display:
Model 2：Ring Jewelry Rotary Axis
Motor: 60*88
Drive: TB6600/542A
Power supply: 24V
Center height: 50MM (with an elevation angle of 90 degrees)
Chuck: F69. Internal clamp application (product outer diameter 2 to 83mm),External support application (product inner diameter 11 to 91mm).
Application card needles: Factory equipped with four types of card needles with 3 each Transmission mode: direct connection
External dimensions: 130 * 90 * 90mm
Installation hole size: 50 * 50MM (M5.M6 screw)
Chuck maintenance, regularly adding lubricating oil to moving parts to improve service life. Advantages: Strong force, no shaking.Rotary elastic clamp. Quick loading and unloading, improving efficiency (RE: The 69 chuck is only suitable for light and short products such as rings, bracelets, insulated cup covers, etc For slightly heavier categories, it is recommended to use a standard three grip chuck)
Model 3：Round Wheel Rotary Axis
(RE: 2 sides can use,front side with 24 channels, back side with M6 screw holes.
Need to use together with stepper motor drive.)
Brand: RATTMMOTOR
Model:D300
Diametre:300mm
Channel: 24pcs (Back side each channel with 4 pcs M6 screw holes)
Gap angle: 15 degree
Channel length: 90mm
Plate thickness: 10mm
Stepper motor: 57mm
Weight: 6KG
Factory Display:
