Product Details

Industrial Ventilation Extractor Fan Metal Axial Exhaust Commercial Air Blower

　

Features :

* 100% Brand new and high quality.

* Axial fan with grill.

* Powder coated steel wire safety guard.

* 100% Copper winding motor.

* Low noise and stable running.

* Single phase.

* Easy to install.

* Suitable for commercial places, workshops, restaurants, warehouses, etc.

* NOTICE: Please DON'T use with corrosion and explosive gas.

　

Specifications :

* Material: Carbon steel housing, blades and turbobit, copper winding,

* Voltage: 220VAC single phase, 50Hz

* Environmental Temperature: -20℃ ~ 50℃

* Environmental Humidness: Below 95%

* IP Grade: IP54

* Size:

　

 Input current

Capacitance

Power

Speed

Air Volume

Full Pressure

Noise

8 Inches / 200mm -2 Pole

0.23 A

2 uF

60 W

2550 RPM

780 m3/hr

90 Pa

50 dba

10 Inches / 250mm -2 Pole

0.5 A

2 uF

110 W

2550 RPM

960  m3/hr

100 Pa

56 dba

12 Inches / 300mm -2 Pole

0.8 A

6 uF

165 W

2300 RPM

2130  m3/hr

130 Pa

60 dba

14 Inches / 350mm -4 Pole

0.73 A

4 uF

145 W

1380 RPM

2500  m3/hr

145 Pa

62 dba

16 Inches / 400mm -4 Pole

0.85 A

6 uF

180 W

1350 RPM

3500  m3/hr

160 Pa

65 dba

18 Inches / 450mm -4 Pole

1.2 A

8 uF

250 W

1350 RPM

4850  m3/hr

185 Pa

68 dba

20 Inches / 500mm -4 Pole

1.6 A

10 uF

350 W

1350 RPM

6870  m3/hr

200 Pa

72 dba

22 Inches / 550mm -4 Pole

2.4 A

12 uF

500 W

1350 RPM

8700  m3/hr

240 Pa

75 dba

24 Inches / 600mm -4 Pole

3.3 A

16 uF

710 W

1350 RPM

10850  m3/hr

300 Pa

78 dba

　

Package :

* 1 X Extractor Fan

* 1 X User Manual



Shipping note: there is an additional delivery surcharge to the following areas:
Scottish Highlands, Scottish Offshore Islands, N.Ireland, Channel Islands, Isle Of Wight, Isle Of Man
and the following postal code areas: DG, EH, FK, G, KA (1-26, 29, 30), KY, ML, PA (1-19), DD, PH, AB, IV, KW (1-14), PH (19-40, 49, 50).

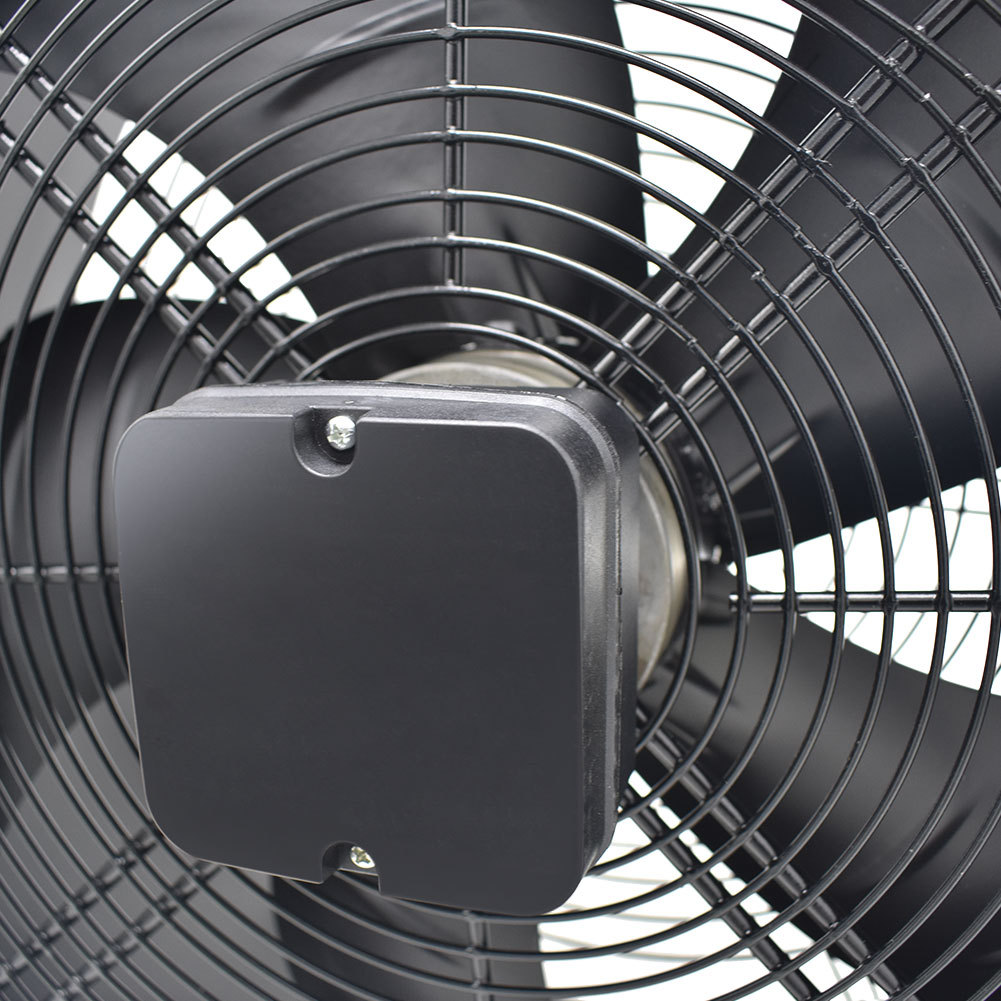

Product Picture Show
