Note:
We have two vision main board for this machine, BJJCZ model for EZCAD
software and BSL model for Lightburn software which is optional, pls choose
the one you want when you place the order.

Note: The lens marking area is optional

we have 50x50/70x70/110x110/150x150/200x200/220x220/300x300mm these sizes,we will send 200x200mm lens by default.

How to choose lens

With Same Lens , The Higher Power , more precise marking.
With Same Power, The Smaller Lens, more precise marking.
Bigger Lens Engrave Bigger Area.
Smaller Lens more precise marking.

if 20w laser choose 200mm*200mm lens , that means your focus distance is very tall ,power come to mark object is cery very weak , so not biggest lens area is best ,but choose suitable lens.

Our recommendations:

20w choose 70mm*70mm , 110mm*110mm
30w choose 70mm*70mm , 110mm*110mm , 150mm*150mm, 200mm*200mm
50w choose 70mm*70mm , 110mm*110mm ,200mm*200mm, 300mm*300mm

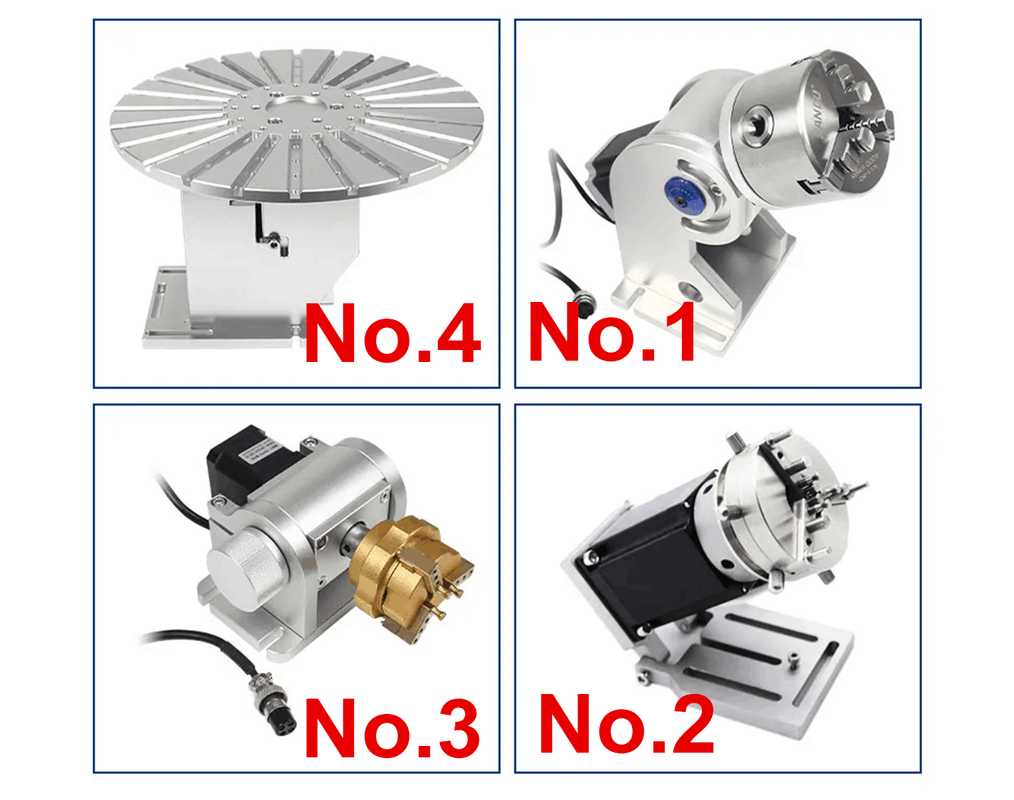

The "Conventional Rotary Axis D80" is the 80mm chuck style,which is also the most widely used style chosen by most customers,the application range of clamping is also the widest among the three.

The "Ring Rotation Axis D50&D60" is mainly used for ring jewelry etc.

The "Round wheel Rotation Axis" is mainly used for pen marking.

Technical Parameter

Model
Laser power	20W/30W/50W JPT LP
Field Mirror(Work Area)	( 50*50mm / 70*70mm / 110*110mm / 150*150mm / 175*175mm / 200*200mm / 300*300mm Optional. Support extra purchase.）
Cooling Mode	Air Cooling
Laser Wavelength	JPT is 1064 um
Frequency of pulse	JPT LP is 1-600KHZ
Marking Depth	≤0.3 mm
Marking Speed	≤8000 mm/s SG7110
Marking Lines	1-10 lines
Minimum Line Width	0.01 mm
Minimum Character	0.15 mm
Repeatability Accuracy	±0.002 mm
Resolution Ratio	0.1 mm
Marking Content	Text, pattern, date, bar code, etc
Operation System	Microsoft Windows XP or Windows 2000,WIN 7, WIN8, WIN 10
Control Software	EZCAD ENGLISH Control Software
Graphic Format Supported	BMP, JPG, GIF, TGA, Ai, DXF, PLT, PNG, TIF, ai, DXF, DST, etc.
Unit Power	≤0.9 KW
Operation Temperature	5°C-40°C
Relative Moisture	≤ 90%, no fog
Dimensions(L*W*H)	95 x 78 x 55 cm
Power supply requirements	220 V or 110V
Weight	40KG
Warranty	2-Year

The motherboard supports win7//8/10 and supports 32-bit 64-bit.

1:Fully build the platform professional fiber laser marking machine shop, please customers to patronize. To look at the quality of the machine, use high-quality machine parts to give customers the best quality service! Provide S/N coding for our machines, machine lifetime service,

2: Machine configuration:

A;Fiber Laser brand: Raycus

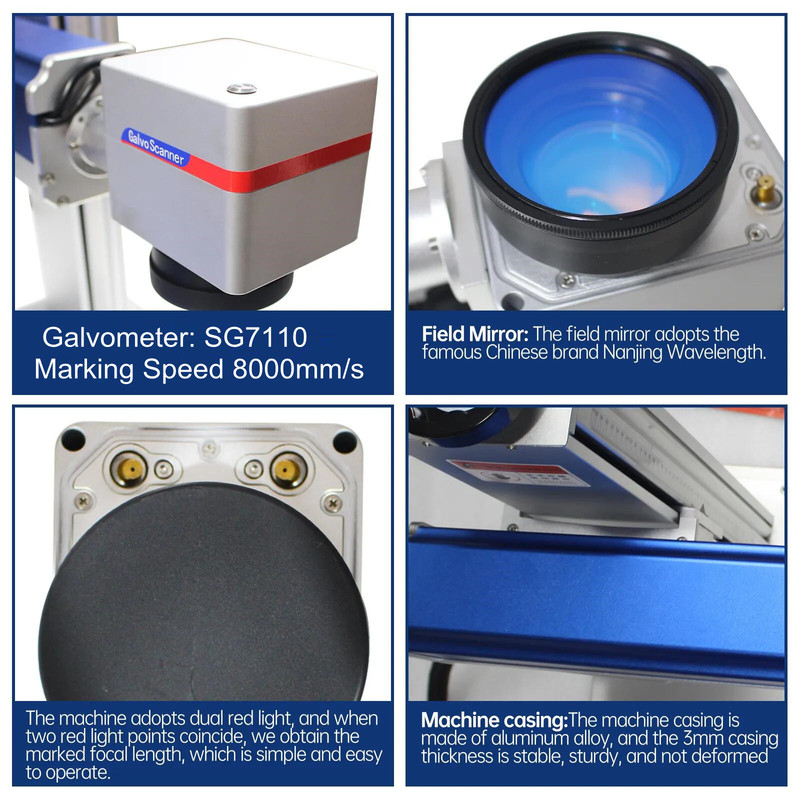

B; SINO-GALVO SG7110 galvanometer with Red dots assistant focusing align.

C; Taiwan Meanwell (MW) power supply,

D; Motherboard with Rotary axis function, free built-in drive & rotary axis port.

E: Rotary axis (Optional)

3: In addition to these main accessories, we can gain an in-depth understanding of the machine configuration of the accessories and technical debugging of the main quality of the machine. It only provides you with a machine that runs stably and has a low failure rate. Machine accessories are related to the long life of the machine. In the short term, it is impossible to compare the stability and failure rate of the machine.

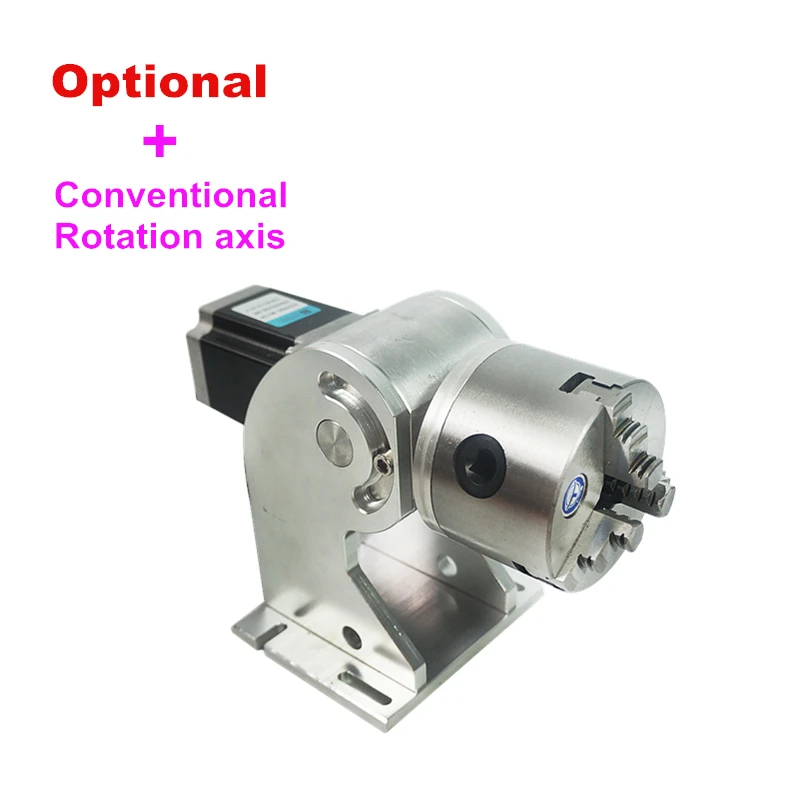

Model 1：D80 Rotary Axis

Clamp Diameter: 80mm

Claw quantity: 3

Version: High

Motor: 57*76mm(SNOWIT) With 2 Meter wire

1.Total height High version 250mm

2.Centre height High version: 130mm

3.High version support 180 degree adjust

Application: Fiber laser marking / Laser welding / CO2 laser engraving

Product Display:

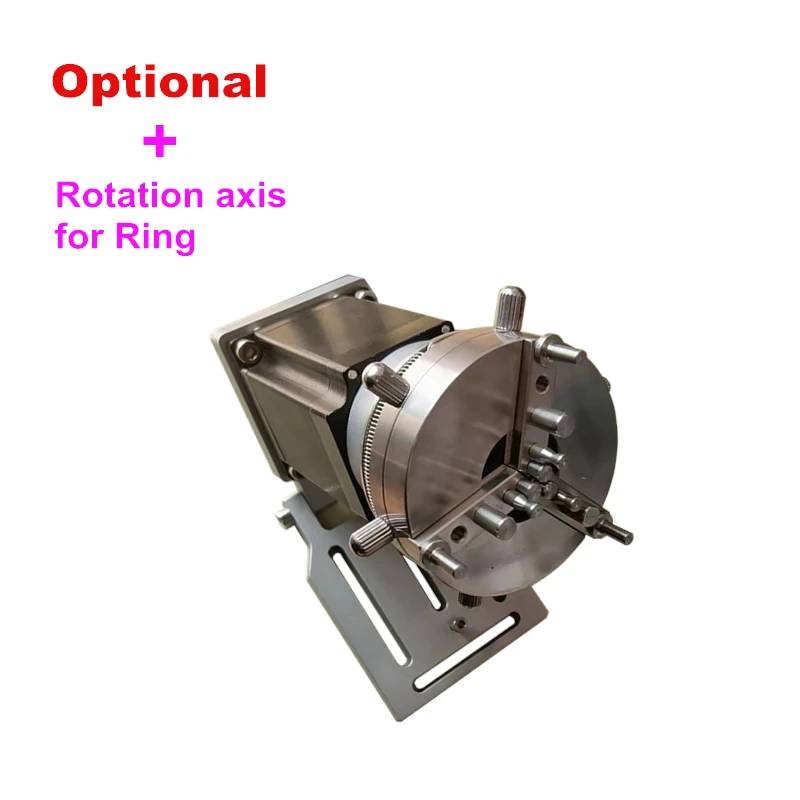

Model 2：Ring Jewelry Rotary Axis

Motor: 60*88

Drive: TB6600/542A

Power supply: 24V

Center height: 50MM (with an elevation angle of 90 degrees)

Chuck: F69. Internal clamp application (product outer diameter 2 to 83mm),External support application (product inner diameter 11 to 91mm).

Application card needles: Factory equipped with four types of card needles with 3 each Transmission mode: direct connection

External dimensions: 130 * 90 * 90mm

Installation hole size: 50 * 50MM (M5.M6 screw)

Chuck maintenance, regularly adding lubricating oil to moving parts to improve service life. Advantages: Strong force, no shaking.
Rotary elastic clamp. Quick loading and unloading, improving efficiency   (RE: The 69 chuck is only suitable for light and short products such as rings, bracelets, insulated cup covers, etc For slightly heavier categories, it is recommended to use a standard three grip chuck)

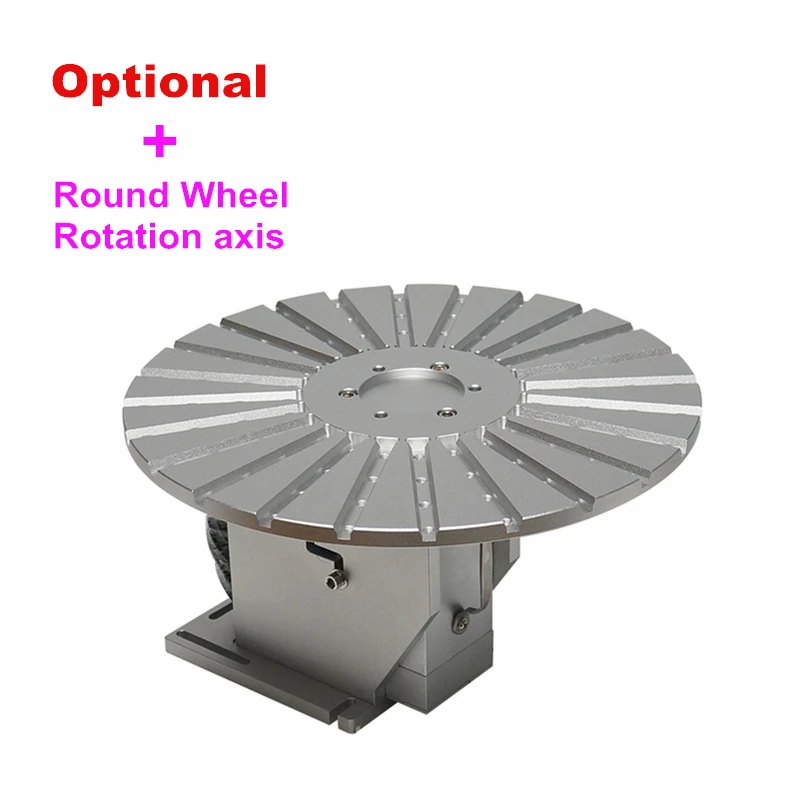

Model 3：Round Wheel Rotary Axis

(RE: 2 sides can use,front side with 24 channels, back side with M6 screw holes.

Need to use together with stepper motor drive.)

Brand: RATTMMOTOR

Model:D300

Diametre:300mm

Channel: 24pcs (Back side each channel with 4 pcs M6 screw holes)

Gap angle: 15 degree

Channel length: 90mm

Plate thickness: 10mm

Stepper motor: 57mm

Weight: 6KG

Application: Fiber laser marking / Laser welding / CO2 laser engraving


•
