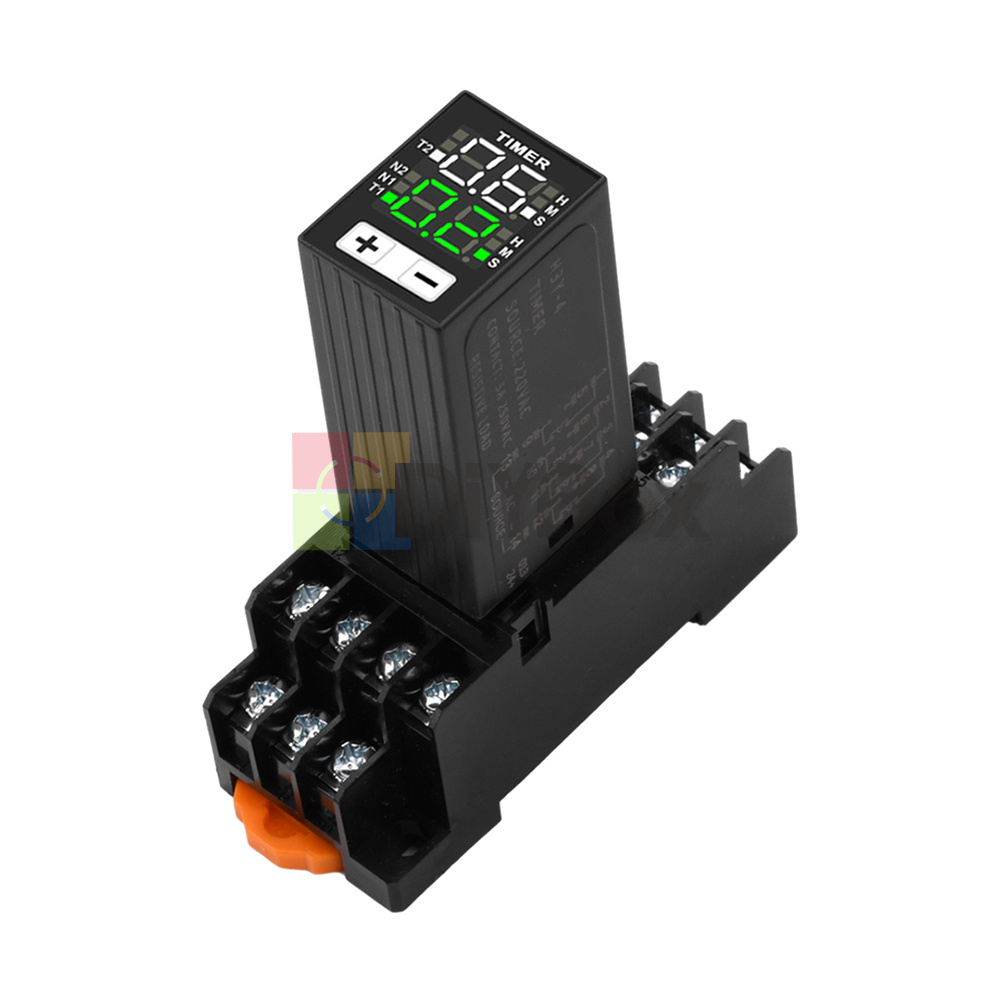

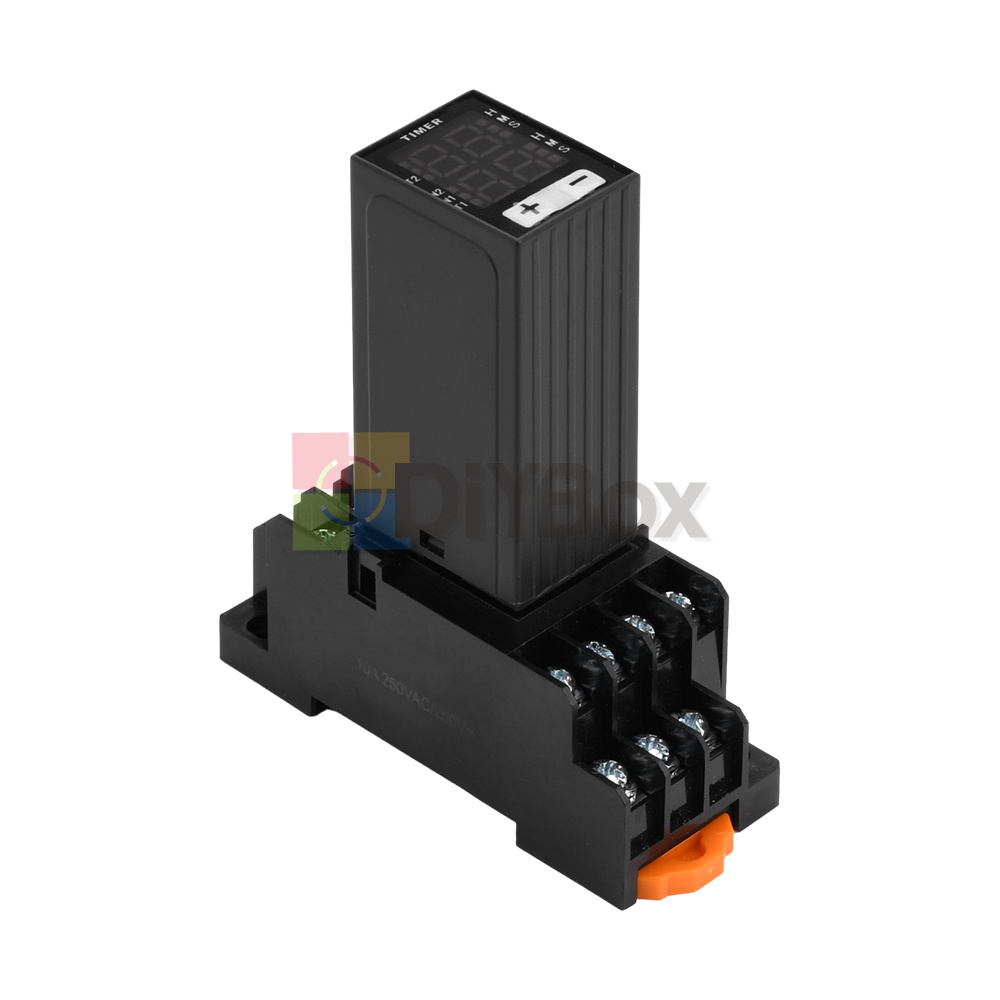

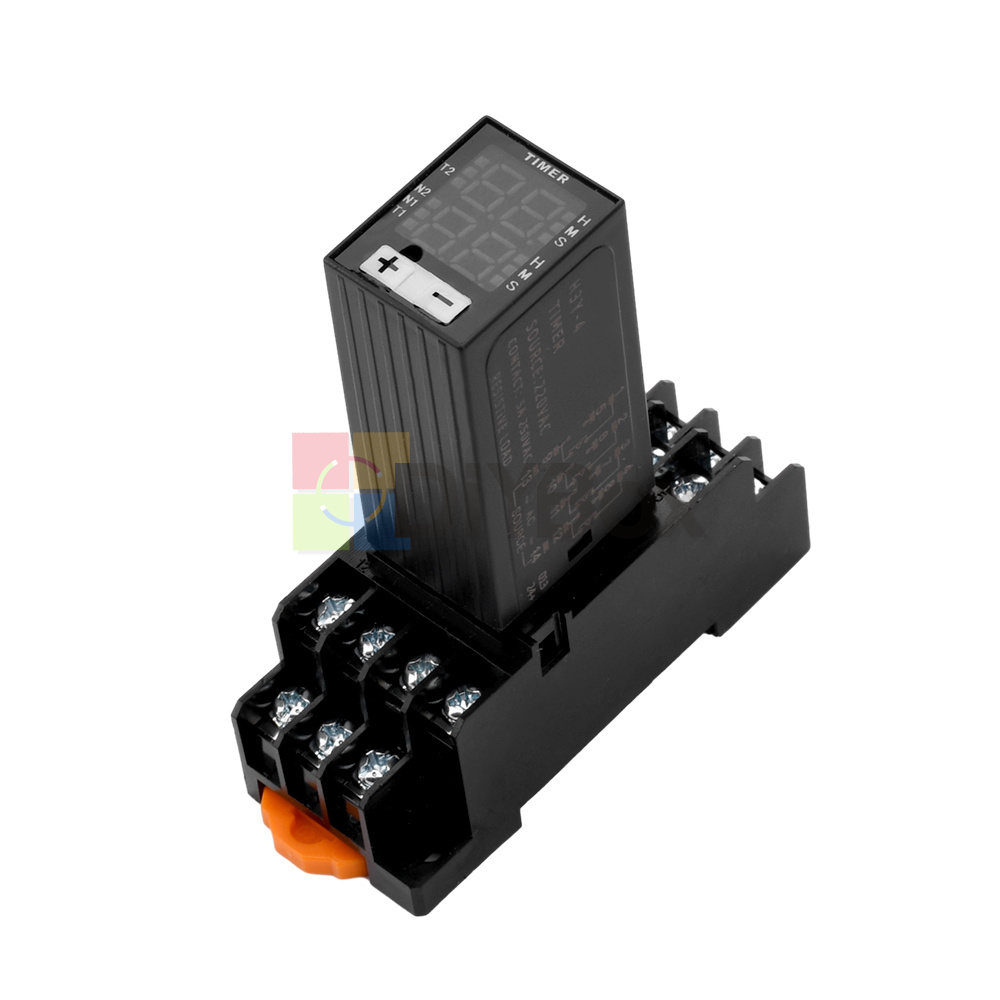

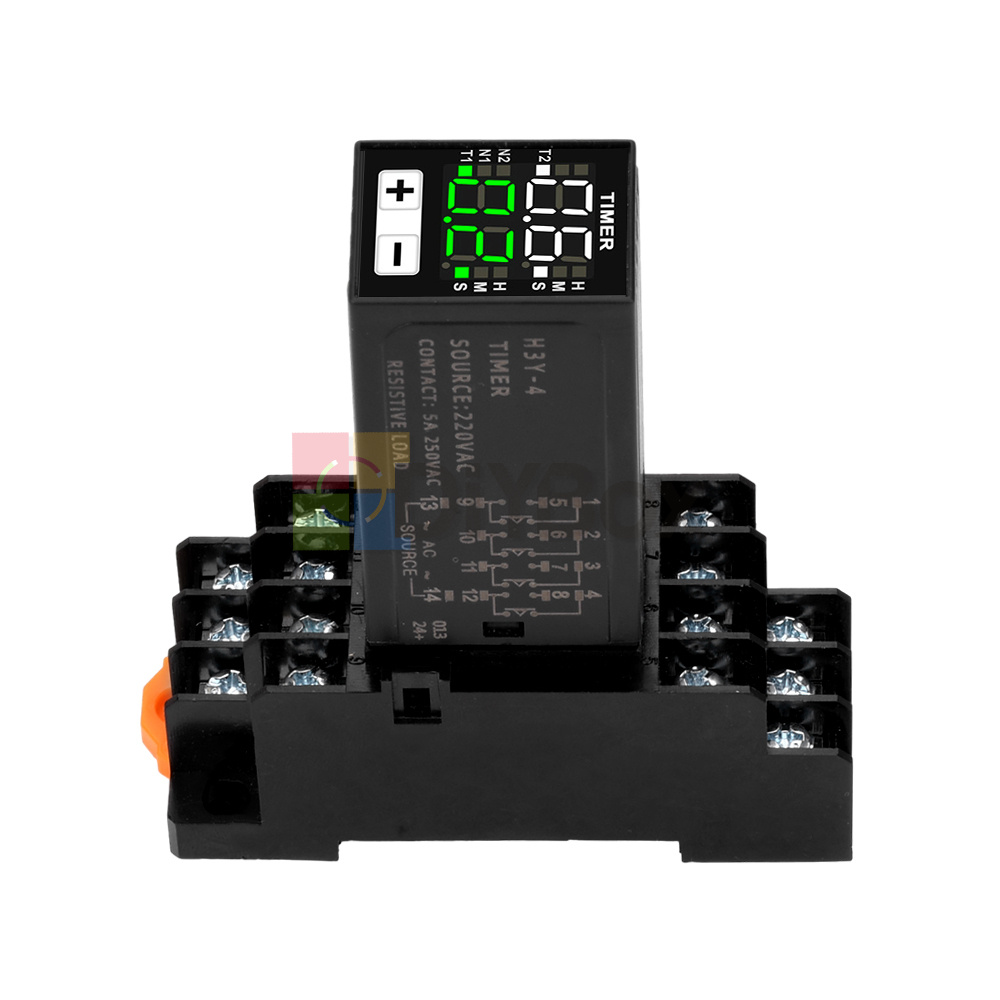

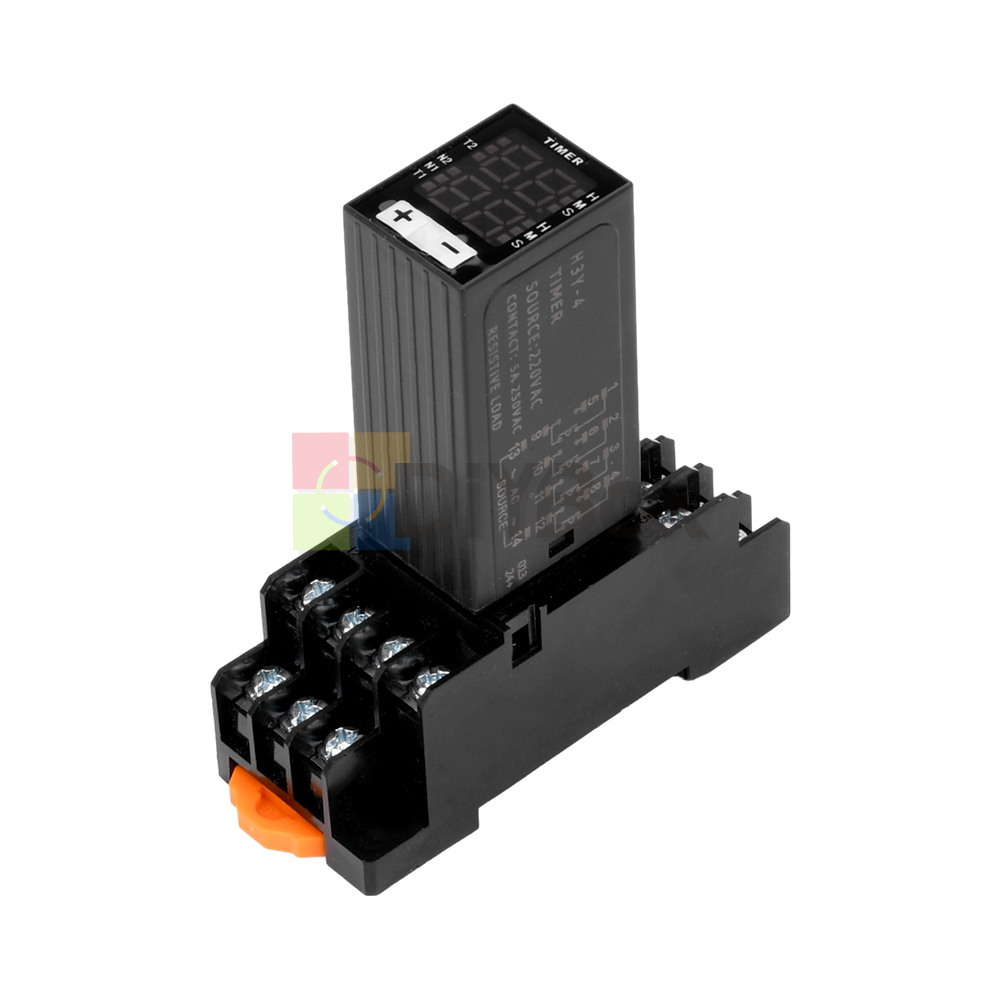

Product Features
1.PC shell, fire-resistant and high temperature resistant
2.LED high-definition screen, digital display panel more intuitive
3. Silver contacts, stable performance, antioxidant, high working efficiency
4. Bottom high-capacity pins, copper galvanized material, high melting point, antioxidant corrosion resistance, good conductive properties
5. There are 3 delay modes: N1 energized delay mode, N2 delayed release mode, N3 cycle delay mode
6. Widely used: applicable to automation equipment, electromechanical cabinets, electrical control, power protection and other fields.
Product Parameter

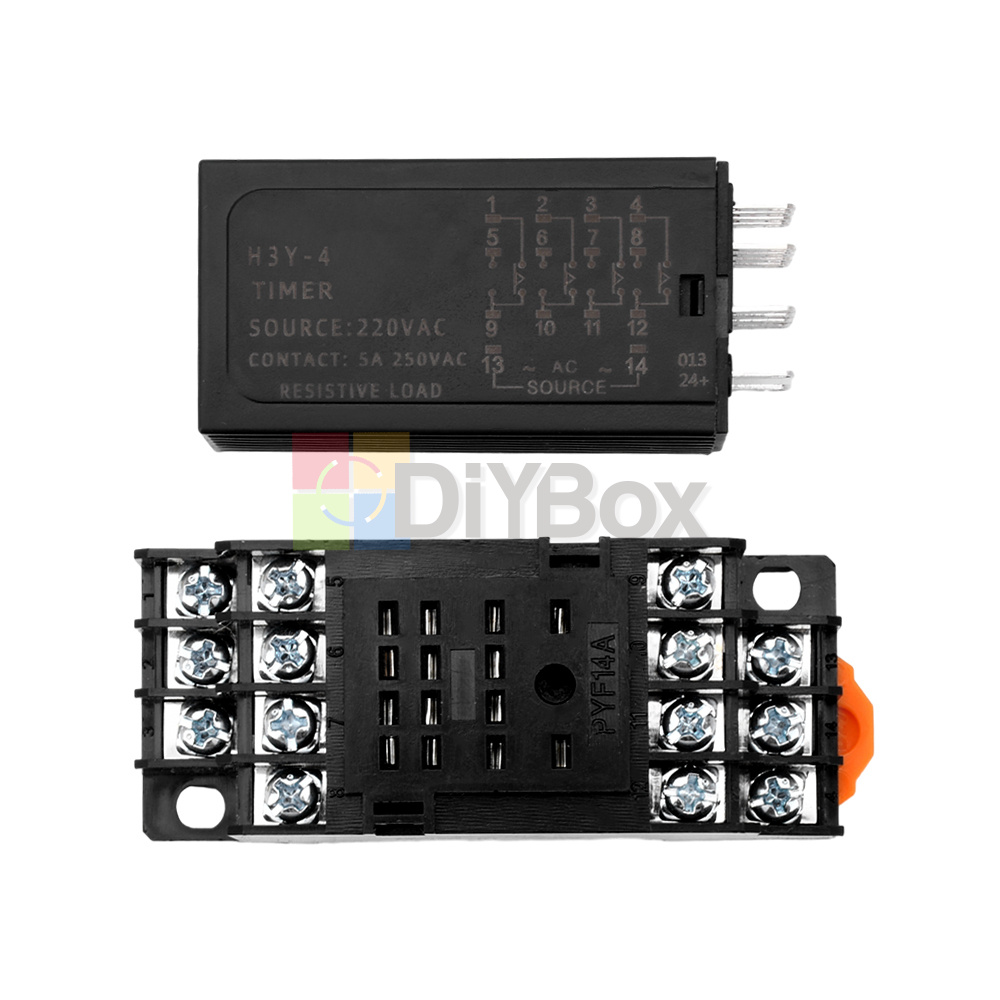

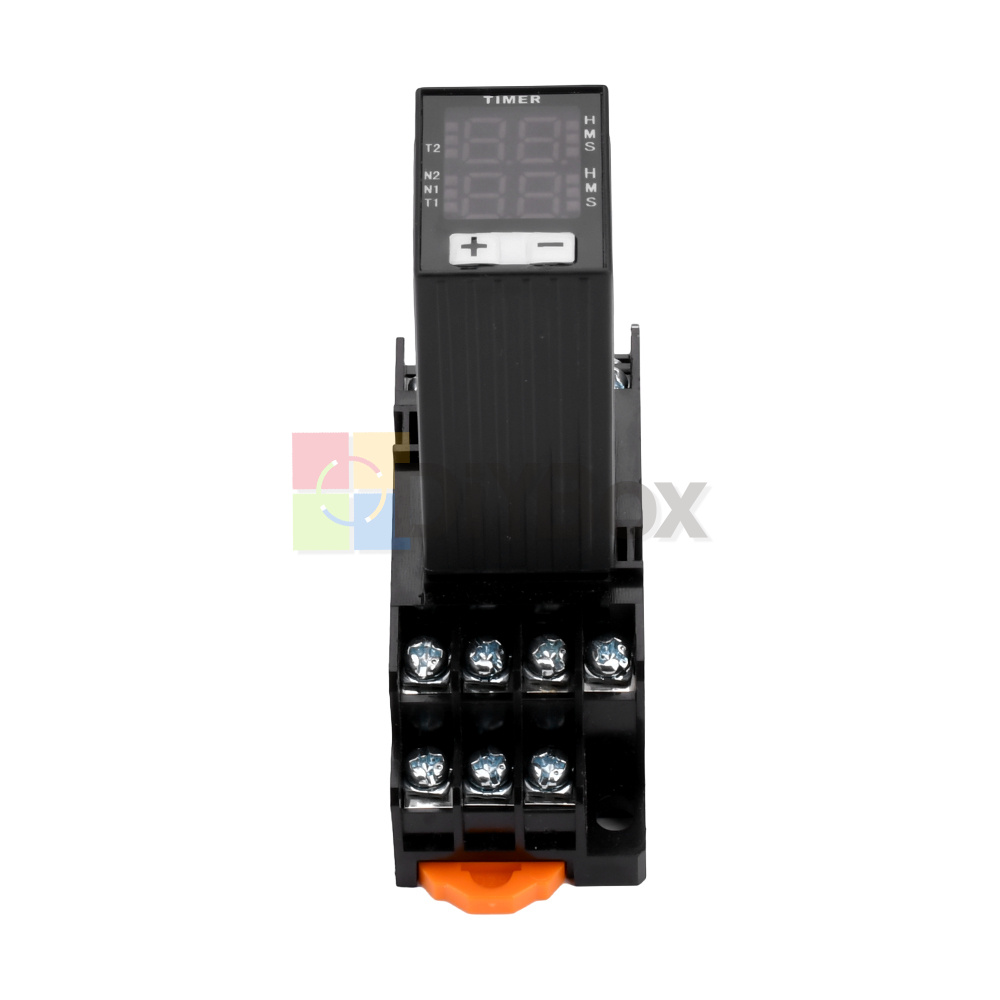

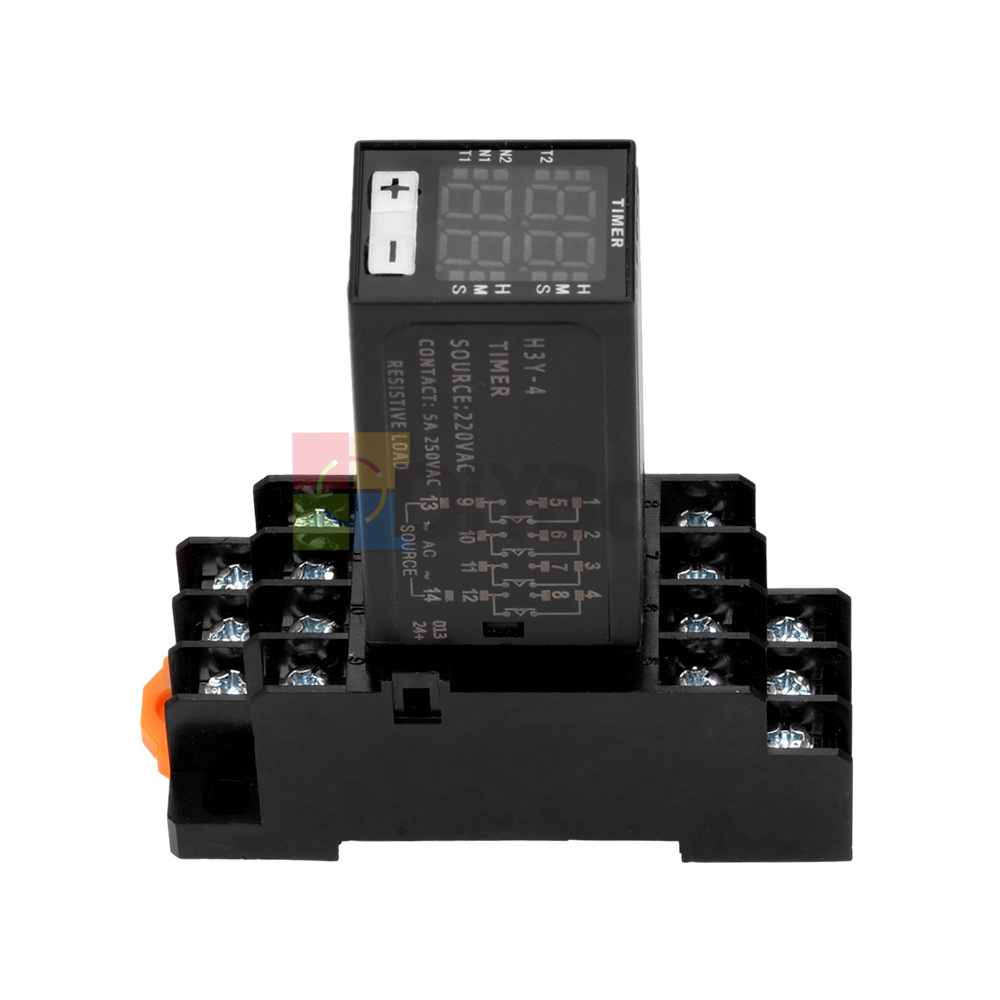

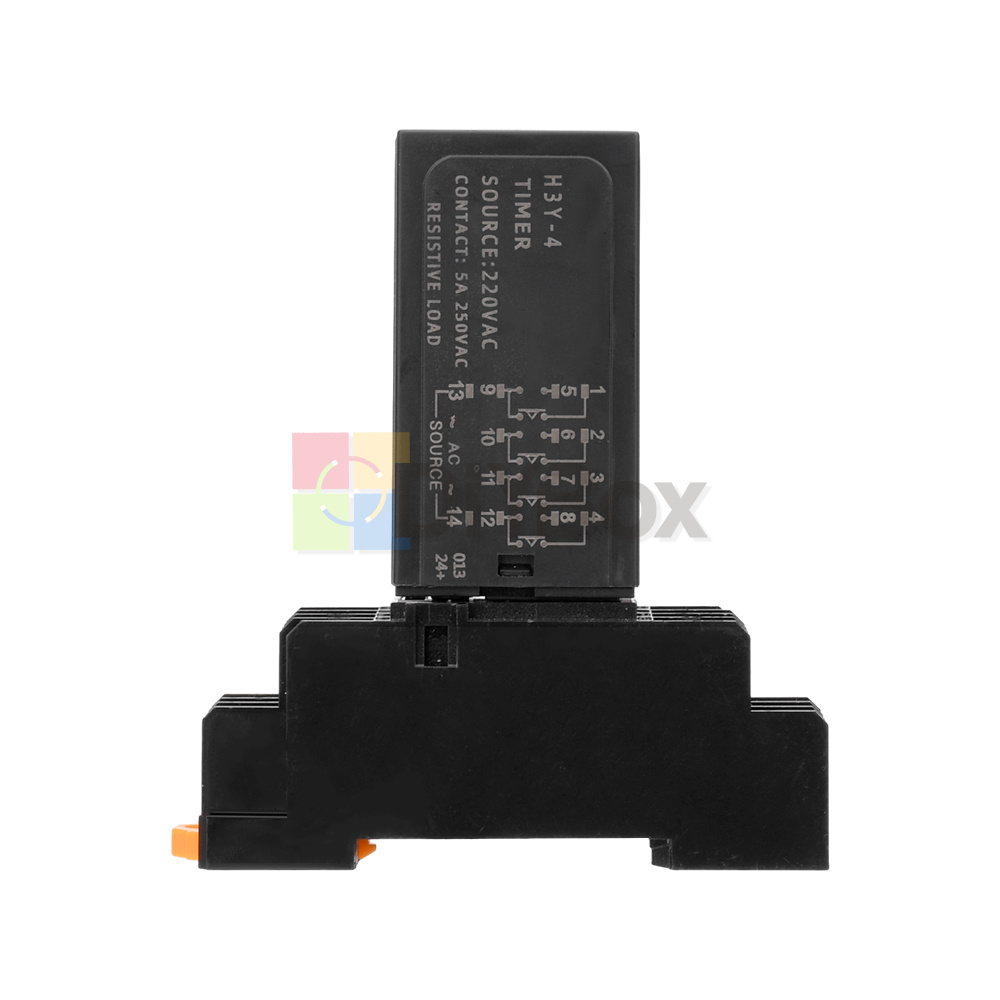

Product Model: H3Y-4 (14 feet / four open and four closed with base)
Product Name: Time Relay
Voltage: DC12V 24V, AC220V (optional)
Time range: 0.1S-99H
N1 mode power-on delay: four groups of time-delay absorption
N2 mode delay release: energized four groups of absorption, delay four groups of disconnection
T1 T2 cycle mode: T1 T2 on and off can be set for different time.
Ambient temperature: -25~75°C

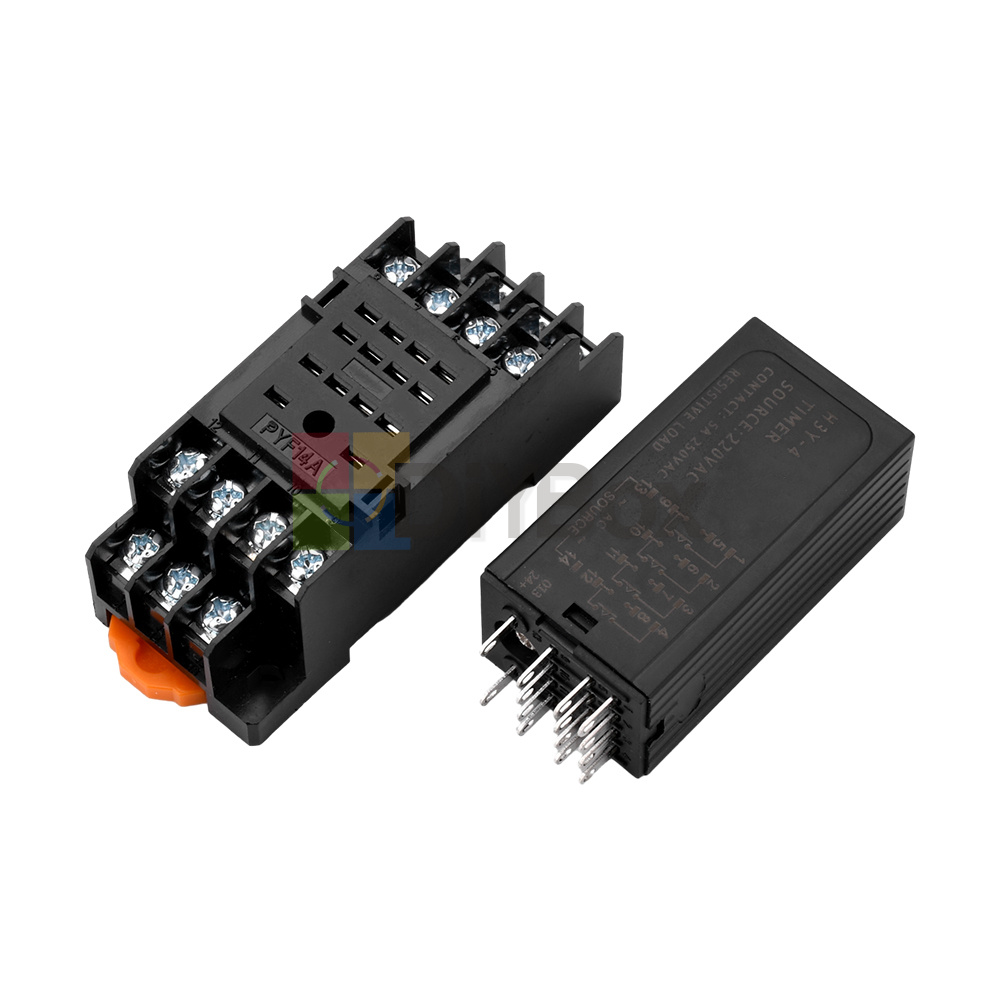

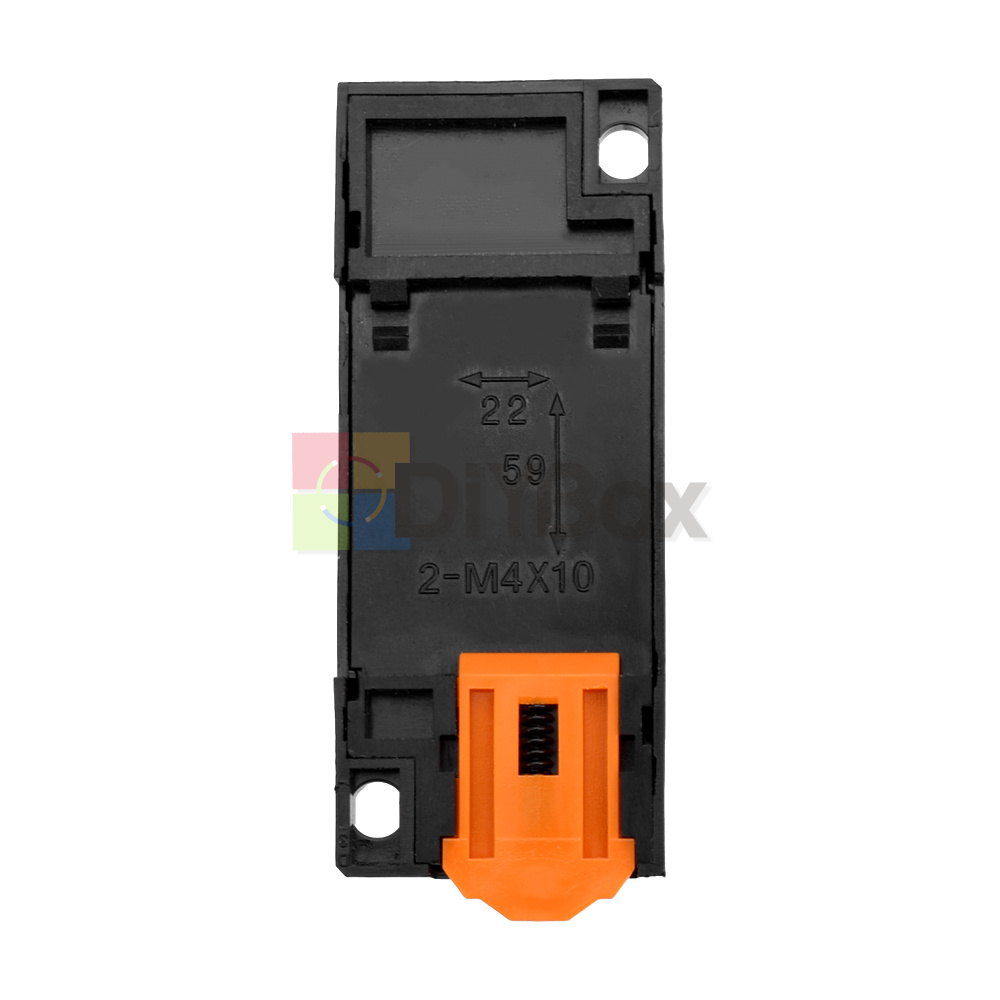

Installation mode: matching PYF-14A base unit type

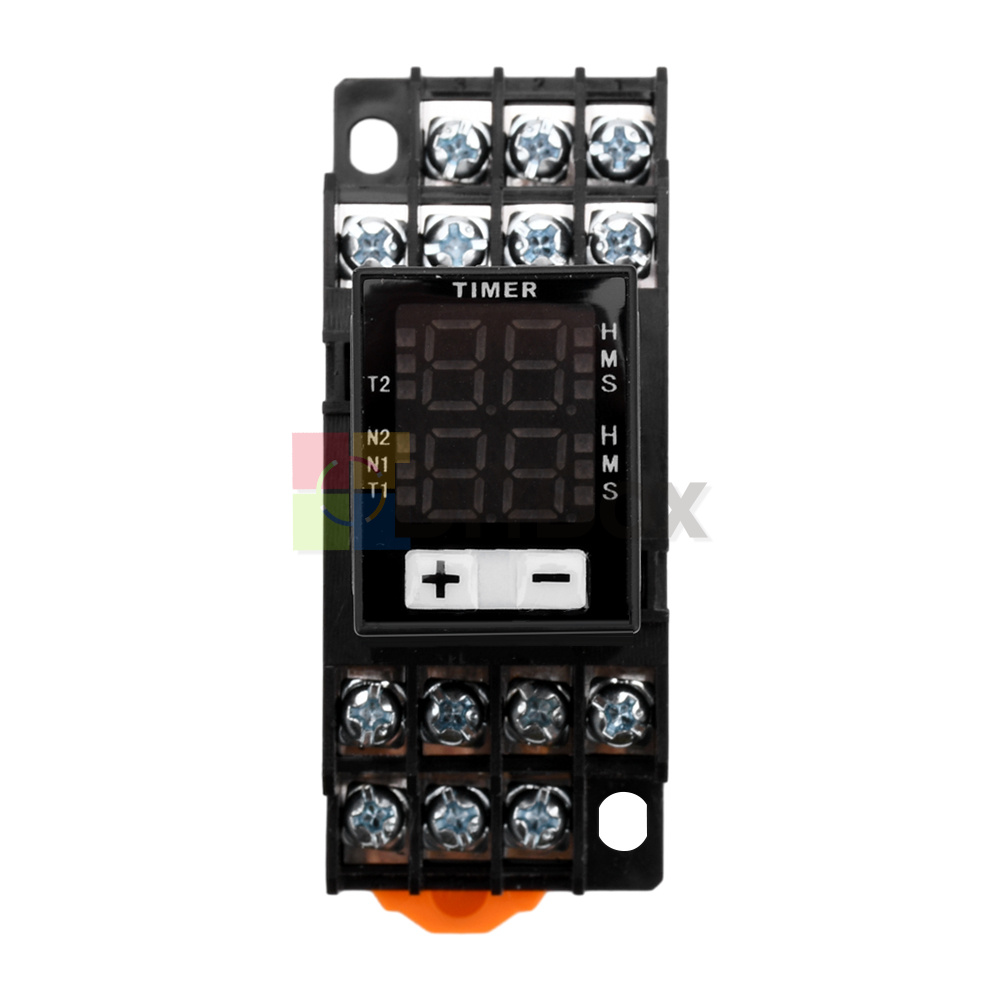

Setting operation instructions
Mode Description: N1 mode for power-on delay, N2 for delayed release, T1, T2 for cyclic time delay.
Working mode: Long press + and a key for more than 3 seconds, click a key to change the working mode.
Time base setting: Long press + key for more than 3 seconds to enter, click + key to change the time specification. Cyclic mode click one key to change T2 time specification
Numerical setting: Click + key to increment time, click one key to decrement time. Long press a key for more than 3 seconds in cycle mode to enter T2 value setting
Extended instructions: no operation for more than 8 seconds, save the current settings and exit.
Important note, in the need to use to a group of instantaneous contacts to realize the circuit self-locking, please adjust the mode in N2, and then according to Figure 2 wiring, more simple and reliable!

Delivery list
Time relay*1
Base*1
