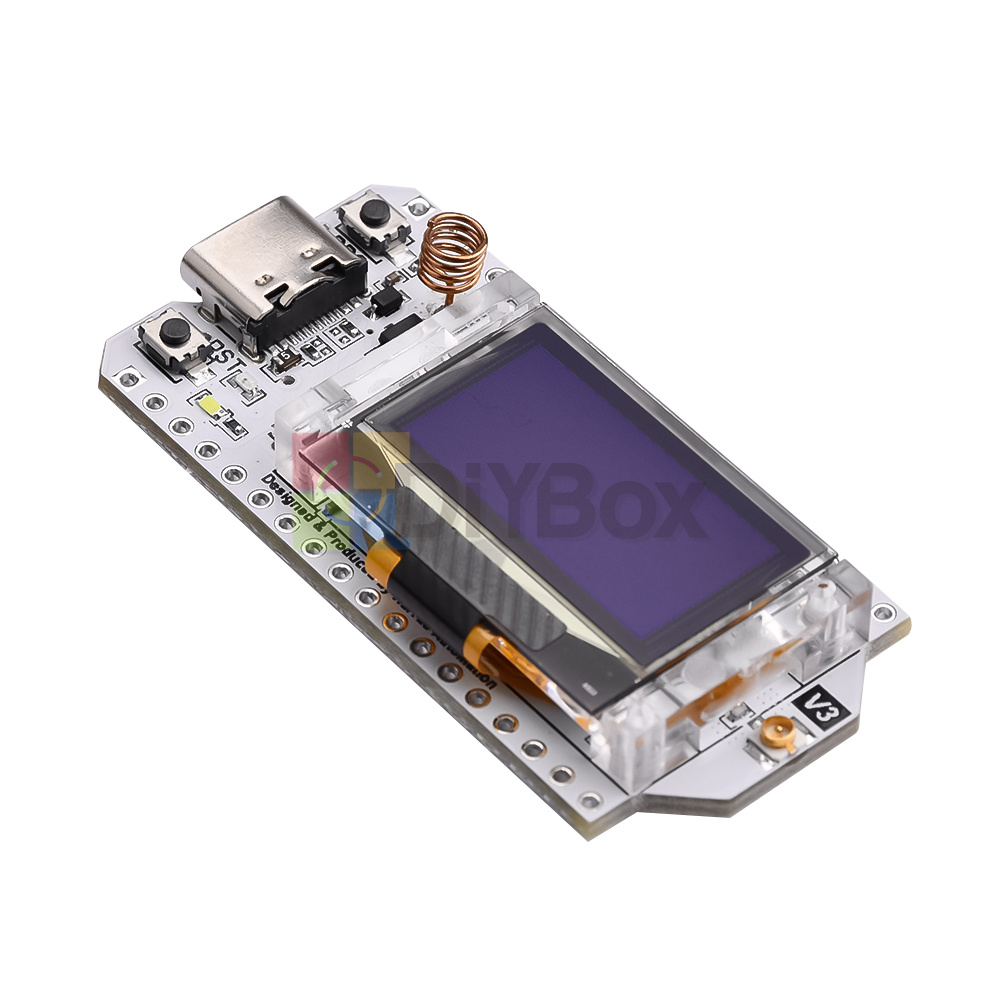

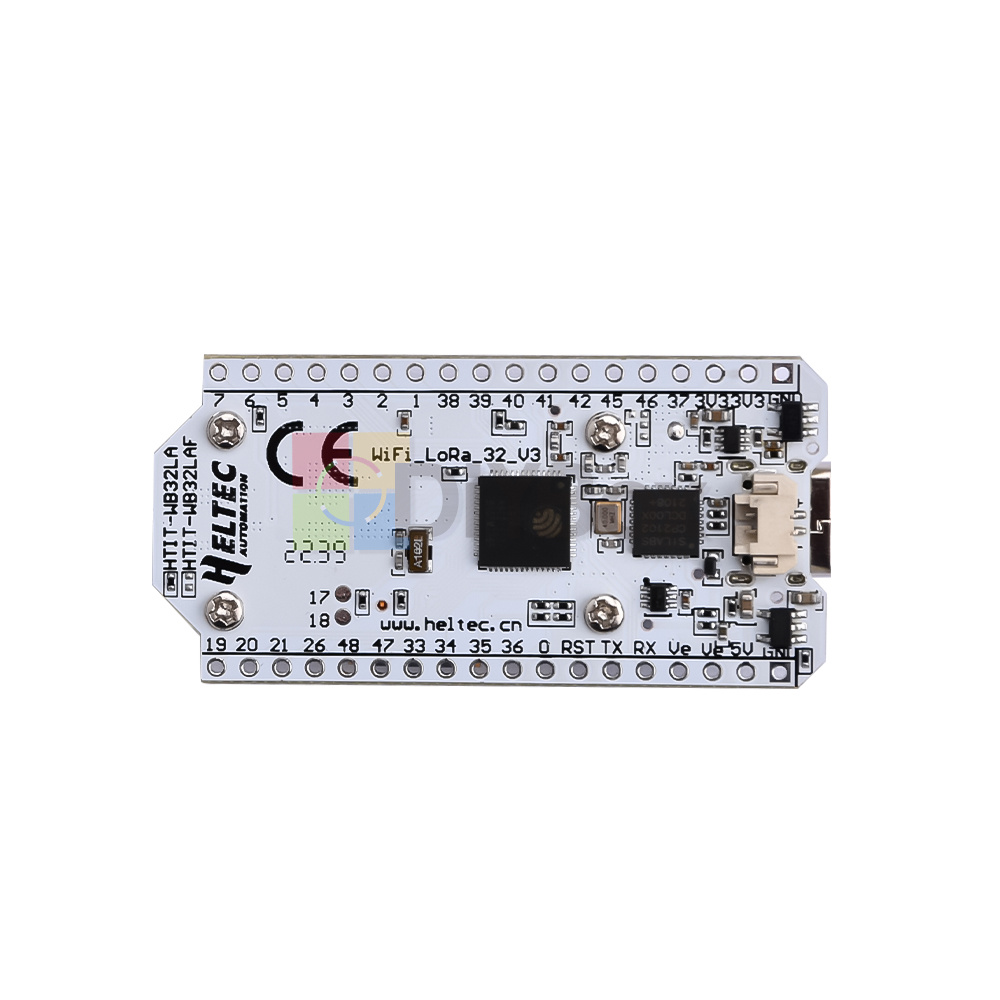

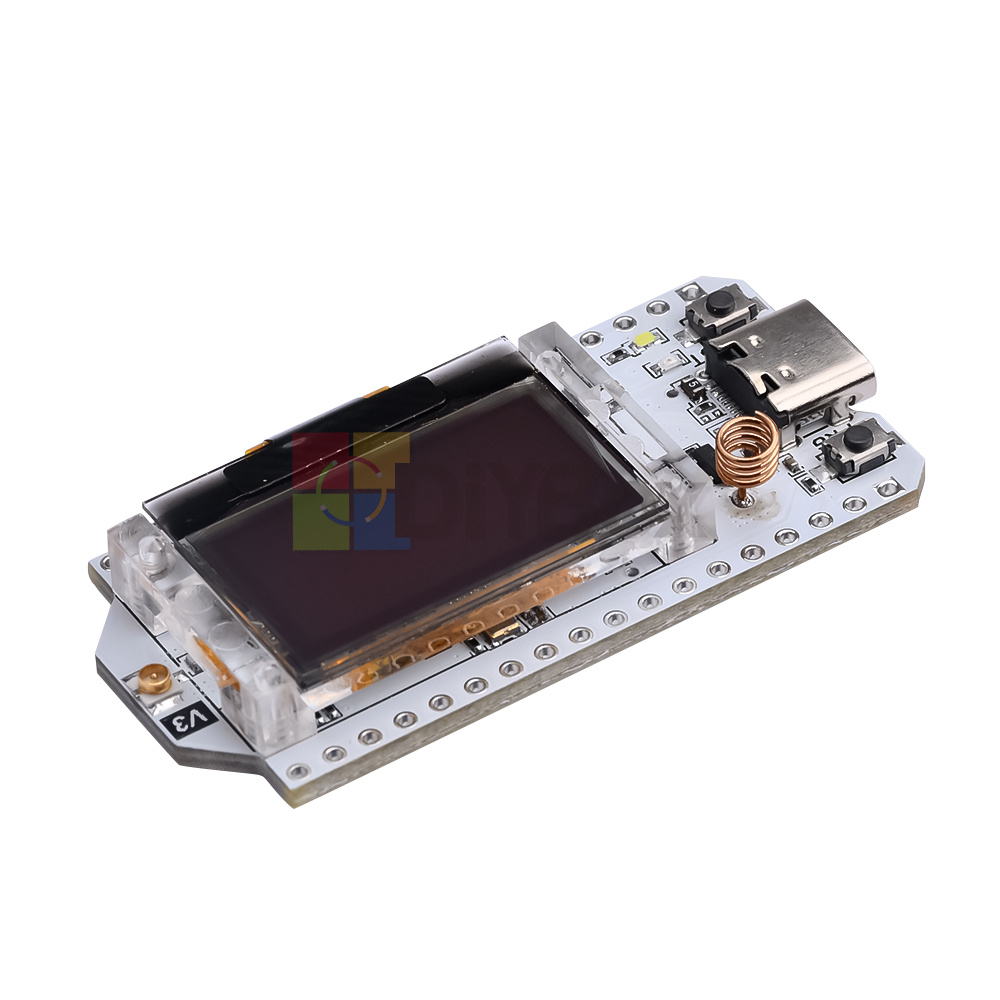

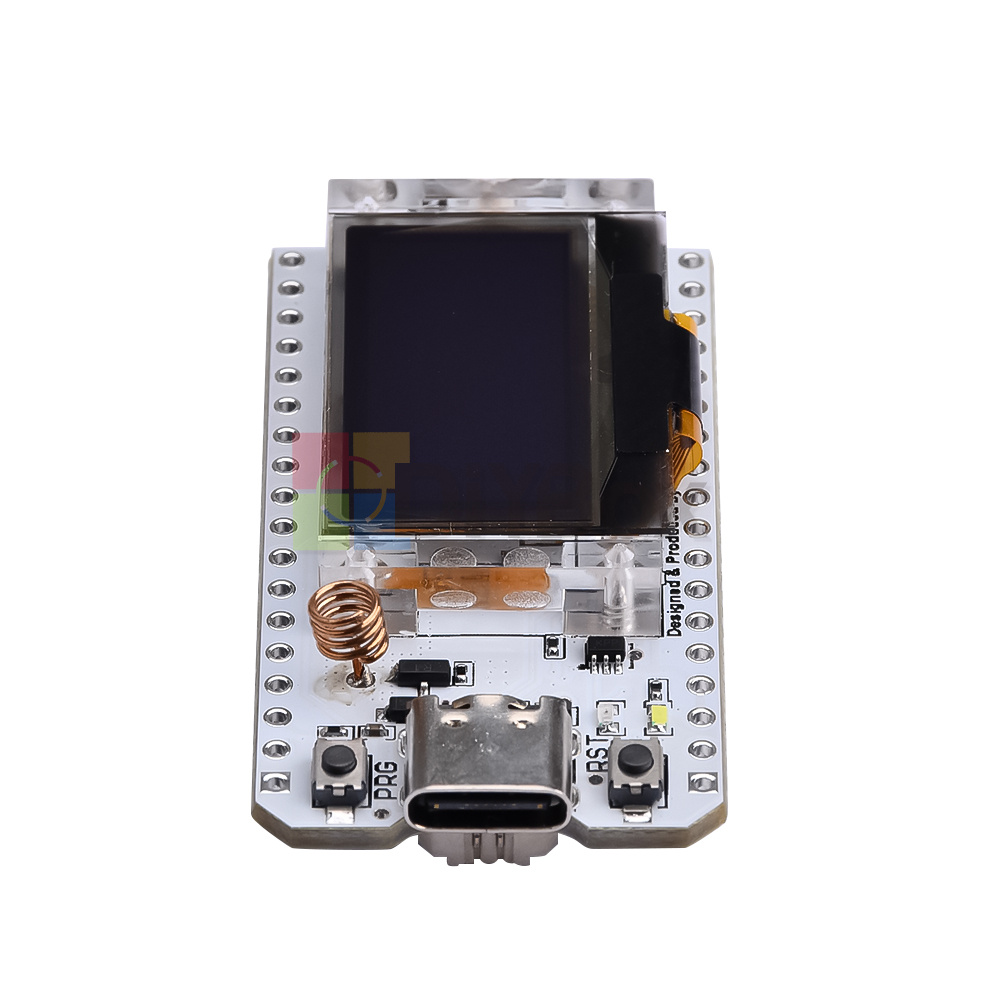

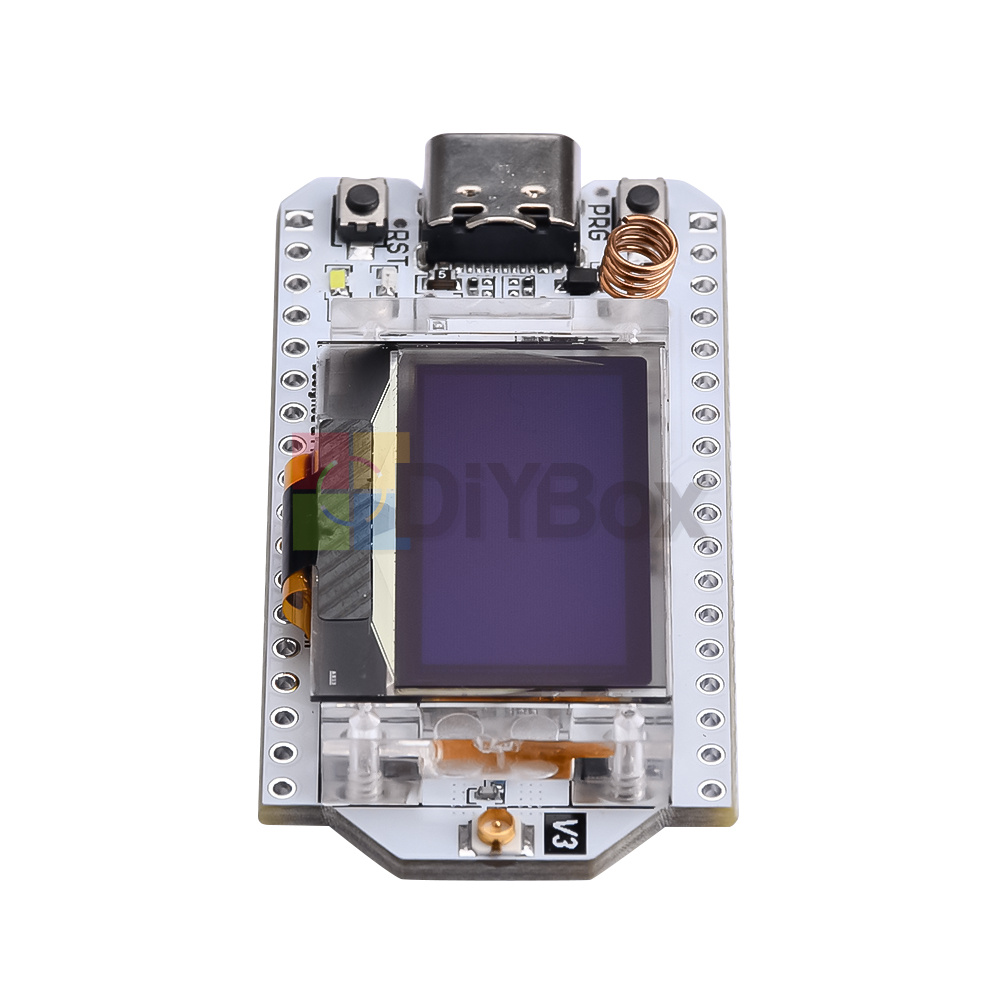

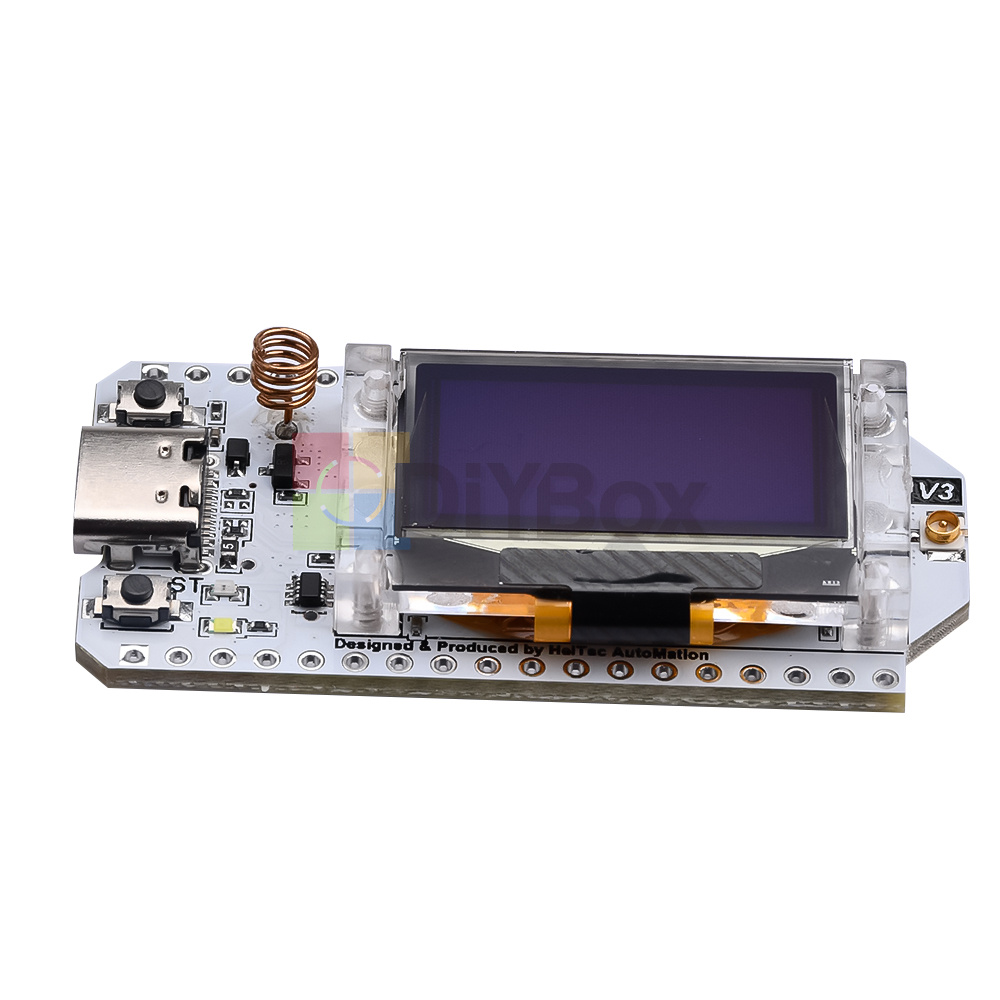

0.96" WiFi LoRa 32 (V3) Type-C ESP32 Bluetooth WIFI Development Board CP2102
Microprocessor: ESP32-S3FN8 (Xtensa® 32-bit LX7 dual-core processor, five-stage pipeline rack architecture, up to 240MHz main frequency).
SX1262 LoRa node chip.
C-type USB interface with full voltage regulator, ESD protection, short circuit, circuit protection, RF shielding and other protection measures.
On-board SH1.25-2 battery interface with integrated Li-ion battery management system (charge/discharge management, overcharge protection, battery power detection, automatic USB/battery power switching).
Integrated WiFi, LoRa, Bluetooth triple network connectivity, in-car Wi-Fi,, Bluetooth dedicated 2.4GHz metal spring antenna, reserved IPEX (U.FL) interface for LoRa.

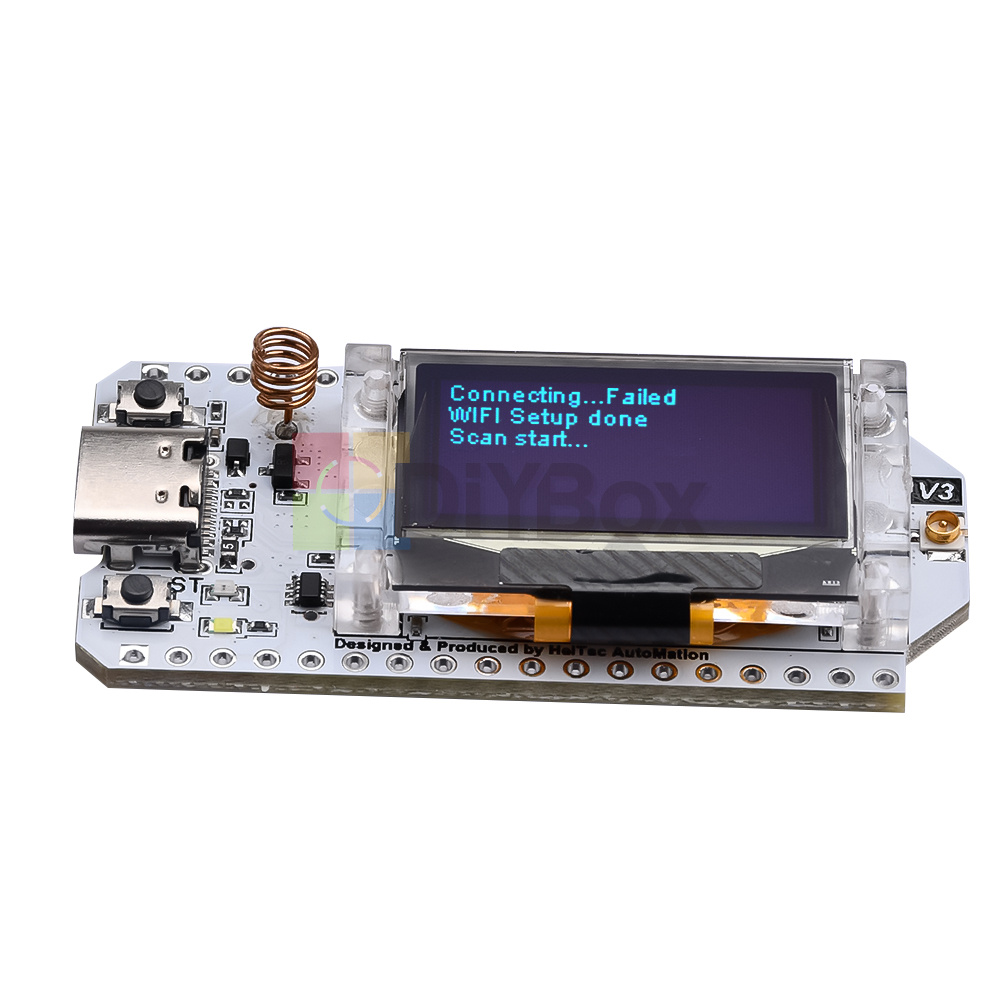

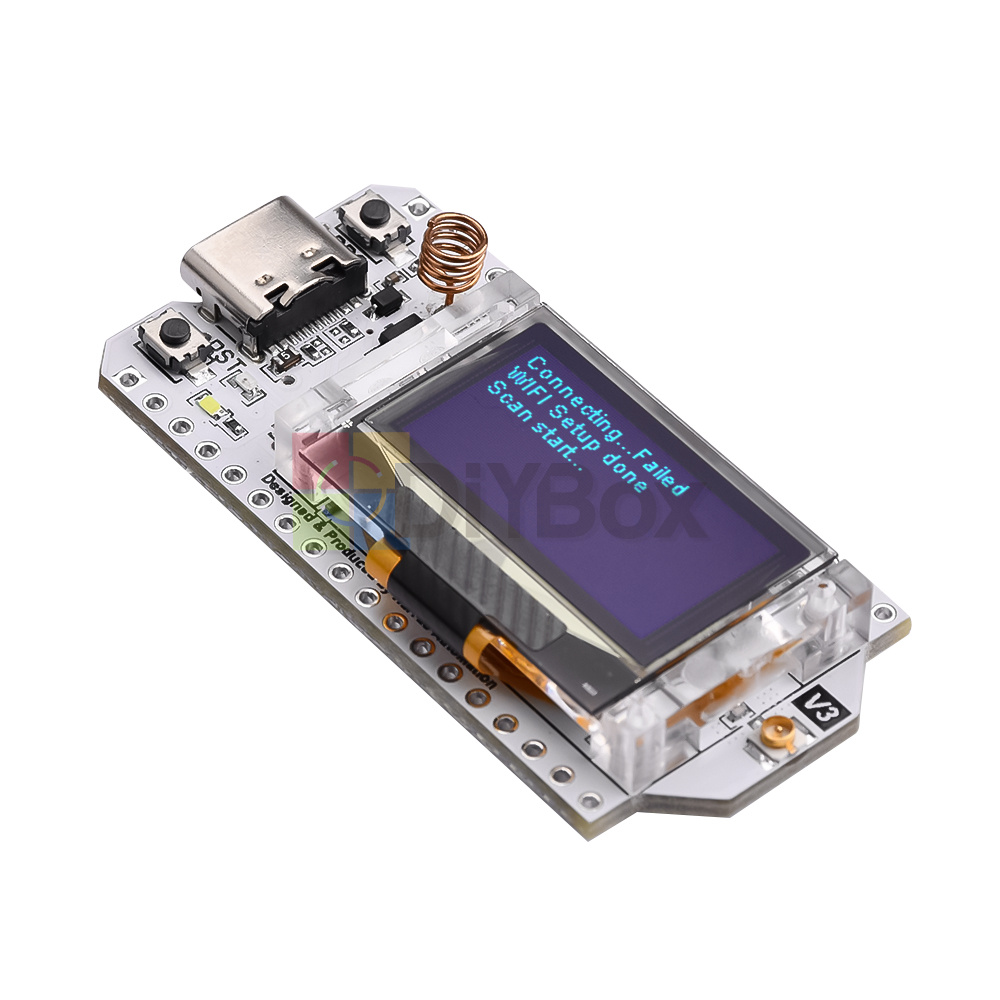

On-board 0.96" 128*64 dot matrix OLED display for debug information, battery level and other information.
Integrated CP2102 USB to serial chip for easy program download and debug information printing.
Support Arduino development environment. We offer the ESP32+ LoRaWAN protocol Arduino® library, a standard LoRaWAN protocol that can be used with running LoRaWAN protocols.
The newly launched V3 version has the same pin sequence as the V2 version and retains Wi-Fi, BLE, LoRa, OLED display and other features.
It is the perfect choice for developers of smart cities, farms, homes, industrial control, house security, wireless meter reading and IoT.
With good RF circuit design and low power consumption design.
Main chip: ESP32-S3FN8 (Xtensa® 32-bit lx7 dual-core processor)
LoRa chipset: SX1262
USB to serial chip: CP2102
Frequency: 433 to 510 MHz; 863 to 928 MHz
Maximum transmit power: 21 ± 1 dBm
Maximum receive sensitivity: -139 dBm
Wi-Fi: 802.11 b/g/n, up to 150 Mbps
Bluetooth: Bluetooth 5.
Bluetooth LE: Bluetooth Mesh
Hardware resources: 7*ADC1 + 2*ADC2; 7*Touch; 3*UART; 2*I2C; 2*SPI; etc.
Memory: 384KB ROM; 512KB SRAM; 16KB RTC SRAM; 8MB SiP Flash
Interface: Type-C USB; 2*1.25 lithium battery interface; LoRa; ANT(IPEX1.0); 2*18*2.54 Header Pin
Battery: 3.7V lithium battery powered and charged
Operating temperature: -20~70℃

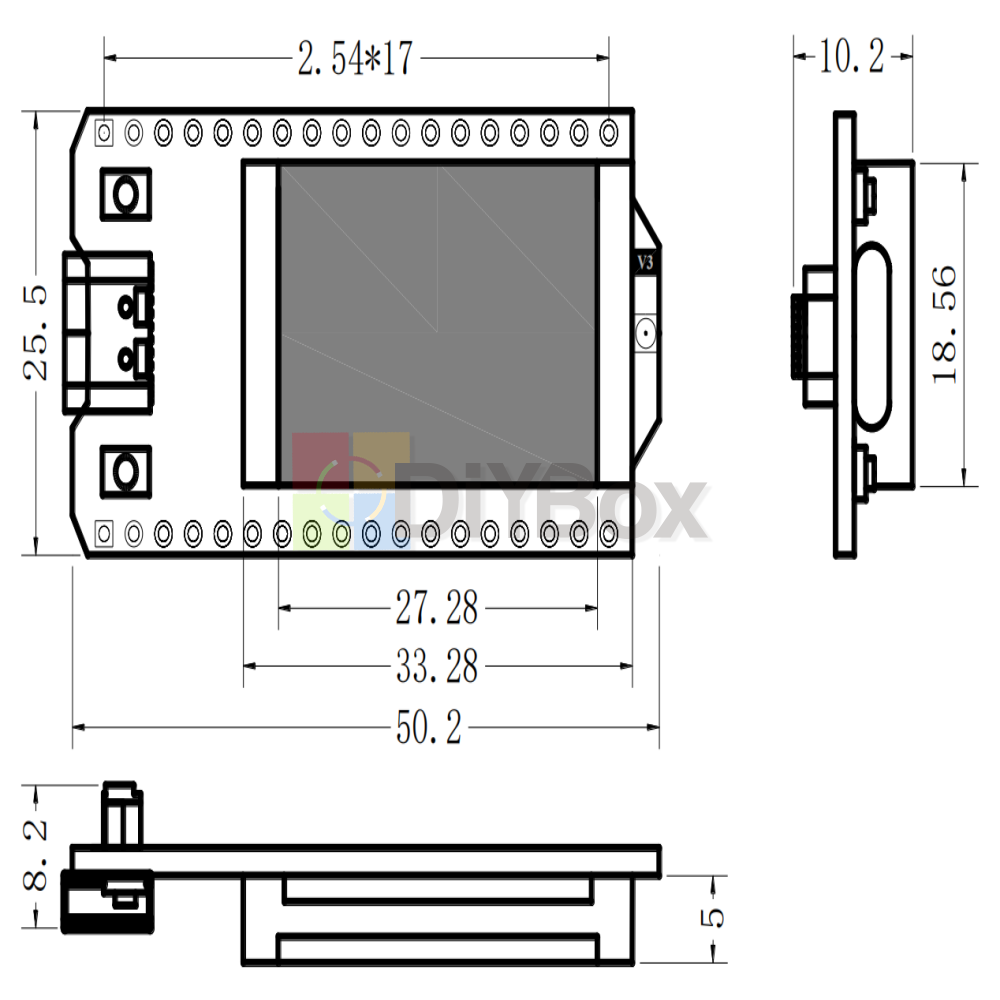

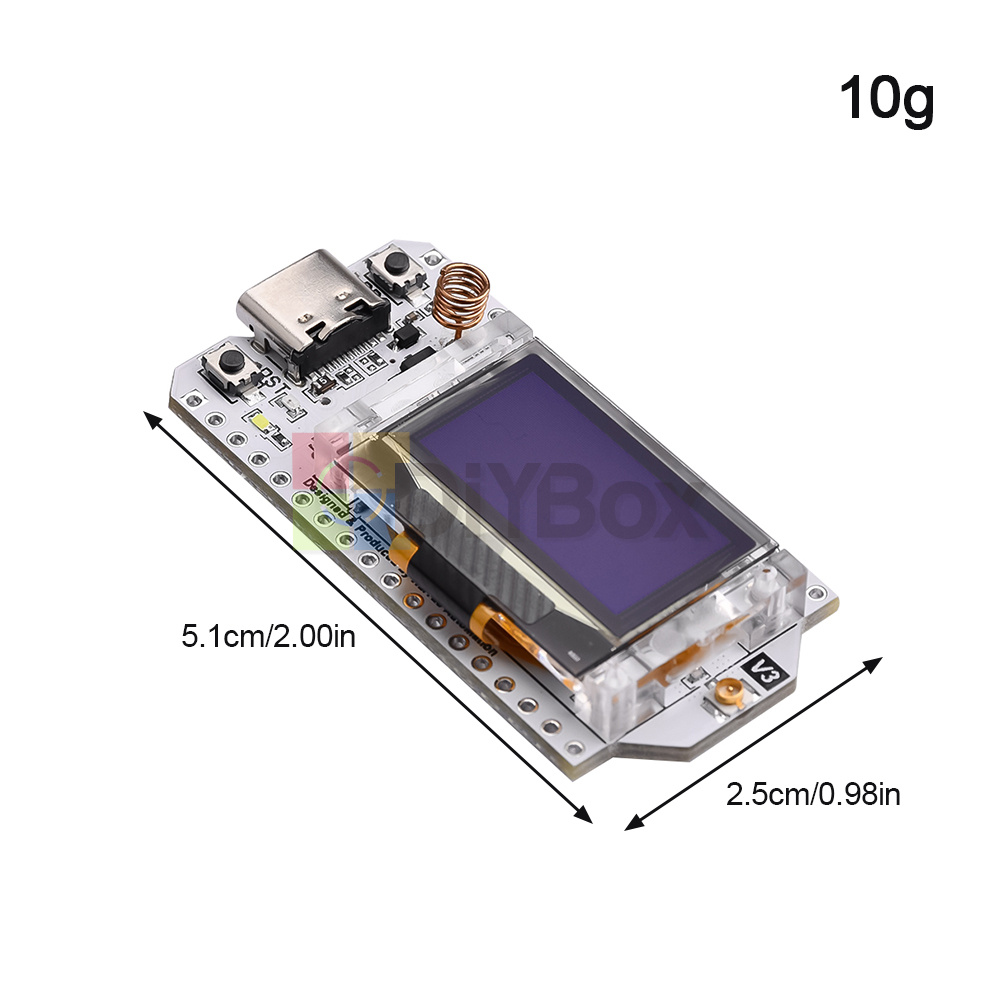

Size: 50.2*25.5*10.2 mm

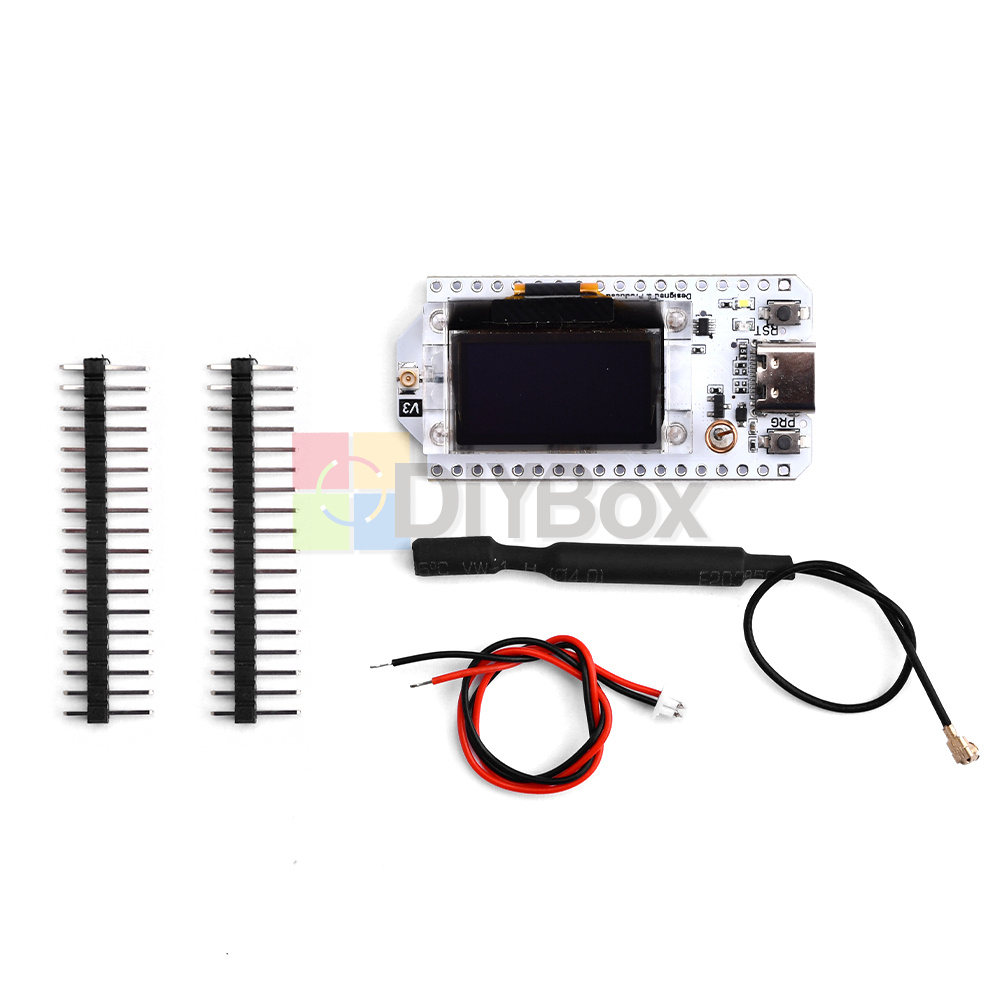

Module x1
Antenna x1
Pin x2
Terminal wire x1
