SDXCR/L Indexable Boring Bar Lathe Toolholders + DCMT070204 Inserts 8mm-16mm Shank

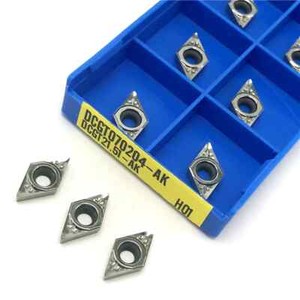

These turning and facing lathe tool holders are compatible with any DCxT07 inserts, such as DCMT070204, DCGT070204, DCMT070202, DCGT070202, DCMT070208, DCGT070208
It's recommended to use the largest shank that will fit in your tool post while still reaching center-line of your chuck, to maximize rigidity and minimize chatter.
Holders available:
Right handed Boring Bars (for regular boring)
S08K SDXCR07
Shank Diameter: 8mm
Minimum Bore Diameter: 10mm
Overall Length: 125mm
S10K SDXCR07
Shank Diameter: 10mm
Minimum Bore Diameter: 13mm
Overall Length: 125mm
S12M SDXCR07
Shank Diameter: 12mm
Minimum Bore Diameter: 16mm
Overall Length: 150mm
S16Q SDXCR07
Shank Diameter: 16mm
Minimum Bore Diameter: 20mm
Overall Length: 180mm
Left Handed Boring Bars (for upside down boring or boring in reverse gear)
S10K SDXCL07
Shank Diameter: 10mm
Minimum Bore Diameter: 13mm
Overall Length: 125mm
S16Q SDXCL07
Shank Diameter: 16mm
Minimum Bore Diameter: 20mm
Overall Length: 180mm
