3ROW Radiator shroud fan+relay For Holden Commodore VT VX VU V6 3.8 Petrol 97-02
Items Description
Notes:If your address is remote, you will need to pay shipping fee difference. Thanks for understanding.

Package Include:

1 X 3-Row Aluminum Radiator

1 X AA5052 Aluminum Shroud

2 X 12" Fans

1 X Thermostat Relay Kit

Radiator Specifics

Row: 3 Row Core
Material: Full Aluminium
Radiator Cap: included
Core and Tank: All Aluminum
Core Size: 428 H * 673 W mm
Overall Size: 500 H * 845 W * 127 T mm
Inlet/Outlet: 35/35 mm

build-in oilcooler

Transmission: Automatic and Manual.

Vehicle Fitment
HOLDEN COMMODORE  AT/MT  VT VU VX HSV 3.8L V6 97-02
HOLDEN VT COMMODORE 3.8L Ecotec V6 AT/MT 1997-2000
HOLDEN VT BERLINA 3.8L Ecotec V6 AT/MT 1997-2000
HOLDEN VT CALAIS 3.8L Ecotec V6 AT/MT 1997-2000
HOLDEN VT COMMODORE 3.8L Supercharged Ecotec V6 AT/MT 1997-2000
HOLDEN VT BERLINA 3.8L Supercharged Ecotec V6 AT/MT 1997-2000
HOLDEN VT CALAIS 3.8L Supercharged Ecotec V6 AT/MT 1997-2000
HOLDEN VX COMMODORE 3.8L Ecotec V6 AT/MT 2000-2002
HOLDEN VX BERLINA 3.8L Ecotec V6 AT/MT 2000-2002
HOLDEN VX CALAIS 3.8L Ecotec V6 AT/MT 2000-2002
HOLDEN VX COMMODORE 3.8L Supercharged Ecotec V6 AT/MT 2000-2002
HOLDEN VX BERLINA 3.8L Supercharged Ecotec V6 AT/MT 2000-2002
HOLDEN VX CALAIS 3.8L Supercharged Ecotec V6 AT/MT 2000-2002
HOLDEN UTE VU 3.8L Ecotec V6 AT/MT 2001-2002
HOLDEN UTE VU 3.8L Supercharged Ecotec V6 AT/MT 2001-2002
HOLDEN HSV 3.8L Ecotec V6 AT/MT 1997-2002

HOLDEN HSV 3.8L Supercharged Ecotec V6 AT/MT 1997-2002

FANS:12"

Maximum Fan CFM: 1730 cfm

Fan Diameter (in): 12.050”

Thickness (in): 2.500”

Number of Blades: 10 blades

Maximum Fan RPM: 2,250 rpm

Blade Material: Plastic

Amp Draw: 12.70 amps

Includes the Mounting Tabs for an Easy Zip Tie Installation

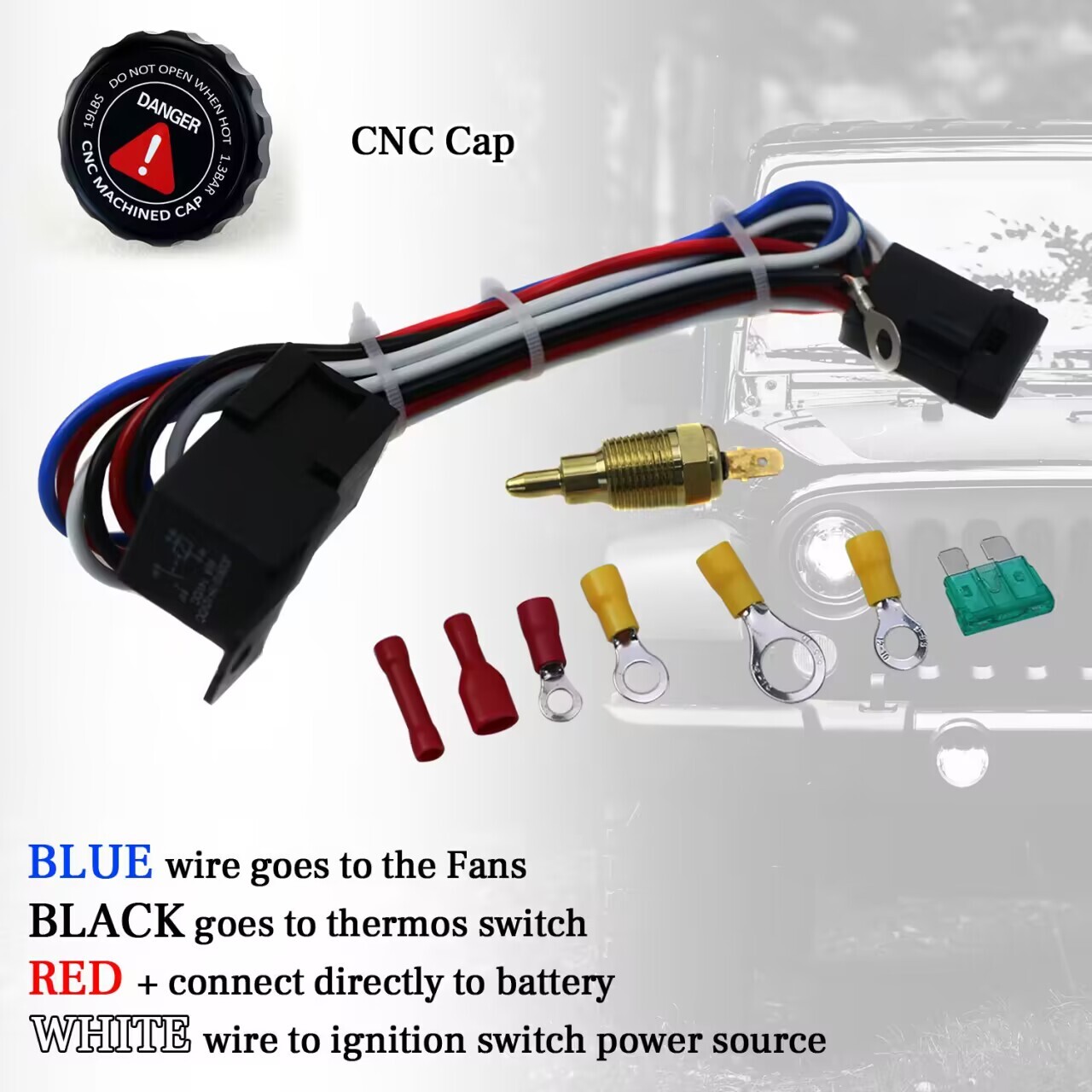

Relay Kits

Universal fit for any automotive vehicle and electric fan.

Activates by grounding electric fans at preset temperature.

180'F turn-on temperature, 165'F turn-off temperature.

3/8" NPT thread-in brass probe included.

Probe typically threads into radiator, water outlet or manifold.

Installment Instruction of Relay

RED wire : Connect directly to battery.

WHITE wire : Ignition switch power source.

BLACK wire : Connect thermos switch.

BLUE wire: Connect the Fans.
