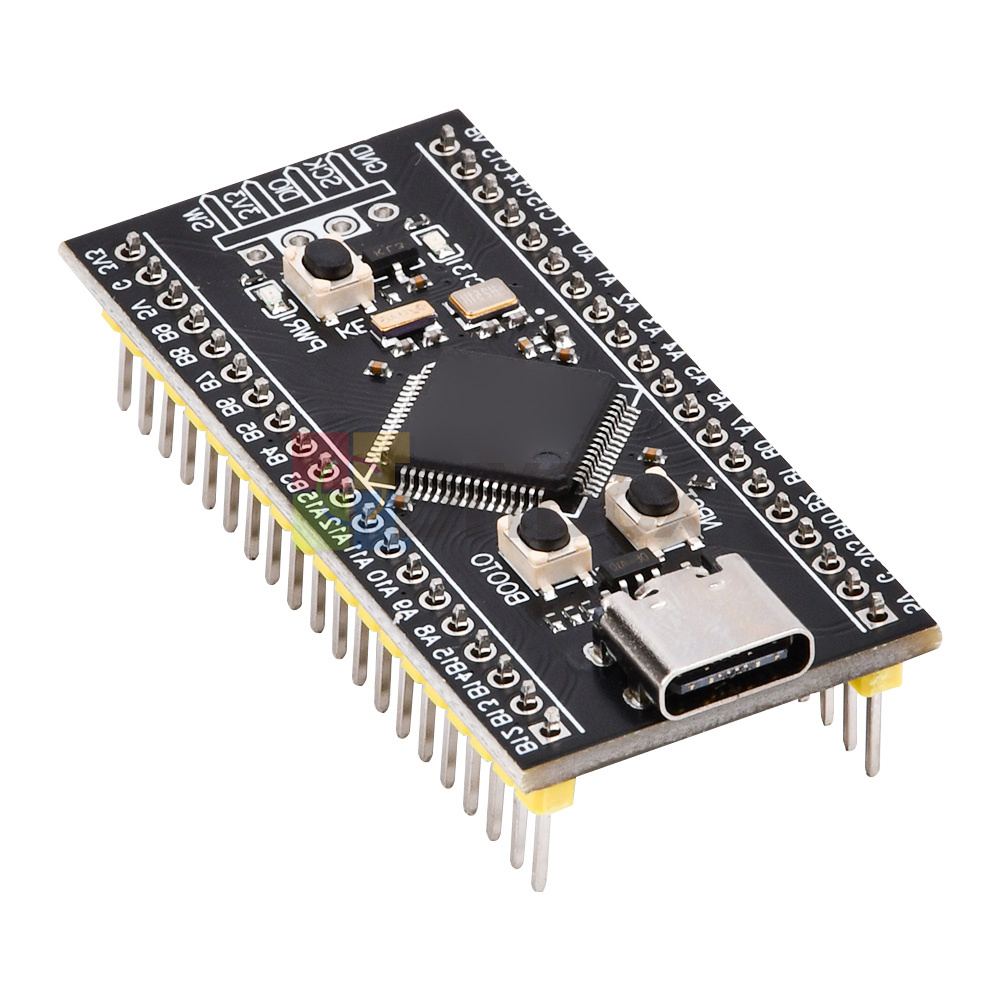

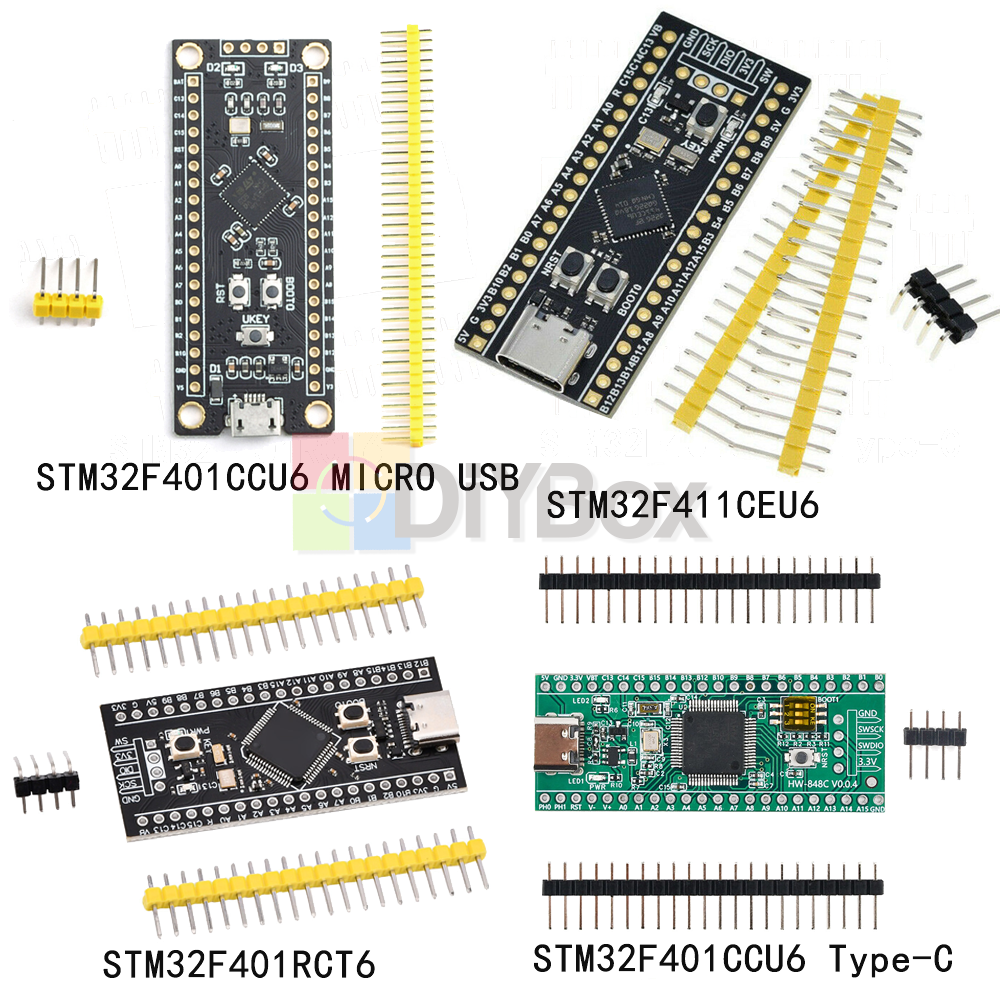

STM32F411CEU6 Type-C
Product description:
This is a STM32F411CEU6 core development board, the core core is ARM Cortex®-M4. It is rich in resources, backed by powerful resources provided by STMicroelectronics. It is a good choice whether to use it for learning or for secondary development.
This is a STM32F411CEU6 core development board, the core core is ARM Cortex®-M4. It is rich in resources, backed by powerful resources provided by STMicroelectronics. It is a good choice whether to use it for learning or for secondary development.
Module parameters:
IC model: STM32F411CEU6
IC storage: 512 Kbytes flash, 128 Kbytes SRAM
External crystal oscillator: 25MHz high-speed crystal +32.768KHz low-speed crystal
Back flash pad: Users can solder and install flash by themselves as needed (W25Q32JVSSIQ is recommended)
Ready-made communication interfaces: Type-C USB, SWD, USART (A9:TX A10:RX).
IC model: STM32F411CEU6
IC storage: 512 Kbytes flash, 128 Kbytes SRAM
External crystal oscillator: 25MHz high-speed crystal +32.768KHz low-speed crystal
Back flash pad: Users can solder and install flash by themselves as needed (W25Q32JVSSIQ is recommended)
Ready-made communication interfaces: Type-C USB, SWD, USART (A9:TX A10:RX).
Package Included:1*STM32F411CEU6 development board

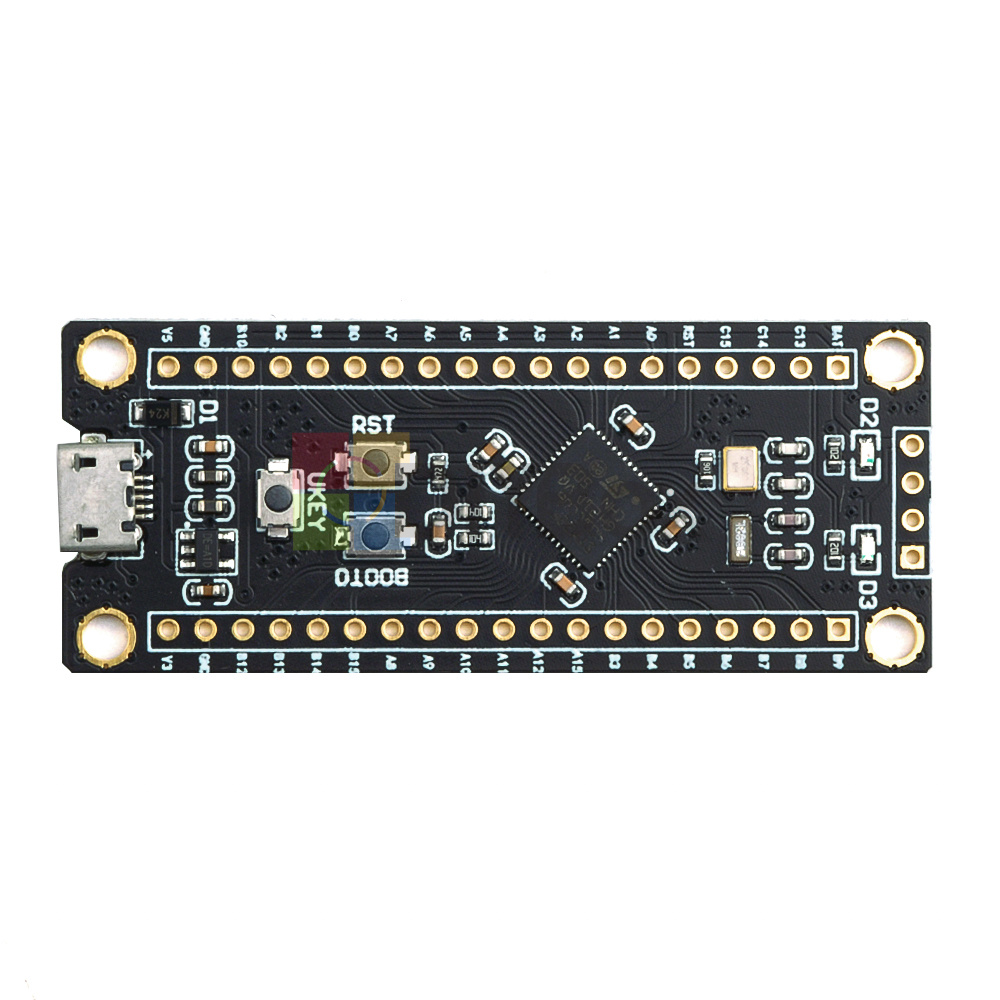

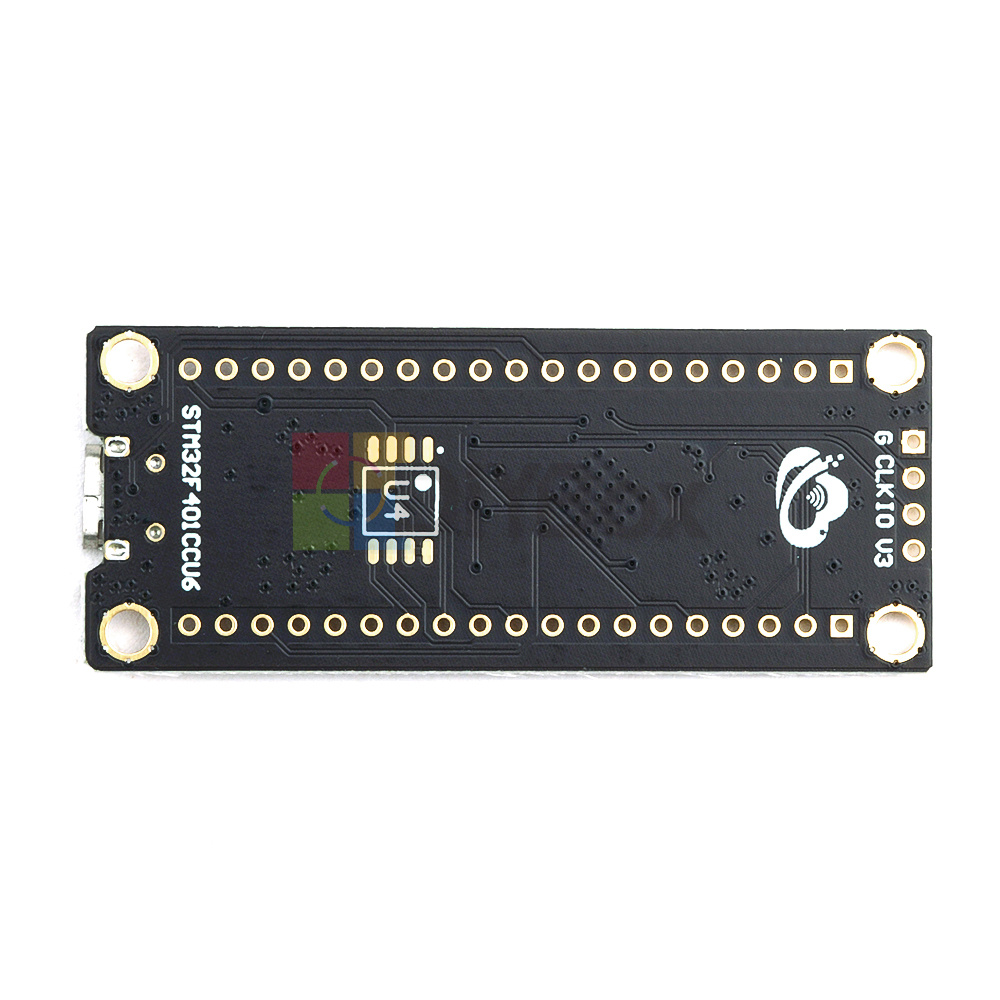

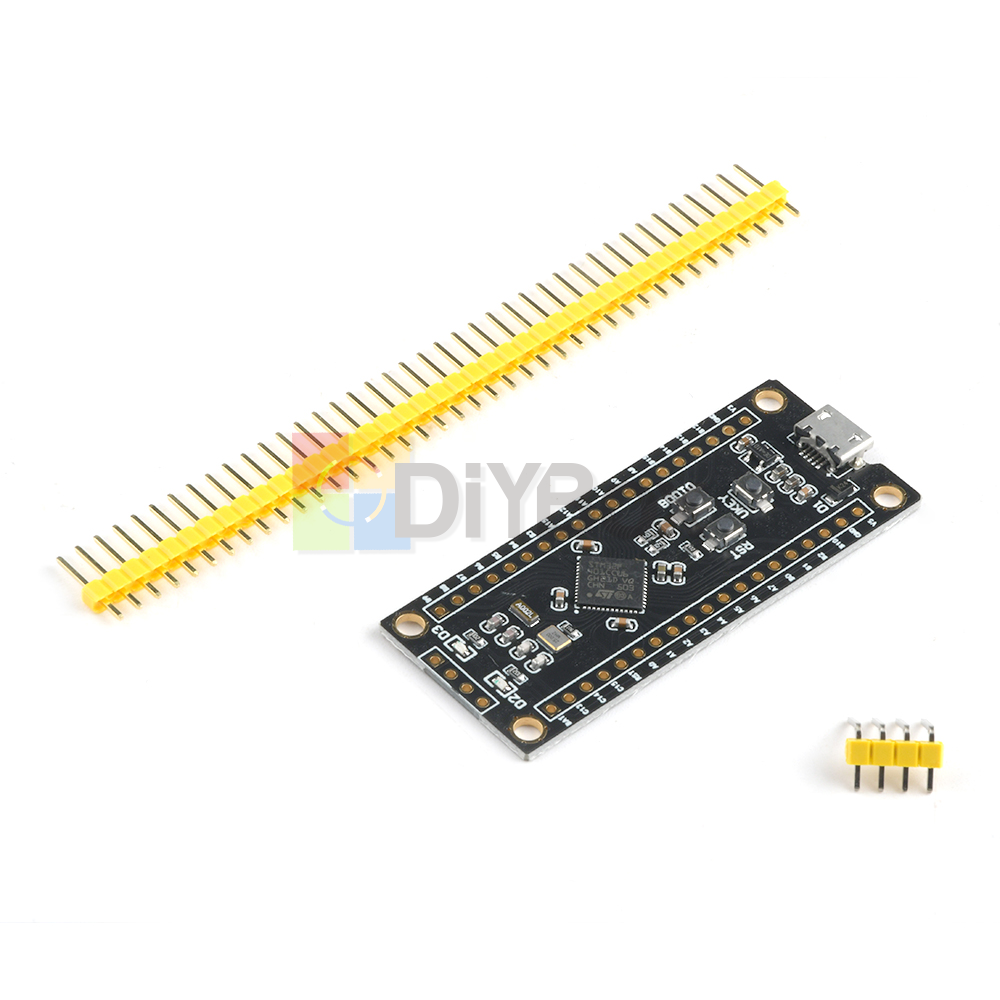

STM32F401CCU6 Micro USB
Product introduction:
STM32F401
Frequency up to 84 MHz
Memories
– Up to 256 Kbytes of Flash memory
– 512 bytes of OTP memory
– Up to 64 Kbytes of SRAM
STM32F401
Frequency up to 84 MHz
Memories
– Up to 256 Kbytes of Flash memory
– 512 bytes of OTP memory
– Up to 64 Kbytes of SRAM
Since the STM32F401 has a small memory, you need to attach a flash to simulate a USB flash drive. Recommended flash: W25Q32JVSSIQ 32MBit
Package Included:
1pcs*STM32F401CCU6 Development Board Minimum System
Package Included:
1pcs*STM32F401CCU6 Development Board Minimum System

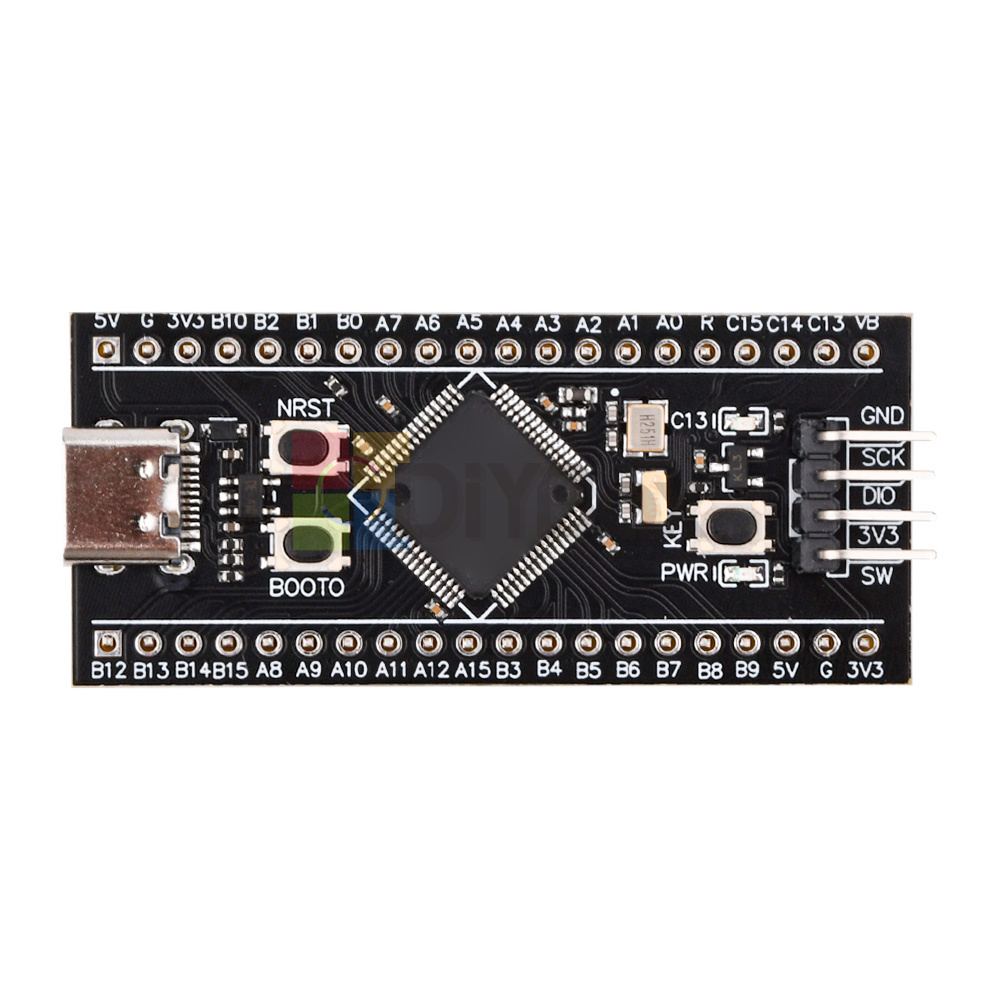

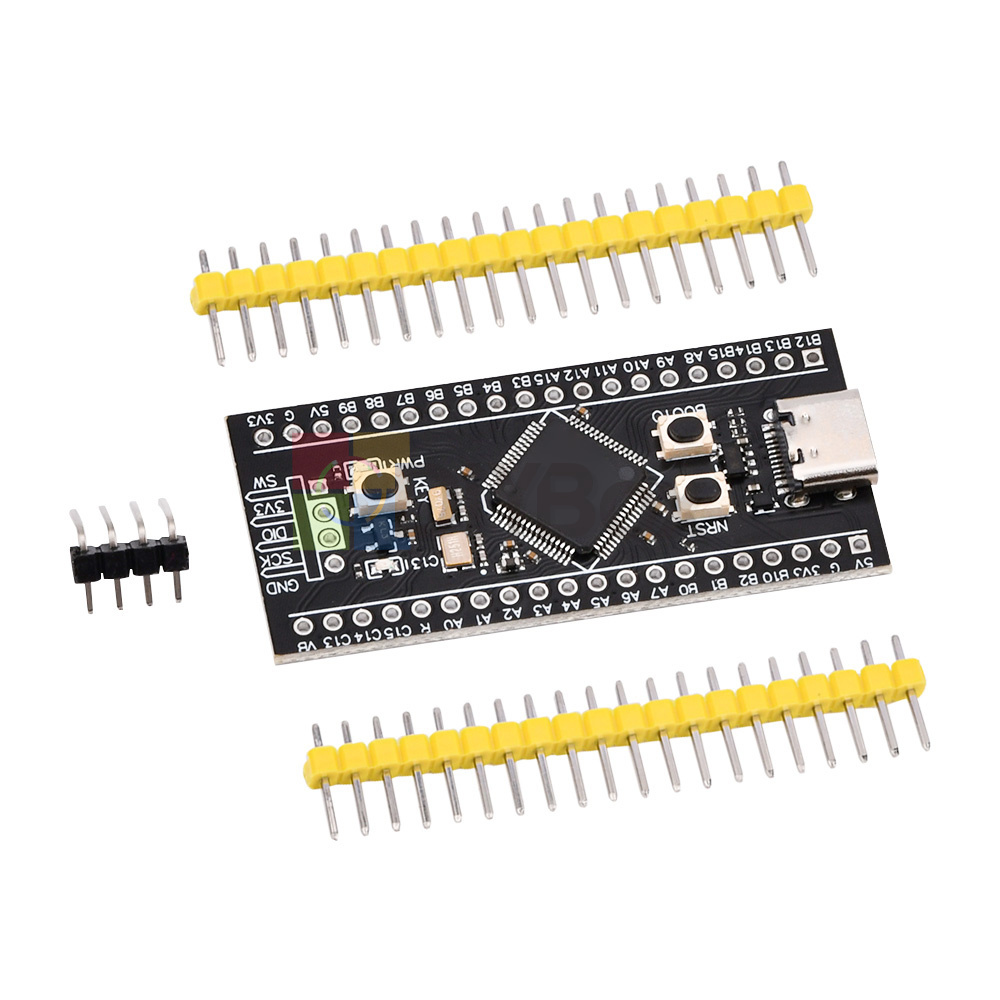

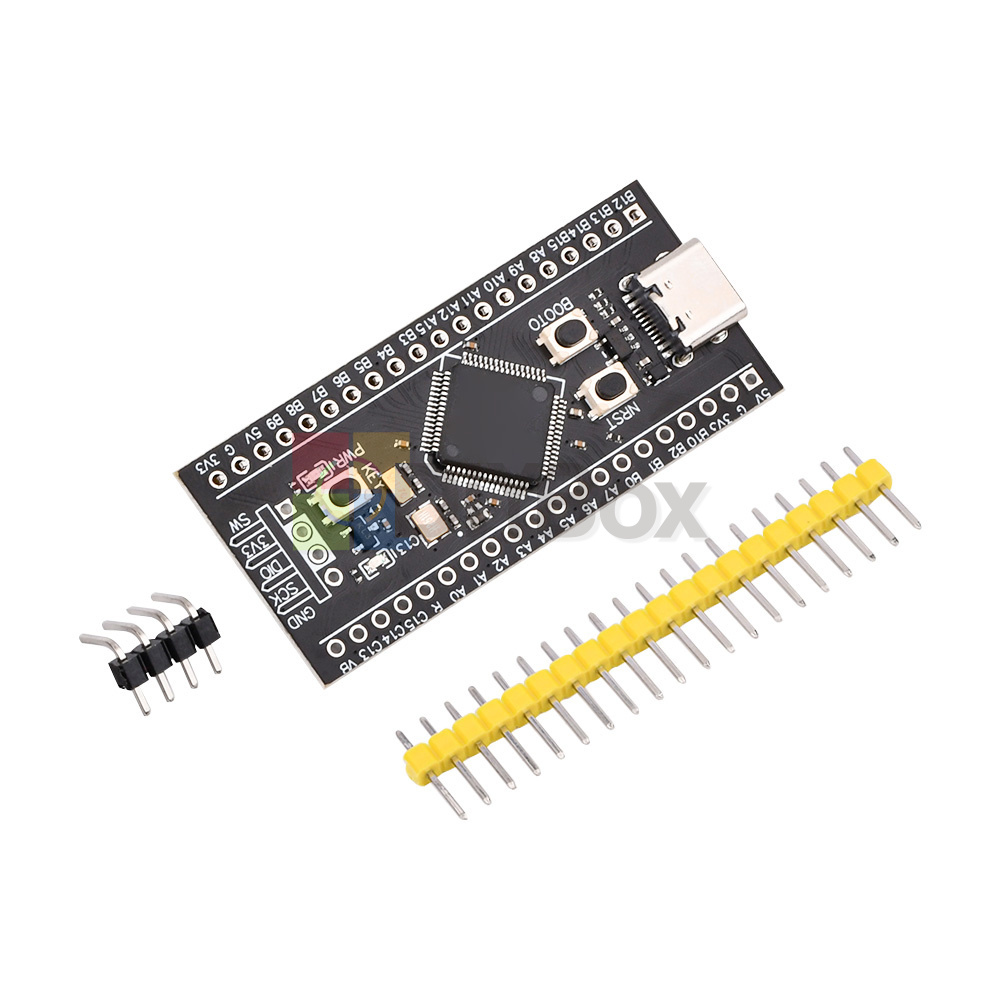

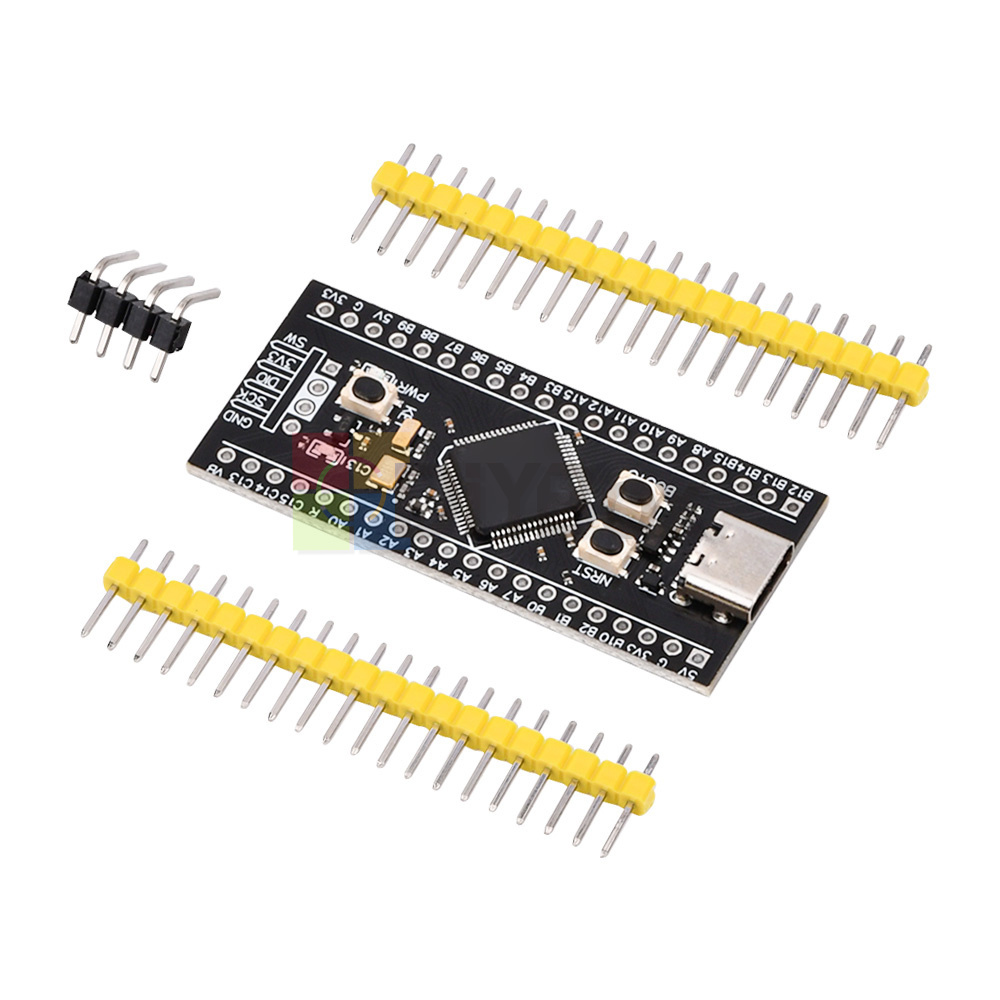

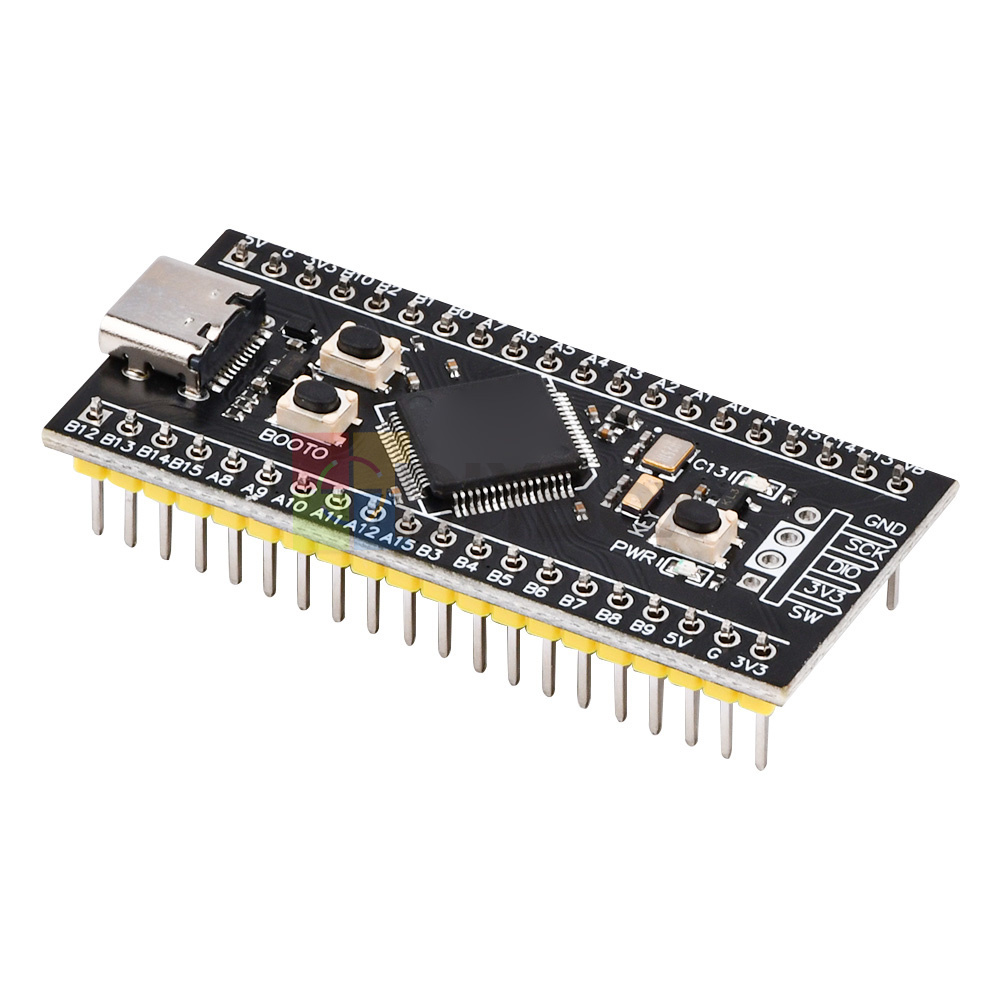

STM32F401RCT6 Type-C
Product Features:
With 2 high brightness LEDs, red power light, blue for user test light
25MHZ high speed crystal & 32.768Khz 6PF low speed crystal
Using lead-free process, send 2 rows of row of pins and SWD download 4PIN bent pin, more convenient and environmental protection
16-pin TYPE-C high quality interface, durable and reliable
With 3 buttons, reset button, BOOT0 button, user button.
With 2 high brightness LEDs, red power light, blue for user test light
25MHZ high speed crystal & 32.768Khz 6PF low speed crystal
Using lead-free process, send 2 rows of row of pins and SWD download 4PIN bent pin, more convenient and environmental protection
16-pin TYPE-C high quality interface, durable and reliable
With 3 buttons, reset button, BOOT0 button, user button.
Parameter description;
25MHZ high speed crystal & 32.768Khz 6PF low speed crystal
Use lead-free process, send 2 rows of row pins and SWD download 4PIN bend pins, more convenient and environmental protection
There are 2 high brightness LED lights, red power light, blue for user test light
There are 3 buttons, reset button, BOOT0 key, user button
16-pin TYPE-C high quality interface, durable and reliable
Have reserved Flash pads, provide USBDisk&&FATFFS routines
Factory has burned respiratory program, provide source program and hex burn-in program for your learning convenience.
Support MicroPython programming, provide available MicroPython firmware, see link for configuration file, but no technical answer!
25MHZ high speed crystal & 32.768Khz 6PF low speed crystal
Use lead-free process, send 2 rows of row pins and SWD download 4PIN bend pins, more convenient and environmental protection
There are 2 high brightness LED lights, red power light, blue for user test light
There are 3 buttons, reset button, BOOT0 key, user button
16-pin TYPE-C high quality interface, durable and reliable
Have reserved Flash pads, provide USBDisk&&FATFFS routines
Factory has burned respiratory program, provide source program and hex burn-in program for your learning convenience.
Support MicroPython programming, provide available MicroPython firmware, see link for configuration file, but no technical answer!
How to enter the ISP mode download:
ISP mode download
Method 1: In the power-on state, press and hold the BOOT0 key and the reset key, then release the reset key and release the BOOT0 key after 0.5 seconds
Method 2: In the power-down state, press and hold the BOOT0 key, then release BOOT0 after 0.5S of power-up
USB cable connects to MCU's TYPE-C interface, serial port connects to PA9, PA10, download software recommends STM32CubeProg, WeAct Studio Download Tool
Serial port download
USB to serial port (ex.: CH340) TX - PA10 ,RX - PA9, and do not connect the MCU Type-C to the computer, you must use external power supply, otherwise it will affect the MCU download
Use STM32CubeProgammer for serial download
USB download (DFU download)
STM32CubeProgrammer check the USB mode, WeAct Studio Download Tool double-click WeAct Studio USB Download Tool.bat, then follow the prompts
MCU enters ISP mode, use USB cable to connect to PC
Select the firmware, the rest of the operation is the same as the serial port download
Steps to use the software.
Connect the core board to the computer with the data cable, the WeAct HID device will appear
Press and hold the KEY key, re-power or reset into Bootloader
Select the firmware, click <Download Firmware> to complete the download
The selected firmware will be updated with the KEIL recompile, no need to reselect
ISP mode download
Method 1: In the power-on state, press and hold the BOOT0 key and the reset key, then release the reset key and release the BOOT0 key after 0.5 seconds
Method 2: In the power-down state, press and hold the BOOT0 key, then release BOOT0 after 0.5S of power-up
USB cable connects to MCU's TYPE-C interface, serial port connects to PA9, PA10, download software recommends STM32CubeProg, WeAct Studio Download Tool
Serial port download
USB to serial port (ex.: CH340) TX - PA10 ,RX - PA9, and do not connect the MCU Type-C to the computer, you must use external power supply, otherwise it will affect the MCU download
Use STM32CubeProgammer for serial download
USB download (DFU download)
STM32CubeProgrammer check the USB mode, WeAct Studio Download Tool double-click WeAct Studio USB Download Tool.bat, then follow the prompts
MCU enters ISP mode, use USB cable to connect to PC
Select the firmware, the rest of the operation is the same as the serial port download
Steps to use the software.
Connect the core board to the computer with the data cable, the WeAct HID device will appear
Press and hold the KEY key, re-power or reset into Bootloader
Select the firmware, click <Download Firmware> to complete the download
The selected firmware will be updated with the KEIL recompile, no need to reselect
To enter the bootloader method:
Press and hold <KEY key>, re-power or reset, C13 LED blinks to release
APP into the bootloader reference stm32f401_test_APP 0x8004000.zip project
In the burn-in bootloader
Click/double click <KEY key> for C13 LED to turn on/off
SW debug port is open, you can use debugger to burn, no need to enter DFU mode
How to exit the bootloader
Reset the MCU, reset the key/uploader click <MCU reset
Long press <KEY key>, C13 LED blinks to release
Press and hold <KEY key>, re-power or reset, C13 LED blinks to release
APP into the bootloader reference stm32f401_test_APP 0x8004000.zip project
In the burn-in bootloader
Click/double click <KEY key> for C13 LED to turn on/off
SW debug port is open, you can use debugger to burn, no need to enter DFU mode
How to exit the bootloader
Reset the MCU, reset the key/uploader click <MCU reset
Long press <KEY key>, C13 LED blinks to release
Caution:
The first time you burn the bootloader, the MCU will not run down, while the C13 LED 200MS blinks, just reset the MCU again.
Bootloader and APP burning software source code are not open
The first time you burn the bootloader, the MCU will not run down, while the C13 LED 200MS blinks, just reset the MCU again.
Bootloader and APP burning software source code are not open
Product List:
1X development board
2X single row of pins
1X curved pins
1X development board
2X single row of pins
1X curved pins

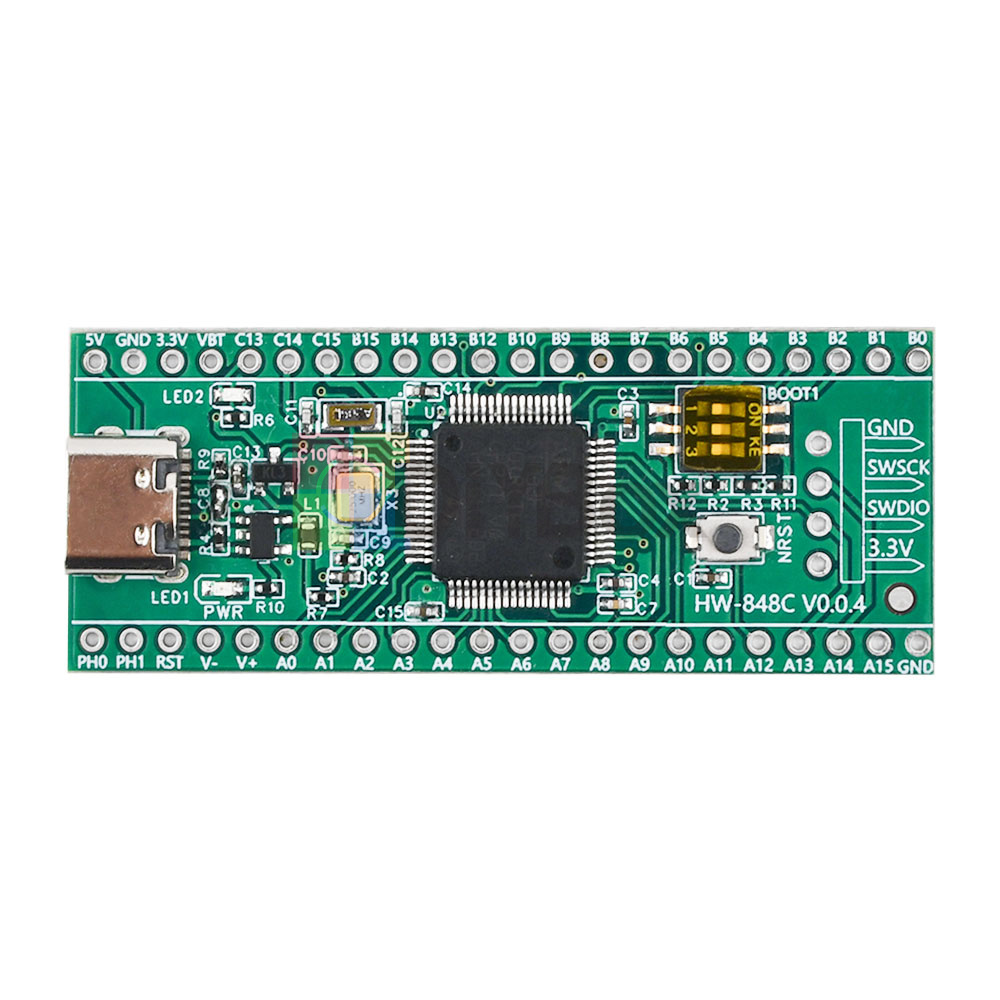

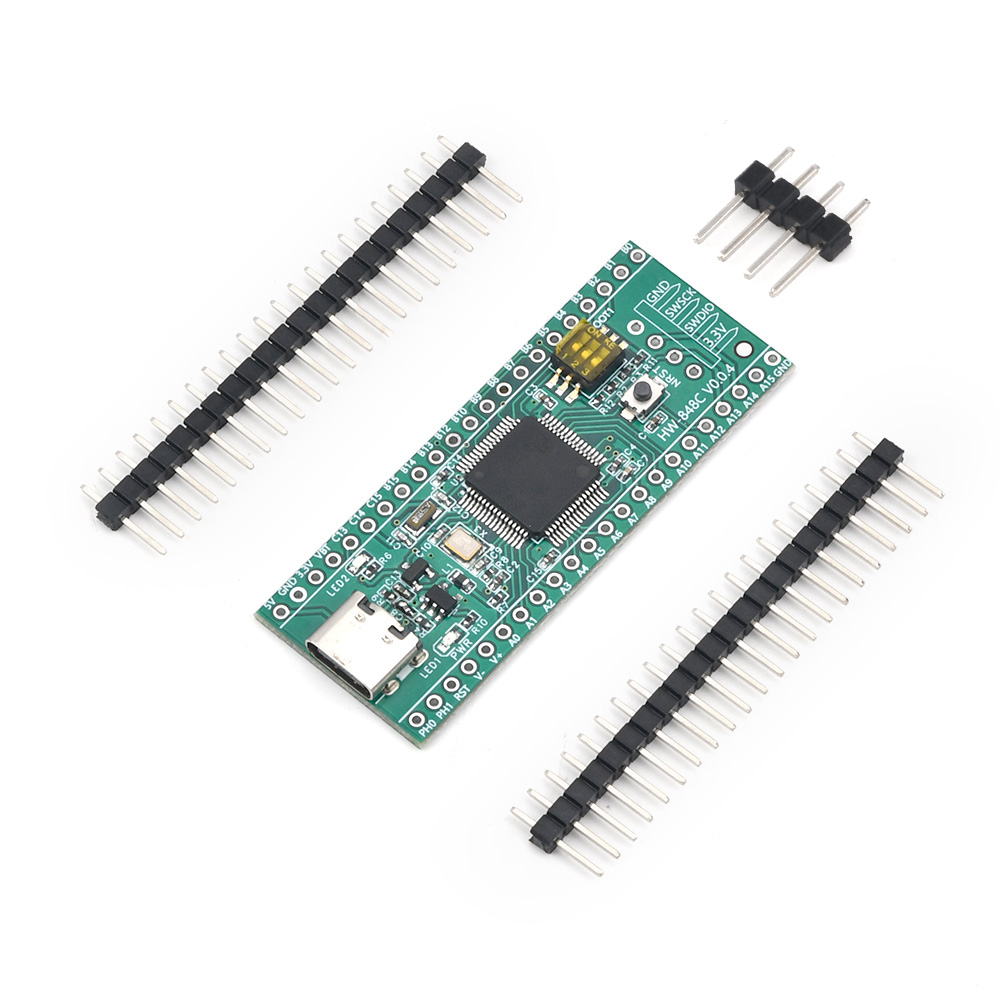

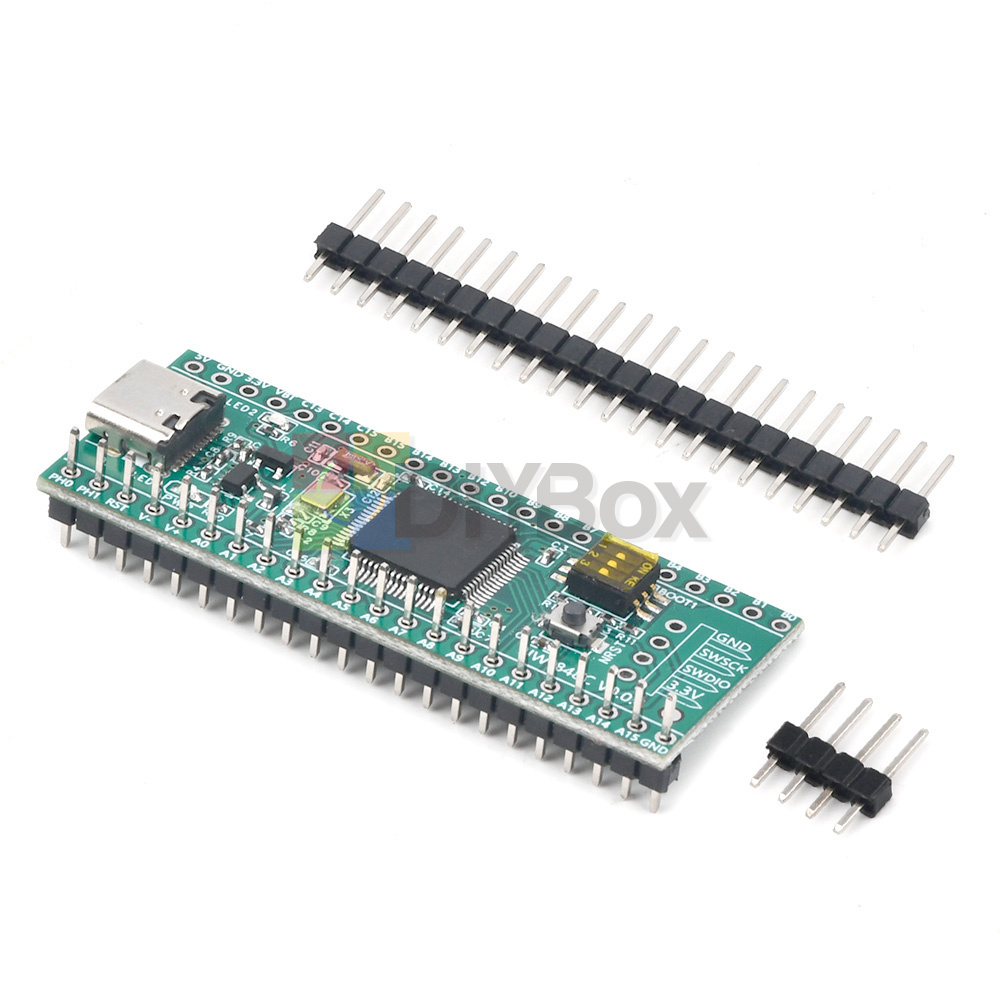

STM32F401CCU6 Type-C
Product features:
1. Finely crafted, long life
2. Easy installation, quality assurance
3. Maximum main frequency 84MHZ
4. Up to 36 I / O configuration
5. With indicator, breathing light
1. Finely crafted, long life
2. Easy installation, quality assurance
3. Maximum main frequency 84MHZ
4. Up to 36 I / O configuration
5. With indicator, breathing light
Product parameters:
1. Interface: Type-C interface
2. Maximum main frequency 84MHZ
3. 64KB RAM,256KB ROM
4. Up to 36I/O configuration
5. 25MHZ high speed crystal & 32.768KHZ low speed crystal
6. Factory burned flashing light program
7. With indicator, breathing light
1. Interface: Type-C interface
2. Maximum main frequency 84MHZ
3. 64KB RAM,256KB ROM
4. Up to 36I/O configuration
5. 25MHZ high speed crystal & 32.768KHZ low speed crystal
6. Factory burned flashing light program
7. With indicator, breathing light
Boot mode description:
BOOT1 .
X-Main flash memory, main flash memory is selected as boot area
0-System memory, system memory is selected as boot area
1-Built-in SRAM, built-in SRAM is selected as boot area
BOOT1 .
X-Main flash memory, main flash memory is selected as boot area
0-System memory, system memory is selected as boot area
1-Built-in SRAM, built-in SRAM is selected as boot area
BOOT0 .
0-Main flash memory, main flash memory is selected as boot area
1-System memory, system memory is selected as boot area
1-Built-in SRAM, built-in SRAM is selected as boot area
0-Main flash memory, main flash memory is selected as boot area
1-System memory, system memory is selected as boot area
1-Built-in SRAM, built-in SRAM is selected as boot area
Main flash memory boot: It is the built-in flash of STM32, usually when we use JTAG or SWD mode to download the program, it is downloaded into this, and the program is also directly started from this after reboot.
Product list:
1* Module
3* Pins
1* Module
3* Pins
