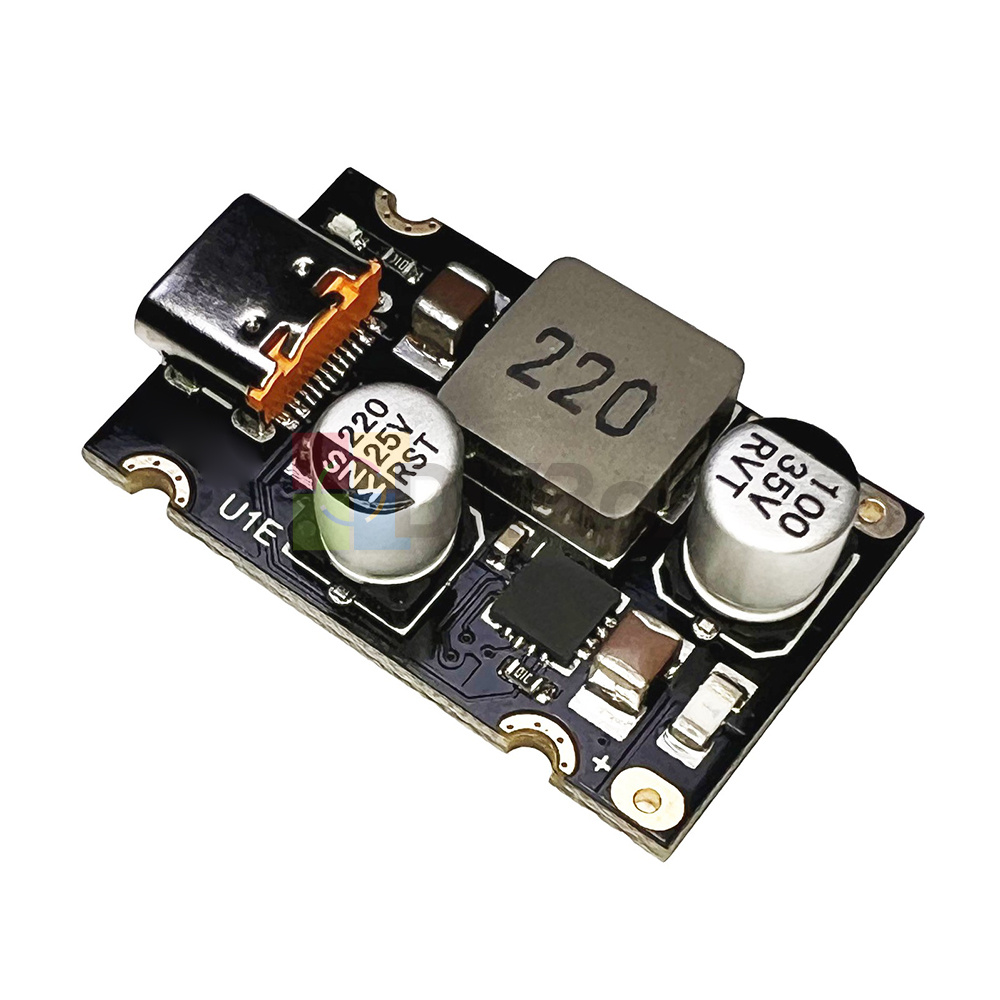

DC8V~30V PD65W Fast Charging Module Buck Module Board For PD3.1 QC3.0 SCP Type-C
With protection function, input overvoltage undervoltage protection, input overcurrent protection, output overcurrent short circuit protection, whole machine over temperature protection
Maximum output 20V 3.25A
Input 8~30V (only buck)
DC models are divided into 5521 and 5525, 5521: outer diameter 5.5mm, inner diameter 2.1mm; 5525: outer diameter 5.5mm, inner diameter 2.5mm.

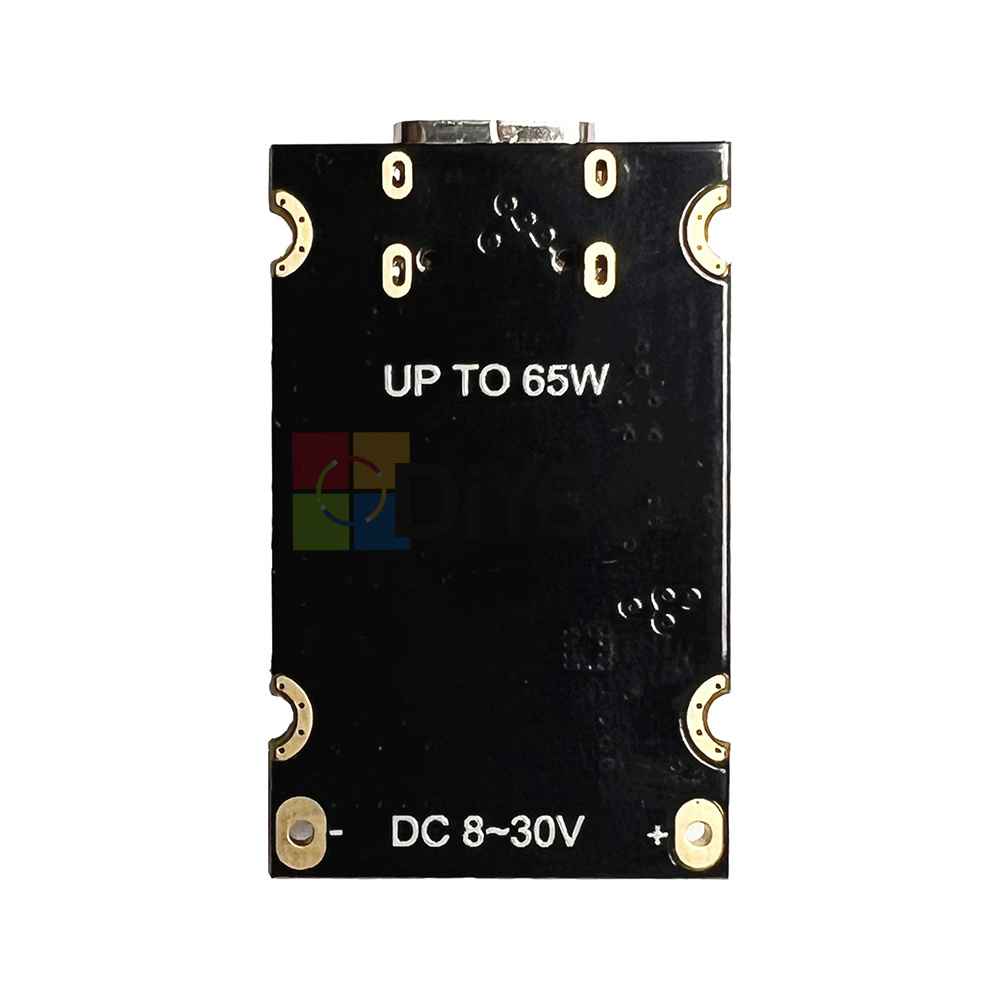

Input voltage:DC 8~30V
Output voltage: When accessing the TYPE-C compatible powered devices in the 3.3V ~ 21V automatic adjustment (input voltage should be higher than the output voltage, if you want to trigger 20V fast charging then the input voltage should be higher than 20v)
Output power: maximum 65w (5V3A, 9V3A, 12V3A, 20V3.25A, etc.)
Maximum output: 20V 3.25A
Conversion efficiency: 92%~97%
Output voltage ripple: <200mV
No-load current:<3mA
Input over-voltage and under-voltage protection
Input overcurrent protection
Output overcurrent short circuit protection
Whole machine over temperature protection
Supported charging protocols: PD3.1 (PPS), QC3.0, SCP
Product size:

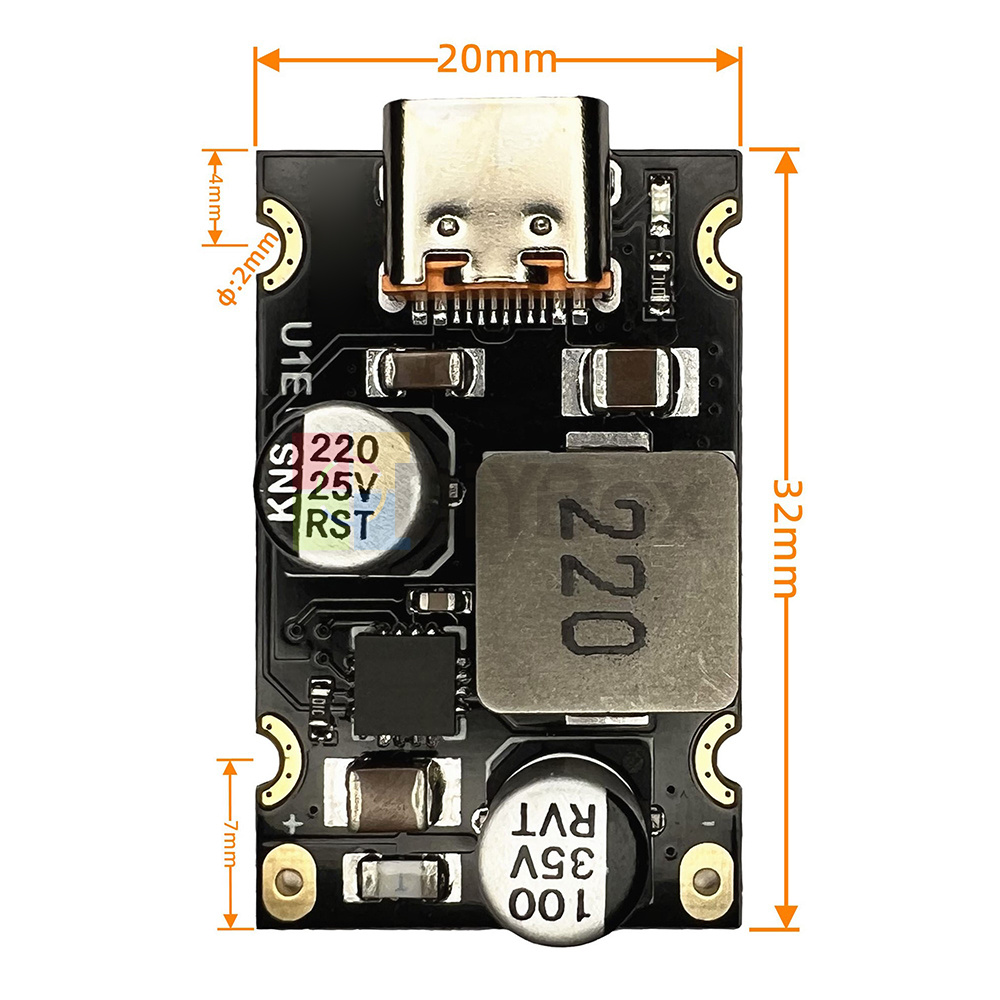

Standard model: 32×20×10mm (excluding the 1mm protruding from the C-port female chassis)

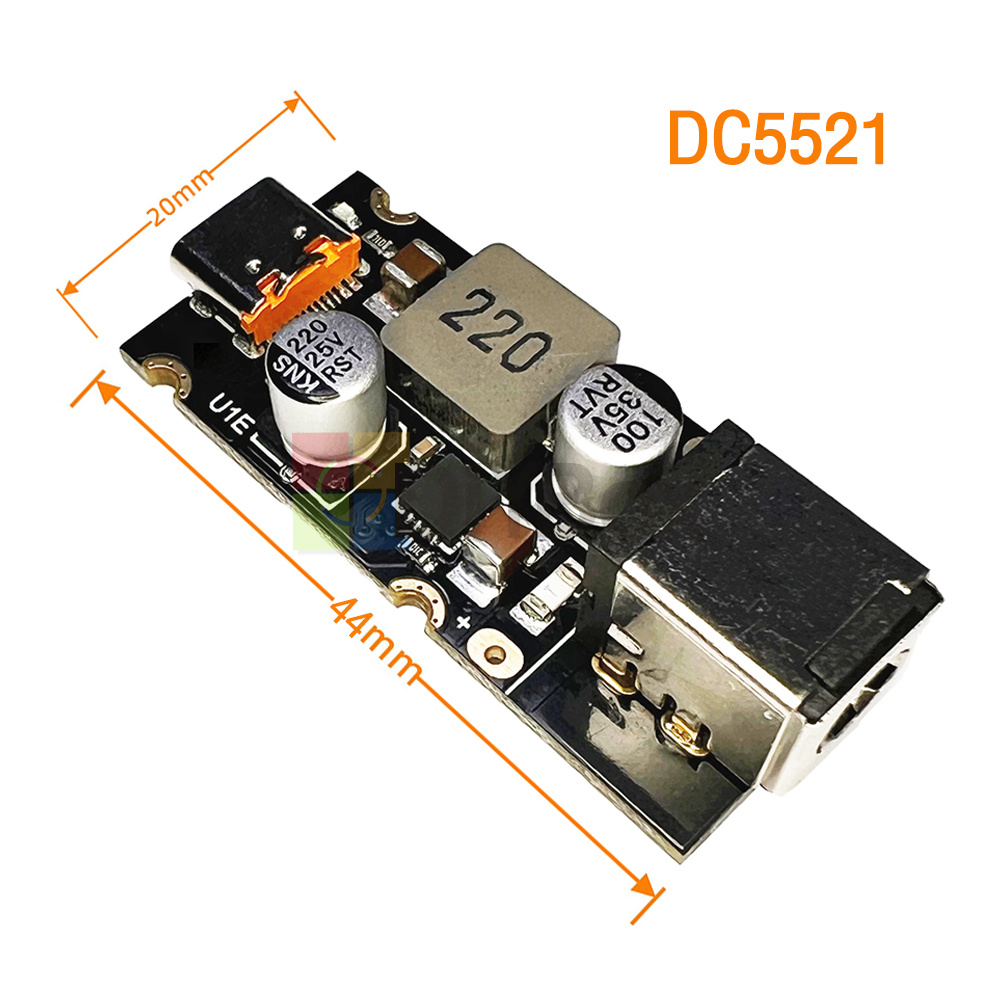

With DC holder: 44×20×10mm (excluding the 1mm protruding from the C-port female connector)
When using 20~24V power adapter as input, it is recommended to energize the power supply first before accessing this module, otherwise there may be an error in matching the power of the module due to slow power up, and it cannot output 65W.
DC models are divided into 5521 and 5525.
5521: outer diameter 5.5mm, inner diameter 2.1mm; 5525: outer diameter 5.5mm, inner diameter 2.5mm.

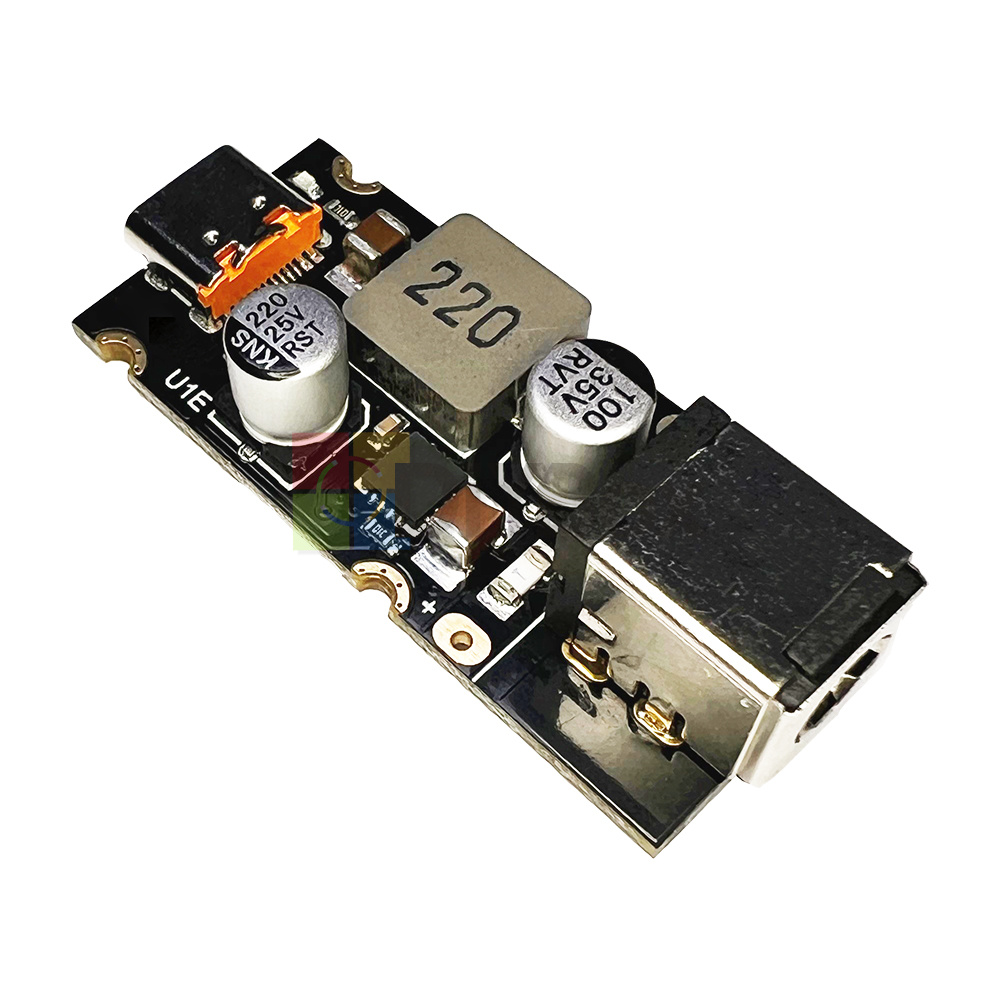

The length of the DC model is 12mm longer than the standard model, 44mm, and both the Type-c female connector and the DC connector protrude about 1mm from the edge of the board. 5521 models are also compatible with 5525 plugs with tuning fork shrapnel.

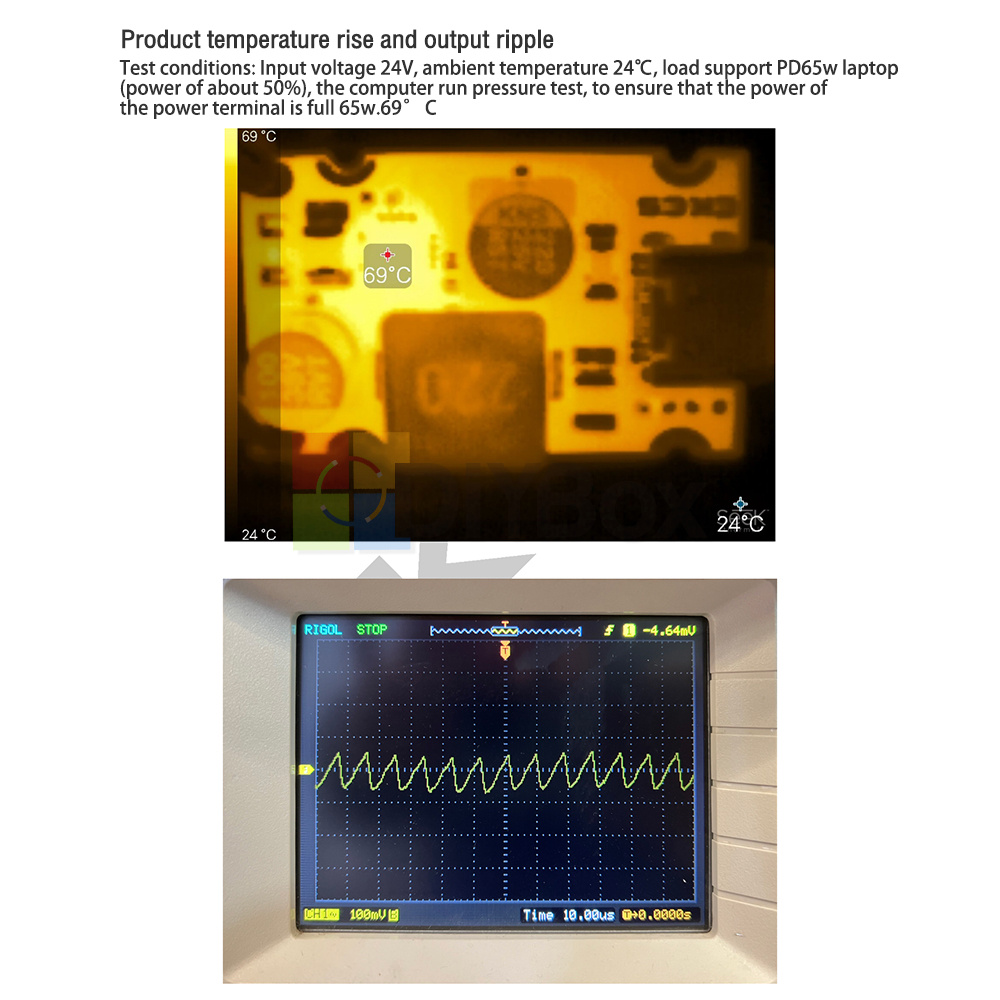

Test conditions:Input voltage 24V, ambient temperature 24 ℃, the load is to support PD65W laptop (power about 50%), the computer runs a stress test to ensure that the power supply end of the power full 65w.
1 x Module
