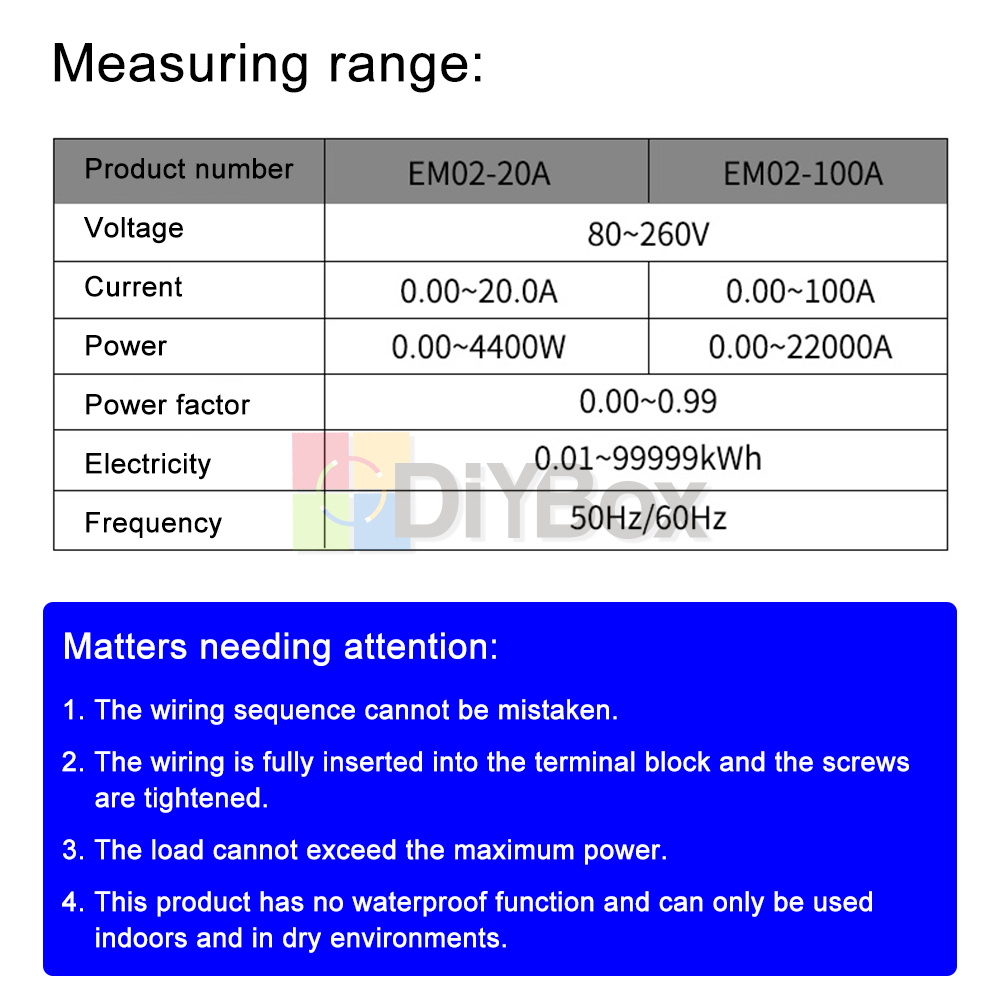

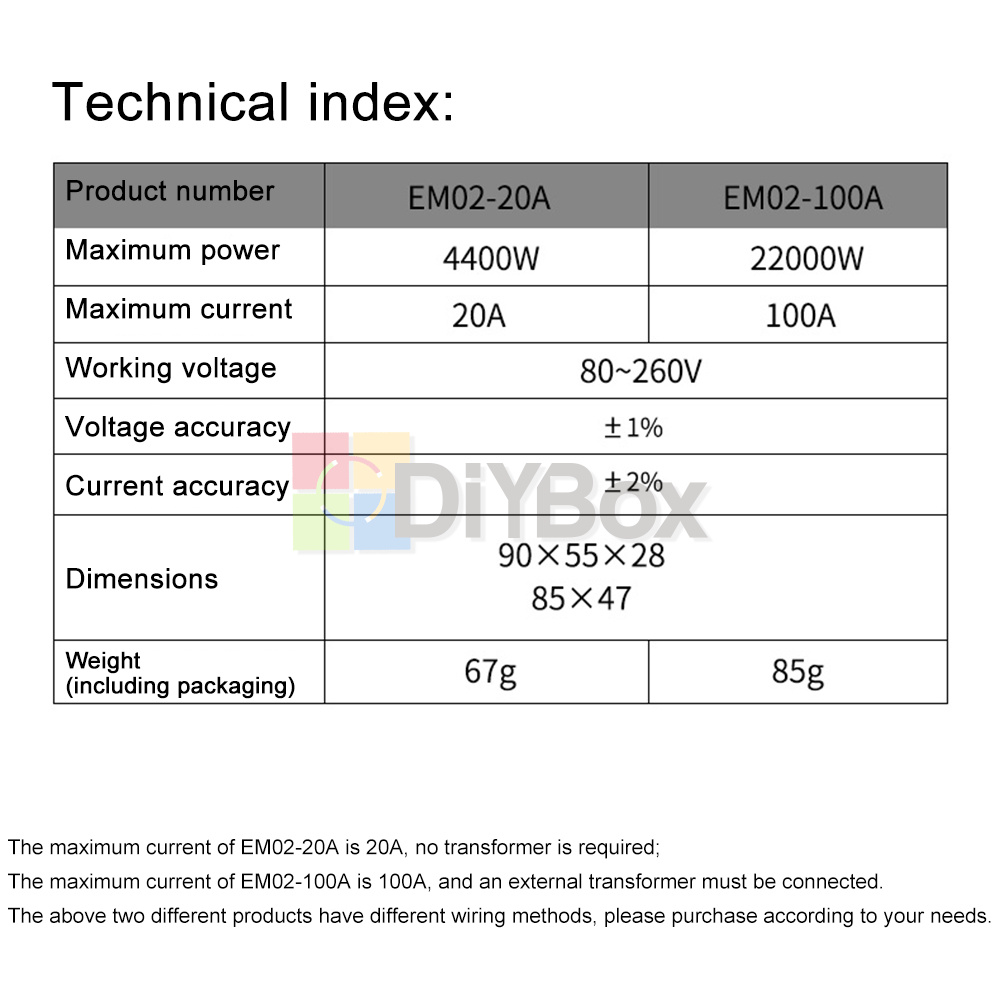

Specification:
Voltage 110~250Vac
Current 0.01-5A / 0.01-10A / 0.01-20A / 0.01-100A
Energy 5-digits, 0.01~99999KWH
Compatible frequency 50/60HZ
Max. Power: 22000W
Max. Current: 100A
Voltage Accuracy: ±1%
Power Accuracy: ±2%
Application range: Most home electric appliances with voltage of 110V-250V

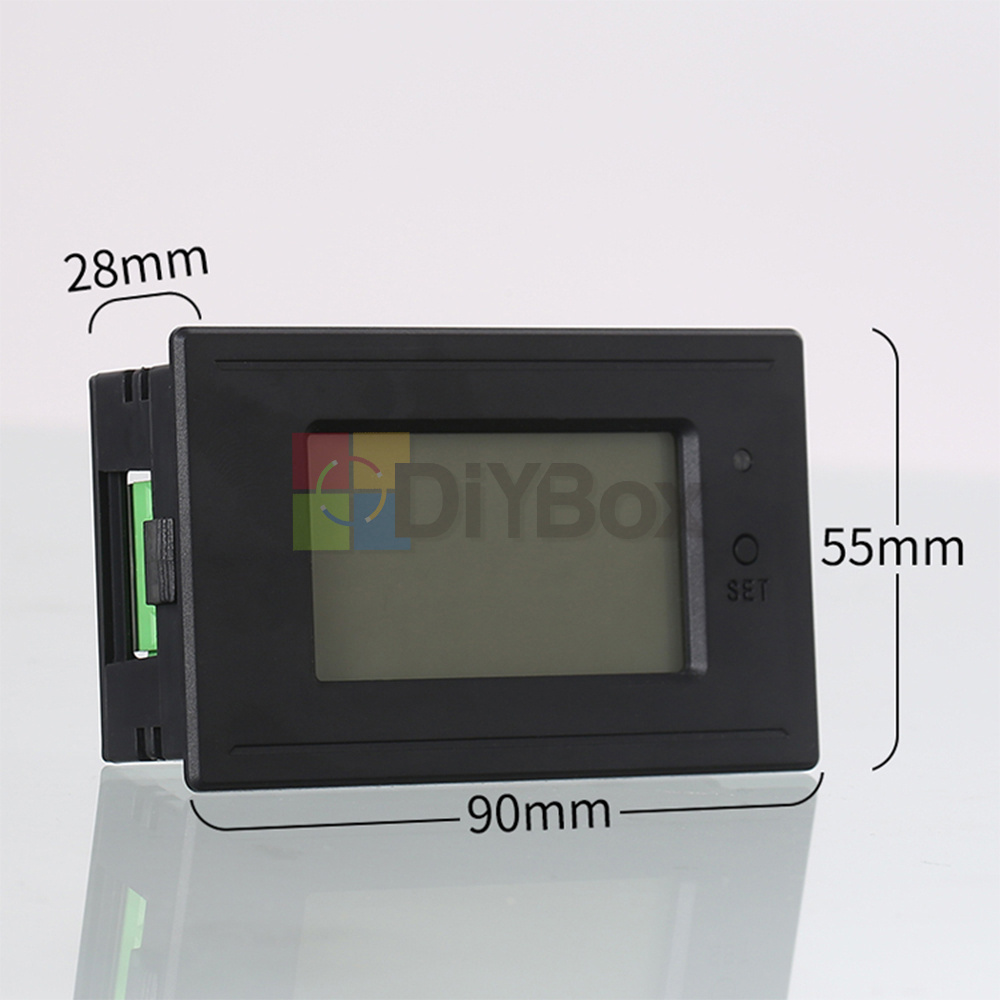

Dimension: 3.7*2.2* 1 in (94*55*26mm)
Weight: 3.32oz (94g)
Built-in Current sensor
Backlight control, short press to turn on/off backlight
Clear energy reading, press and hold down the key to clear the reading of kWh
AC 5/10/20A meter don't need use CT, AC 100A meter come with 100A CT
Voltage 110~250Vac
Current 0.01-5A / 0.01-10A / 0.01-20A / 0.01-100A
Energy 5-digits, 0.01~99999KWH
Compatible frequency 50/60HZ
Max. Power: 22000W
Max. Current: 100A
Voltage Accuracy: ±1%
Power Accuracy: ±2%
Application range: Most home electric appliances with voltage of 110V-250V
Dimension: 3.7*2.2* 1 in (94*55*26mm)
Weight: 3.32oz (94g)
Built-in Current sensor
Backlight control, short press to turn on/off backlight
Clear energy reading, press and hold down the key to clear the reading of kWh
AC 5/10/20A meter don't need use CT, AC 100A meter come with 100A CT
Feature:
Network voltage direct power supply, no external power supply, measurement precision, large-screen LCD liquid crystal screen display clearly.
Function:

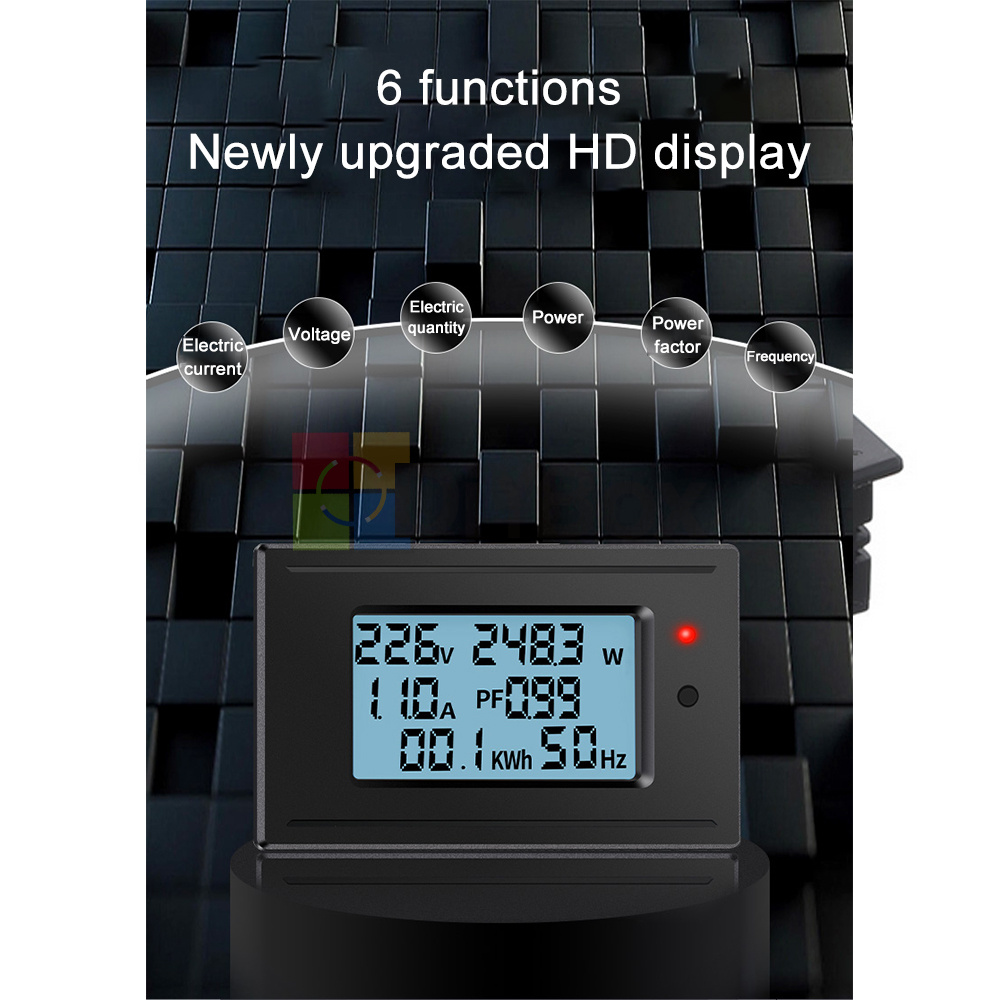

1. electrical parameter measurement function (voltage, current, power factor, power,Hz, Energy ).
2. overload alarm function (over power alarm threshold, the backlight and power flicker tips).
3. The power alarm threshold preset function (can set up their own power alarm threshold).
The power button clear function.
5. Power-down data storage function.
6. Large-screen LCD screen full display function (display voltage, current, active power, power).
7. Backlight.
Display and key:

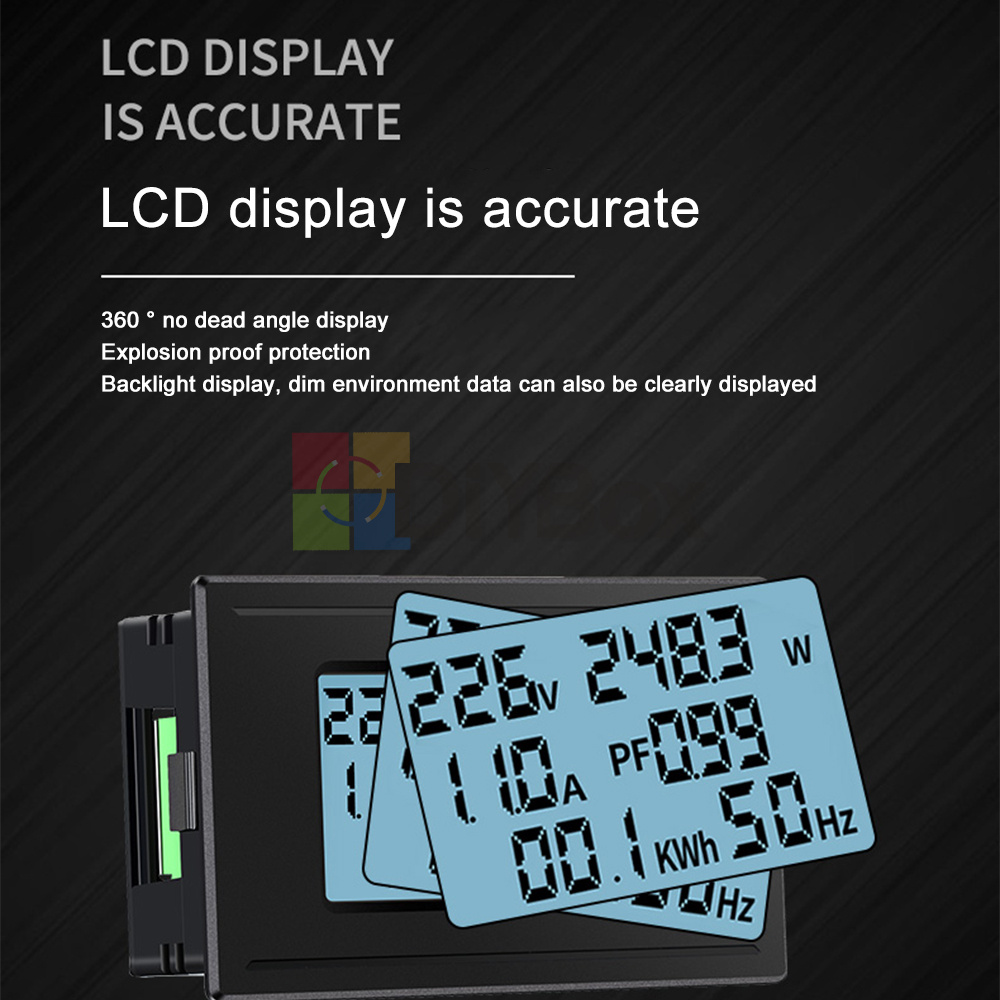

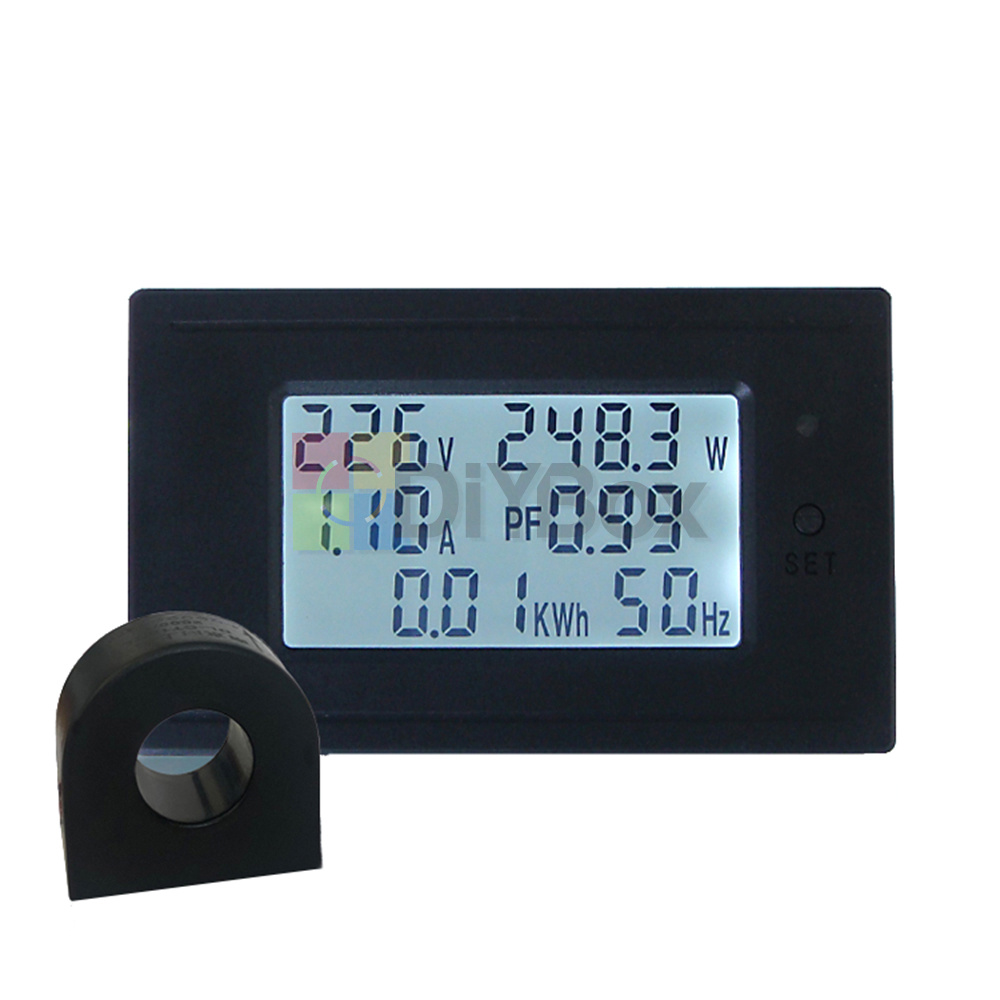

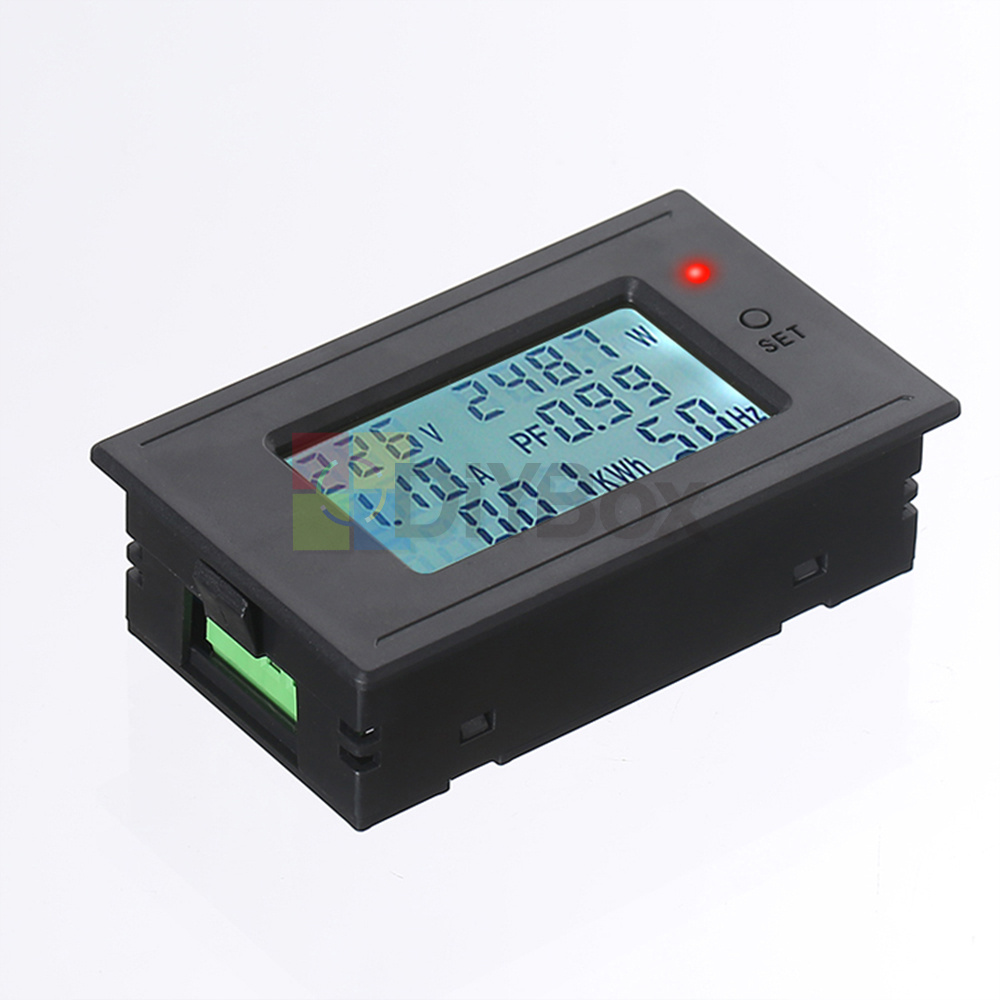

Display Interface
Display voltage, current, power, energy parameters from the large-screen LCD screen simultaneously.
Display Format

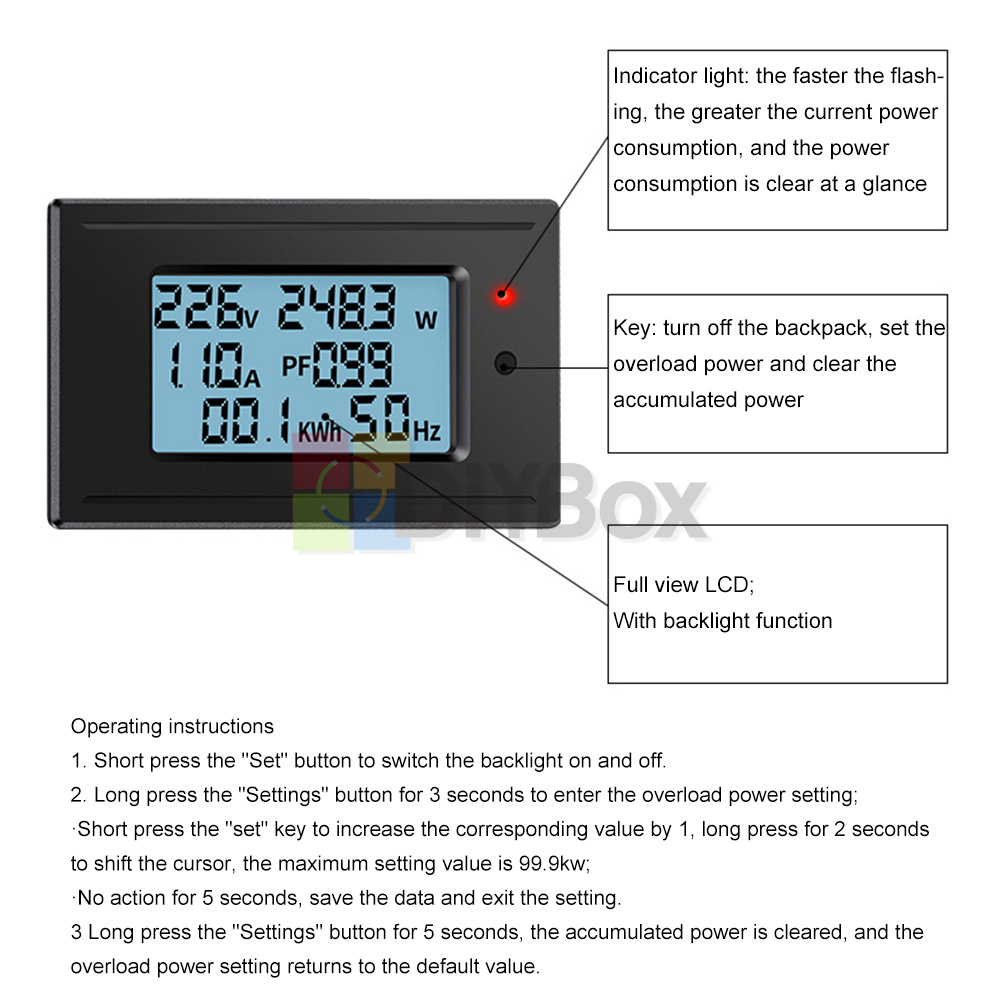

Button:
1. The backlight control
By short press the button to turn on or off the backlight, the backlight status automatic storage.
2. The power cleared
Step 1: Press the power button 5 seconds until the digital display window flashes, then release the button;
Step 2: If you press the button again, the consumption data is cleared and cleared quit flashing;
Step 3: If you press the button again 5 seconds long until no flashing, the charge data is not cleared and exit cleared.
3. The power to set the alarm value
Step 1: Press the button, when the LCD screen display "SET CLr" after the release button, set the value into the power status report;
Step 2: Power area displays the current value of the power alarm and the lowest digit starts blinking, then you can press the button of the digital +1, when there is no key operation more than three seconds, automatically switches by short digital set as above;
Step 3: After setting, press the button more than five seconds to automatically save and exit, the scope of active power threshold set for the 0.0 ~ 22.0kW.
Notes:
1. This module is suitable for indoor, not outdoor use.
2. applied load can not exceed the rated power.

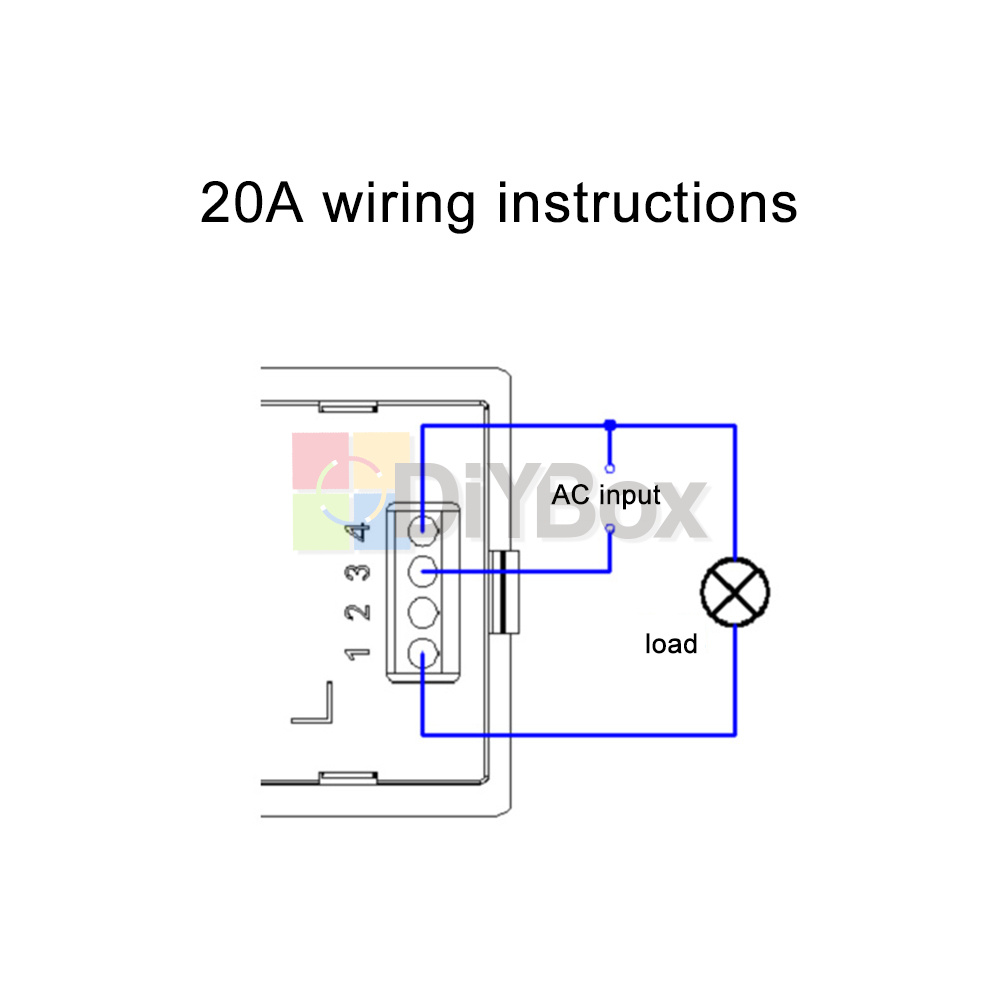

3. The wiring order can not be wrong.
Package include:
1 x AC Digital LED Power Panel Meter
