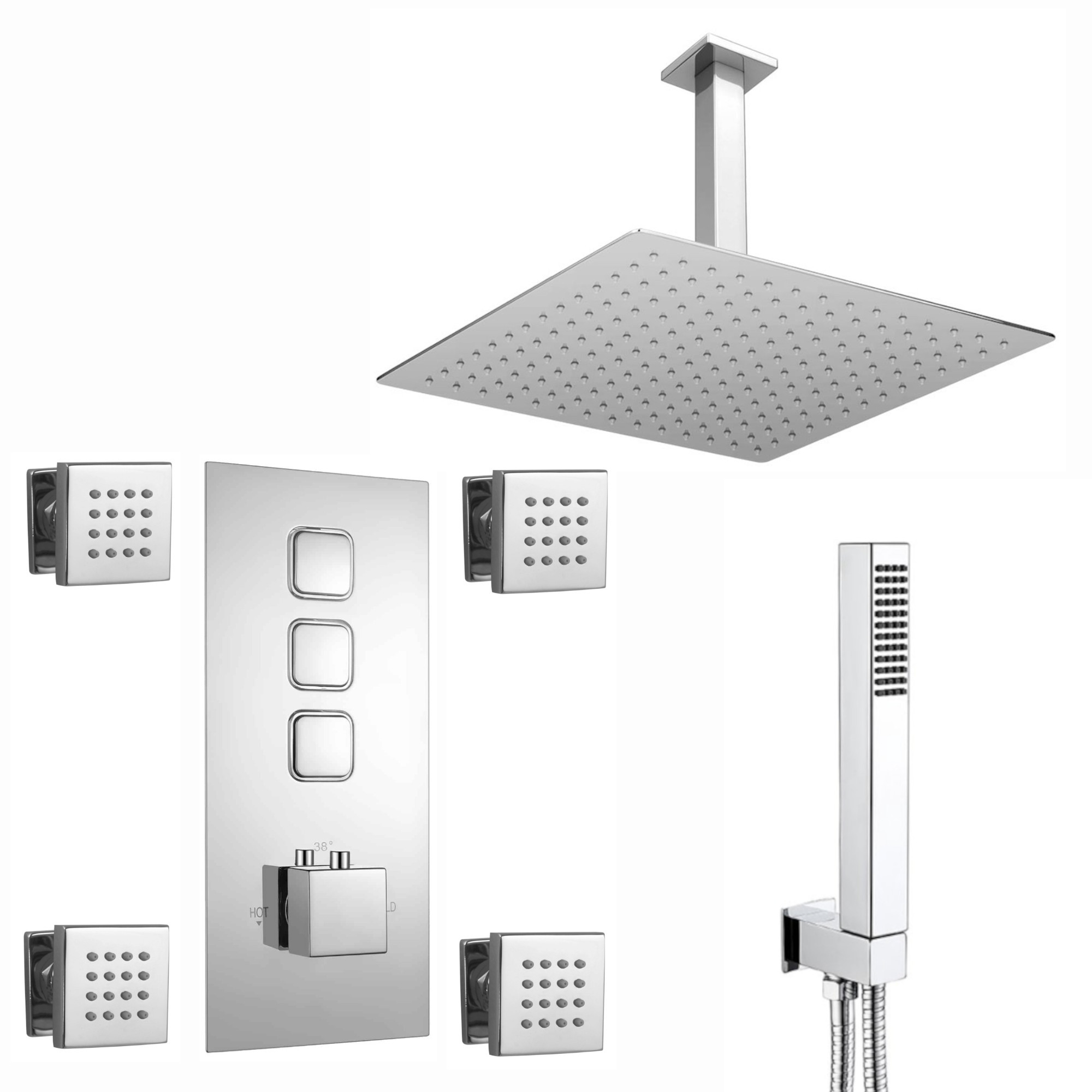

Overhead Shower Handset Kit Milan Square Concealed Chrome Brass ENKI SH0624

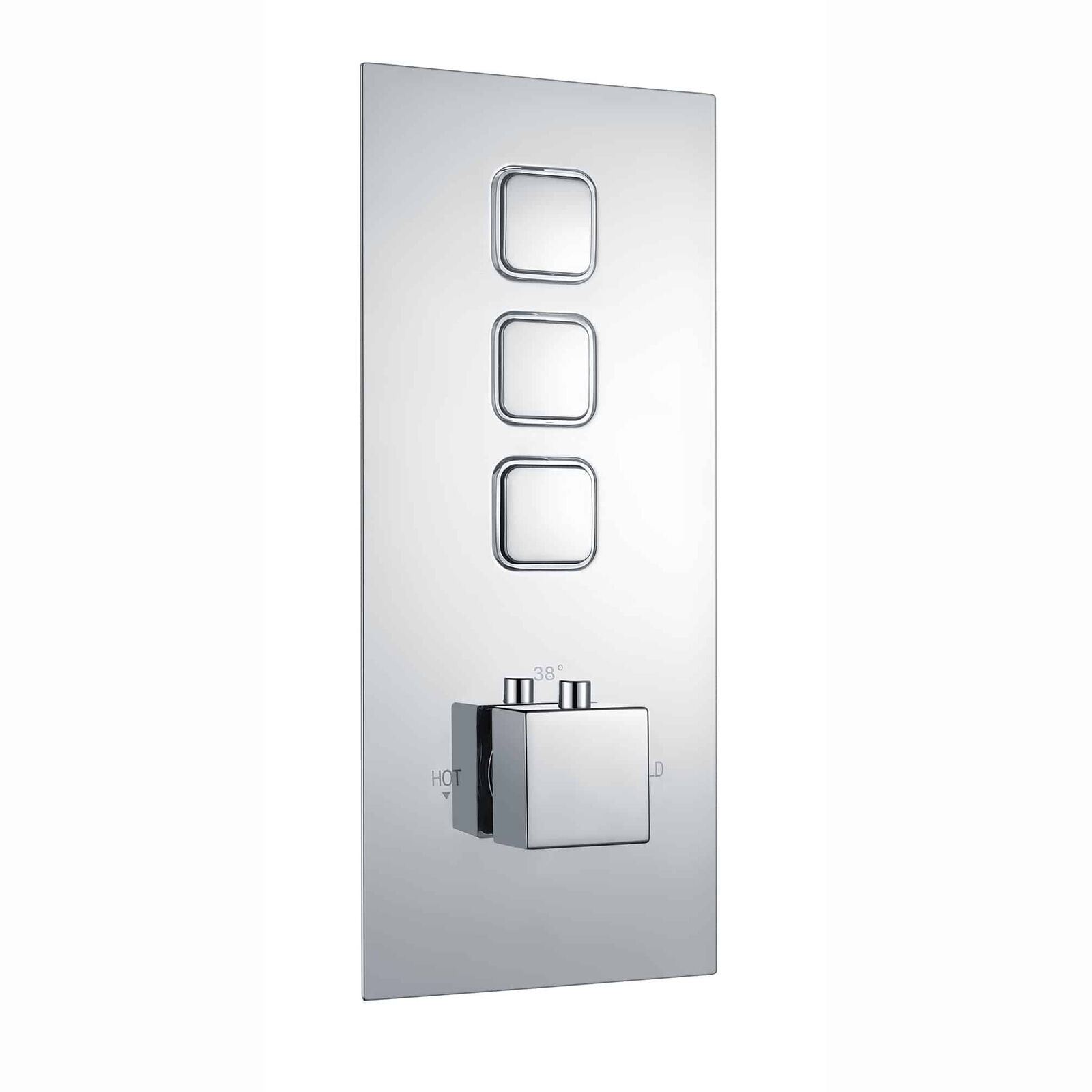

MILAN CONCEALED PUSH BUTTON THERMOSTATIC SHOWER MIXER VALVE

Single cast body, high-grade brass is featured in this premium quality valve. It is designed in a way that if maintenance is required whole valve does not require re-plumbing.

Built-in anti-scald device means no more fluctuating water temperatures while showering.

3/4" hot/cold inlets with built-in non-return valves to prevent backflow

For more dimensions please see technical drawing

Push buttons 1, 2, 3: on/off for outlets 1, 2, 3

Bottom dial: temperature control

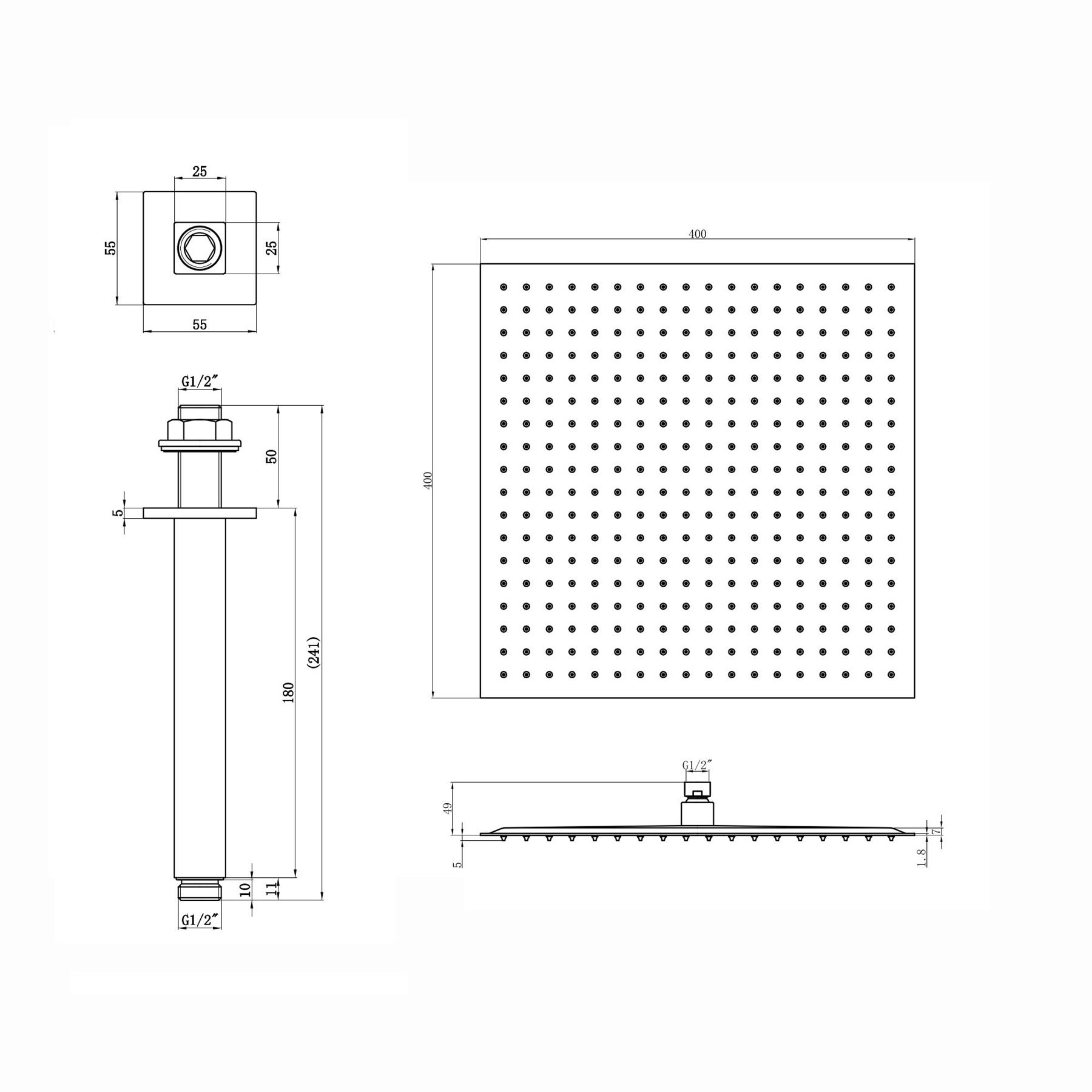

SHOWER HEAD & ARM

Connection size - 1/2"

Shower head size - 400 x 400mm

HAND SHOWER KIT

Standard connection sizes - 1/2"

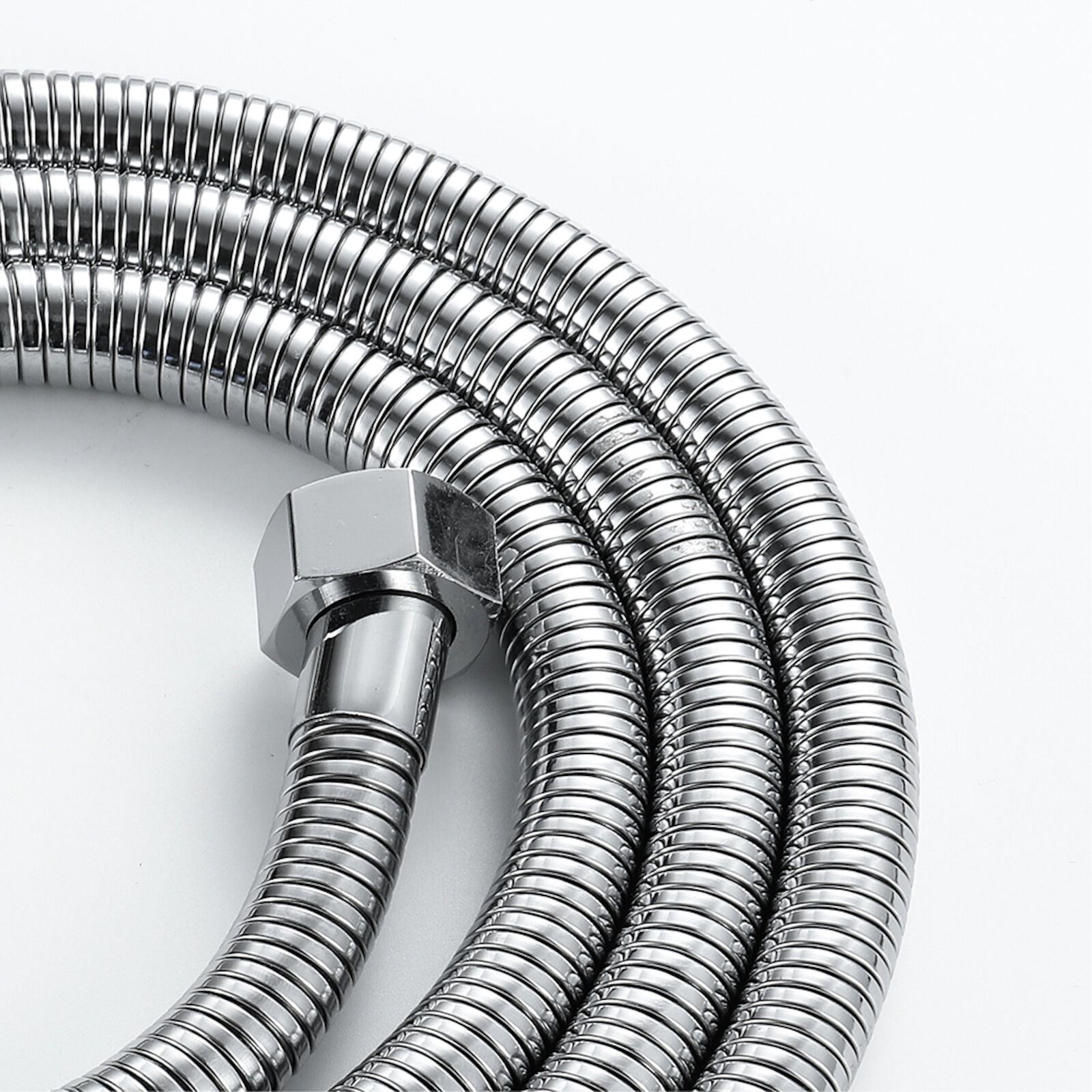

Shower hose - 150cm

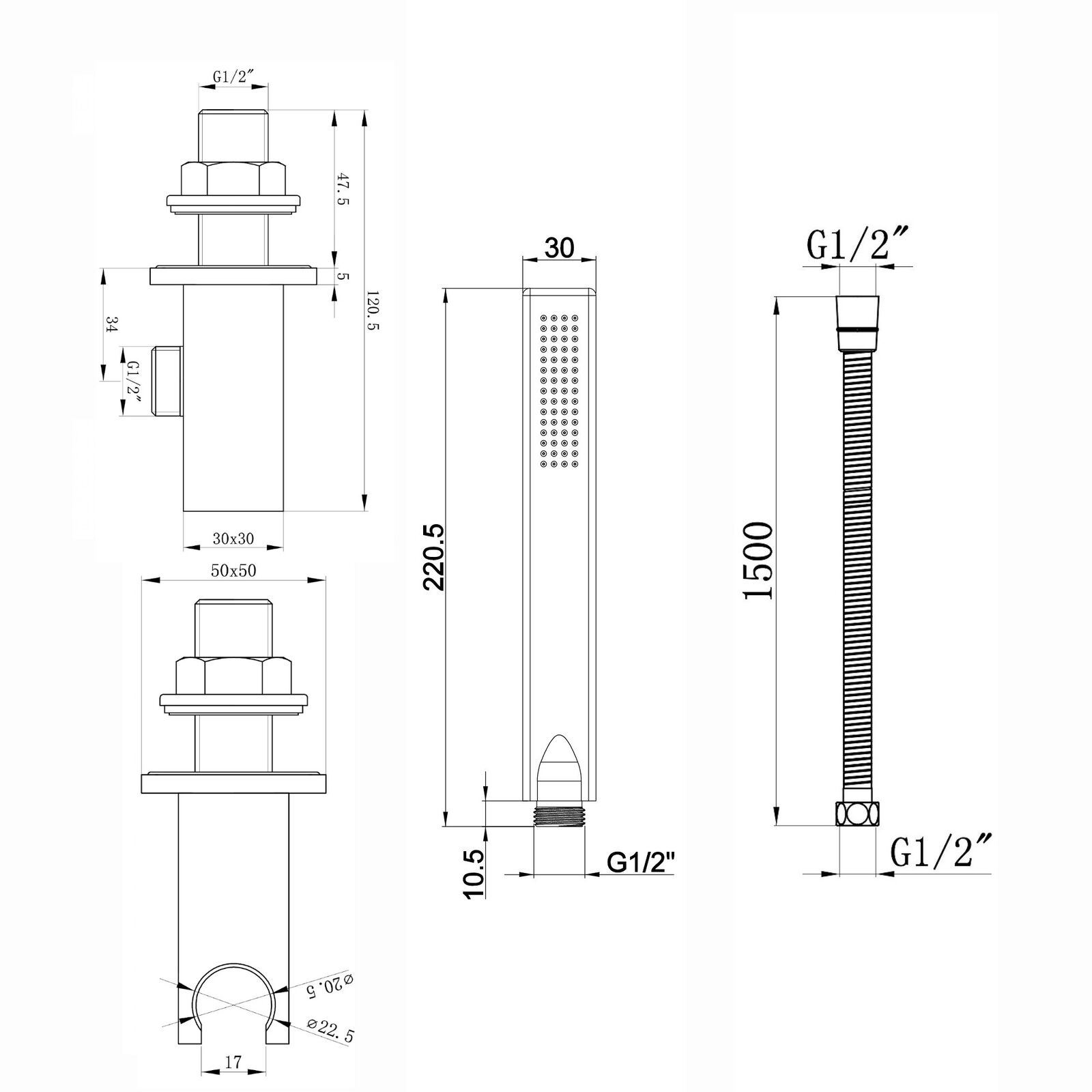

For more dimensions please see technical drawings

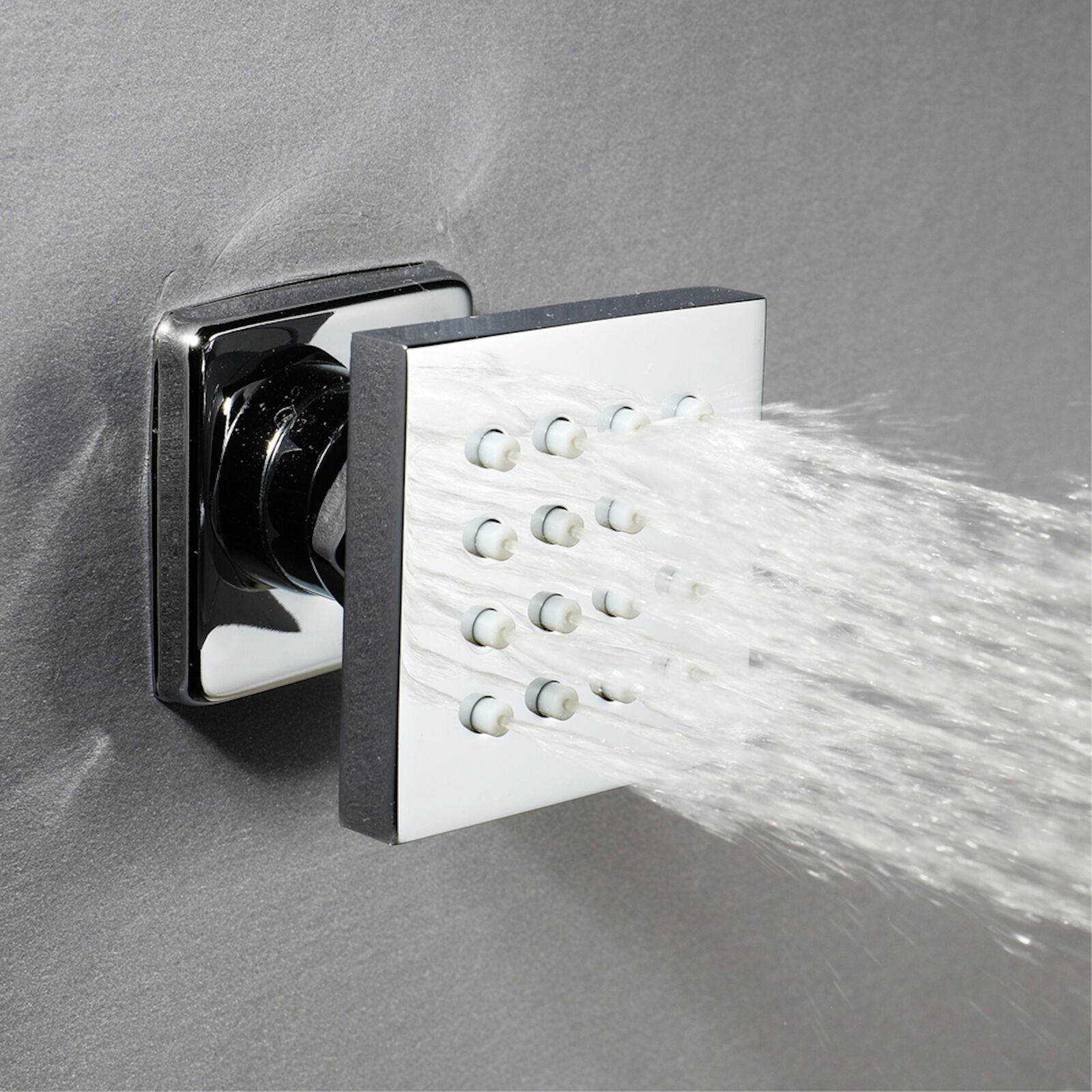

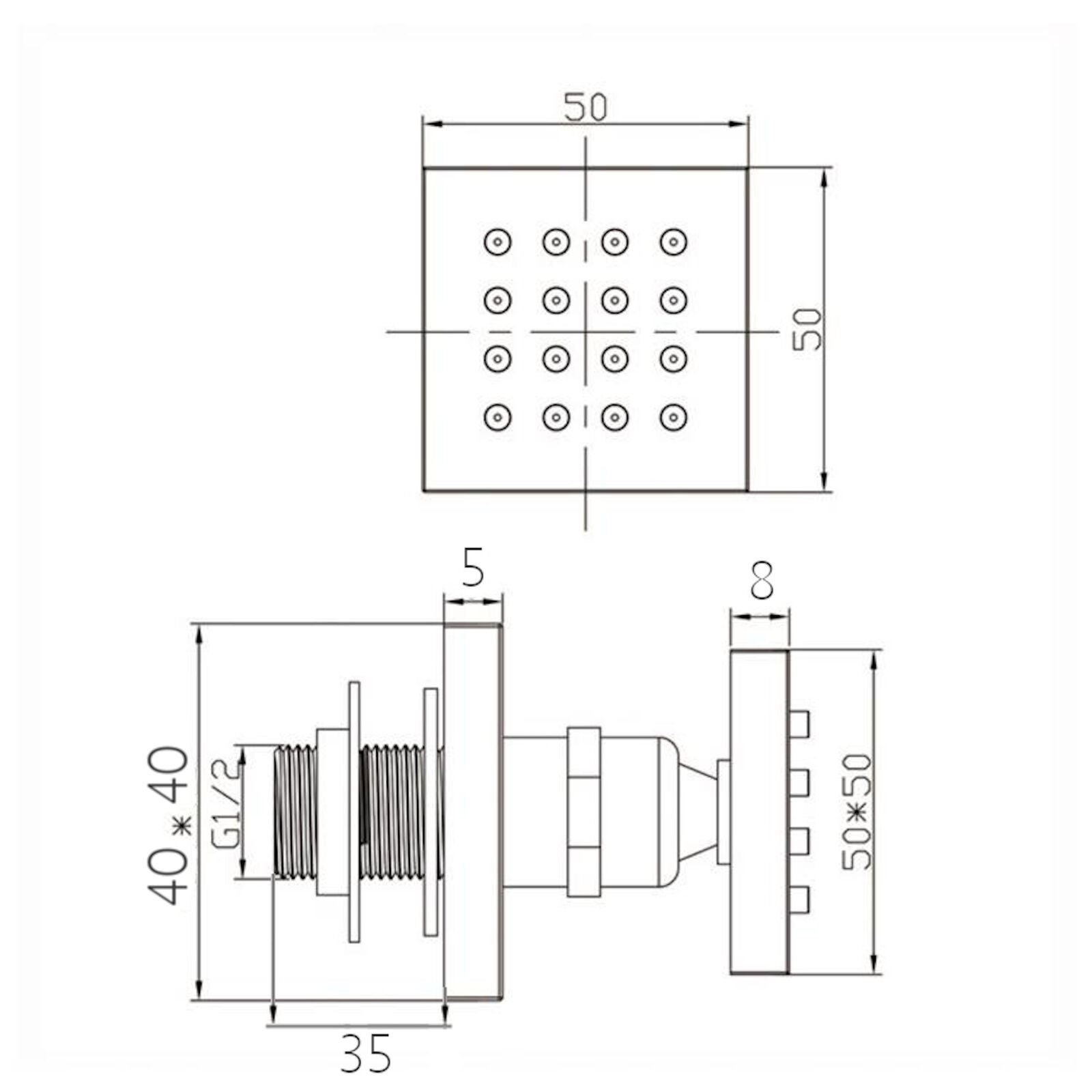

BODY JETS

Shower kit includes 4 x body jets

WORKING REQUIREMENTS

Suitable for all plumbing systems.

Minimum water pressure required - 0.5 bar, though we recommend min. of 1.0 bar for best performance.

Please note: shower valve will not work efficiently on a gravity fed tank system, unless a negative or universal pump is installed.

Positive pumps will not work.

FLOW RATES

0.5 bar - 6 L/M

1.0 bar - 11 L/M

2.0 bar - 16.2 L/M

3.0 bar - 20 L/M

4.0 bar - 23 L/M

5.0 bar - 25.8 L/M

WHAT'S IN THE BOX?

Thermostatic shower mixer valve x 1

Shower head and arm x 1

Handheld shower, hose, parking bracket with outlet x 1

Body jets x 4
