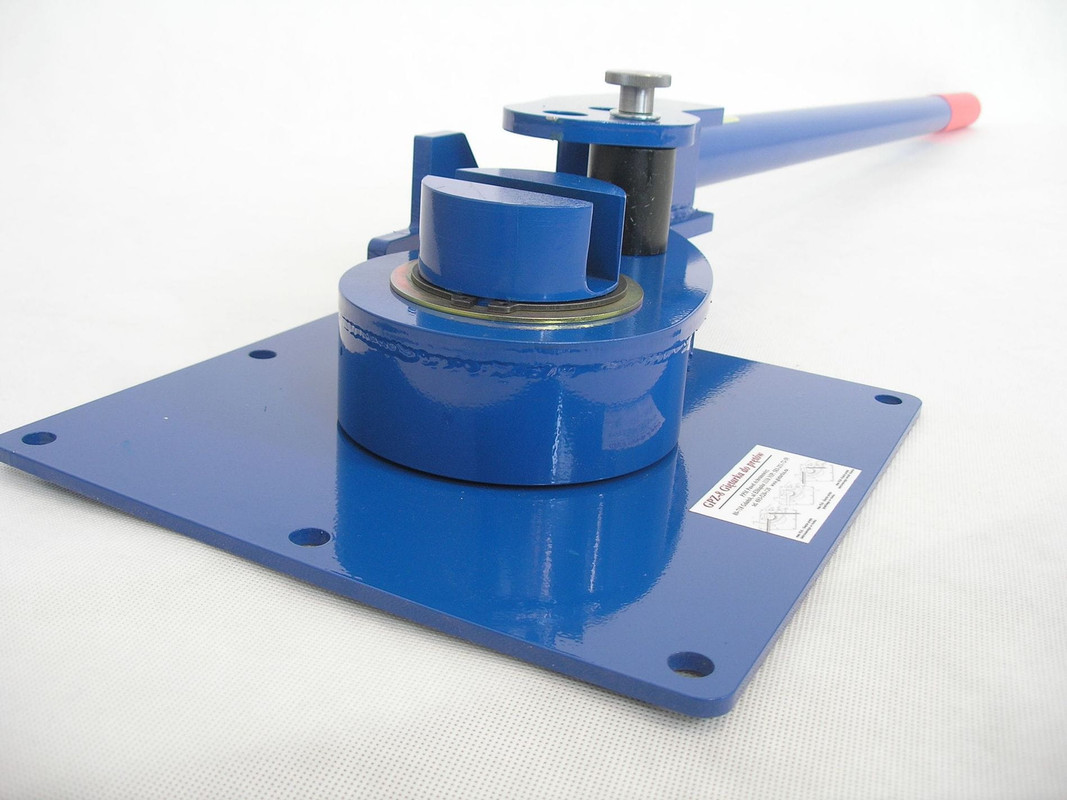

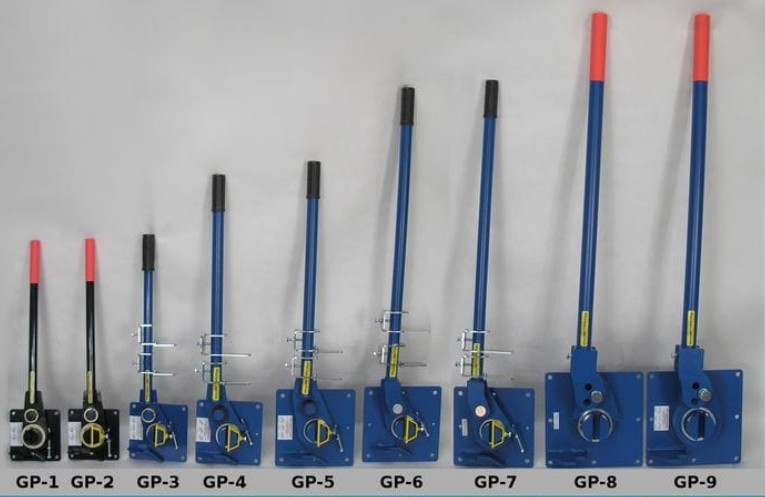

Rebar bender, type: GP-9

Bender designed for bending:

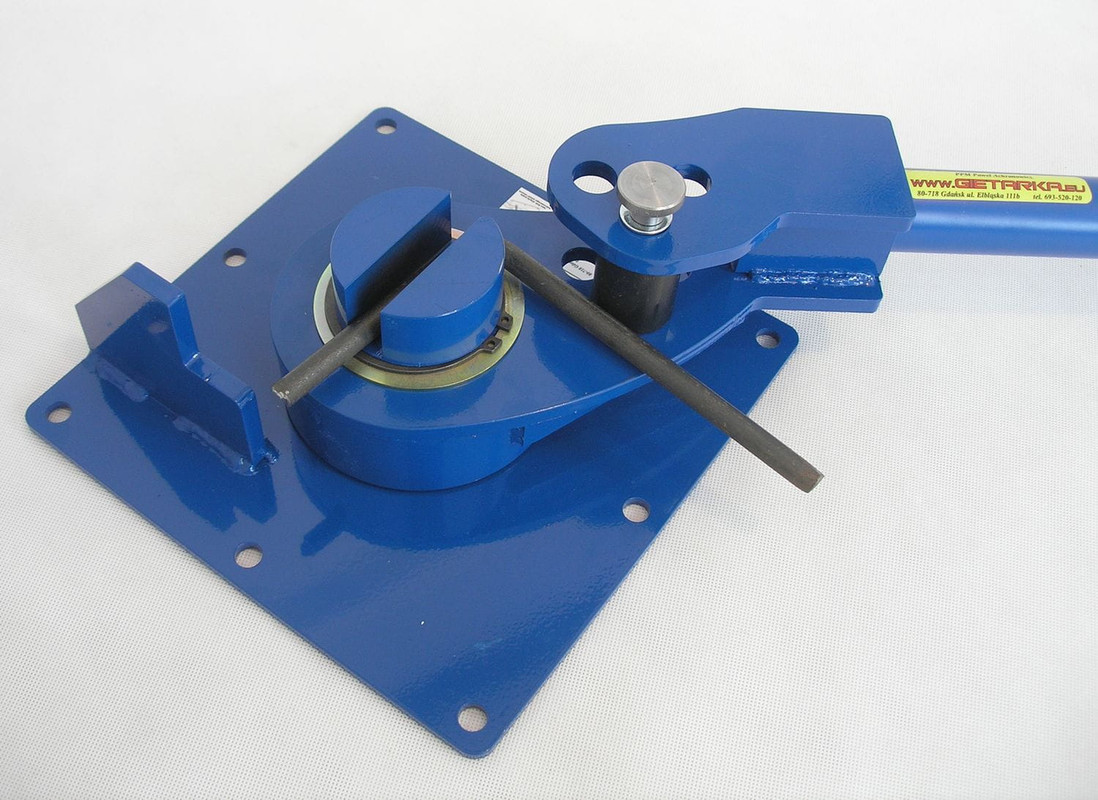

- in the groove of smooth bars up to ø18 (Re = 250MPa max) or ribbed bars up to ø16 (Re = 500MPa max)

- around the core of the bender (radius 45mm) smooth bars up to ø20 (Re = 250MPa max) or ribbed bars up to ø18 (Re = 500MPa max)

- The core of the bender is hardened and the bending corner is rounded for strength.

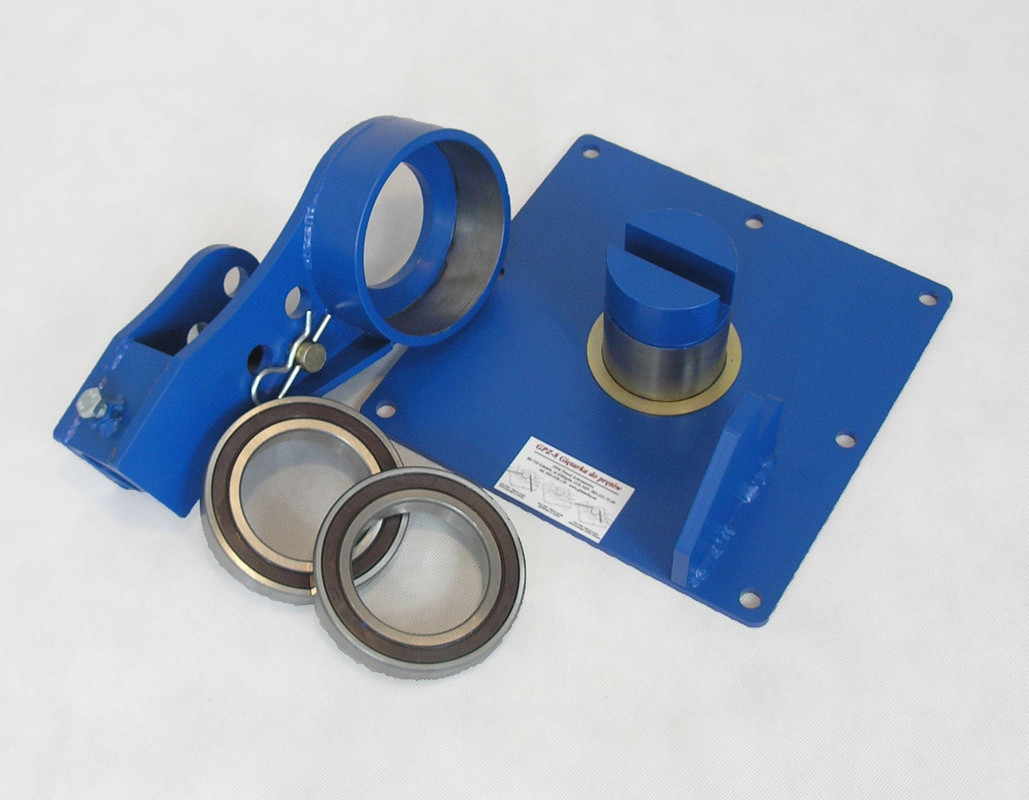

- The bender is built on two bearings, which gives a rigid and durable solution.

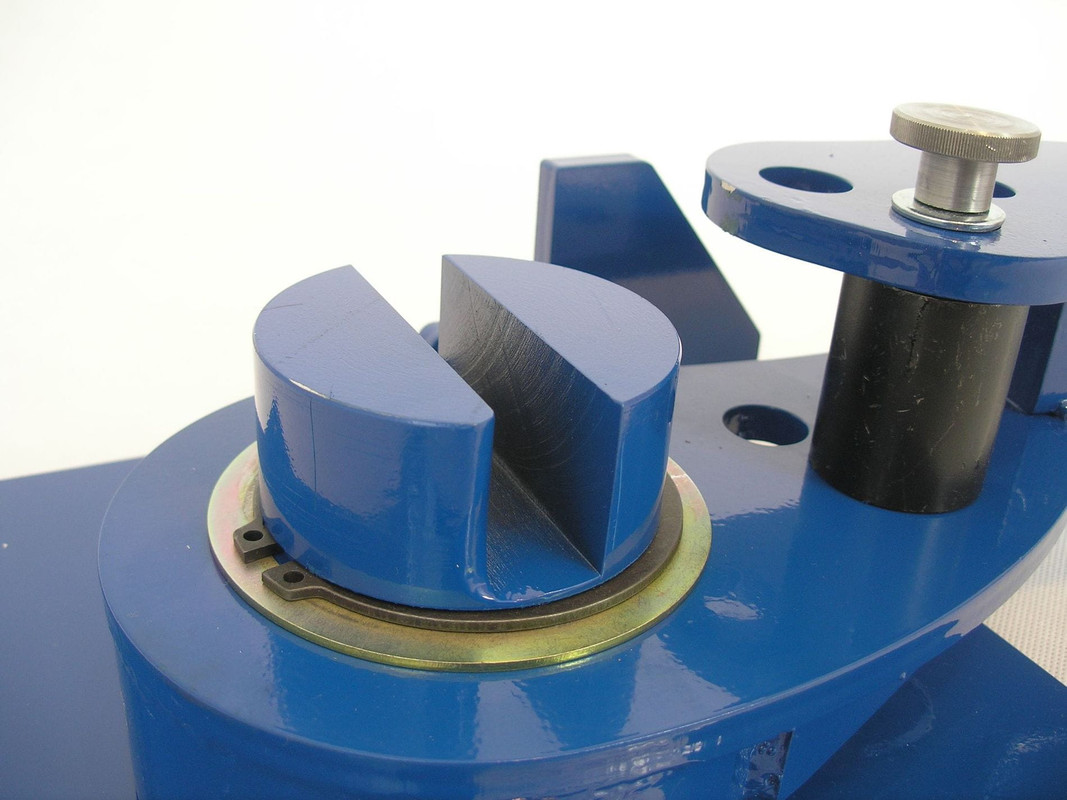

- The core with a groove depth 35mm allows bending several small bars at the same time.

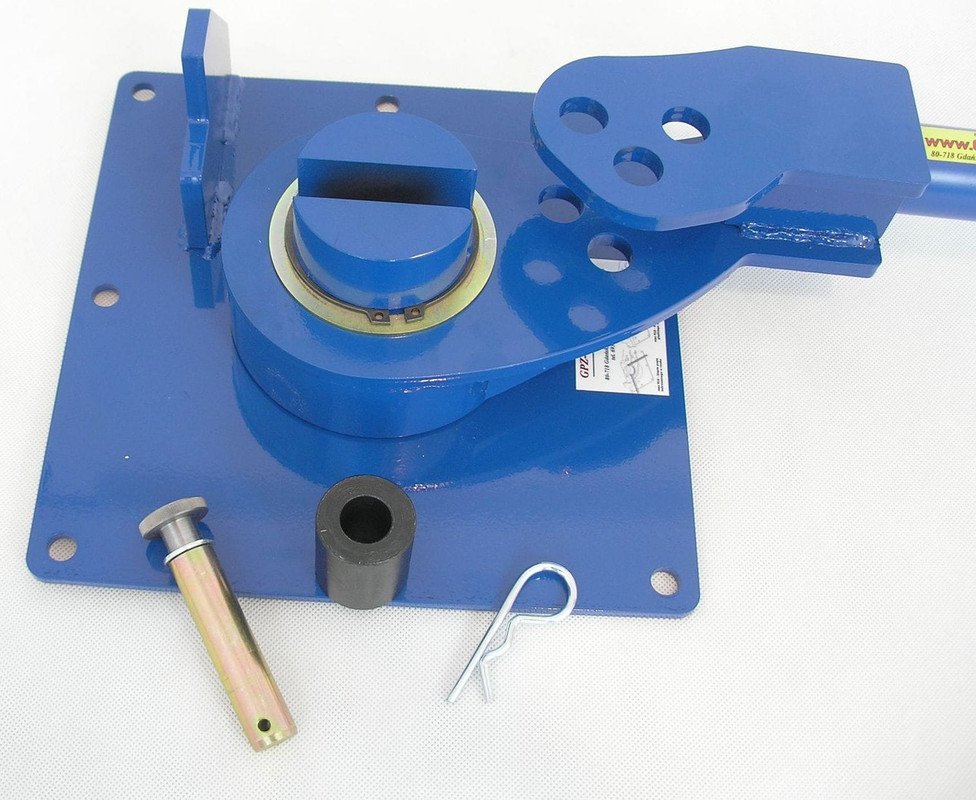

- The bending element is a hardened steel sleeve. The sleeves can be mounted in 3 sockets located at different distances from the main core.

- Powder coated device.

- You can buy a reducing insert for the bending machine. The insert is available in 3 versions. (for 8, 10, 12mm rods) The inserts can be found on the other auctions. Auction: https://www.ebay.co.uk/itm/115577768300

The dimensions of the device:

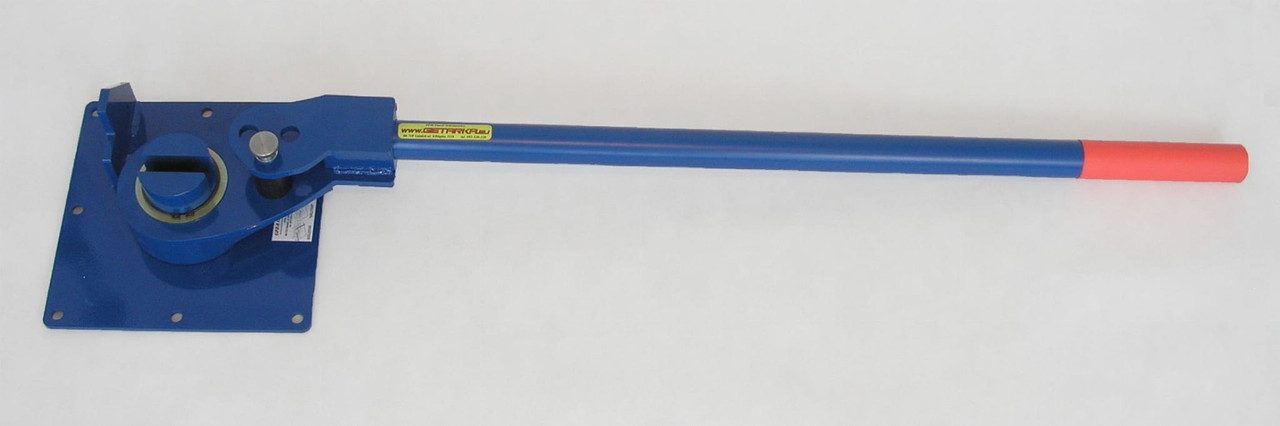

- The length of the bending arm is 1.1 m. The bending arm is removable.

- The weight of the device is 18 kg.

- The base measures 290 x 290 mm.
