Package include: (without laser and without white offline controller)

1 x 3018-PRO GRBL CNC Router engraving machine kit with E-Stop & XYZ limit switches

10 x 20°0.1mm drill bits

1 x 775 spindle motor

1 x GRBL 1.1f control board

1 x Set of allen wrench

1 x Power Supply

1 x ER11 Collet

1 x 4G U disk include GRBL Software and user manual

Note: This machine is also compatible with laser engraving functionality. However, please note that our standard package includes only the spindle motor and does not come with a laser module. To use it as a laser engraver, you will need to purchase the laser module separately. Thank you for your attention to this!

Specification:

• Working area: 300x180x45mm ( 11.8" x 7.1" x 1.8")
• Frame size : 420x350x270mm ( 16.53" x13.78" x 10.63")
• Spindle: 775 spindle motor (12-36V) 24V:10000r/min
• Processing thickness:4.5cm (height 6.4cm)
• Material: PA6 nylon & aluminum profile
• Screw rod: T8 screw rod, lead 4mm, double copper nut to eliminate backlash
• Spindle Chuck: ER11 Collet (can be equipped with 0-7mm)
• Step motor: Nema17 stepper motor 1.3A,0.25N.m
• Power supply : 24V 5.6A power adapter (input voltage 110-240V)
• Support System:Windows XP / Win 7 / Win 8 / Win 10. Linux;
• Connection: PC-USB connection
• Software: GRBL controller
• Supporting file:G-code (.nc/.txt/.tape/.gcode)
• Processing accuracy:About 0.2mm

775 spindle motor

Spindle parameters: 775 spindle motor (12-36V) 24V:10000r/min Mounting hole diameter: M4 screw hole; Mounting hole pitch: about 29mm. Spindle PWM speed: Support;power 0-100% adjustable Motor shaft diameter: 15mm; Motor diameter

E-stop & Limit switches

The upgraded cnc 3018-pro machine is with emergency stop button and XYZ axis limit switches.

GRBL controller board

Connection: USB (USB-CH340) Software: GRBL controller, UniversalGcodeSender Input voltage: 12-24VDC Master chip: atmel 328P (arduino nano) Spindle drive chip: MOSFET (recommendation 24V, current : within 10A Spindle PWM speed: Support Support stepper motor: 12V, maximum current of 2A or less is recommended within 1.5A and additional heat. (Any stepper motor Nema17/Nema23) Power Interface: 5.5-2.5mm DC interface Support 3-pins module: support

• Support oftware: GRBL controller,Candle, UniversalGcodeSender
• Input voltage: 12-24VDC
• The spindle supports 0-100% adjustable PWM power.
• Support limit switch, tool setting, steering gear, cooling fan and other functions.
• Support PWM / TTL signal control, power 0-100% adjustable!
• Increase the power button switch
• Cancel the drive module,integrate the imported stepper motor drive,no need to worry about module damage. And integrated heat dissipation aluminum alloy.
• Add emergency stop ports & XYZ limit switches ports
• Add offline recognition function, you can insert offline module and computer at the same time. The machine will automatically recognize whether it is controlled by the computer.
• Enhanced spindle drive.can support 20,000 rpm spindle.
• Add the fan port to force heat dissipation

1. Upgraded 3018-Pro Mini CNC machine small size, light weight, USB interface, GRBL control systems, great cnc router machine for beginers;3018-Pro cnc machine is very easy to install,stable structure.
2. Main application:can be engraved plastic, wood, acrylic, pvc, pcb, wood and the like material.soft metal like copper and aluminum and other materials, but can not carve hard metal, jade or other very hard texture of the items.
3. If you change the spindle to a laser module,then also can carve the kraft paper, wood, leather(wallet), bamboo, rubber.

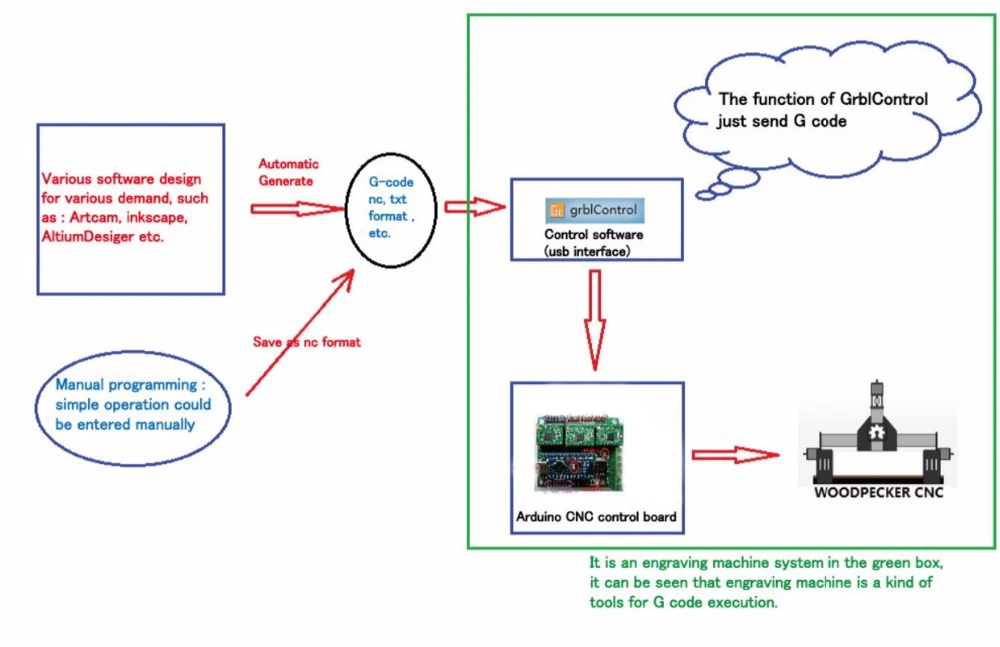

GRBL Software

• Our parcel include a 4G USB flash drive,you can download the english user manual and GRBL software from the flash drive.
• File Format (gcode): *.nc, *.ncc, *.ngc, *.tap, *.cnc.
• Software used to create Gcode: Carbide Create, Artcam, MeshCam, Fusion360, Inkscape etc.
