Pipeline Water Flow Pump Micro Hydro Generator Turbine Flow Hydraulic Power

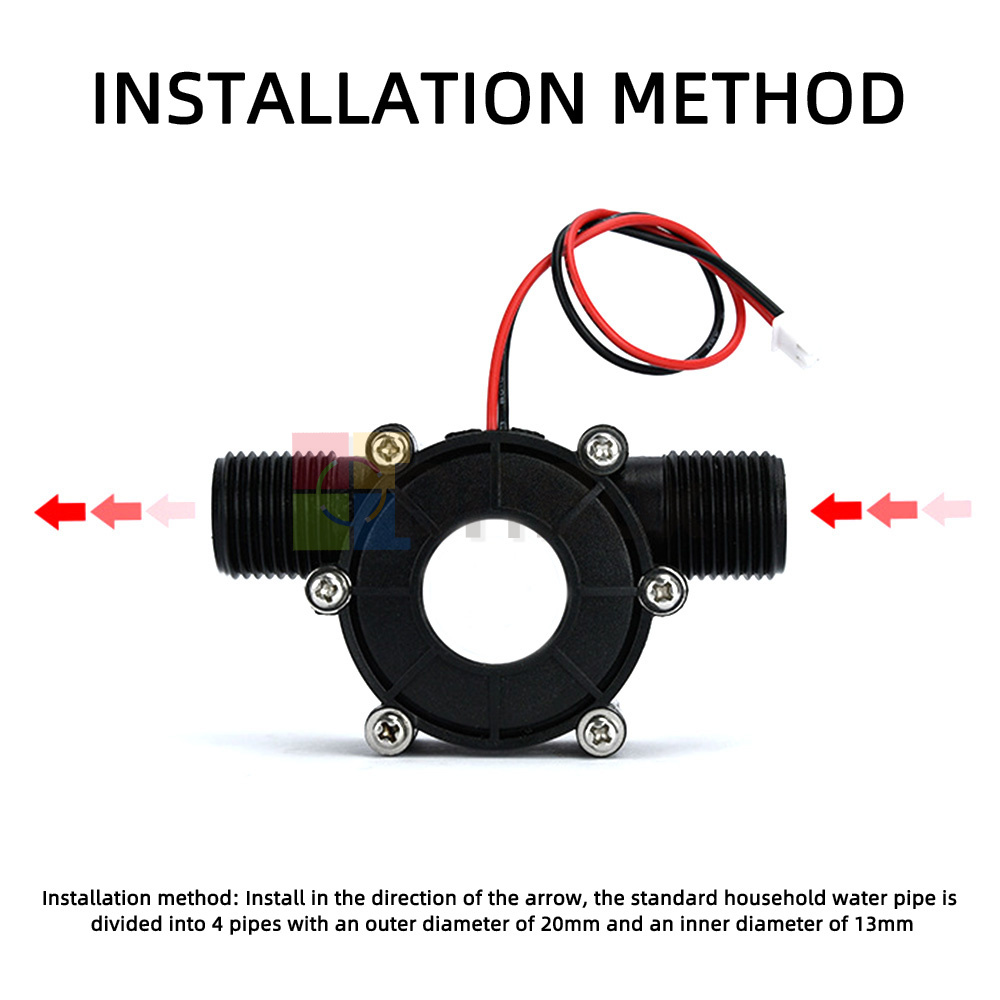

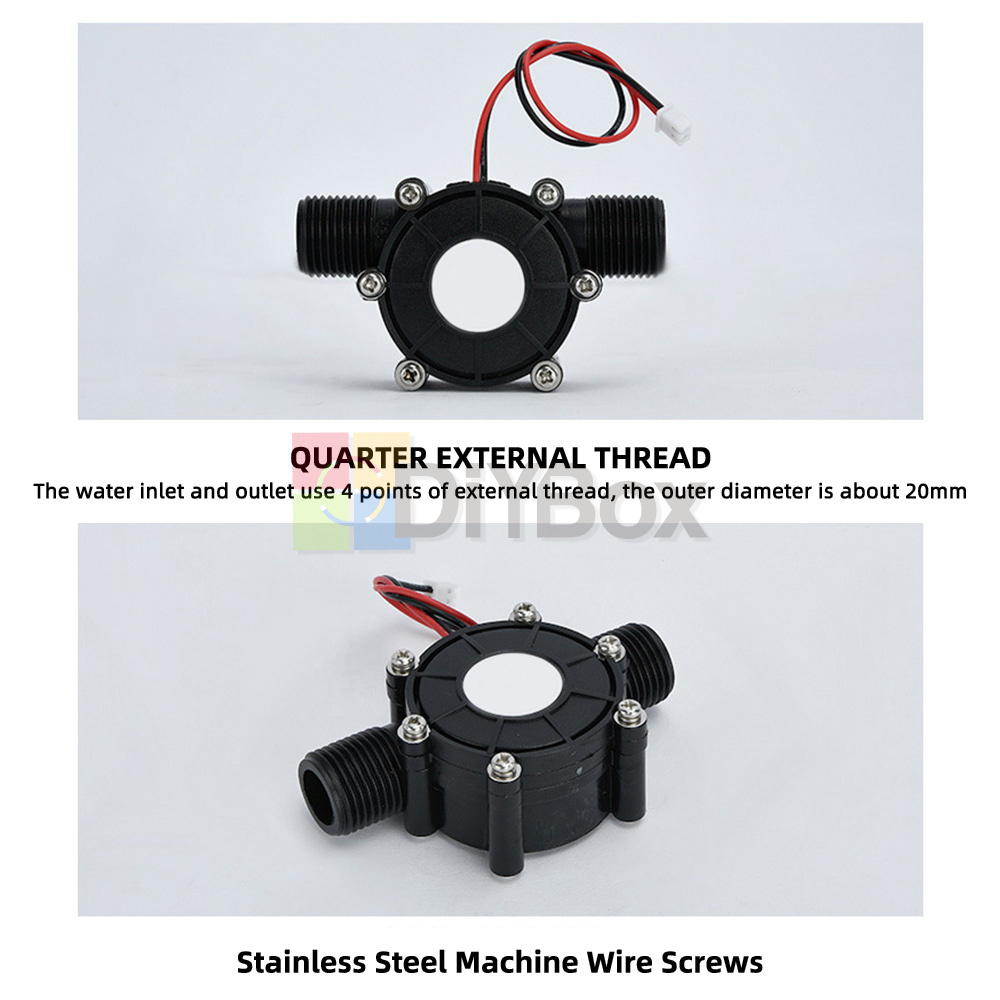

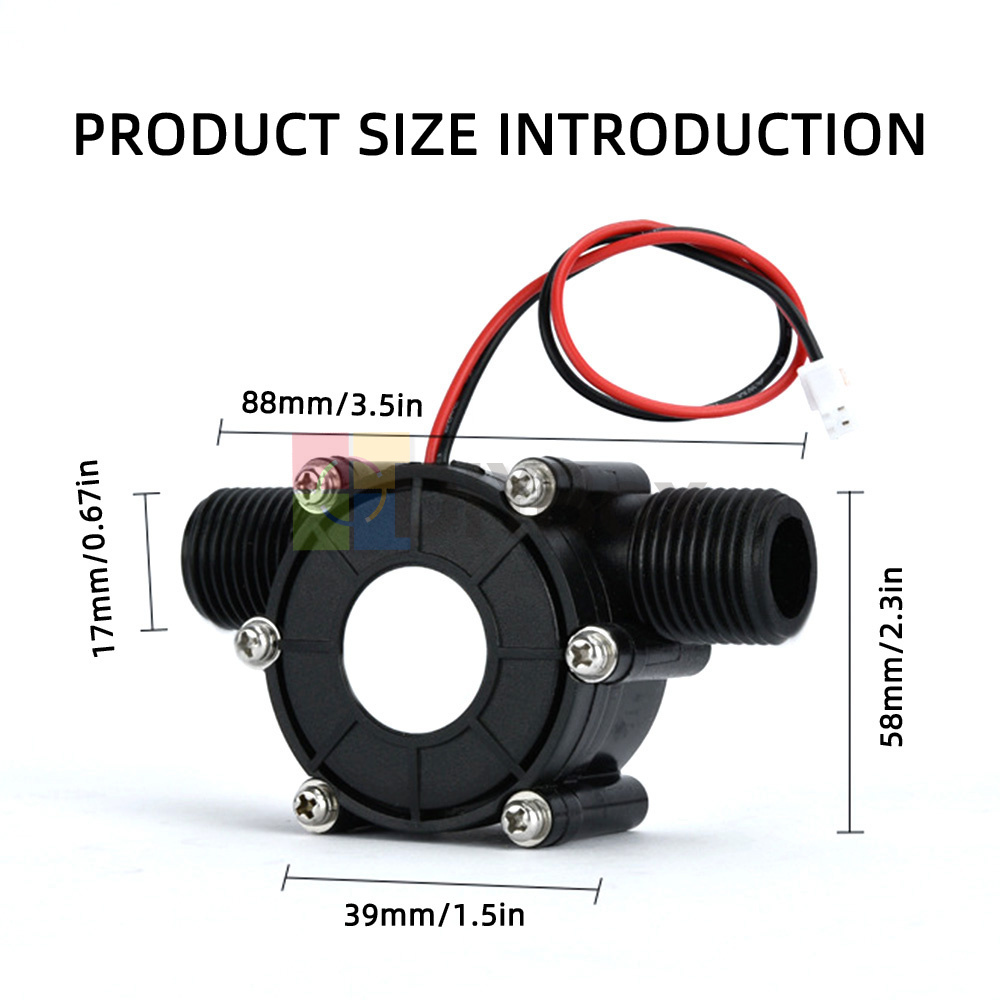

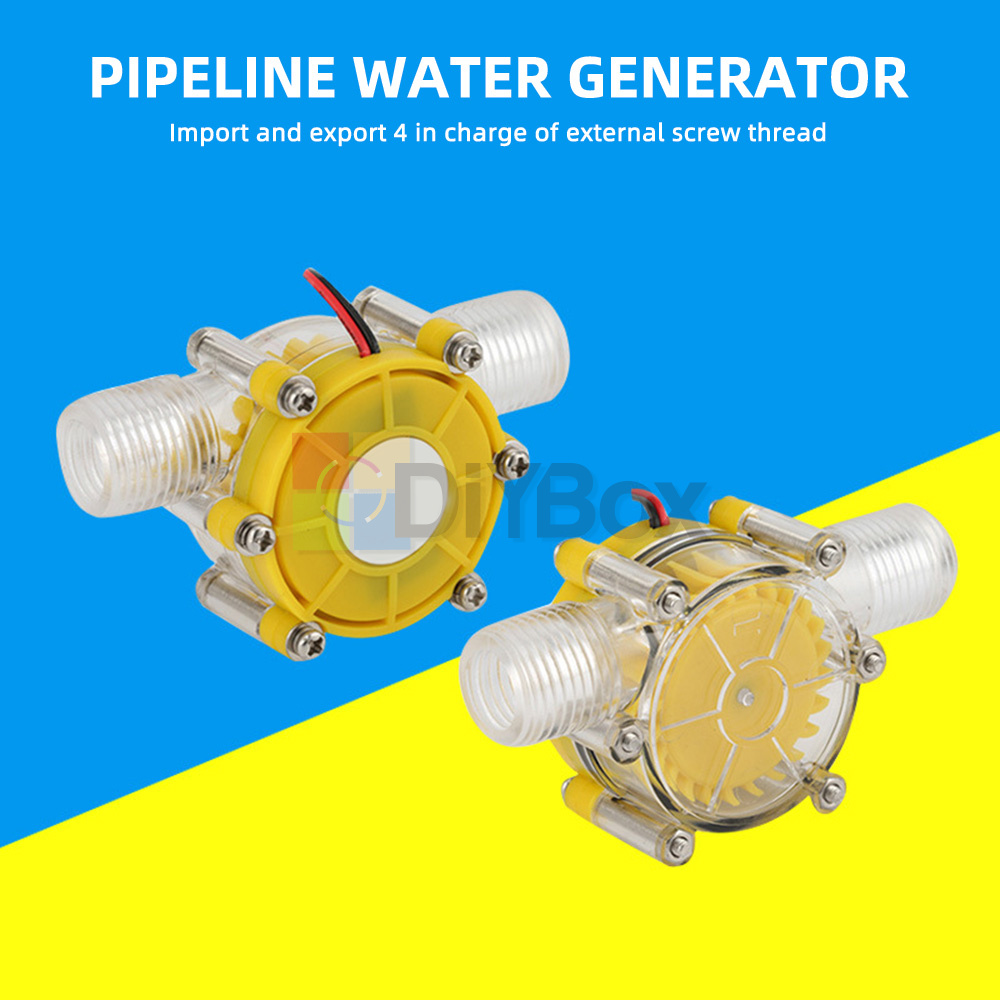

1. Four-point external screw thread: 4-point external screw thread is used for the water inlet and outlet, with an outer diameter of about 20mm
2. Stainless steel machine wire screws, choose better materials, create more durable products, and pursue excellence

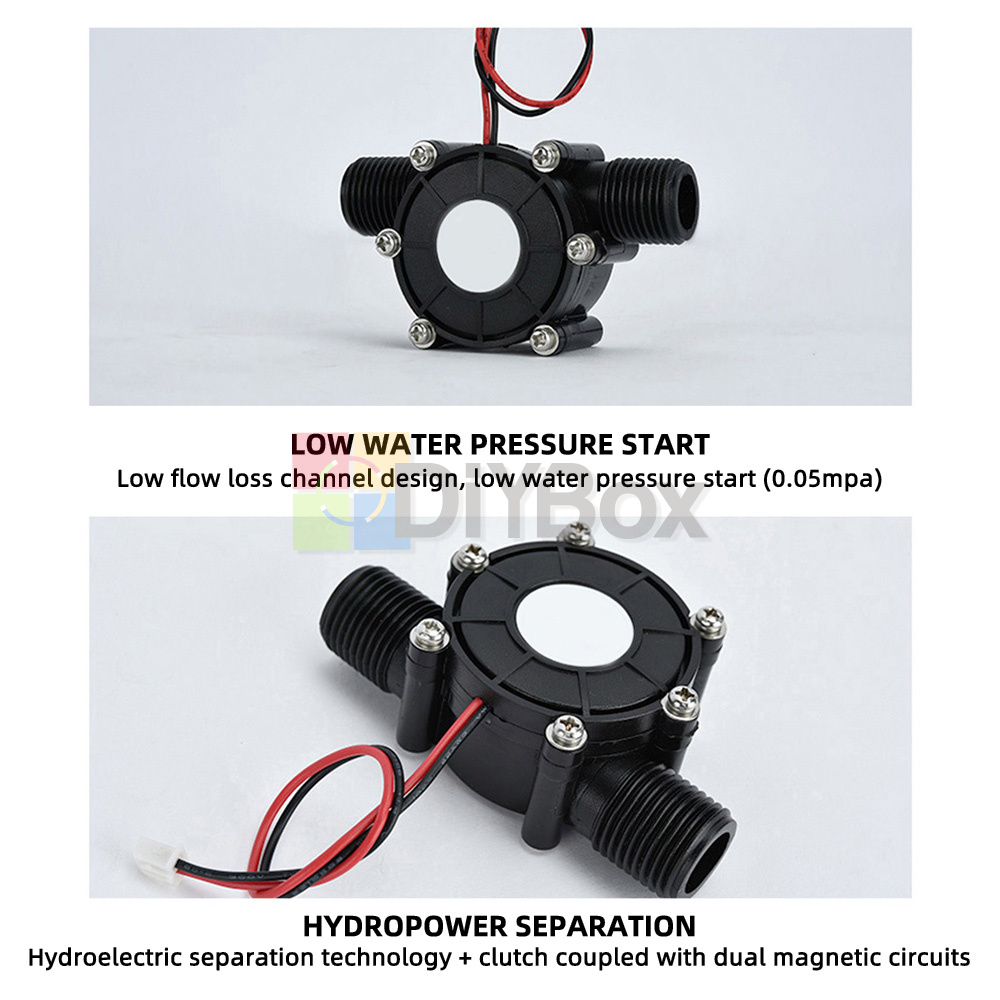

3. Low water pressure start, water channel design with low flow loss, low water pressure start (0.05mpa)
4. Hydropower separation, hydropower separation technology + clutch coupled with dual magnetic circuits

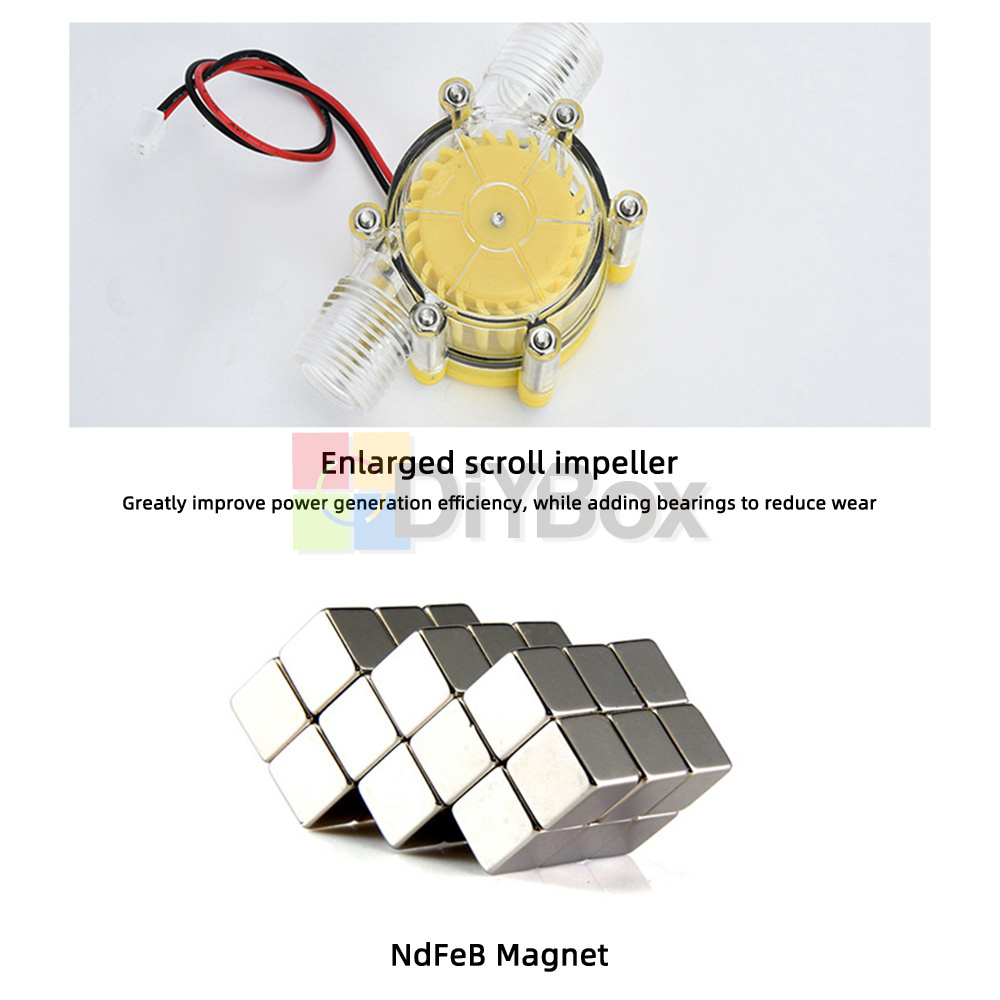

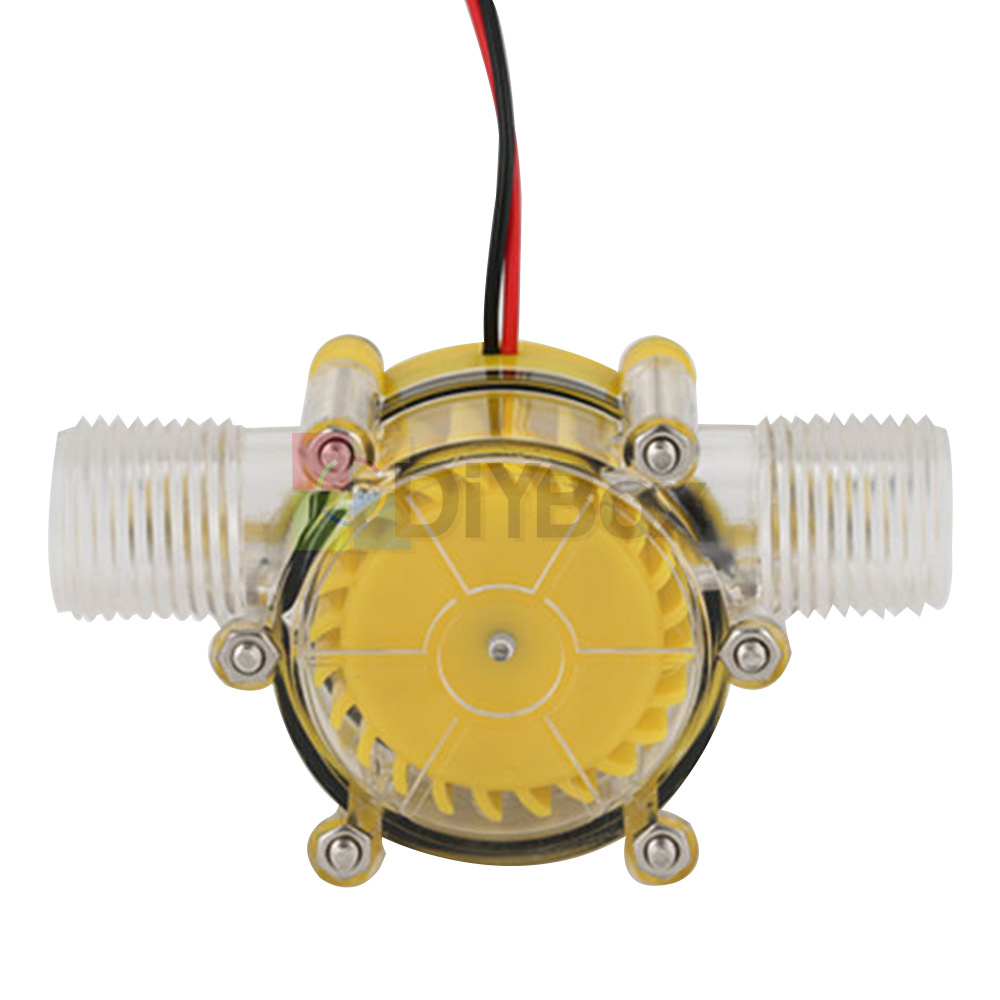

5. Enlarge the vortex impeller to greatly improve the power generation efficiency, and at the same time add bearings to reduce wear and tear
6. Chin-iron-boron strong magnetism, using Chin-iron-boron strong magnetism, greatly improves the power generation capacity
Output peak voltage: 80V (1.2Mpa)
Output peak current: ≥220mA (12V)
Line-to-line resistance: 10.5±0.5Ω
Insulation resistance: 10MΩ (DC100 megohmmeter)
Water outlet closed peak pressure: 0.6Mpa
The opening peak pressure of the water outlet: 1.2Mpa
Start water pressure: 0.05Mpa
Terminal: 2pin
0-80V: DC 0-80V output, the generator does not have a voltage regulator circuit, the peak voltage reaches 80V, it can directly charge 3-12V 10W LED lights, and can directly charge small batteries, the peak charging current is about 220mA, because when charging The generated electricity is used up in time, so the voltage will be automatically maintained at about 14V, and the appropriate voltage will be maintained so that all the generated electricity can be used to charge the small battery.
5V: DC 5V regulated output, which can charge mobile phones, and can also charge lithium batteries with charge management chips.
12V: DC 12V regulated output, which can power and charge 12V radios, and power LED lights.
(1) Appearance: clean surface, no rust, no scratches, firm structure.
(2) Axial clearance: 0.2—1.0mm
(3) Mechanical noise: ≤55dB
(4) Generator unit weight: about 90g
(5) Generator life: ≥3000h
(6) Output characteristics: The output voltage without a voltage regulator circuit is proportional to the water pressure
Package List:

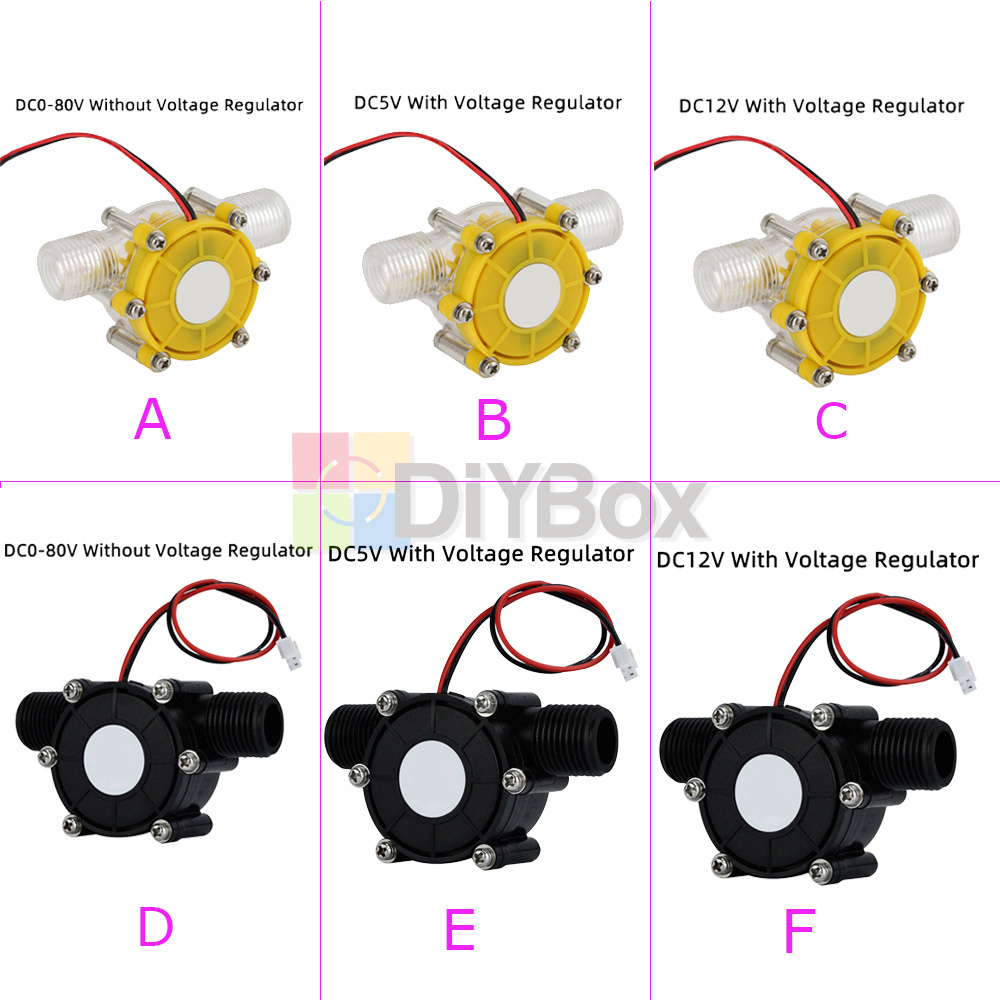

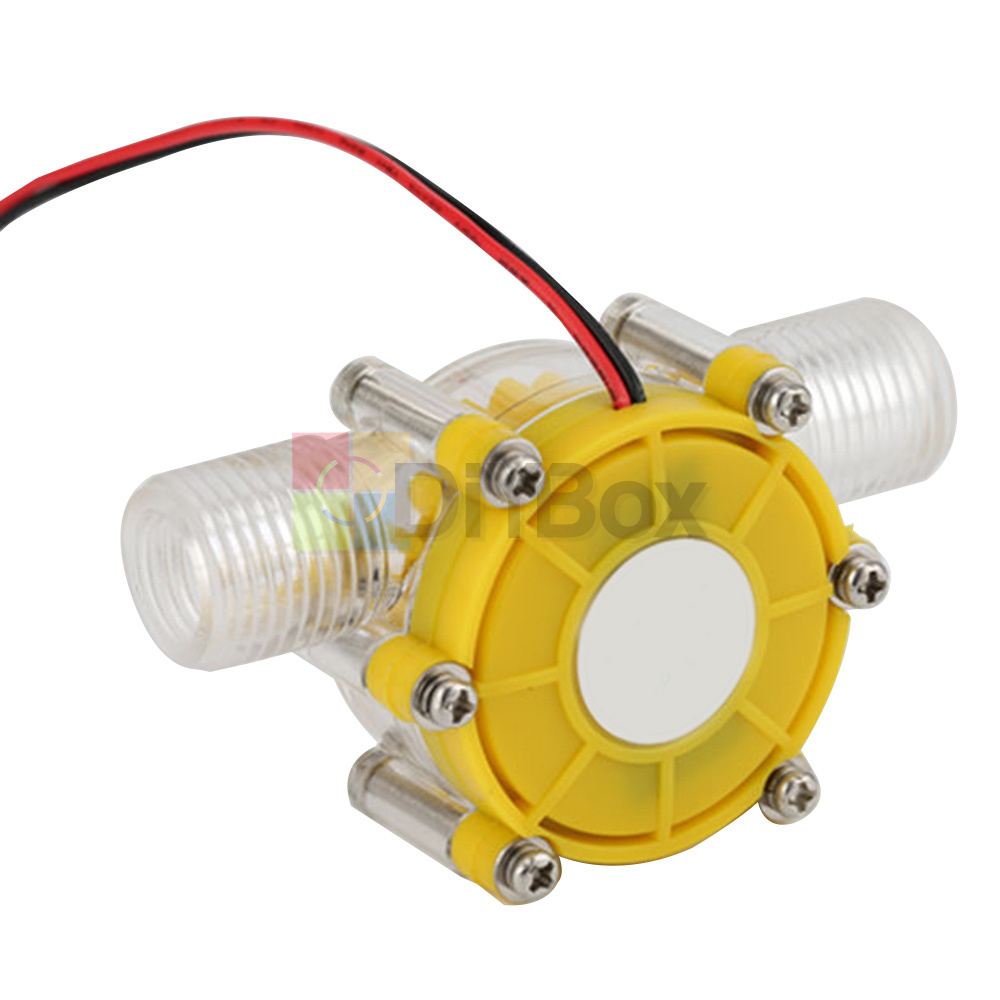

Type A: 0-80V yellow water phase generator without voltage stabilizer * 1
Type B: 5V yellow with voltage stabilized water phase generator * 1
Type C: 12V yellow water-phase generator with voltage stabilizer* 1
Type D: 0-80V black without voltage regulator, water phase generator * 1
E type: 5V black with voltage regulator water phase generator * 1
Type F: 12V black with voltage stabilizer water phase generator * 1
