selected Cable | SOMMER CABLE SC MAGELLAN SPK sold by the meter speaker cable | 440-0201
SC MAGELLAN SPK 2 x 6.0 mm²
Speaker cable SUMMER CABLE

This offer refers to Sold by the meter des SC MAGELLAN 2 x 6.0 mm² FRNC halogen-free speaker cable, from the house "SUMMER CABLE". Simply choose how many meters you need based on the number of items. You can find more speaker cables in our Store, or on request. These are new goods and you will receive an invoice with VAT shown upon request.

The snow is falling quietly... You know those sales-promoting music noises and language illusions. We have exactly the right cable for this: A Coaxial cable is used where a small outside diameter is required along with a large core cross-section. Especially in cable ducts, where the speaker cable lies between highly scattering lines. Normally, coaxial cables consist of a shield Cu cross braid used. However, this makes it unnecessarily stiff and stubborn, making repeated wrapping almost impossible. We use one for our SPK cables double opposite Cu spiral shade. This one offers one better shielding than conventional copper braids.

When used as a speaker cable, the twisted shield is used as the second wire. This has the same cross section as the inner conductor.


Extract technical data SC-MAGELLAN 460-0201F:
  • Construction: LI2Y(LS)DY 2x6.0 mm²
  • Sheath, diameter: 11.2 mm / color: black
  • Inner conductor: 2 x 6.0 mm² (AWG10)
  • CU strands: 84 x 0.3 mm
  • Shielding: double Cu helix, opposite directions
  • Weight at 1m: 196g
  • Material jacket, insulation: FRNC (test type C)
Electrical data:
  • Capacity Wire/core at 1 m: < 140 pF
  • Conductor resistance at 1 km: < 5 Ω
  • Insulation resistance at 1 km: > 200 MΩ


THE BENEFITS:

  • Space-saving diameter thanks to coaxial design
  • Excellently shielded by the double Cu spiral shield stranded in opposite directions
  • Highly flexible (PVC versions only) thanks to special shield structure

THE APPLICATION:
  • Installation in building technology
  • Processing with small connectors (jack, XLR etc.)
  • High-end HiFi applications

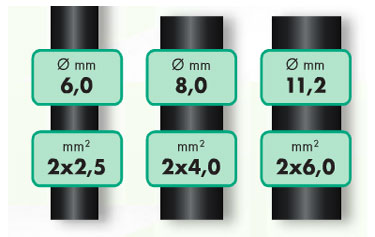

The SC MAGELLAN SPK is also available as:
  • black 2x2.5 mm², PVC 425-0201
  • black 2x4.0 mm², PVC 440-0201
  • black 2x2.5 mm², FRNC 425-0201F
  • black 2x4.0 mm², FRNC 440-0201F
  • black 2x6.0 mm², FRNC 460-0201F

We carry many other items from SOMMER CABLE in our Store. If you cannot find a product you are looking for, please inquire.

<
