SOMMER CABLE HD-SDI UHD 4K SC Vector Plus RCB 1.6L/7.3 sold by the meter video cable | 600-0221 | Selected Cable ebay shop

Sommer Cable SC-Vector Plus RCB 1.6L/7.3 video cable with 1 x 1.40 mm Ø OFC double shielded / Digital 75 Ω 6G- 3G-SDI / UHD | 600-0221
This offer applies to sold by the metre of SC Vector Plus RCB 1.6/L7.3 video cable from "SUMMER CABLE ". By the number of pieces you define how many meters - in one piece - you get. The matching HICON BNC connector BNC1.6/7.3HD is here in Shop. You can also find other video cables in our Shop, or on request.
"Simultaneous translator..." are true multitasking artists who are masters at listening, translating and saying the translated at the same time. Also at the HD-SDI transmission can in addition to the transmission of the high-resolution video signal 1080p additional data such as 16 frame-synchronous digital audio channels (AES-3 according to SMPTE 272M and 299M), time code control data and error check packets are embedded at the same time. This saves additional audio or control lines. For the large bandwidths of 3G SDI (2.97Gbps according to SMPTE 424M) it's ours 3G-SDI cable series that optimal means of transport. Super low damping values from under 30dB @ 2.97Gbps become through the large 1.6 OFC inner conductor with a special gas-foamed Skin-Foam-Skin insulation and double shielding. The solid wire version is ideal for professional media installations in TV studios and OB vans, while the reelable stranded version demonstrates its flexible advantages in mobile transmissions.
Excerpt of technical data SC-Vector Plus RCB 1.6L/7.3:
  • Sheath diameter: 10.30mm
  • Sheath: PVC / Color: black
  • Inner conductor (video): 1.54 mm² / Ø: 1.40 mm
  • Cu strands (video): 7 x 0.53 mm OFC
  • AWG (video): 16
  • Screen: double copper braid, tinned
  • Weight at 1m: 140g
  • BPVO Euroclass: Fca
Maximum transmission lengths:
  • 12G-SDI: max 55m - Ultra HD - 2160p @ 60/50Hz
  •   6G-SDI: max 100m - Ultra HD - 2160p @ 30/25Hz
  •   3G-SDI: max 240m - HD - 1080p @ 60/50Hz

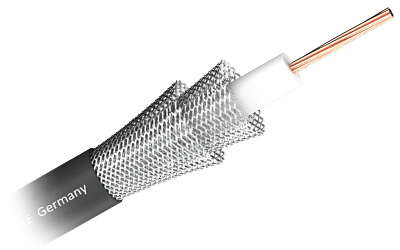

 title=Summer Cable SC Vector Plus RCB 3G-SDI / UHD video cable
Areas of application for this video cable: ELA 100 V ▪ Installation ▪ Mobile use outdoors / indoors
THE ADVANTAGES:
  • Long service life due to non-ageing casing
  • Constant, optimized electrical values ​​through intelligent cable construction
  • Gas-foamed skin-foam-skin insulation for the best damping values ​​and long distances

 THE APPLICATION:
  • Digital HD-SDI and 3G-SDI video transmission in the professional broadcast/OB van/studio sector, as well as high-frequency technology and SAT antenna construction
  • Mobile HD-SDI (3G) wholesale transmissions
  • Professional, permanent media installation according to the 3G standard
Extract attenuation data:
  • Characteristic impedance: 75Ω
  • Attenuation at 5 MHz (100m & 20°C): 4.3 dB
  • Attenuation at 50MHz (100m & 20°C): 4.9dB
  • Attenuation at 100 MHz (100m & 20° C): 5.5 dB
  • Attenuation at 200 MHz (100m & 20° C): 6.8 dB
  • Attenuation at 470 MHz (100m & 20° C): 10.1 dB
  • Attenuation at 862 MHz (100m & 20° C): 14.4 dB
  • Attenuation at 1000 MHz (100m & 20° C): 15.8 dB
  • Attenuation at 1485 MHz (100m & 20° C): 20.0 dB
  • Attenuation at 1750 MHz (100m & 20° C): 22.4 dB
  • Attenuation at 2150 MHz (100m & 20° C): 25.2 dB
  • Attenuation at 3000 MHz (100m & 20° C): 29.5 dB
 The SC Vector is also available as:
  • SC Vector Plus RCB 1.6L/7.3 - in green - 600-0224

Matching 1.6/7.3 BNC connector:
We carry many more items from the Pro Video Broadcast area. In addition, cables and wires for pro audio and music are also in our range Shop available. If you cannot find the product you are looking for, please ask.
