Features：

◆Embedded hardware coding

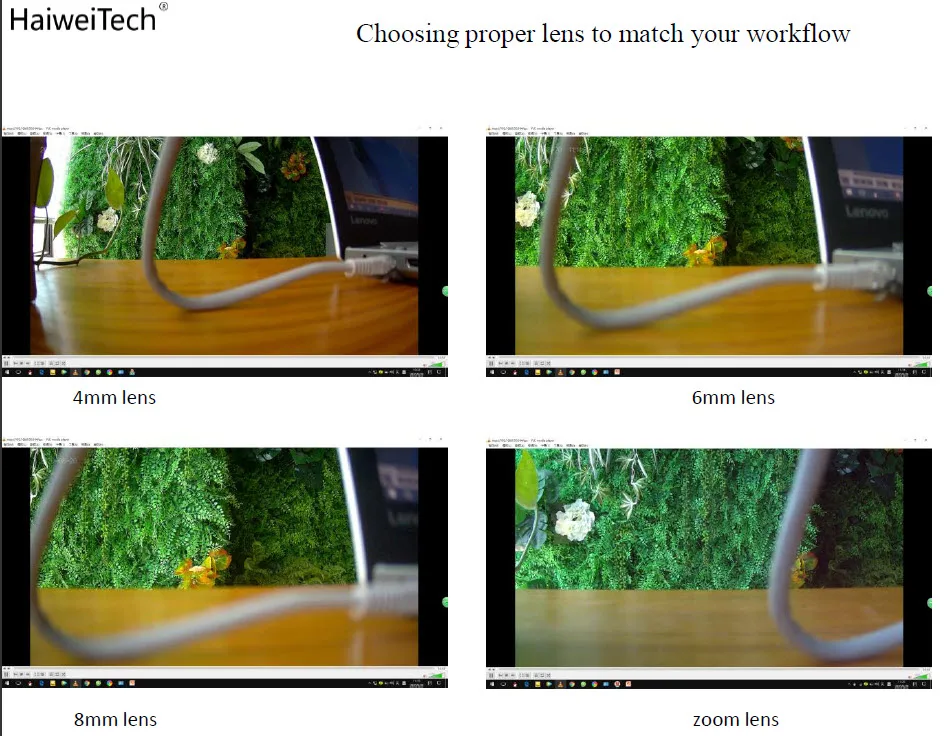

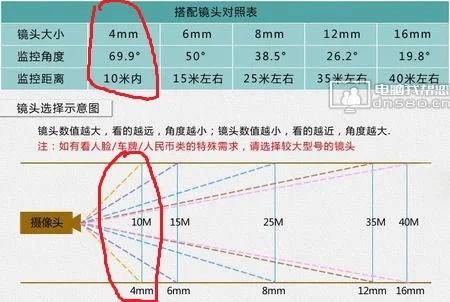

◆2M 1/3”CMOS Sensor, very low illumination, adjustable shutter and optional lens.

◆Support the main, secondary and other multi protocol and multi stream function, main stream and secondary stream can be transmitted with different protocol.

◆Support private protocol for low delay connection(SDK).

◆Support QR code, support IOS/Andriod APP remote management .

◆Support H265 MAIN PROFILE H.264 BASELINE PROFILE / MAIN PROFILE/ HIGH PROFILE.

◆Support multiple devices display on a computer at the same time

◆Encoding level: 1, 2, 3, 4 and 5 (the higher the level ,the larger of the code flow fluctuation ratio)

◆Rate Control CBR / VBR 16kBIT/S ~ 12MBIT/S

◆Network interface apply 1000M full duplex mode.

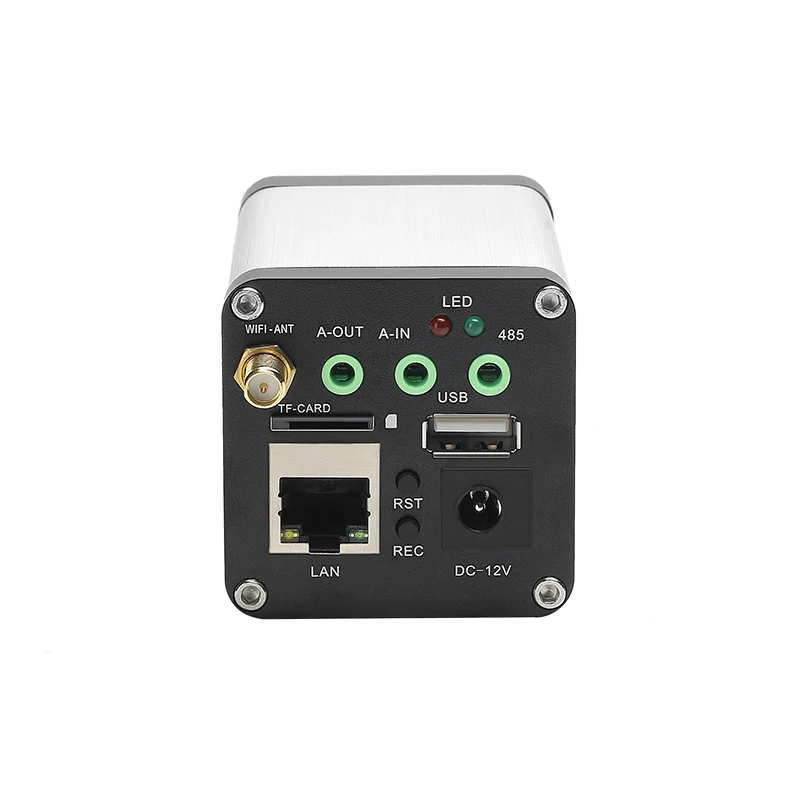

◆1 IP signal output, 1 3.5 audio output, TF card storage and RS485 control. Support audio gain ,be able to turn volume individually.

◆Support RTSP/RTP/RTMP/HTTP/UDP/ONVIF/HLS/SRT/ unicast and multicast protocol (RTMP support adding users and changing passwords), support DHCP & ONVIF protocol, support blue-ray HD.

◆Compatible with stream media servers like Wowza,FMS,RED5,etc.Work with stream media servers to realize video live show.

◆Support customizing output stream resolution.

◆Transmission: TCP, UDP, 100M/1000M (RJ45 Ethernet port duplex)

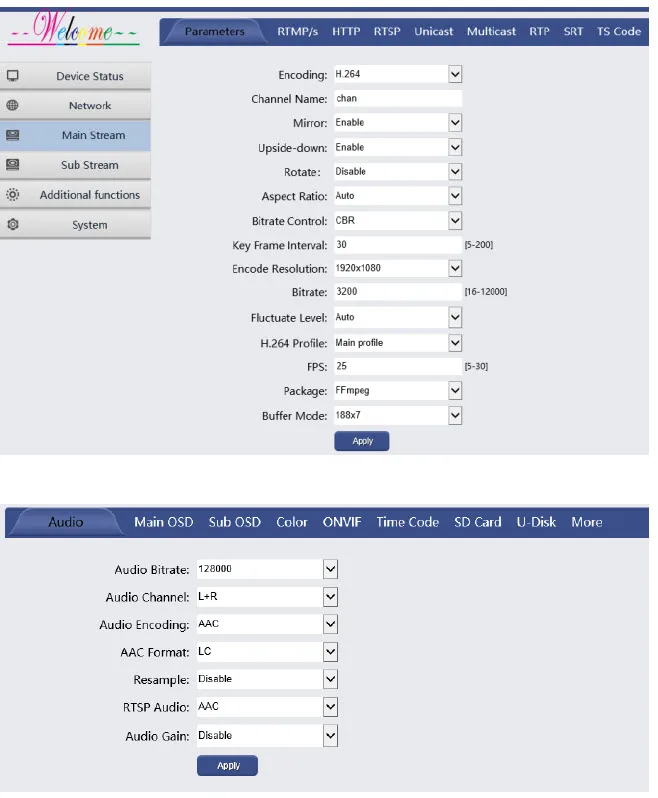

◆Support WEB access in Chinese/English, passwords changing, WAN remote management (WEB)

◆Support DHCP gaining IP automatic ,support One-key recovery, upgrade and remote maintenance.

◆Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering.

◆Support stereo input & output. Support voice intercom and left/right vocal tract.

◆Support one-key recovery of the default configuration and one-key recording.
