Product Details
Industrial Ventilation Extractor Fan Metal Axial Exhaust Commercial Air Blower
with Speed Control
Features :
* 100% Brand new and high quality.
* Comes with speed control.
* Axial fan with grill.
* Powder coated steel wire safety guard.
* 100% Copper winding motor.
* Low noise and stable running.
* Single phase.
* Easy to install.
* Suitable for commercial places, workshops, restaurants,
warehouses, etc.
* NOTICE: Please DON'T use with corrosion and explosive
gas.
Specifications :
* Material: Carbon steel housing, blades and turbobit,
copper winding,
* Voltage: 220VAC single phase, 50Hz
* Cable Length: 1.5 meter (copper core)
* Environmental Temperature: -20℃ ~ 50℃
* Environmental Humidness: Below 95%
* IP Grade: IP54
* Size:
* Notice: Speed controller of 8-22 inches is black, but
the one of 24 inches is white.
Package :
* 1 X Extractor Fan
Shipping note: there is an
additional delivery surcharge to the following areas:
Input current (A)
Capacitance
(µf)
Power
(W)
Speed
(RPM)
Air Volume
(m3/hr)
Full Pressure
(Pa)
Noise (dba)
8
Inches / 200mm -2 Pole
0.23
2
60
2150-2550
780
90
50
10
Inches / 250mm -2 Pole
0.5
2
110
2150-2550
960
100
56
12
Inches / 300mm -2 Pole
0.8
6
165
1900-2300
2130
130
60
14
Inches / 350mm -4 Pole
0.73
4
145
1180-1380
2500
145
62
16
Inches / 400mm -4 Pole
0.85
6
180
1150-1350
3500
160
65
18
Inches / 450mm -4 Pole
1.2
8
250
1150-1350
4850
185
68
20
Inches / 500mm -4 Pole
1.6
10
350
1250-1350
6570
200
72
22
Inches / 550mm -4 Pole
2.4
12
500
1250-1350
8700
240
75
24
Inches / 600mm -4 Pole
3.3
16
710
1250-1350
10850
300
78
Scottish Highlands, Scottish Offshore Islands, N.Ireland, Channel Islands,
Isle Of Wight, Isle Of Man
and the following postal code areas: DG, EH, FK, G, KA (1-26, 29, 30), KY,
ML, PA (1-19), DD, PH, AB, IV, KW (1-14), PH (19-40, 49, 50).

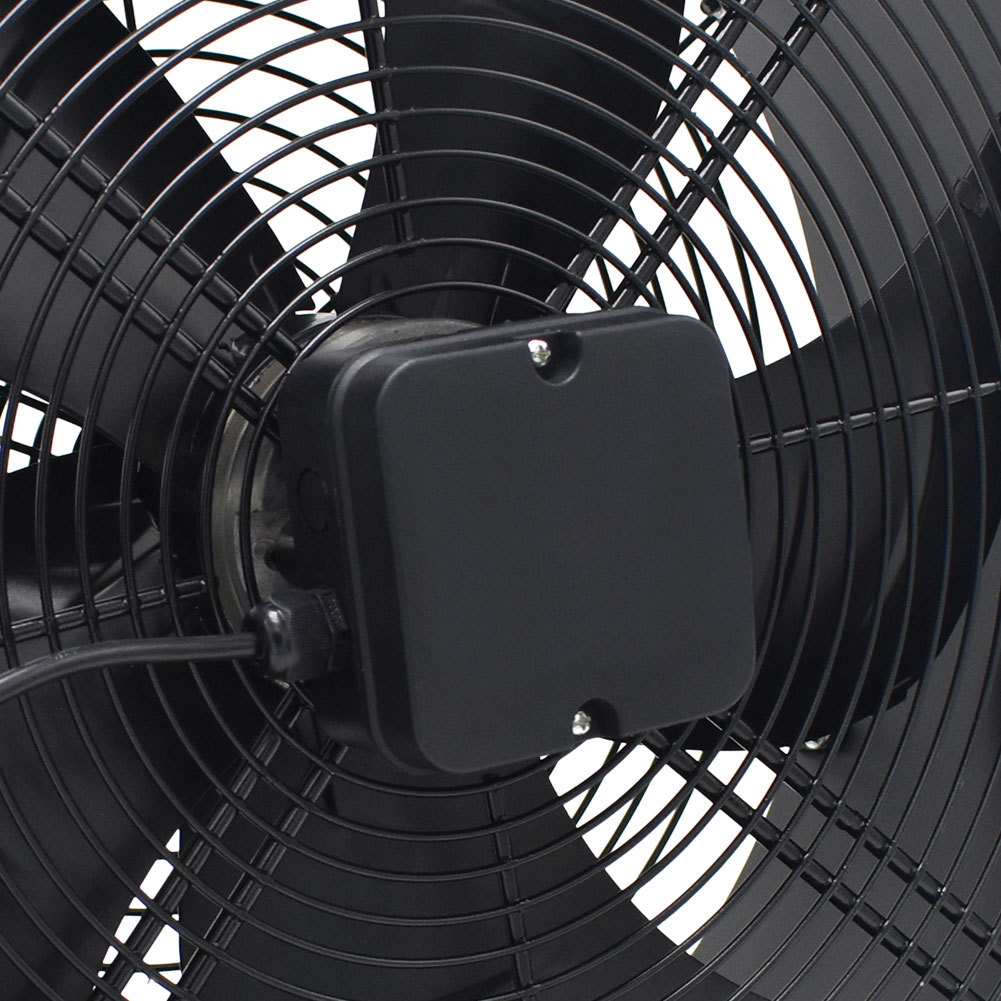

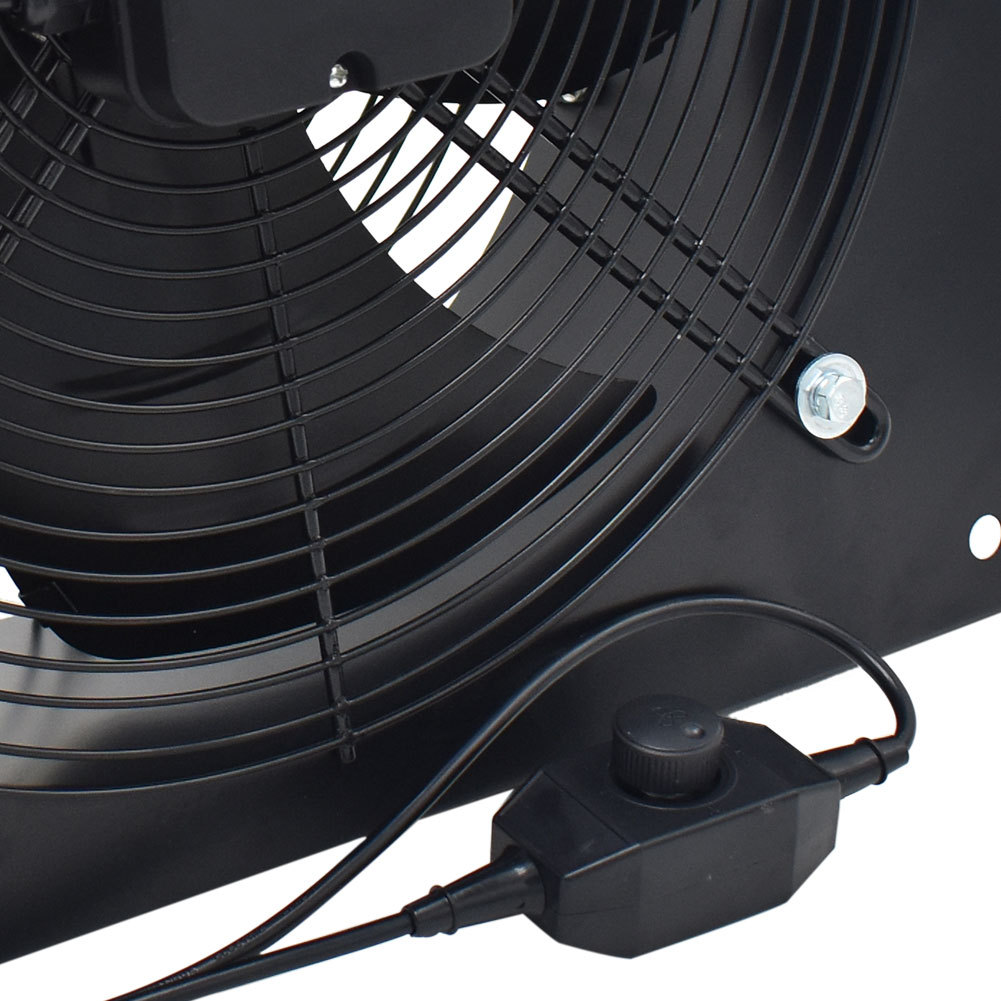

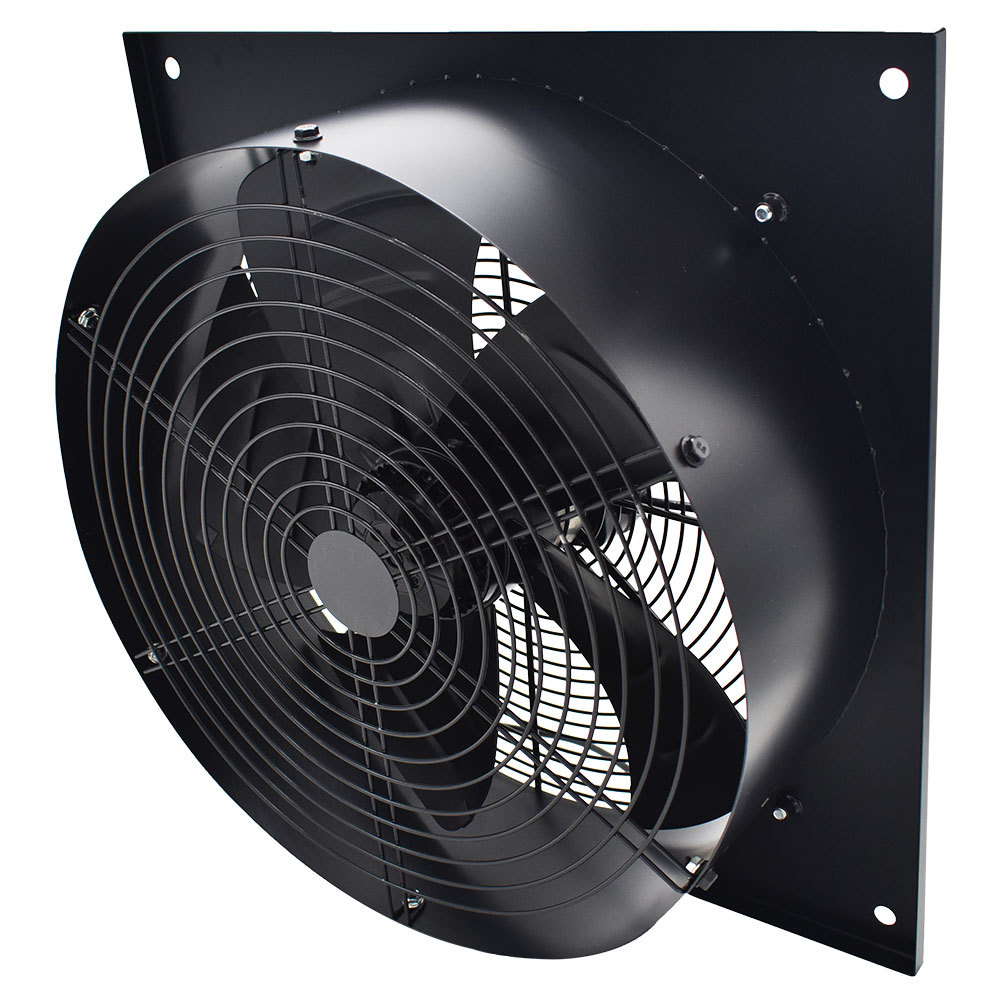

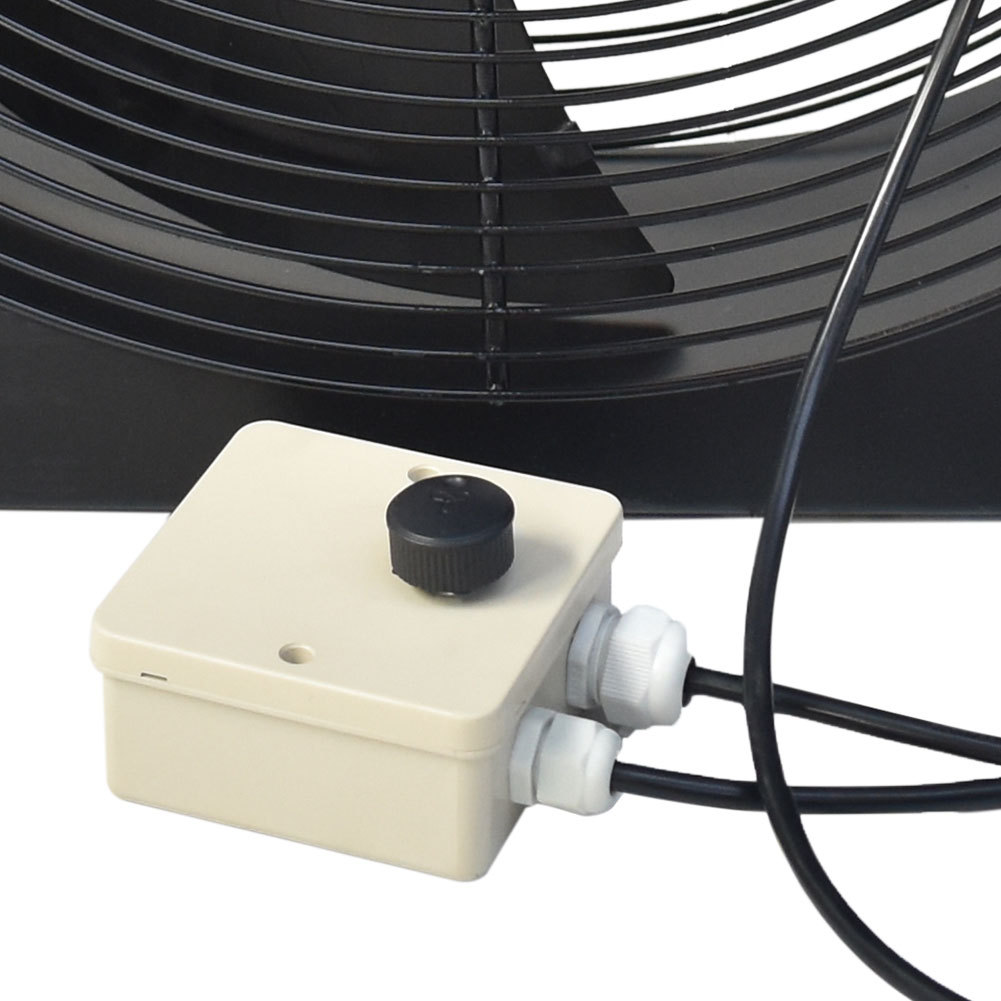

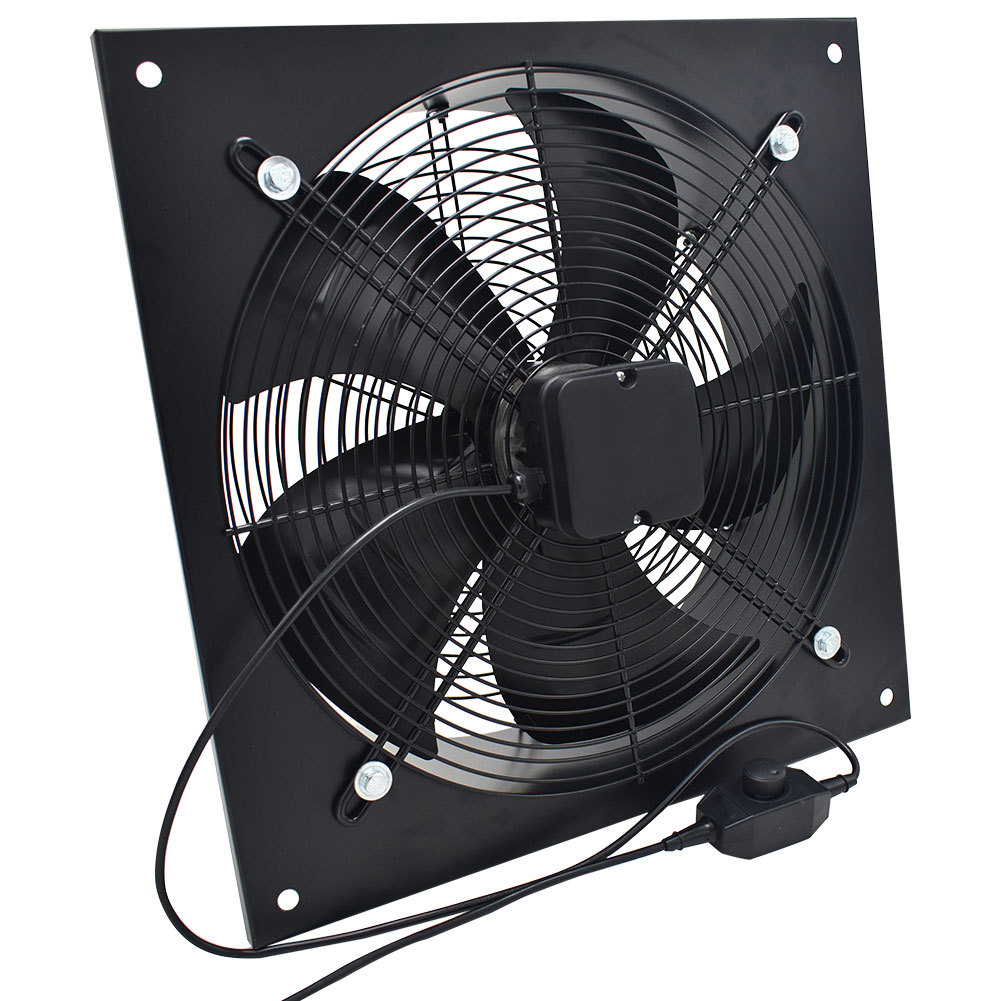

Product Picture Show
