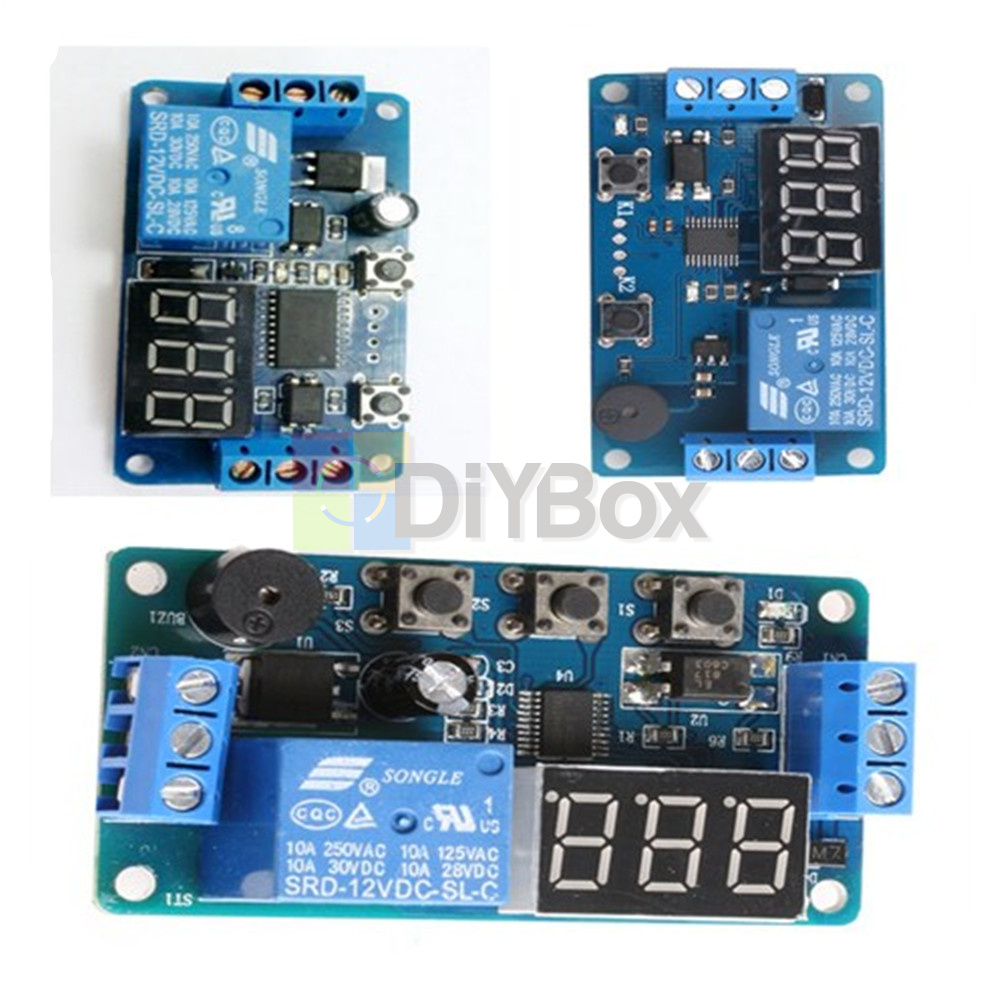

Product Name: Programmable timer relay module



Working voltage: DC12V (normal operating voltage DC10V-16V)

Source: DC4V ~ 20V (positive trigger common power button, PNP sensors, PLC signals, etc.)

Output capability: You can control the DC or AC 220v5A within 30v5A within

Quiescent Current: 20mA,

working current: 50mA

Life: more than 10 million times;

Working temperature: -40 ~ 85'C;

Weight: about 26g

Dimensions: 64.2mm * 34.8mm * 18.5mm

Features: anti-reverse voltage input circuit, worry-free wiring. Signal input optocoupler isolation, anti-interference ability. Set the parameters of power and permanent memory. Powerful flash MCU online programming capabilities, according to user needs can contact the manufacturers to customize the functionality.

Features:

Receives a trigger signal to start the countdown, while the relay, timing the end of the relay to stop working, time to recover to the set, waiting for the next trigger.



Instructions:

Click K1 enter the time setting, one hundred digital start flashing, then press K2, one hundred the number of changes; then click K1 ten digital start flashing, then press K2, the tens digit changes; then click K1 bit digital start flashing, then press K2, single-digit change; then click K1, exit the setting, LED no longer flashes.

Normal digital tube display, press K2, shifting the decimal point, a decimal point indicates 0-999 minutes in 10 bit from 0 to 99.9 seconds with no decimal point represent 0-999 seconds; to this time setting is completed.



Package Included :


  1   x  12V LED Display Timer Relay Programmable Module Delay Switch Car Buzzer Board

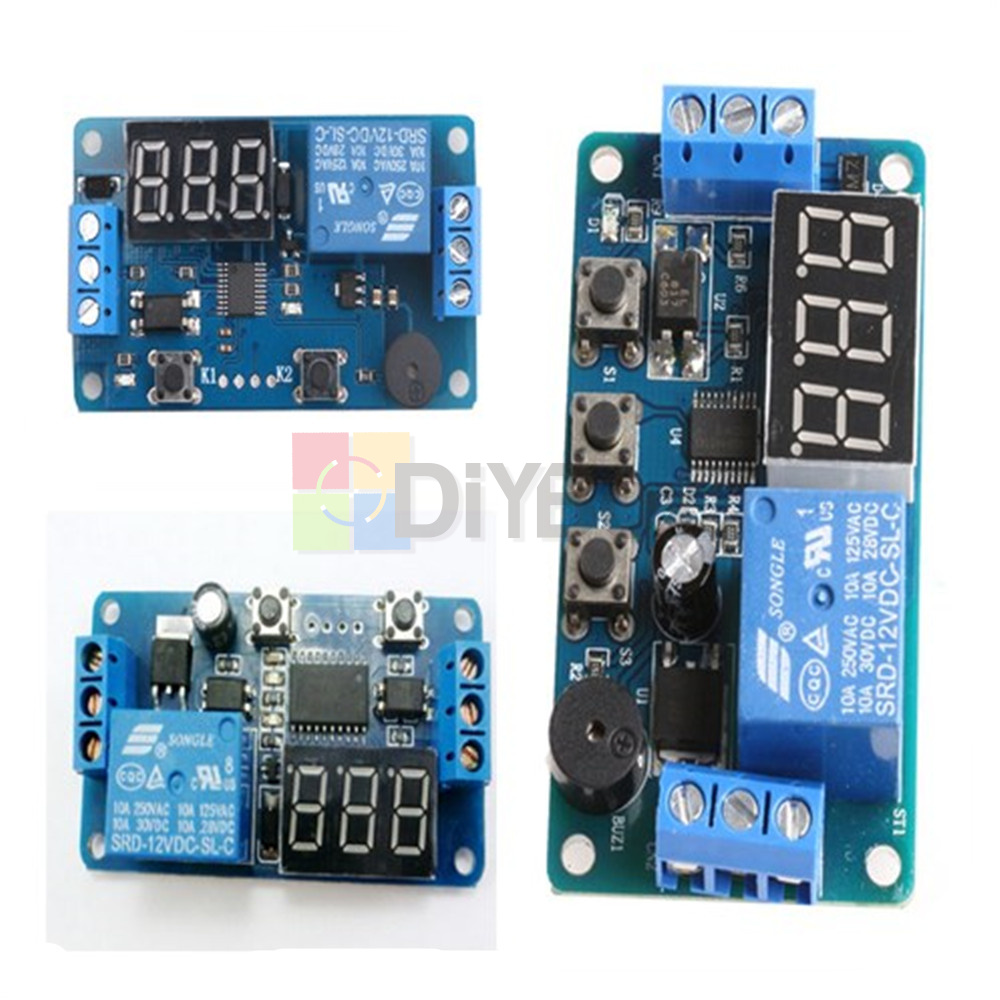

II.12V LED Display Programmable Timer Relay Module Delay Car Buzzer Switch Board





Product Name: Programmable timer relay module

Working voltage: DC12V (normal operating voltage DC10V-16V)

Source: DC4V ~ 20V (positive trigger common power button, PNP sensors, PLC signals, etc.)

Output capability: You can control the DC or AC 220v5A within 30v5A within

Quiescent Current: 20mA,

working current: 50mA

Life: more than 10 million times;

Working temperature: -40 ~ 85'C;

Weight: about 26g

Dimensions: 64.2mm * 34.8mm * 18.5mm

Features: anti-reverse voltage input circuit, worry-free wiring. Signal input optocoupler isolation, anti-interference ability. Set the parameters of power and permanent memory. Powerful flash MCU online programming capabilities, according to user needs can contact the manufacturers to customize the functionality.

Features:

S1: power on, press S1 2 seconds to enter mode selection menu, press S1, choose P-1 ~ P-4 mode.

S2: OK / Shift key: Press to adjust the position of the LED is blinking, which LED is blinking, S3 to adjust the value of digital tube flicker. Until you press S2, the digital is no longer flashing.

S3: digital display flashes, S3 adjustment digits from 0-9 successively changed. Normal digital tube display, S3 to adjust the position of the decimal point, the decimal point in bits 0-999 seconds; in 10 bit from 0 to 99.9 seconds; no decimal point indicates 0-999 seconds.

Model Description:

P-1: triggering signal is received, the relay is turned on, the timer expires, the relay off.

A1: During the delay trigger again invalid

A2: During re-timing delay trigger again

A3: Delay trigger again during termination timing relay reset

P-2: triggering signal is received, X start time, the end of counting relay, Y start time, the end of counting the relay off

P-3: Cycle Switch Mode

A1: After power relay is turned on, the end of the timing off, an infinite loop.

          A2: After power relay is off, the timing turned end, an infinite loop.



Package Included :

  1 x  12V LED Display Programmable Timer Relay Module Delay Car Buzzer Switch Board



III.DC 12V LED Display Digital Delay Timer Control Switch Module PLC Automation



1.It's a new digital LED countdown display 12v delay module module. It can be widely used with various control switch places.

2.It can set the delay time,can press "set" buttons.After setting up,

power-up setting value is previous setting delay time as we set last time (power-down memory function);

3.It's precision delay, error 0.01% per second, a delay of 0-999 seconds , LED changes per seconds ;
4.LED digital display, normally open trigger delay 12V relay module, triggered by an external signal.
5.Modules are high level trigger, counting time 0-999 seconds.
6.The wide range of products can be used in many fields;

7.It work in a low-power mode, press the left button to turn off the digital display or begin to show





Descriptions:

working voltage: DC 12V
Standby current:12ma
working current:50ma
Load: AC 250V 10A(max) or DC 30V 10A(max)

Size:6.5x3.5cm

Package Included:

   1 x DC 12V LED Display Digital Delay Timer Control Switch Module PLC Automation TOP
