Features:
Free form reflector design
Die cast aluminium housing
Powder coated finish
Sealed Deutsch connector
Electronic Thermal Management
Dual mounting options
Approved by ECE R112/R7/R10 (Ref. 45)
2 Year Warranty
Wattage 100W
Input voltage 9-36V DC input Current draw @ 12V Driving Beam: 6.5A Park Beam: 0.2A
Colour temperature 6500°K
Raw lumens 9500
Actual lumens 8075
IP rating IP68 & IP69K
LED Qty 10 x 10 Watt ETI

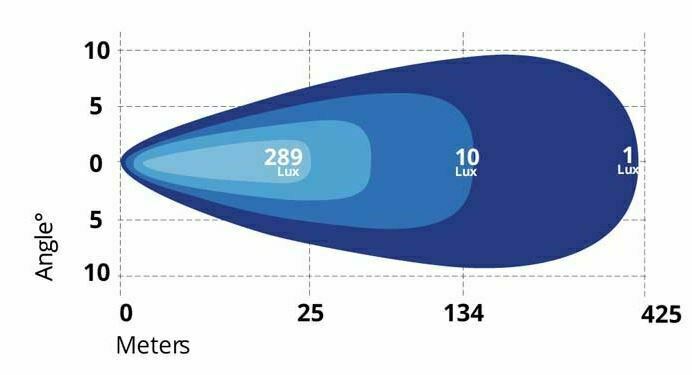

LED (Driving Light) 5 x 1 Watt LUXEON LED (Park Light)1 Lux @ 425 Metres Lens Polycarbonate
Beam type Driving Beam
Measurements 523 x 56 x 84mm
