ELECTRICAL CONDUCTOR MATERIAL / INSULATING MATERIAL: phosphor bronze / natural nylon
NEMA 5-15P STRAIGHT BLADE PLUG: 2 pole, 3 wire, AC 15A 125 input voltage
ELECTRICAL PLUG CORD VERSATILE SIZE: this electrical plug cord clamp support wide range of cord sizes 14/15/16/17/18/19/20 AWG
PLUG PASSED UL / CUL LISTED GUARANTEED: the power plug housing and blade holder made of duty nylon (nylon PA66), wear-resistant & drop-resistant, and flame retardant rating UL94V-0. power conect pins made of phosphor bronze, good electrical conductivity, not easy to generate heat, strong fatigue resistance
SAFETY DESIGN: the electrical replacement plug transparent wiring chambers show a means of visual inspection of conductors and terminals.build-in wiring chambers isolate individual conductors to prevent arcing, flashover and excessive heat build up

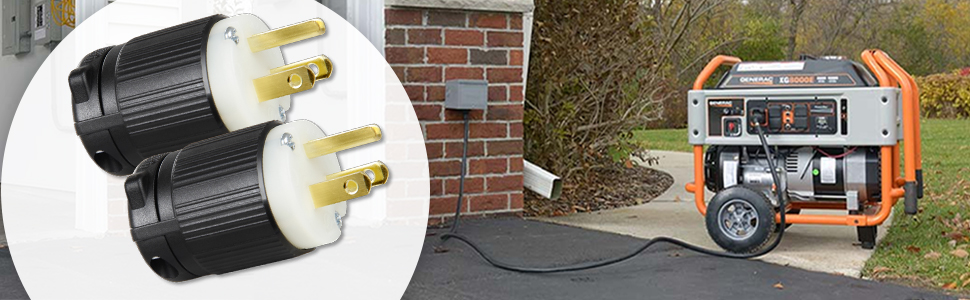

HIGH QUALITY INSULATING MATERIAL AND ELECTRICAL CONDUCTOR MATERIAL: this replacement plug suitable for medical equipment, electronic equipment, lamps, machinery, barbecue grills, generators, elevators, generators, etc

Product Specifications

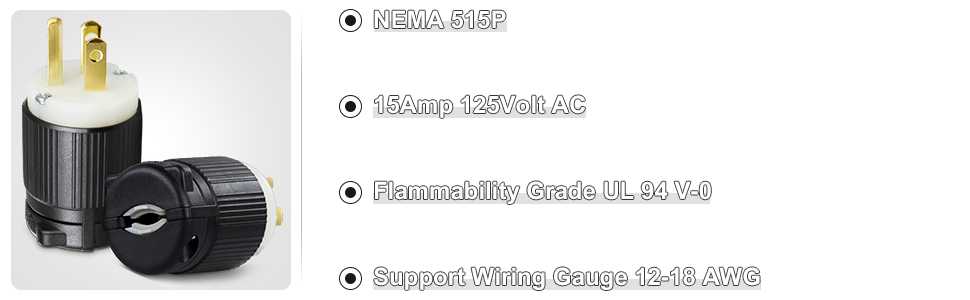

NEMA Configuration: 5-15P
Product Item: 15A 125V Commercial Grade Replacement Plug
Wiring Gauge: 12-18 AWG
Color: Black
Rating: 2Pole, 3 Wire Grounding 15A 125V AC
Housing Material: Nylon-Black
Blade Holder Material: Nylon-Natural
Retainer Material: Polycarbonate-Clear
Cord Clamp Material: Nylon-Black
Contact Blades Material: .063”(1.6m/m) Brass
Ground Contact Blade Material: .040”(1.0m/m) Brass
Terminal Screw Material: #8-32 Brass
Ground Screw Material: #8-32 Brass (Green)
Flammability: UL 94 V-0
Listed: UL/cUL

Package Contents:
2 PCS NEMA 515P Male Plugs
