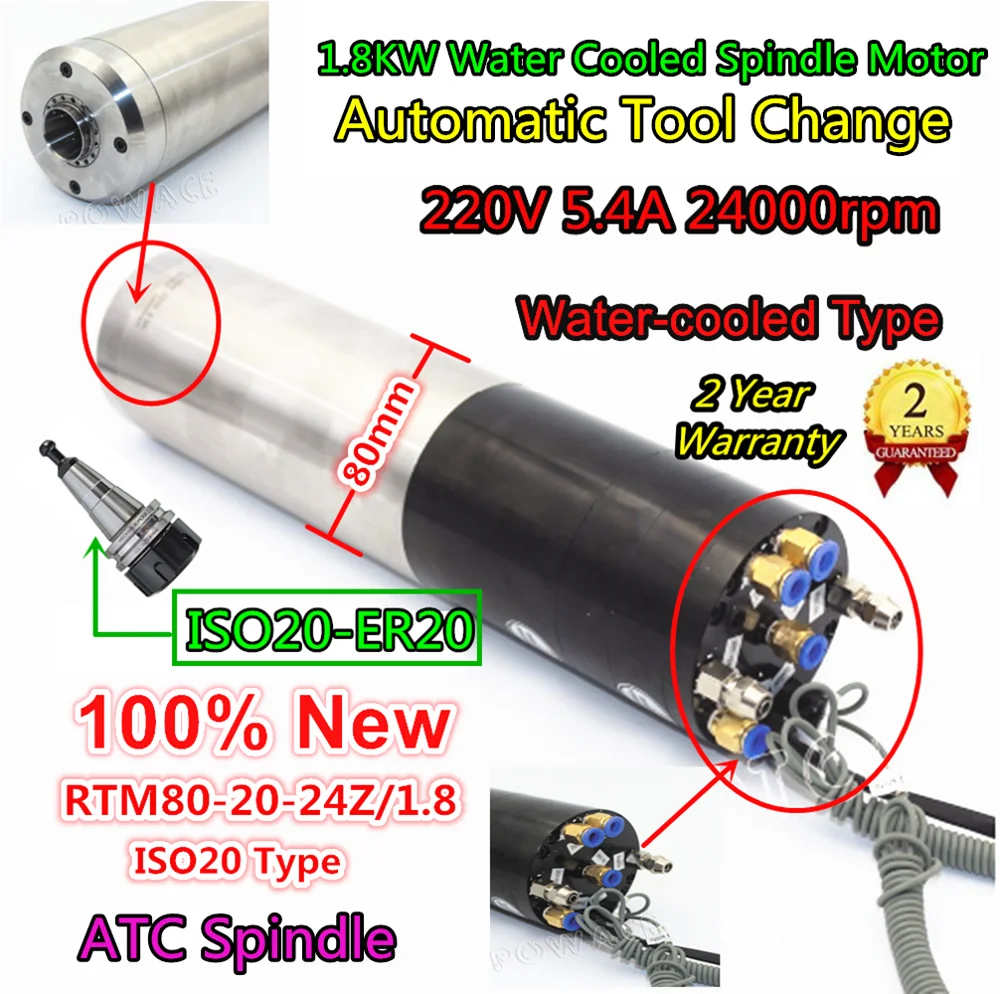

1.8KW 220V ATC Water Spindle Motor Automatic Tool Change ISO20 ER20 80MM 400HZ
 for CNC Router Engraving Milling Machine






QQ截图2017091DA3112316_副本_副本_副本 (2)_副本


Package-Included

Package included:

  • 1x 1.8KW ATC Water Cooled Spindle Motor 220V 5.4A 24000rpm 400Hz

  • 1x ISO20-ER20 tool holder

  • English user manual

Features



0.1


3KW水冷自动换刀主轴BT30+四方变频器380V-2


3KW 自动换刀主轴


Product overview

1.This spindle is built-in type spindle motor, built-in three asynchronous motors,by the inverter control.As the spindle has a compact structure,high power, big torque, small vibration, low noise characteristics,so it can achieve high speed,high powe cutting,high precision and high stability operation.

2.The bearing of spindle use grease lubricated angular to contact bearings,can be achieved lifelong lubricating within the life cycle.

3.The spindle use forced coolling mode to coolling motor,front and rear bearings.Coolant flow through the reasonable arrangement cycle watercourse of the spindle body,thus can take the heat generated of the spindle rotation speed, to achieve thermal equilibrium,let spindle temperature within a certain constant value. External cooling device effect:maintaining a constant temperature of the coolant.

4.The spindle built-in PTC 140 temperature sensor(Technical parameters are visible in other sections of this specification),you can read it anytime if you need to protect the motor temperature.

5. The tool clamping methods:this spindle built-in automatic tool change device,shank form is ISO20.

Please note that when stopping the spindle, you need to wait until the spindle is stopped before using the tool, so as to avoid causing the spindle and the tool mechanism to be connected together and cannot be separated. When loosening the tool and broaching the tool, you need to return the air, and pls keep the air intake and return air during the whole work.

0.1

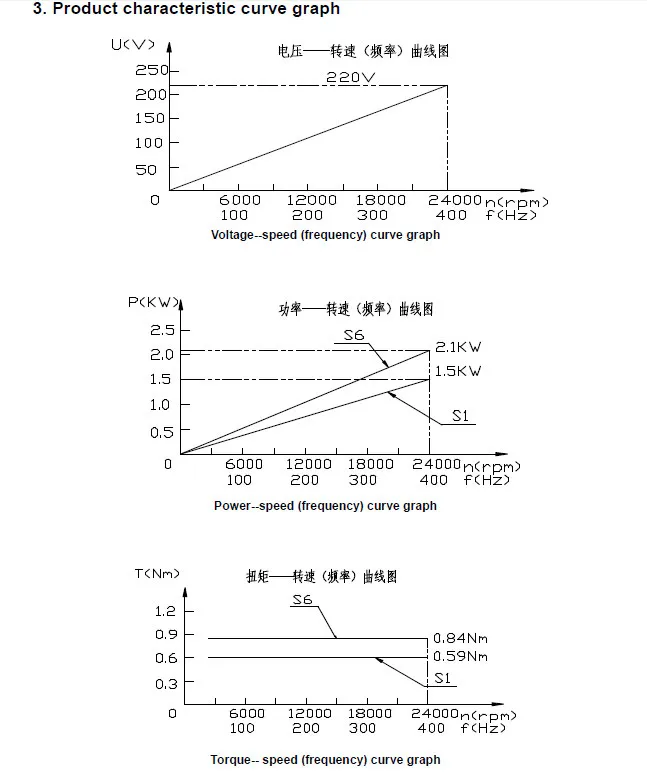

Automatic tool changer electric spindle parametric curve graph

0.1

Automatic tool changer electric spindle technical parameters

Spindle model:

RTM80-20-24Z/1.8 220V

Voltage:

220V

Maximum speed:

24000rpm

Rated frequency:

400Hz

Electric current:

5.4A

Motor level:

Level 2

Rated power:

1.8KW (S1)

Peak power:

2.1KW (S6)

Rated torque:

0.59Nm

Peak torque:

0.84N

Technical parameters:

No.

project

Standard

1

Spindle blowing dust/seal gas pressure (MPa)

0.2-0.25

2

Spindle gas seal gas flow

(L/min)

65±10(When on Working)

3

Cooling water pressure (MPa)

≥0.25

4

Cooling water flow (L/min)

≥2.5

5

Cooling water temperature (degree)

24-28

6

Spindle static state pulse (µm)

≤3

7

Spindle vibration (mm/s)

≤0.8

8

Spindle diameter (mm)

Diameter 80 (0/-0.020)

9

Motor windings Pressure test (V/M)

1000V/1 minute withstanding Voltage test

10

Tool Interface

ISO20

11

Inverter Specifications

2.2KW (220V)

12

Fitment

For castings, aluminum, glass, etc., and other processing

1.Circulating Cooling System Description

The system must ensure that the cooling water temperature of supply spindle is between 24-28 degree. Usually setting the flow switch in return pipe of the cooling system,to ensure the supply of spindle cooling water. Cooling water requirements: we recommend using distilled water, while recommend Feinuokesi (Fenix) protective agent F1 (using the scale of 1: 200),coolant temperature is 26 degree ±2 degree,inlet, outlet pipe temperature can’t exceed 5 degree.It is allowed As long as other monitoring can ensure fuller spindle cooling.

2.Air sealing control

In order to prevent water or impurities enters internal of the spindle,spindle will have gas sealing device,the gas seal machine must be started start with the machine at the same time. And the need to go through multi-stage filtration.

3.Compressed gas quality requirements

The quality requirement of gas which is used in gas seals:
Oil content: <0.01mg/m³
solid particle: <5µ m

Pressure dew point: <7.5degree (0.7MPa)


4. Running-in program instructions

Only all monitoring issued no failures operational signals,at the same time,all safety devices have been installed and working properly,then allow start spindle.
Note: new or spindle which is not used for a long time must to be running slowly.First,start run spindle for half an hour as 25% of the maximum speed,then increase  to 50% of the maximum speed,to run 15 minutes,finally, increase to maximum speed.It’s need to check the temperature of the spindle during the whole process, spindle will get hot, but not hot hand, if the spindle becomes hot, pls stop the operation and contact our customer service department.

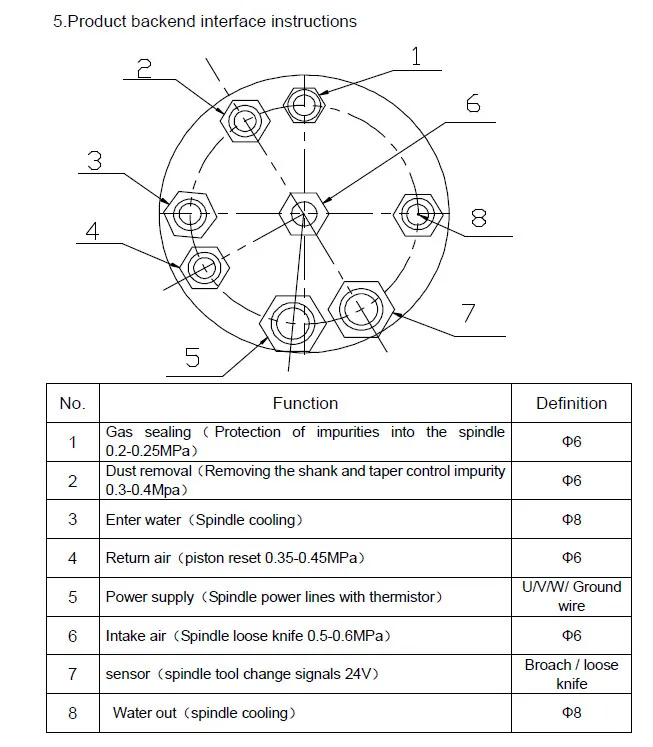

5. Product backend interface instructions:

0.1
