ZG450/1 bending tool is designed for bending sheet steel, sheet metal, ferrous
metals and other flexible materials.
Bending fastened in the vise
Technical data:
- the maximum thickness of
bent sheet - 1 mm
- max bending angle: 135 degrees
- working length: 450
mm (45cm)
- width of the beam bending: 22mm
- weight: 12 kg
The bending machine can be additionally equipped with an angular scale and
a bending angle limiter ensuring repeatability of the bending angle in the event of
bending a large number of identical elements.
Additional equipment https://www.ebay.co.uk/itm/114751590366

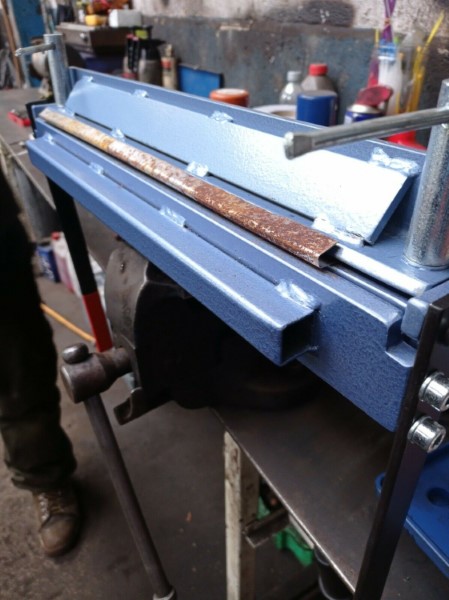

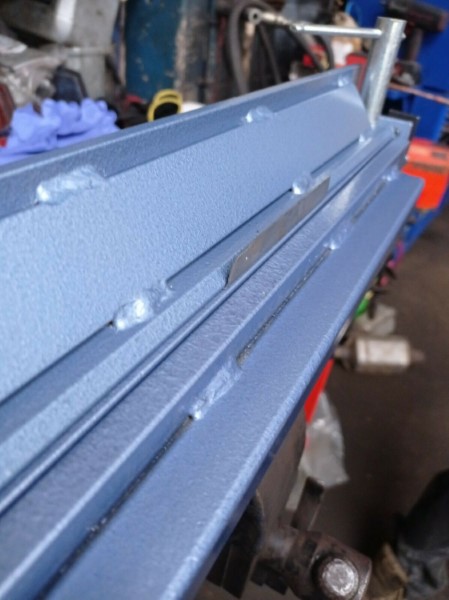

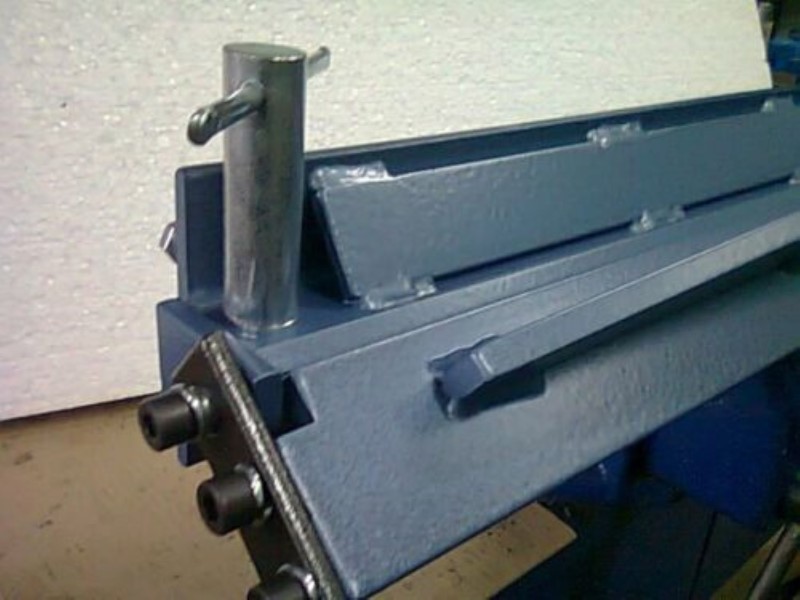

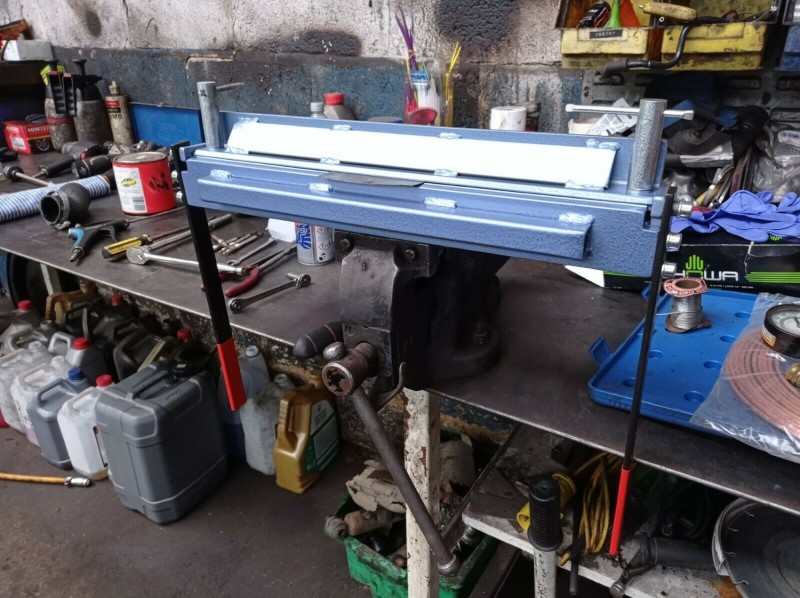

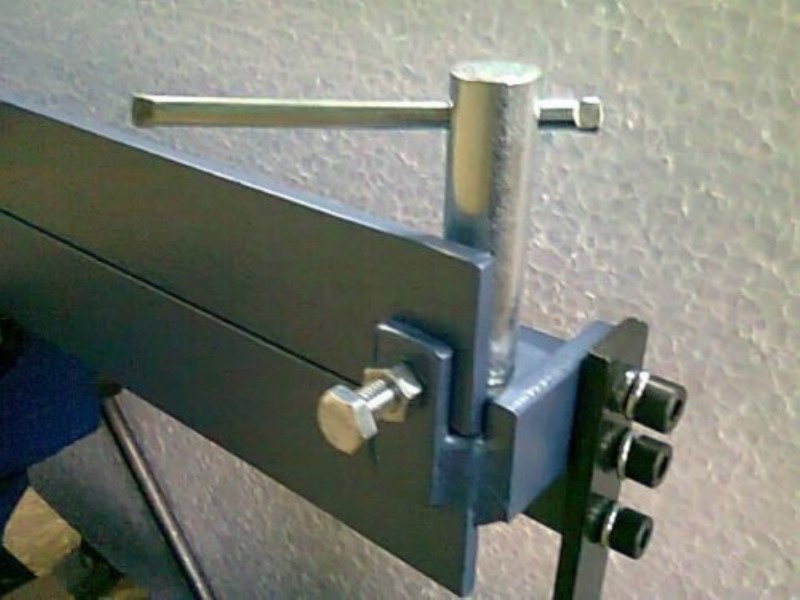

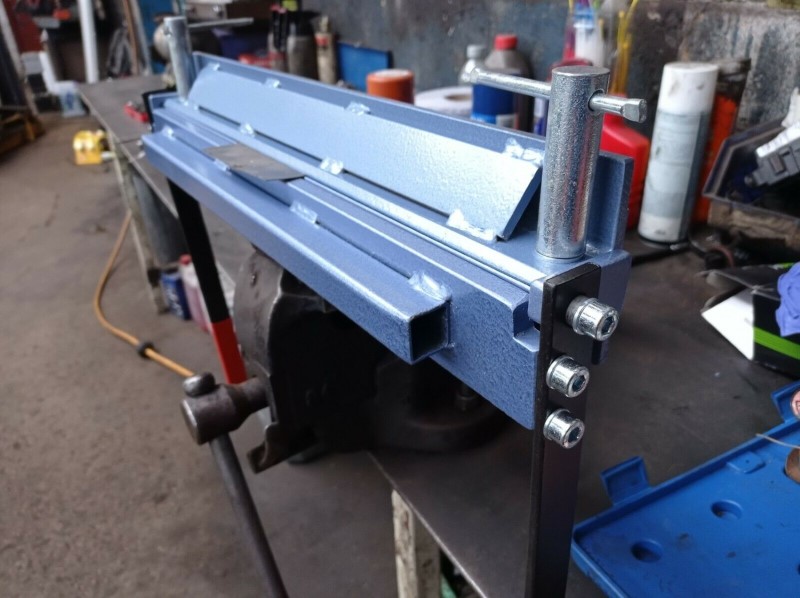

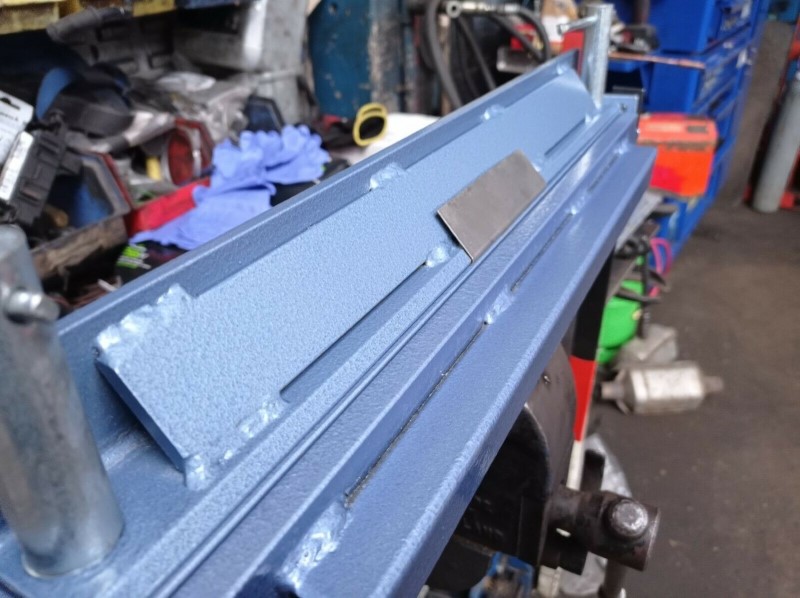

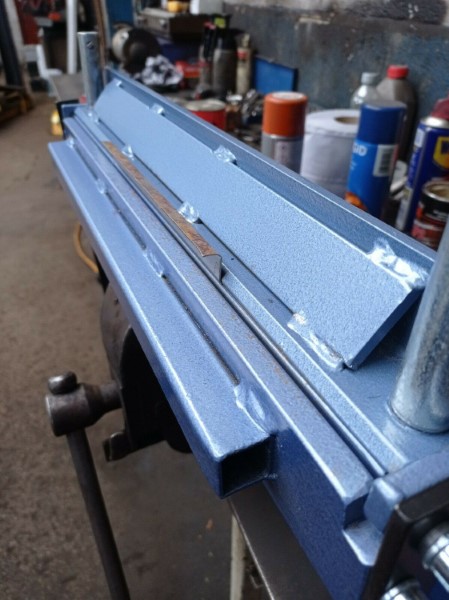

Pictures:
