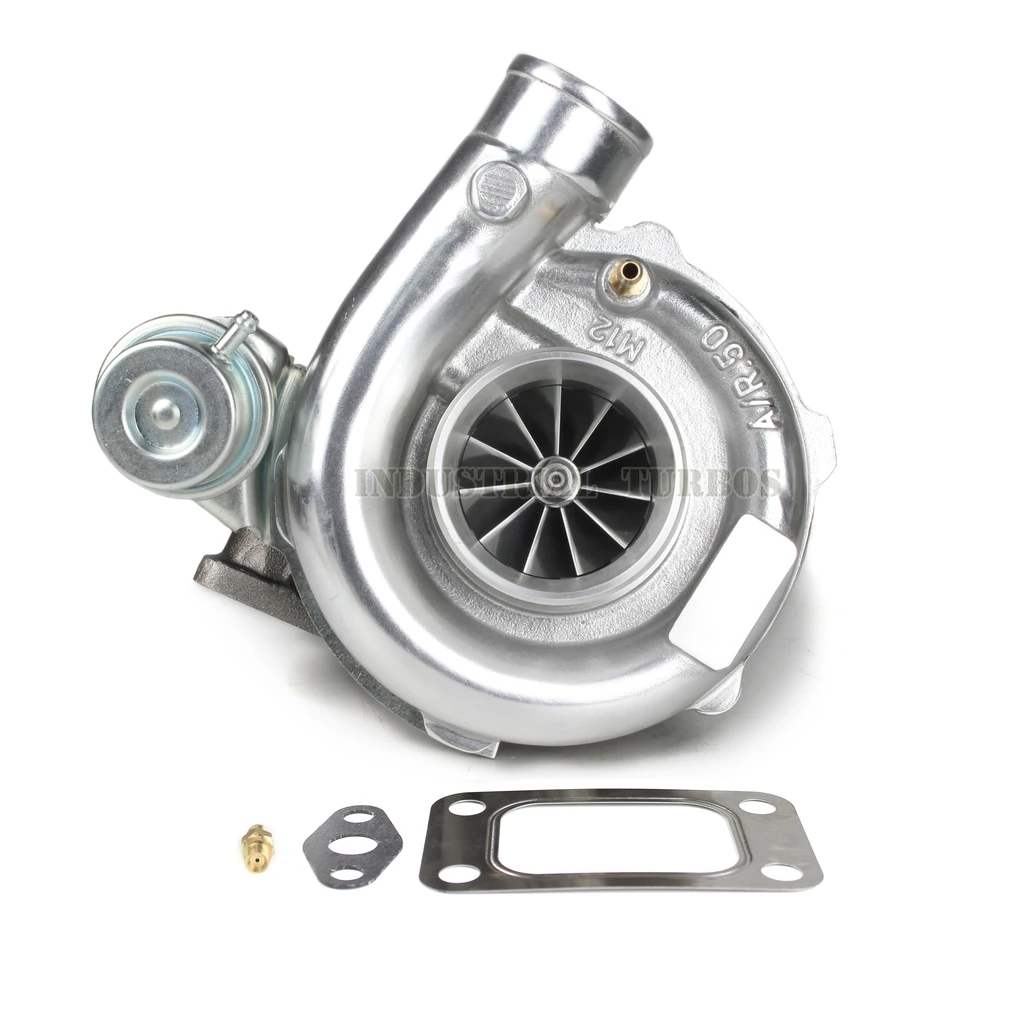

iTurbos STAGE 1.5 Upgrade Turbo for Ford BA/BF Falcon XR6, FPV F6/F6E/Typhoon Tornado, Territory, FG Falcon XR6/G6E

PRODUCT FEATURES

•journal bearing system
•11 blades gtx style forged billet compressor wheel
•upgrade aftermarket turbo for factory gt3582/40r&gt3576r turbocharger
•upgrade stepped gap seal ring on turbine end
•engine displacement 4.0L 6 cylinder, fit following models:

2002- BA FALCON XR6
2004- BF FALCON XR6
2008- FPV F6/TYPHOON/TORNADO
2006- TERRITORY
2008- FG FALCON XR6
2008- FG FALCON G6E

TECHNICAL DATA

COMPRESSOR WHEEL	Wheel type:	Billet
	Blades:	11+0
	Wheel Inducer:	61.4mm
	Wheel Exducer:	82mm
	Trim:	56
	Extended Tip:	86.5mm
CENTER SECTION	Bearing Type:	Journal Bering
	Thrurst Bearing:	360 degree bearing design
	Seal Ring:	Stepped gap design on turbine end
TURBINE WHEEL	Blades:	10+0
	Wheel Inducer:	68mm
	Wheel Exducer:	62.3mm
	Trim:	84

PACKAGE CONTENT

•1*TURBOCHARGER
•1*STAINLESS STEEL T3 GASKET
•1*OIL RESTRICTOR
•1*OIL OUTLET GASKET

FAQ

1. is this a garrett turbo turbo?

This is a brand new aftermarket turbo, we are the manufacturer of this turbocharger.

2. does this a drop-in replacement turbo?

For BA/BF Falcon XR6, FPV F6/TYPHOON/TORNADO and Territory---Yes.
For FG Falcon XR6/G6E, a simple adjustment of the turbo clock might be required.

3. what can I benefit from billet compressor wheel?

The biggest advantage of billet compressor wheel(vs cast compressor wheel) is it is machined on a 5-Axis mill, the wheel can be designed much more aggressive to get better aerodynamic. The nose and hub can be designed significantly smaller to allow for a greater blade diameter, the blades can be machined much more complicated to increase blade surface area, which can flow more air into the engine.

4. what is the working pressure of the actuator, what's the size of the waste gate port?

The working pressure of the actuator is 7PSI, the waste gate port size is 28mm, flapper size is 32mm.
