1. Main Technical Parameters

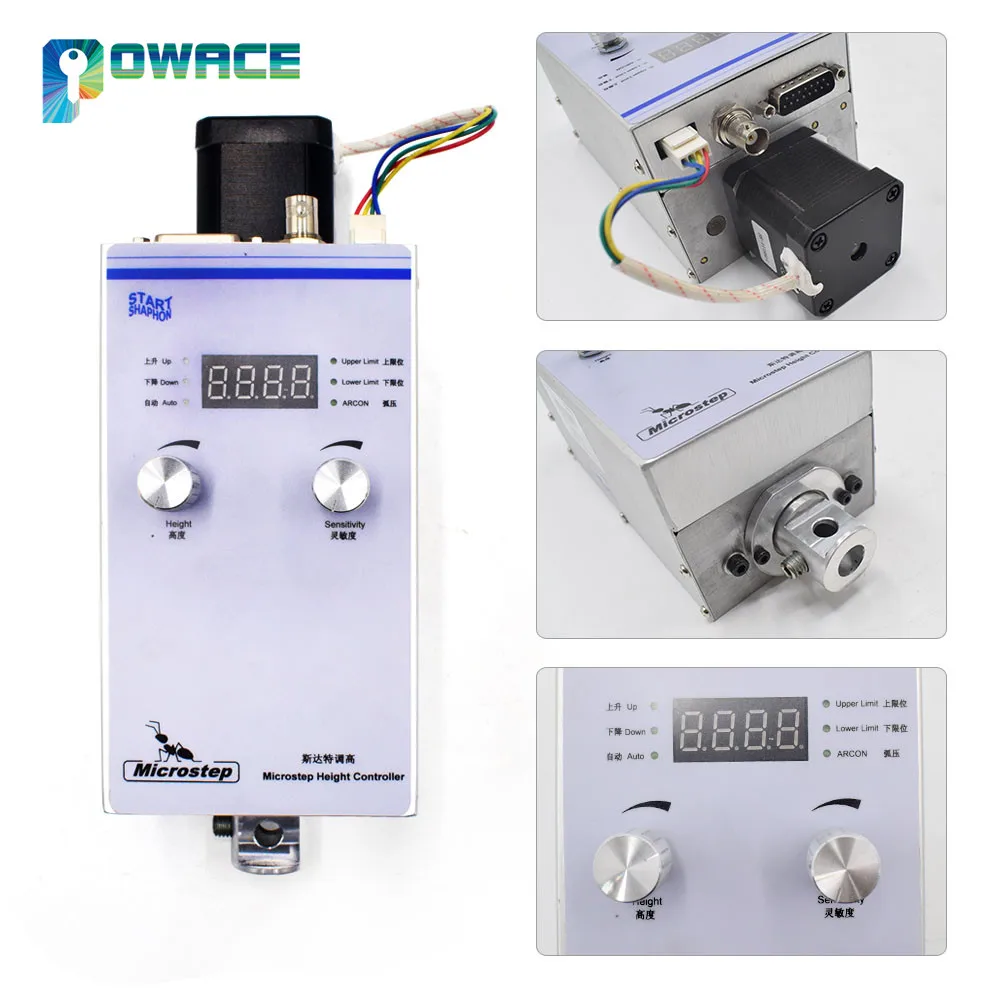

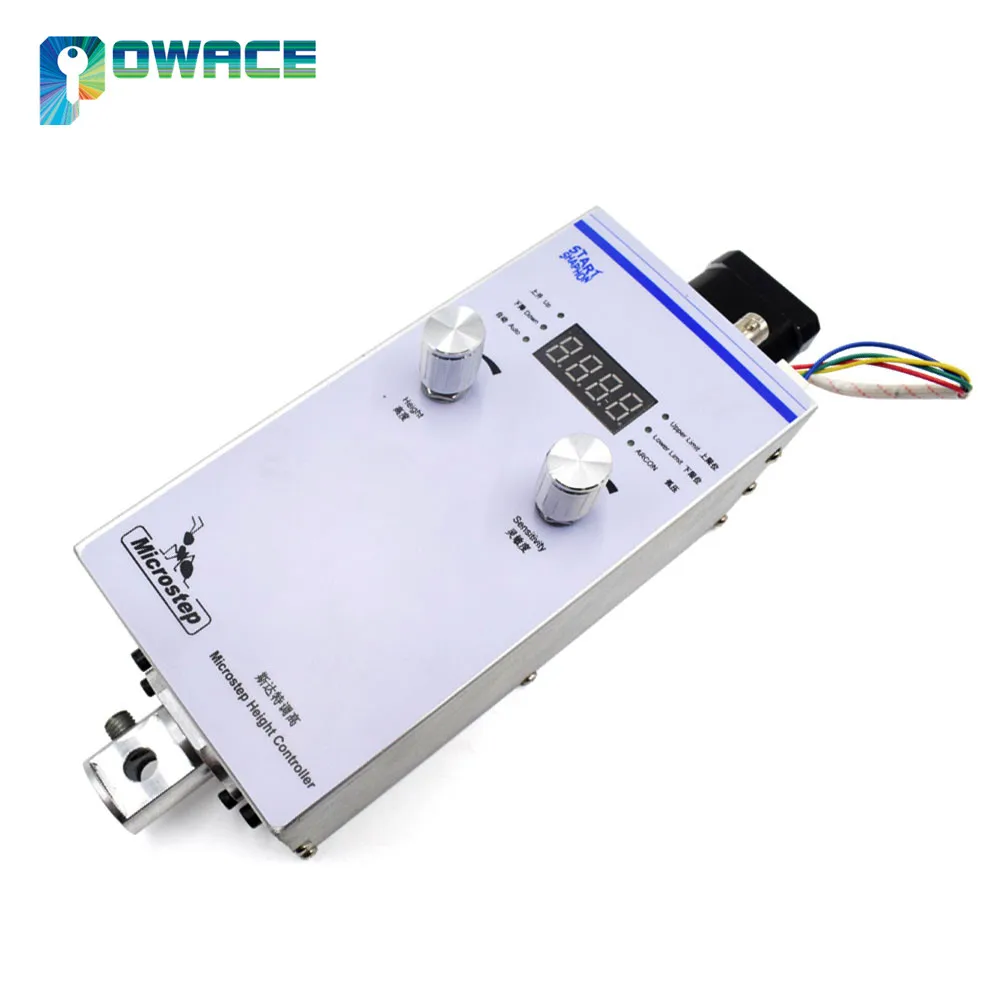

Trade name	flame / plasma cutting torch height controller
Power Requirements	DC 24V ± 2 V 3 A
Applicable motor	17 / 23 Nema series of stepper motors
Manual adjustment range	0 ~ 100 mm
Automatic increase of control range	3 ~ 30 mm
Automatic increase of control	3000 mm / min (30 ° slope)
Control precision	±0.5 mm
Dimensions of box body	(155 × 87 × 71) mm
Operating temperature	-10 ~ 50 degree centigrade
Detection system	capacitance-type detector, arc voltage height detector
communication interface	RS232



2. Technical Features

1	Stepper motor instead of the traditional DC motor
2	The height of cutting nozzle is displayed directly in the mode of capacitance height control
3	Integration of mechanical lifting device and height controller
4	All Digital Technology
5	Simple and convenient linearization calibration
6	It can be used in tough environment
7	There are various interfaces that are easy to use
8	RS232 communication interface

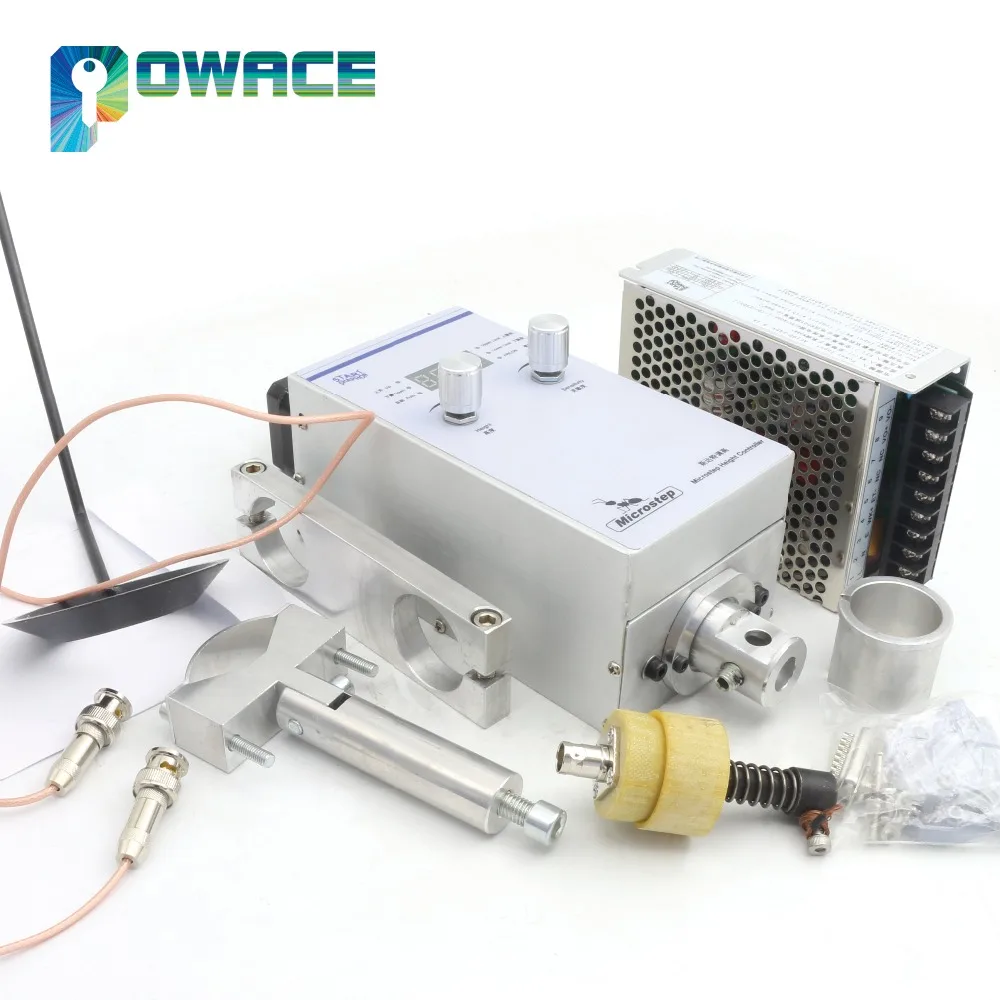

3. Package list

quantity	Category
1	SH-BC31
1	Lift stepper
1	Detector ring
1	Detector ring holder
2	Cutting torch holder
1	Standard high frequency cable
1	Partial pressure box
1	Detector ring anti-impact device
1	CD

 4. Mechanical Installation
